  • Brand : NEC
  • Size : 10.4″
  • Condition : Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 21,240.00
Rs. 24,860.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

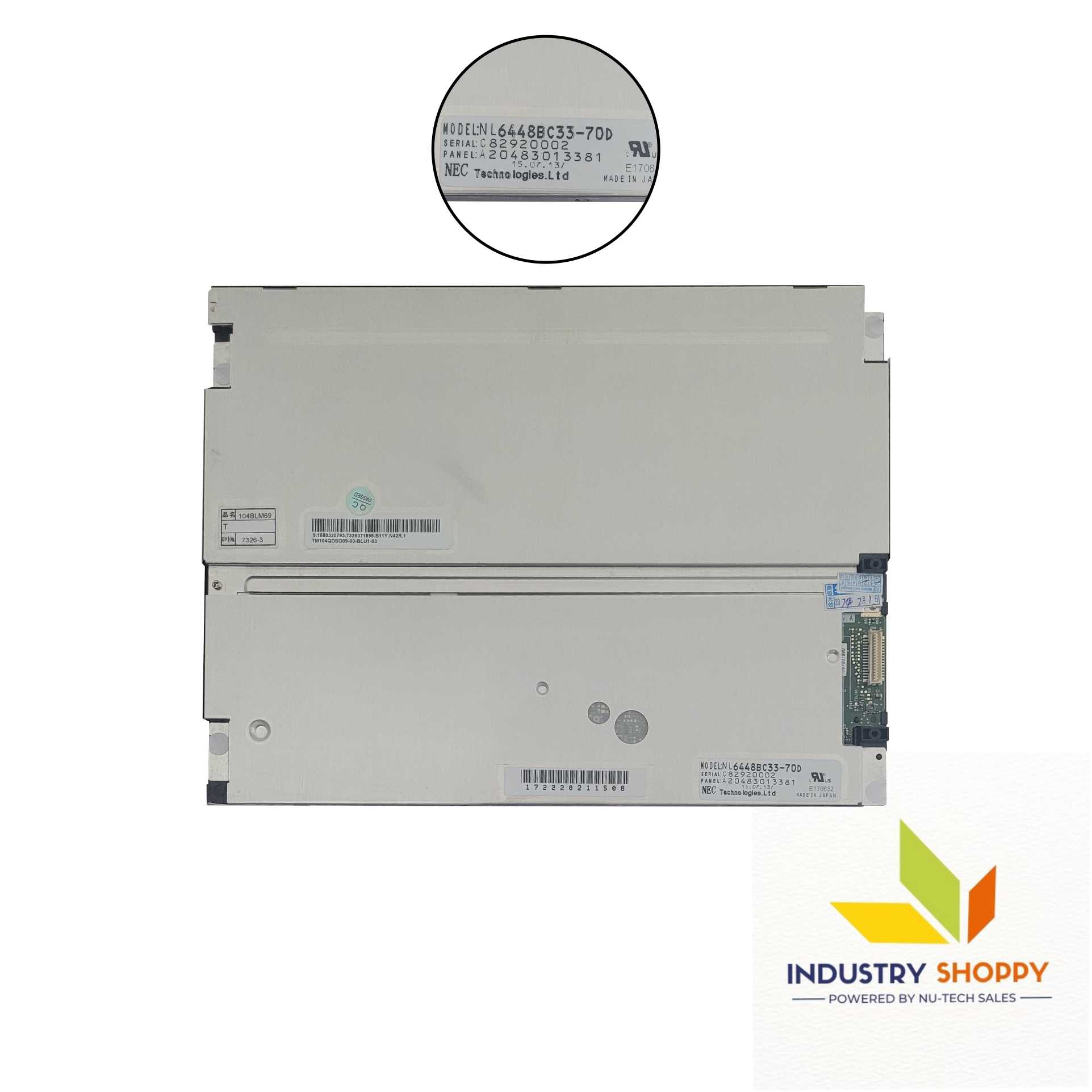

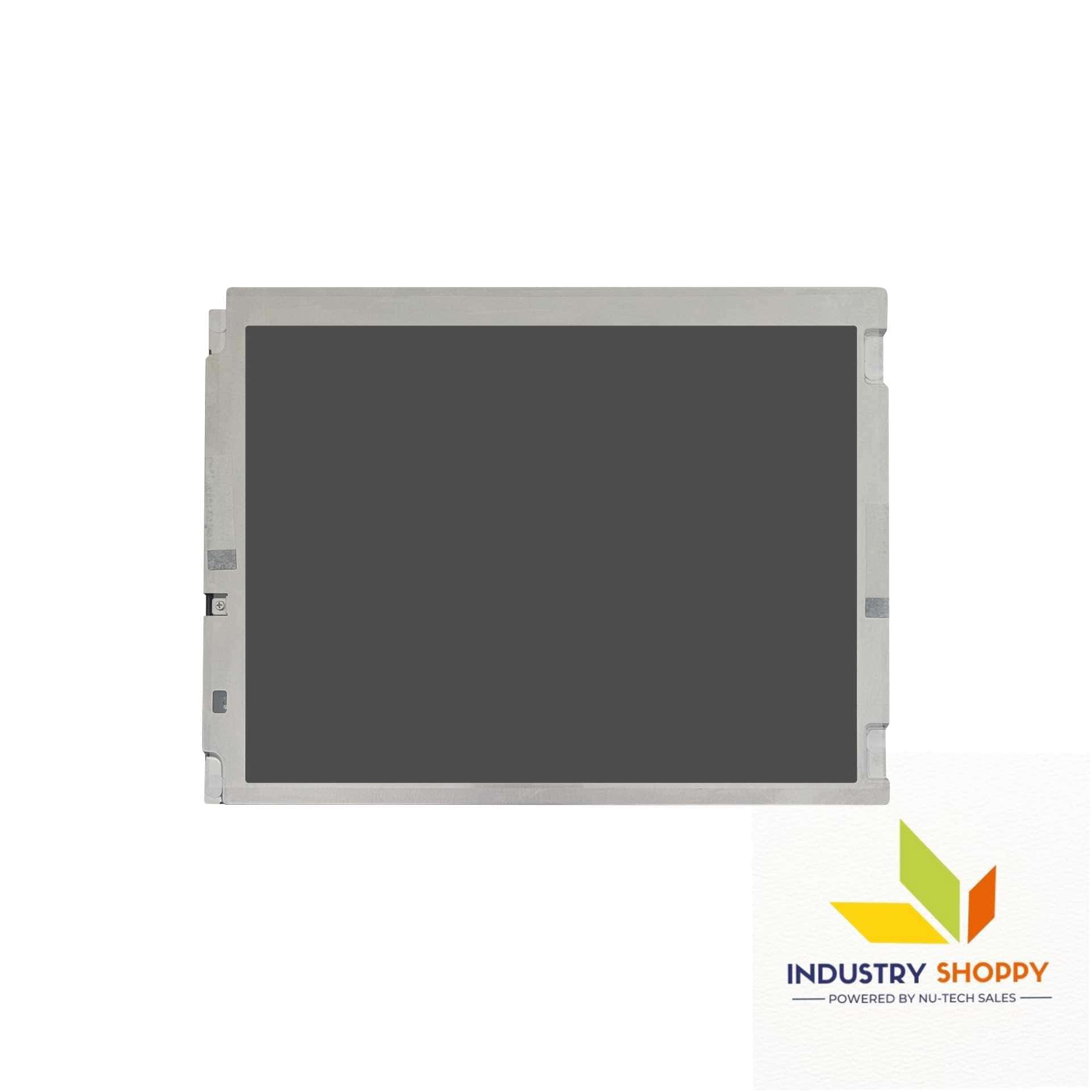

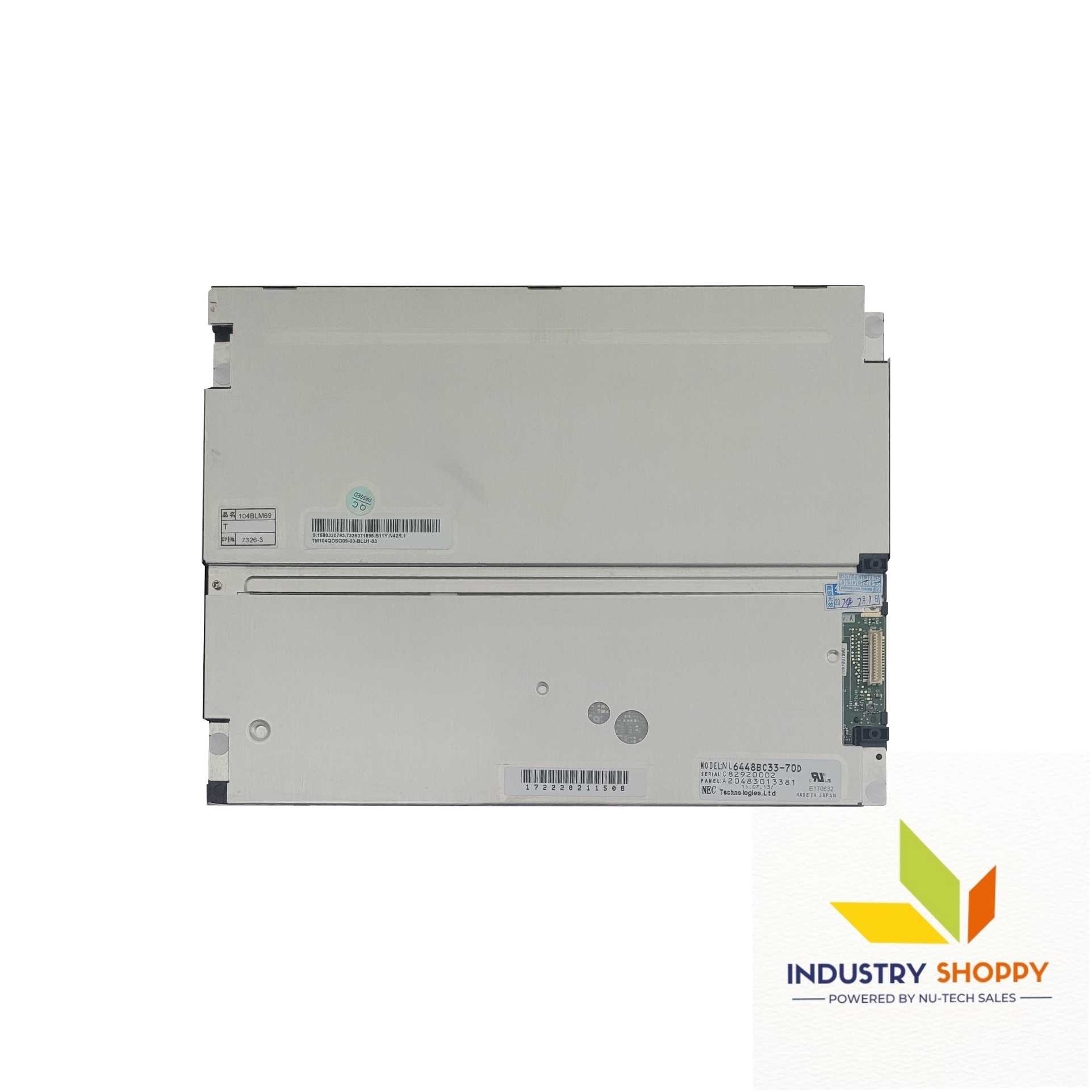

NEC NL6448BC33-70D LCD Module

The NEC NL6448BC33-70D LCD Module is 10.4-inch a-Si TFT-LCD display strikes a reliable balance between performance, durability, and visual clarity, making it a solid choice for industrial, medical, and embedded applications. With a VGA resolution of 640(RGB) × 480 and a pixel density of 76 PPI, this panel offers adequate sharpness for detailed user interfaces and graphic content.

Measuring 243(H) × 185.1(V) × 11(D) mm, the display features a generous active area of 211.2(W) × 158.4(H) mm, providing ample screen real estate while still fitting into compact enclosures. The 450 cd/m² typical luminance ensures the screen remains clearly visible even in moderately bright environments, while the 900:1 contrast ratio delivers a crisp separation between light and dark visuals.

Further enhancing the user experience, the display supports wide viewing angles of 80° in all directions (CR≥10), making it ideal for applications requiring multi-angle visibility. The fast 3/15 ms (Tr/Td) response time also reduces ghosting, which is particularly beneficial in dynamic visual contexts.

Thanks to its TN, Normally White, Transmissive operating mode, this panel maintains excellent brightness while remaining power efficient. It supports 262K colors at 40% NTSC, suitable for applications where vivid but not color-critical display is needed.



Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube


BrandNEC
Diagonal Size10.4"
Resolution640(RGB)×480, VGA 76PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension243×185.1×11 (H×V×D) mm
Luminance450 cd/m² (Typ.)
Contrast Ratio900:1 (Typ.) (TM)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Response Time3/15 (Typ.)(Tr/Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K 40% NTSC

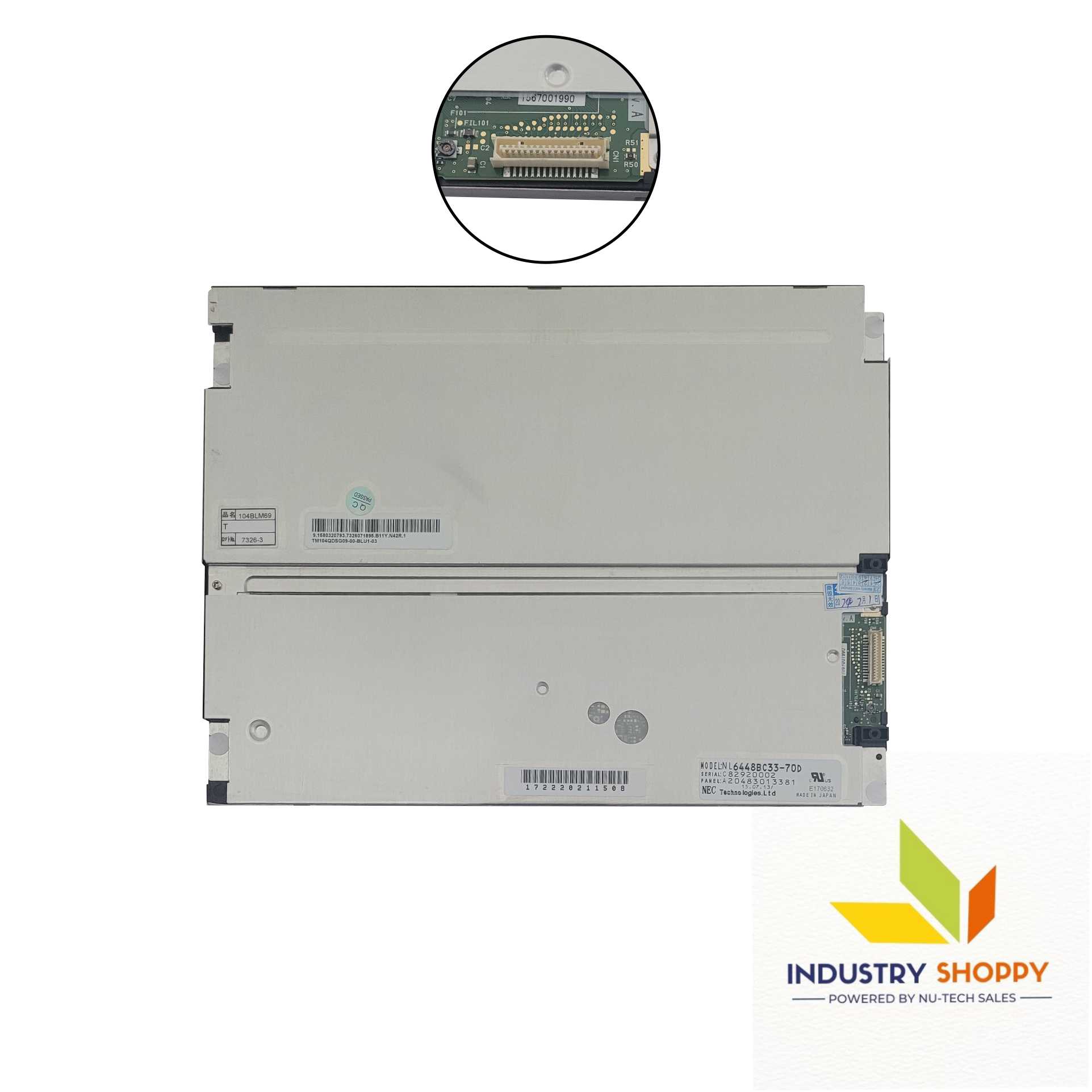

Signal Interface TypeCMOS (1 ch, 6-bit), Connector 31 pins
Frame Rate60Hz
Power Supply3.3/5.0V (Typ.)
Backlight3 strings WLED, 70K hours, No Driver
Operating Temp.-30 ~ 80 °C
Storage Temp.-30 ~ 80 °C
