Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma TM035KBH02 LCD Module With Touch Screen
Tianma

Tianma TM035KBH02 LCD Module With Touch

Product SKU: NTSLCD0019
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : TIANMA
  • Size : 3.5″
  • Condition  :  New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 3,750.00
Rs. 5,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

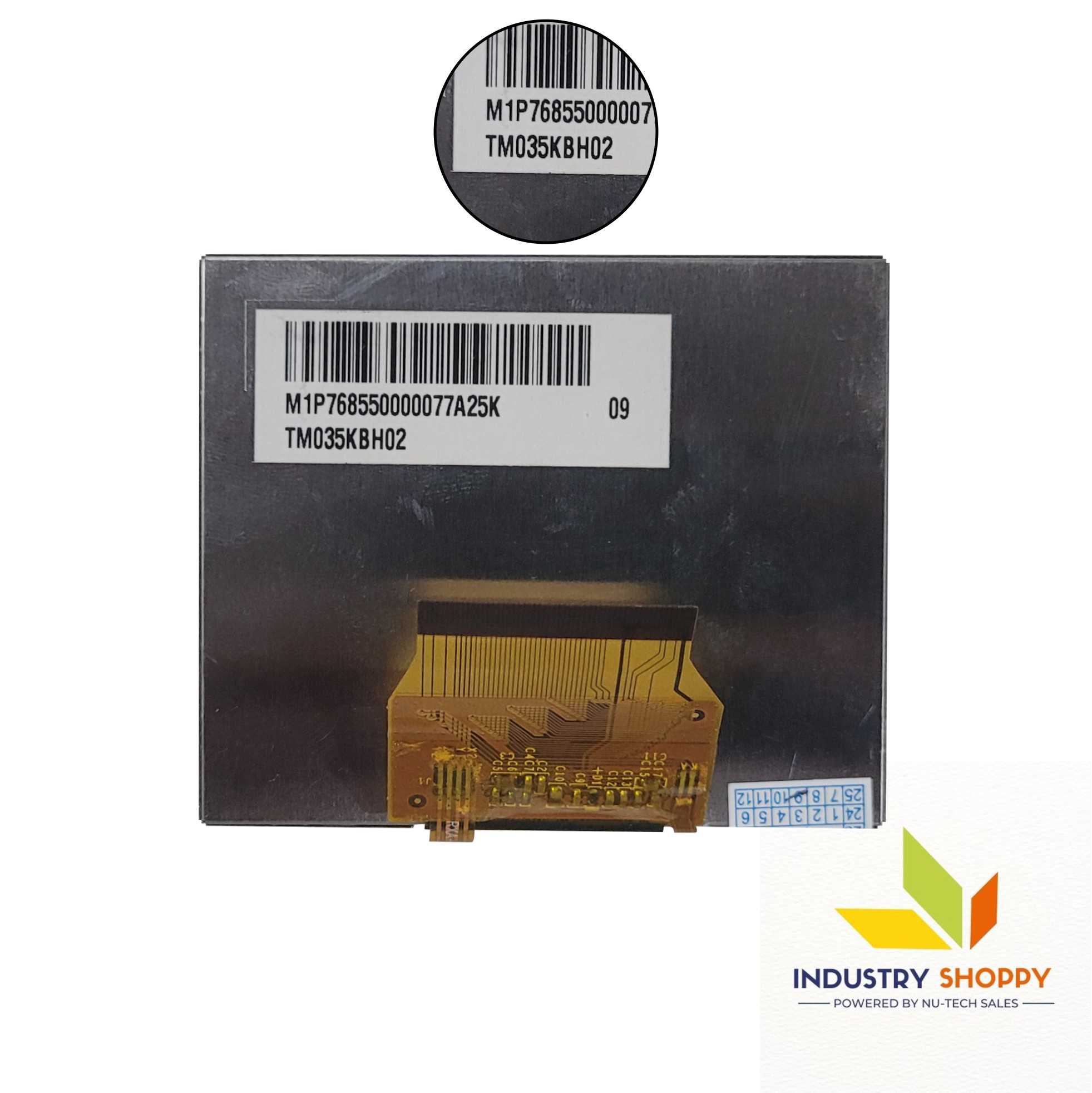

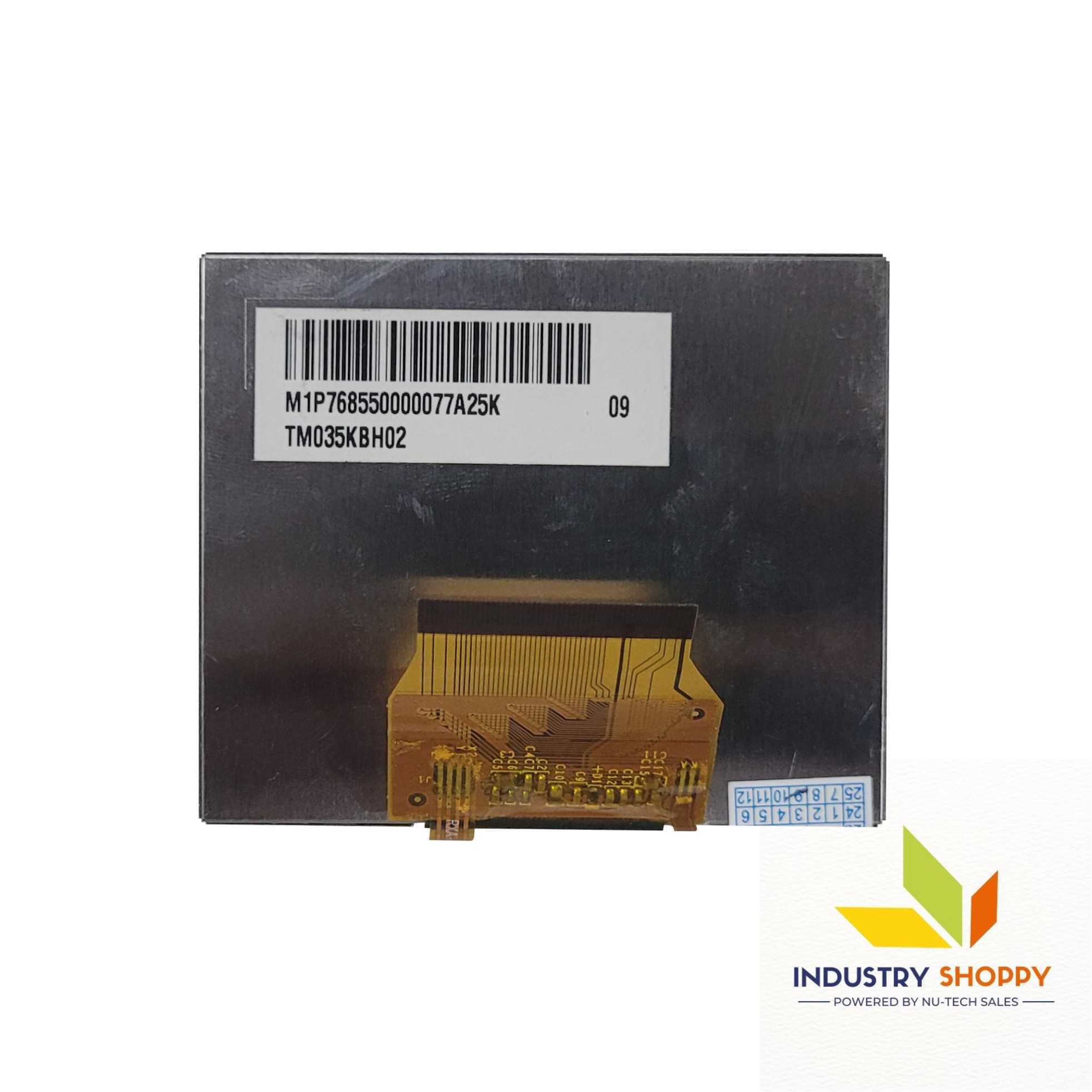

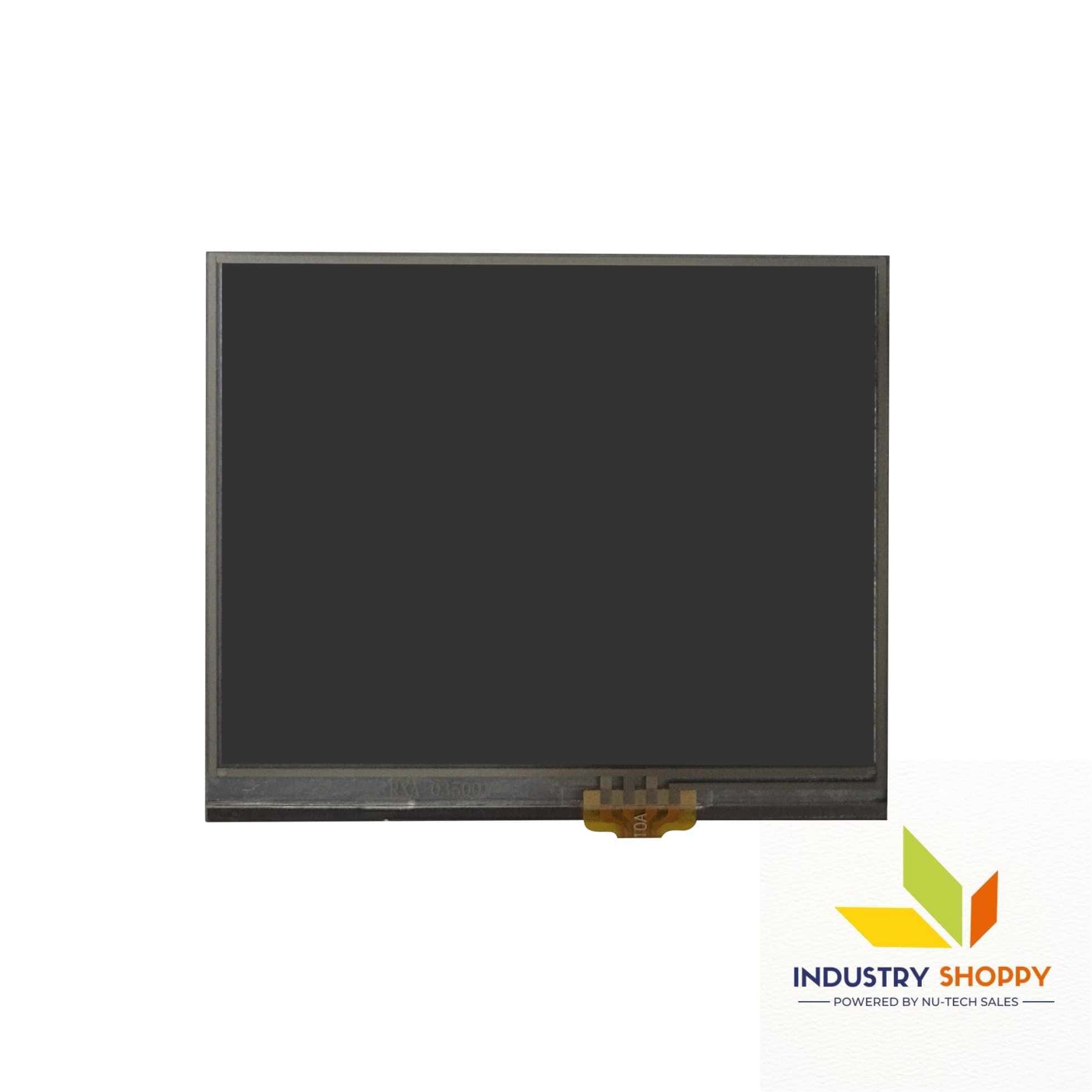

Tianma TM035KBH02 LCD Module With Touch screen


The Tianma TM035KBH02 LCD Module With Touch Screen 3.5" a-Si TFT-LCD panel offers a compact yet vibrant display, making it ideal for handheld devices, industrial controls, and embedded systems. Featuring a QVGA resolution (320×240) and 115 PPI, this 3.5" display delivers sharp visuals within a 70.08×52.56 mm active area. With 350 cd/m² brightness and a 500:1 contrast ratio, it ensures clear readability in varied lighting. The TN panel, in Normally White, Transmissive mode, offers efficient brightness, while wide 70/70/60/70° viewing angles maintain visibility from multiple directions.

Thanks to a 25 ms response time, it supports smooth transitions suitable for basic animations and interactive use. The display renders 16.7M colors with 53% NTSC coverage, offering lifelike color output.Protected by antiglare treatment and a 3H hard coating, the screen resists scratches and reflections. It supports a versatile Digital RGB (8/24-bit) + SPI, CCIR601/656 interface via a 54-pin FPC connector, operating at 60Hz and powered by 3.3V.

Its 6S1P WLED backlight, rated for 20,000 hours, ensures reliable operation, while the module withstands temperatures from -20°C to 60°C (operation) and -30°C to 70°C (storage).




Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandTIANMA
Diagonal Size3.5"
Resolution320(RGB)×240, QVGA 115 PPI
Active Area70.08(W)×52.56(H) mm
Outline Dimension76.9(W)×63.9(H)×4.2(D) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle70/70/60/70 (Typ.) (CR≥10)
Response Time25 (Typ.) (Tr+Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color16.7M, 53% NTSC
Signal Interface TypeDigital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins FPC
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
Backlight6S1P WLED, 20K hours, Without Driver
Operating Temp.-20 ~ 60 °C
Storage Temp.-30 ~ 70 °C
