21% Rs. 1,775.00

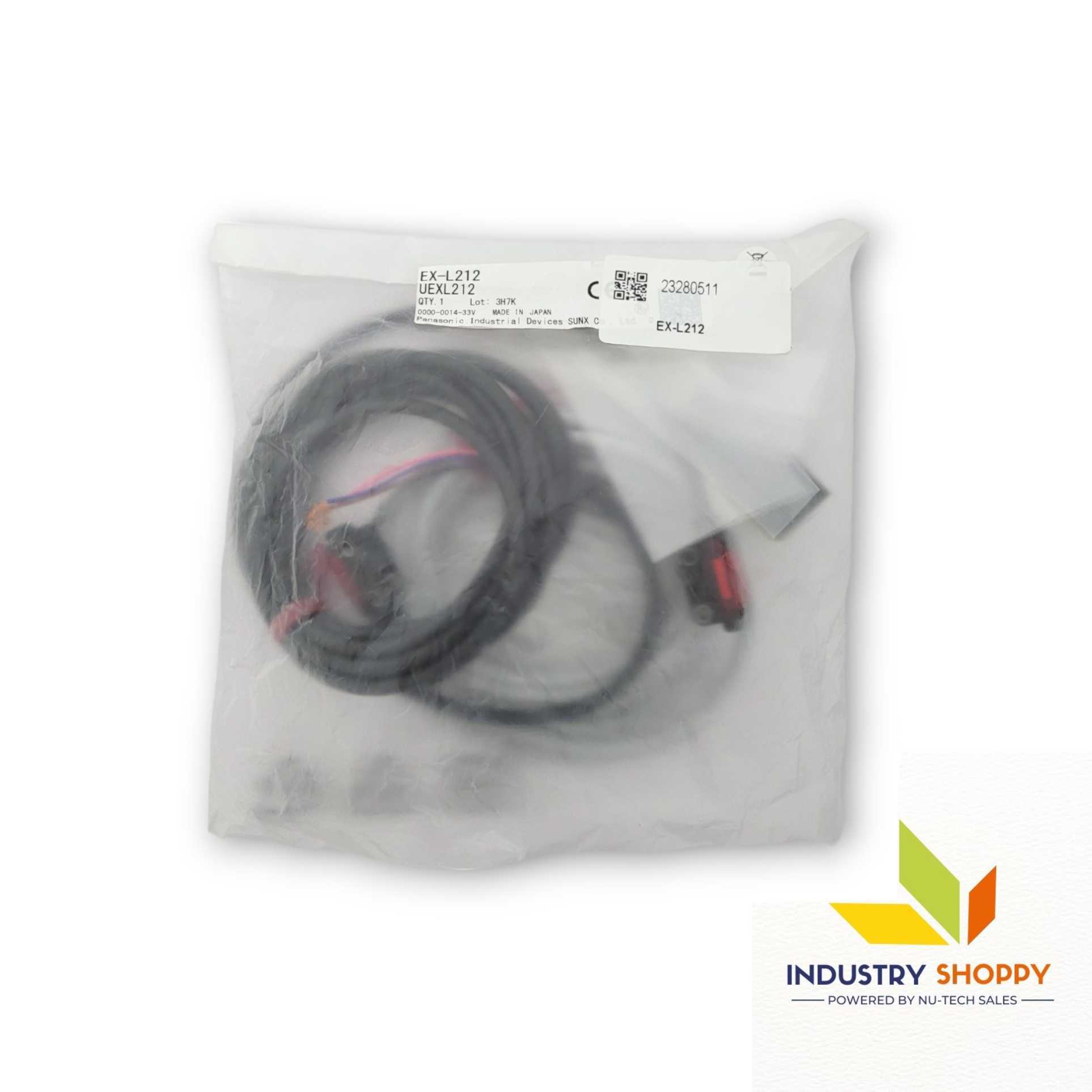

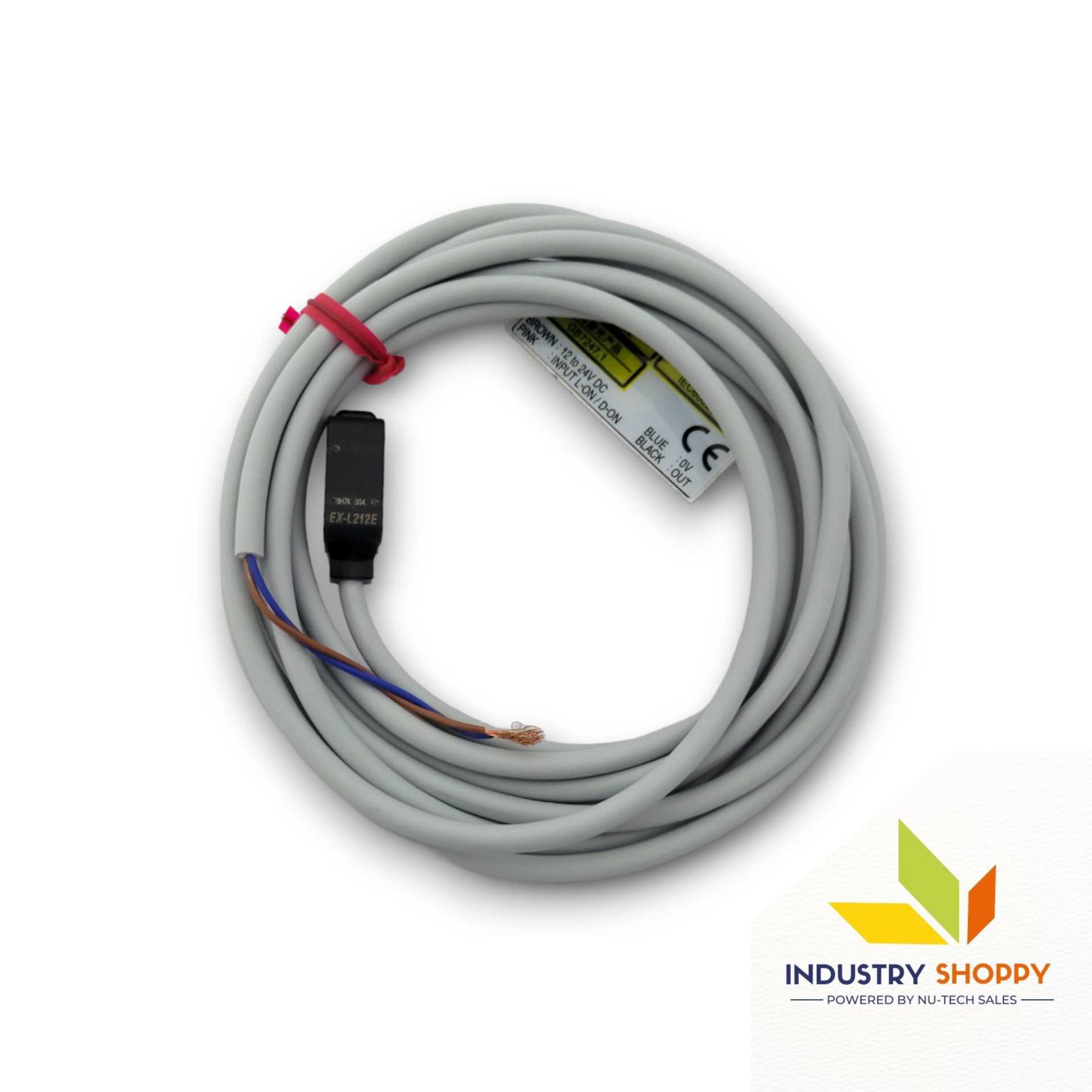

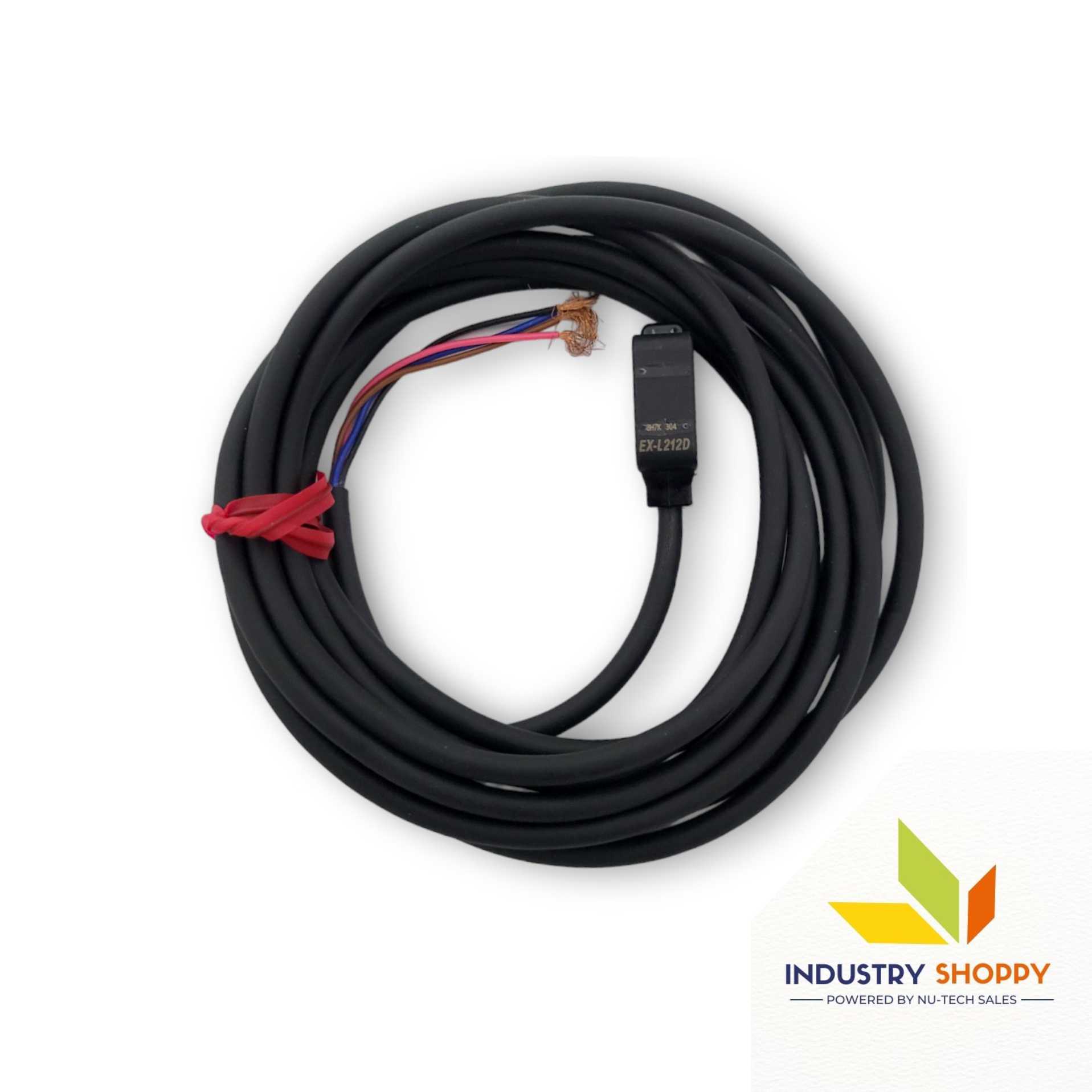

Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic

Panasonic EX-L212 Photoelectric Sensor

Product SKU: NTSSEN00384
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Output : NPN open-collector transistor
  • Supply Voltage : 12..24 VDC
  • Current Consumption : Emitter: 10 mA or less Receiver: 10 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 6,725.00
Rs. 8,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic EX-L212 Photoelectric Sensor

    The Panasonic EX-L212 Photoelectric Sensor (UEXL212, EXL212) bearing the CE Marking Directive compliance, provides a robust sensing range of 3 meters, making it ideal for various industrial applications. The Panasonic EX-L212 Photoelectric Sensor features an NPN open-collector output with a maximum sink current of 50 mA, supporting both Light-ON and Dark-ON modes for flexible operation. It includes built-in short-circuit and reverse polarity protection, ensuring safe and reliable performance. With a fast response time of 0.5 ms or less, it enables efficient and precise object detection.

    Engineered for harsh environments, the sensor offers an IP67 rating for dust and water resistance, along with vibration and shock resistance, making it suitable for demanding industrial conditions. Constructed from polybutylene terephthalate for the enclosure and glass for the lens, it delivers long-term durability and stable performance.

    Weighing approximately 90 grams and supplied with mounting accessories, the EX-L212 is easy to install and ideal for various industrial automation applications. Manufactured in Japan, it meets high-quality standards, ensuring consistent and accurate sensing in diverse settings.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NumberEX-L212
    Part NumberUEXL212
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range3 m (9.843 ft)
    Emission Spot Size (Typical)Approx. 8 × 5.5 mm (0.315 × 0.217 in) at 1 m; at 3 m: 17 × 11 mm (0.669 × 0.433 in, visual reference)
    Sensing ObjectOpaque object Ø3 mm (0.118 in) or more
    Minimum Sensing Object (Typical)-
    Repeatability≤0.05 mm (0.002 in) perpendicular to sensing axis
    Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
    Current ConsumptionEmitter: ≤10 mA, Receiver: ≤10 mA
    OutputNPN open-collector transistor, Max sink current: 50 mA, Applied voltage: ≤26.4 V DC, Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA)
    Output OperationLight-ON / Dark-ON selectable by output operation switching input
    Output Short-Circuit ProtectionIncorporated (short-circuit protection / inverse polarity protection)
    Response Time≤0.5 ms
    Operation IndicatorOrange LED (lights when output is ON; on receiver for thru-beam type)
    Stability IndicatorGreen LED (lights under stable light/dark condition; on receiver for thru-beam type)
    Power Indicator-
    Sensitivity Adjuster-
    ProtectionIP67 (IEC)
    Ambient Temperature-10 to +55 °C (+14 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
    Ambient IlluminanceIncandescent light: ≤3,000 lx at light-receiving face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger between terminals and enclosure
    Vibration Resistance10–500 Hz, 1.5 mm double amplitude (0.059 in), 10 G max, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (≈50 G) X/Y/Z directions, 3 times each
    Emitting ElementRed semiconductor laser, Class 1 (Max output: 390 µW, Peak wavelength: 655 nm)
    MaterialEnclosure: Polybutylene terephthalate, Front cover: Acrylic, Lens: Glass, Indicator part: Polyarylate
    Cable0.15 mm² 4-core cabtyre cable, 2 m (emitter of thru-beam type: 2-core)

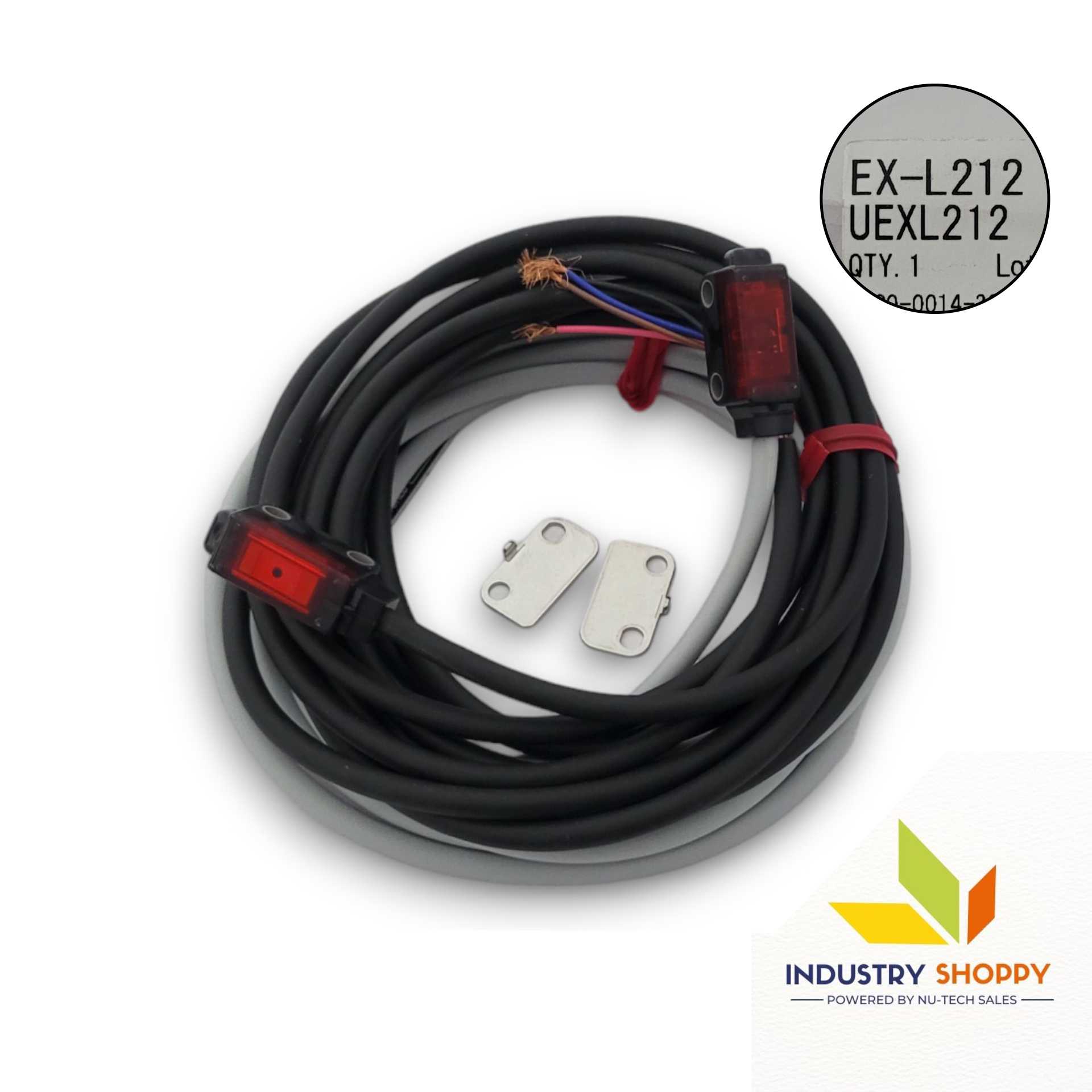

    AccessoryMS-EXL2-2 (Mounting plate), 2 pcs
    Country of OriginJapan
