Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic DP-101A Digital Pressure Sensor
Panasonic

Panasonic DP-101A Digital Pressure Sensor

Product SKU: NTSSEN00240
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Connecting method : Connector
  • Warranty : 12 Months
Rs. 3,785.00
Rs. 4,845.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

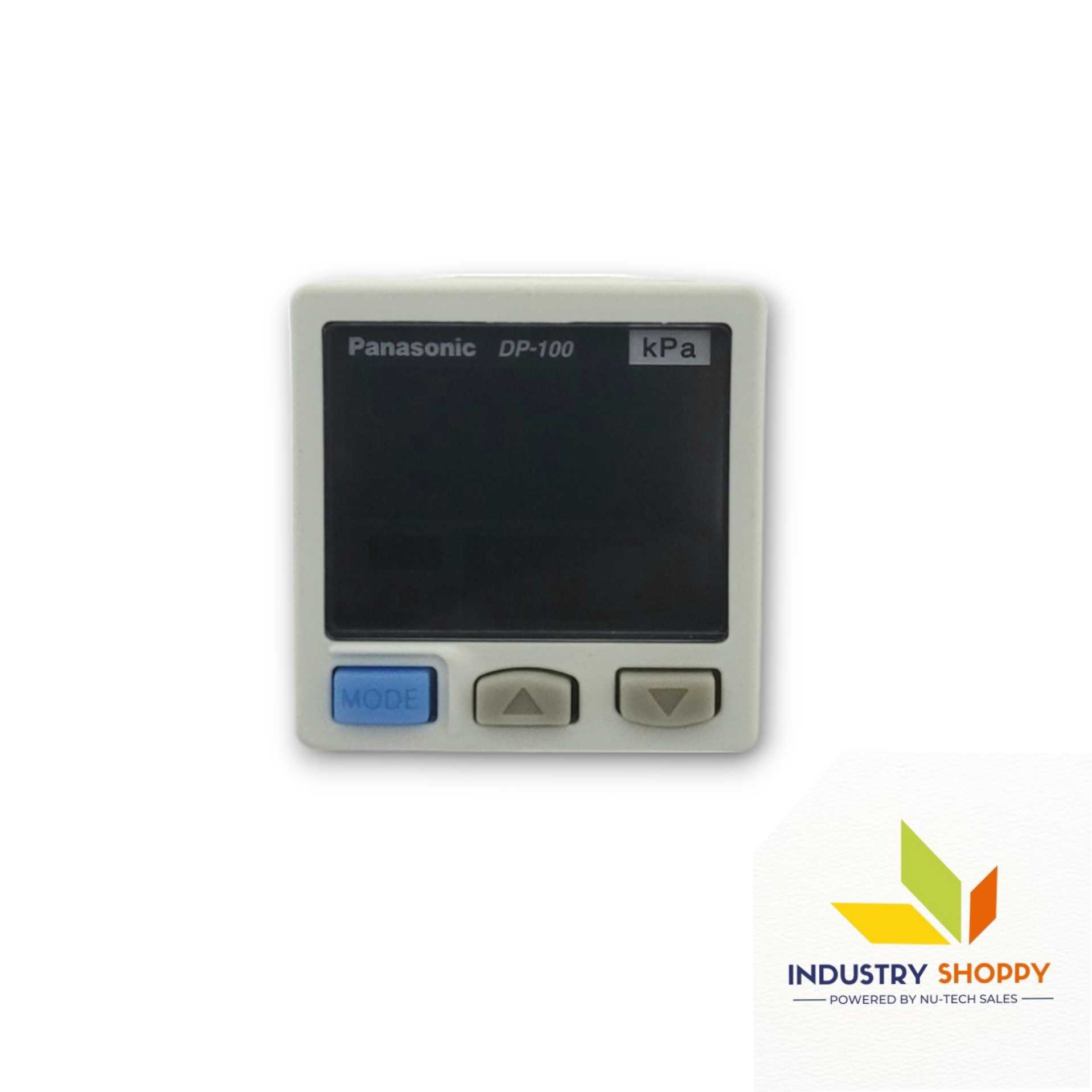

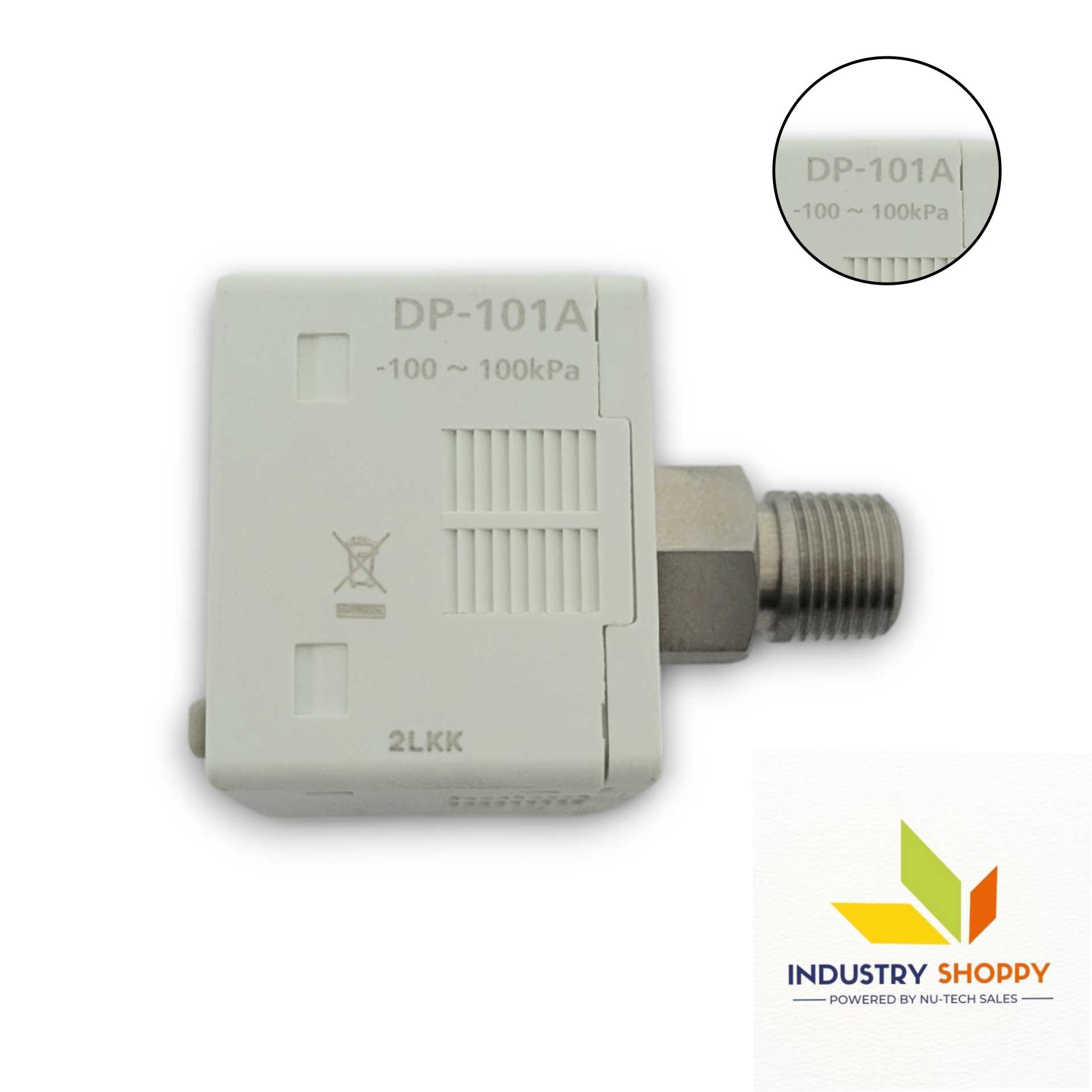

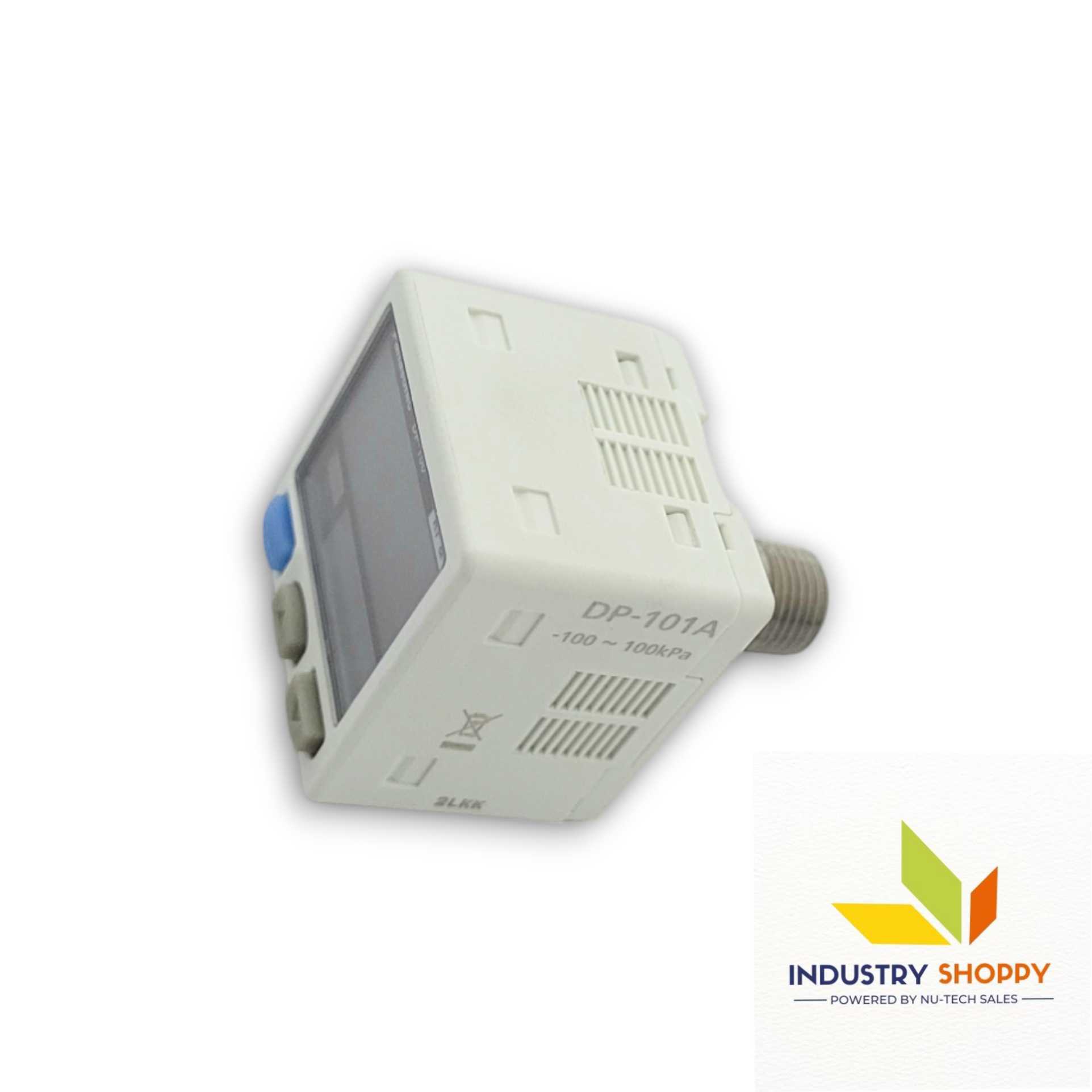

Panasonic DP-101A Digital Pressure Sensor

The Panasonic DP-101A Digital Pressure Sensor, also known by its part number UDP101A, complies with the EMC Directive and RoHS Directive. It's designed for gauge pressure measurement, with a rated pressure range of -100.0 to +100.0 kPa and a set pressure range spanning from -101.0 to +101.0 kPa. It also supports various other pressure units, including kgf/cm2, bar, psi, mmHg, and inHg, catering to diverse applications.

The Panasonic DP-101A Digital Pressure Sensor is featuring a pressure with standability of 500 kPa, the DP-101A operates on a supply voltage of 12 to 24 V DC with low power consumption. It offers versatile output options, such as NPN open-collector transistor, analog current output, and analog voltage output. Additionally, it includes short-circuit protection and an orange LED indicator for ease of use and safety.

Constructed with high-quality materials like PBT, stainless steel, and acrylic, the DP-101A ensures durability and reliability. It boasts IP40 protection against dust and moisture ingress, making it suitable for various industrial environments. With its compact design and connector-based connecting method, installation is simple and efficient, offering convenience to users.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


Product NumberDP-101A
Part NumberUDP101A
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Type of PressureGauge pressure
Rated Pressure Range-100.0 to +100.0 kPa
Set Pressure Range-101.0 to +101.0 kPa / -1.030 to +1.030 kgf/cm² / -1.010 to +1.010 bar / -14.64 to +14.64 psi / -757 to +757 mmHg / -29.8 to 29.8 inHg
Pressure With standability500 kPa
Applicable FluidNon-corrosive gas
Supply Voltage12 to 24 V DC ±10 %, Ripple P-P ≤10 %
Power ConsumptionNormal: ≤720 mW (≤30 mA at 24 V); ECO mode: STD ≤480 mW (≤20 mA), FULL ≤360 mW (≤15 mA)
Comparative OutputNPN open-collector transistor, Max sink current 100 mA, Applied voltage ≤30 V DC, Residual voltage ≤2 V
Output OperationNO / NC (selectable by key)
Output ModesEASY / Hysteresis / Window comparator mode
HysteresisMin 1 digit (2 digits for psi unit)
Repeatability±0.1 % F.S. (within ±2 digits)
Response Time2.5 ms – 5,000 ms (selectable by key)
Short-Circuit ProtectionIncorporated
External InputON ≤0.4 V DC; OFF 5–30 V DC or open; Input impedance ~10 kΩ; Input time ≥1 ms
Analog Current Output4–20 mA, Zero: 12 mA ±5 % F.S., Span: 16 mA ±5 % F.S., Linearity ±1 % F.S., Load ≤250 Ω
Analog Voltage Output1–5 V DC, Zero: 3 V ±5 % F.S., Span: 4 V ±5 % F.S., Linearity ±1 % F.S., Output impedance ~1 kΩ
Display4+4 digits, 3-color LCD, Refresh rate 250, 500, 1,000 ms (selectable)
Displayable Pressure Range-101.0 to +101.0 kPa / -1.030 to +1.030 kgf/cm² / -1.010 to +1.010 bar / -14.64 to +14.64 psi / -757 to +757 mmHg / -29.8 to 29.8 inHg
IndicatorOrange LED (comparative output ON; analog voltage output setting)
ProtectionIP40 (IEC)
Ambient TemperatureOperation: -10 to +50 °C / Storage: -10 to +60 °C
Ambient Humidity35–85 % RH (No dew condensation or icing), Storage: 35–85 % RH
Voltage Withstandability1,000 V AC, 1 min between all supply terminals and enclosure
Insulation Resistance≥50 MΩ with 500 V DC between all supply terminals and enclosure
Vibration Resistance10–500 Hz, 3 mm double amplitude or max 196 m/s²; panel-mounted: 10–150 Hz, 0.75 mm amplitude / max 49 m/s²
Shock Resistance100 m/s² (10 G) in X, Y, Z directions, 3 times each
Temperature Characteristics±0.5 % F.S. (at 20 °C)

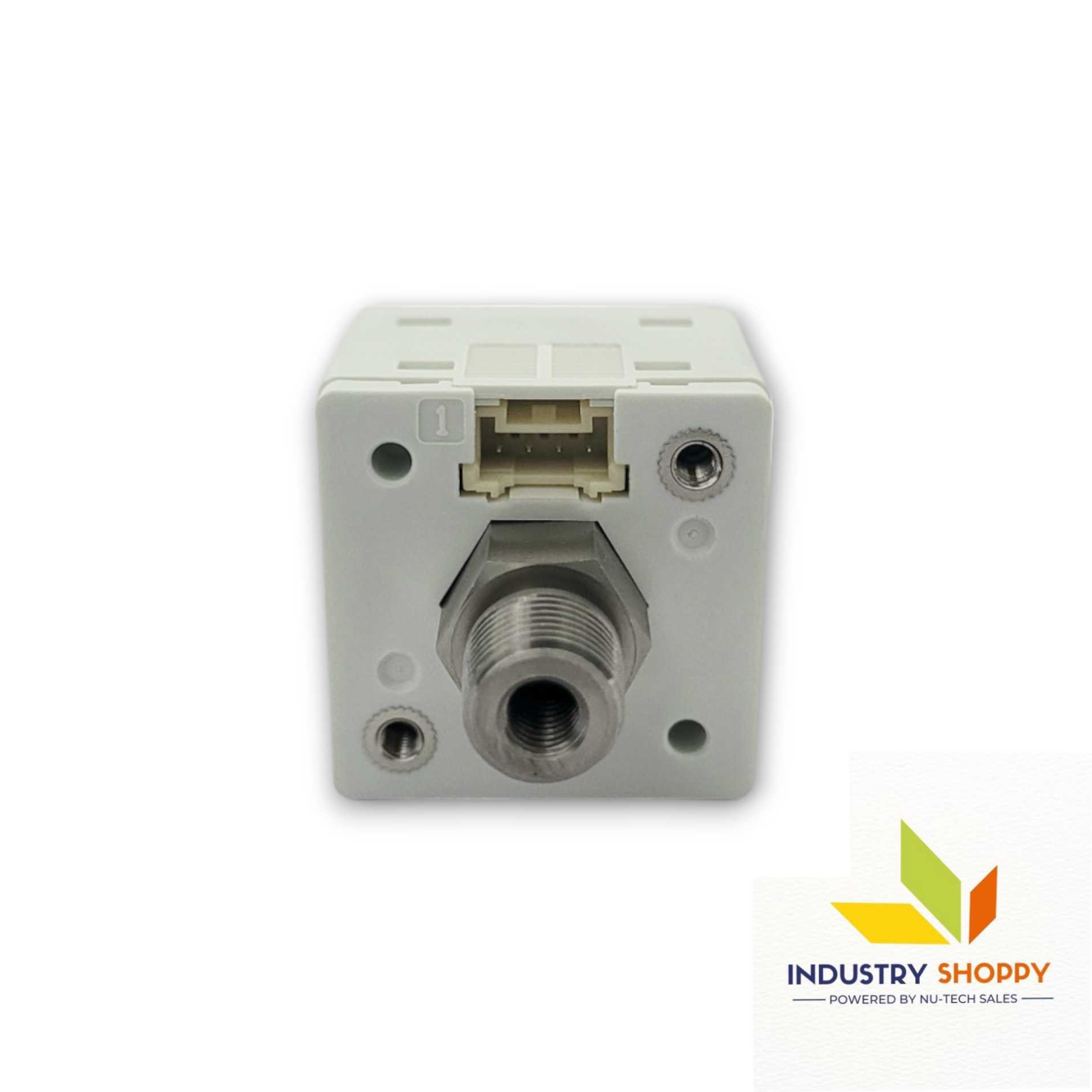

Pressure PortM5 female + R (PT) 1/8 male
MaterialEnclosure: PBT (GF reinforced); LCD: Acrylic; Pressure port: Stainless steel (SUS303); Mounting: Brass (nickel plated); Switch: Silicone rubber

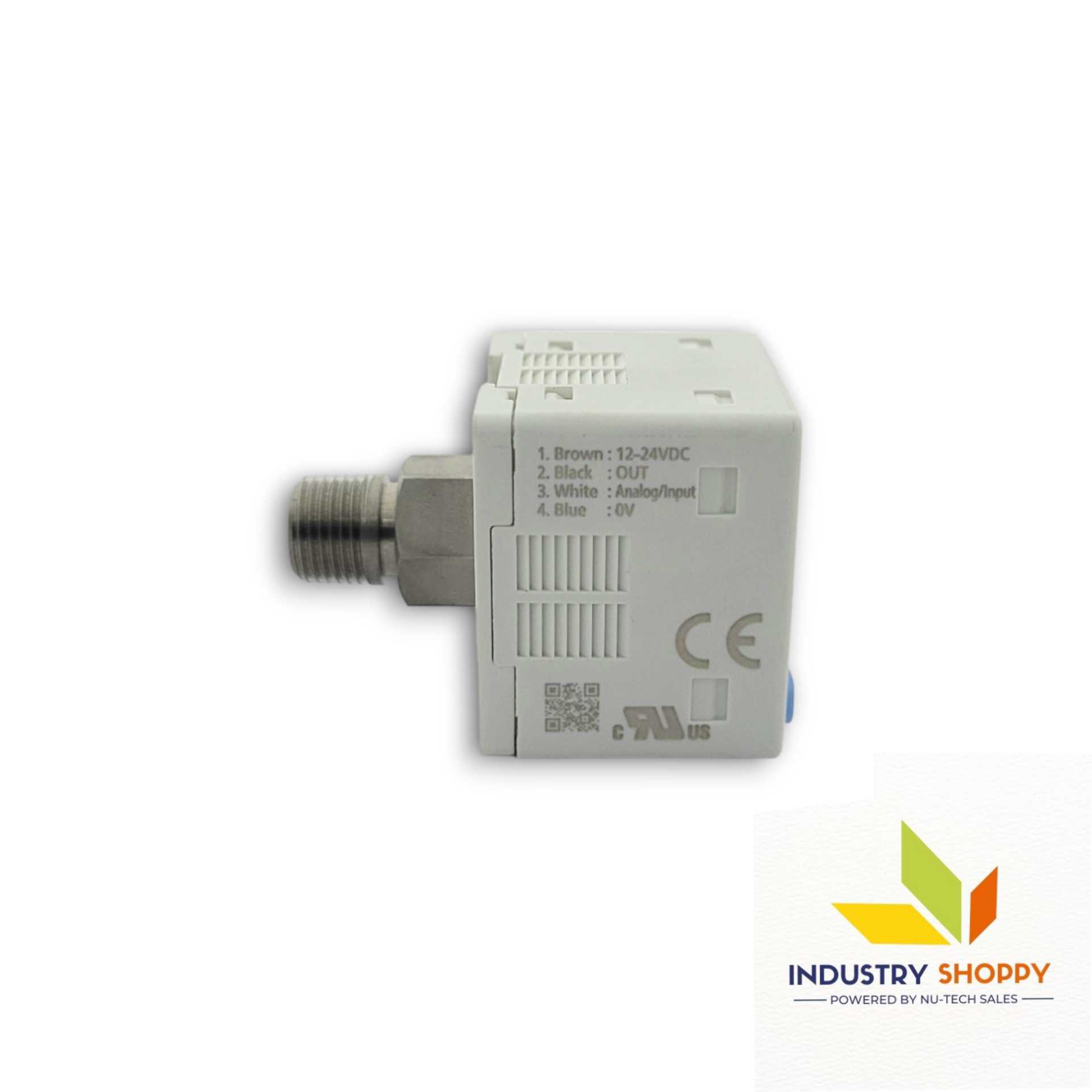

Connecting MethodConnector
Cable LengthUp to 100 m (328 ft), ≤30 m for CE compliance, ≥0.3 mm²

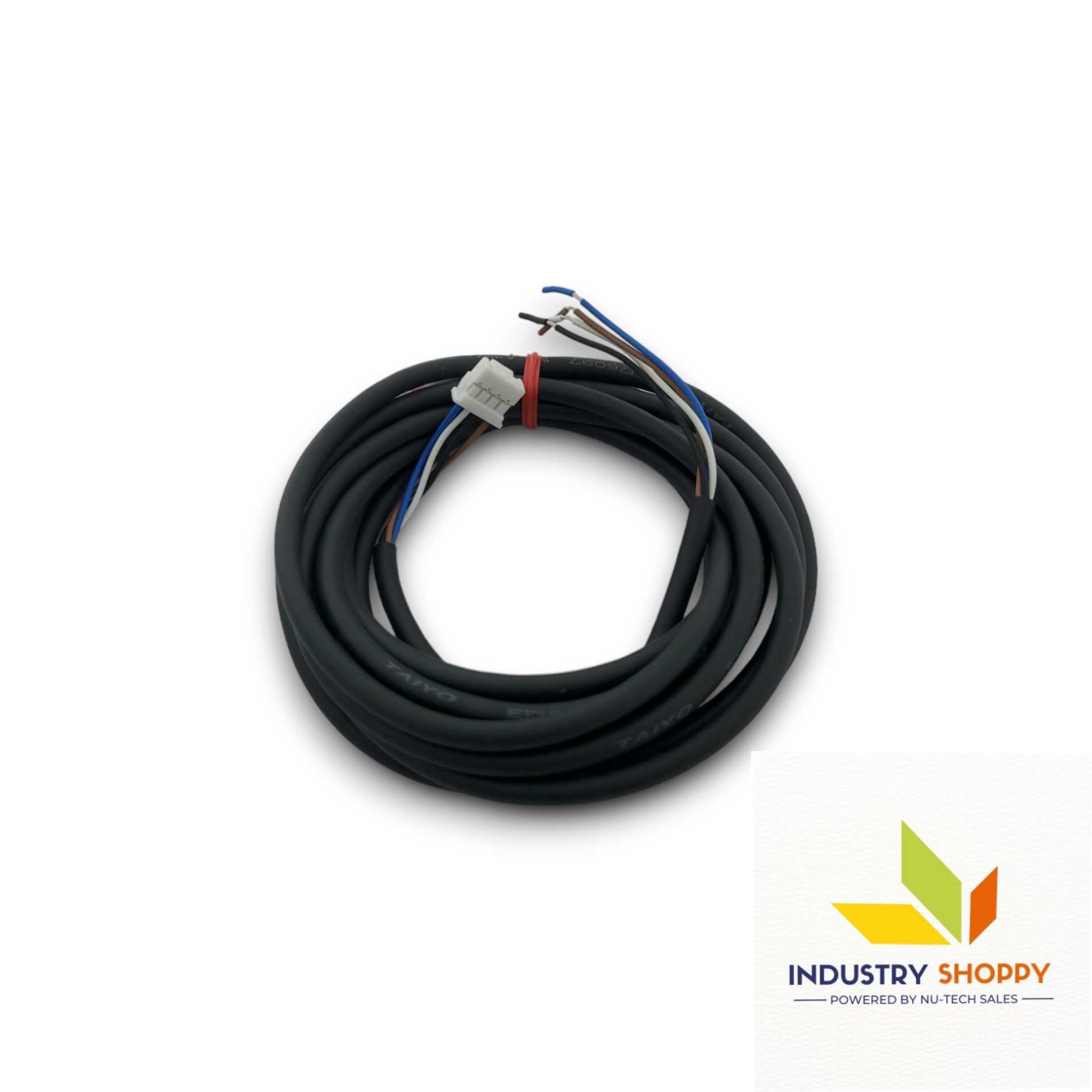

AccessoriesCN-14A-C2 connector-attached cable 2 m (6.562 ft), 1 pc (except M8 plug-in type)
