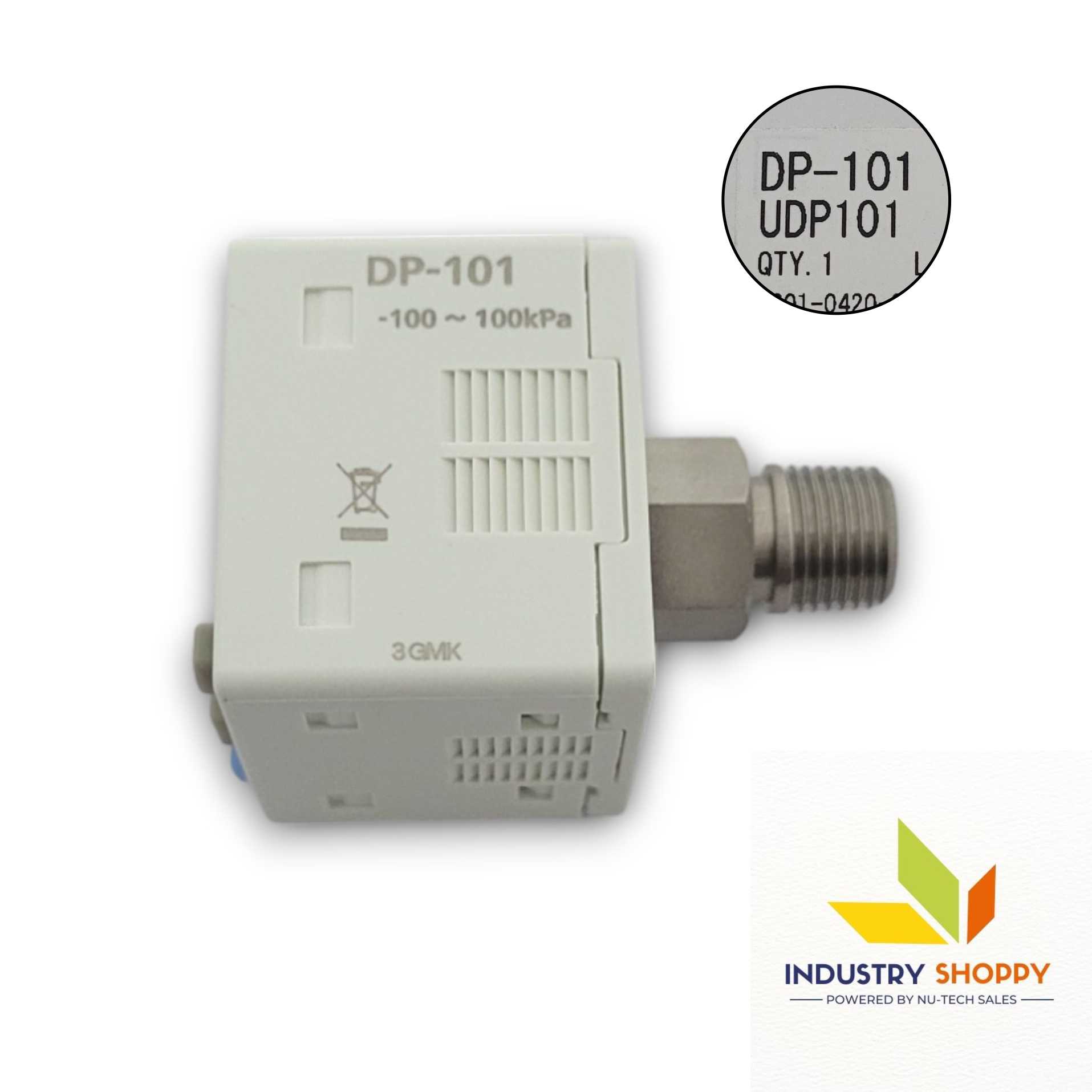

Panasonic DP-101 Digital Pressure Sensor

The Panasonic DP-101 Digital Pressure Sensor (DP101, UDP101) is a gauge pressure sensor that complies with EMC and RoHS Directives, ensuring safety and environmental friendliness. The sensor can withstand pressures up to 500 kPa and is suitable for non-corrosive gases. Operating on a supply voltage of 12 to 24 V DC ±10%.

Equipped with an NPN open-collector transistor output, the Panasonic DP-101 Digital Pressure Sensor can handle a maximum sink current of 100 mA and operates on an applied voltage of 30 V DC or less. The comparative output has a minimum hysteresis of one digit and repeatability within ±0.1% F.S. Response times are adjustable from 2.5 ms to 5,000 ms, allowing customization for various applications. The sensor includes short-circuit protection for enhanced safety.

It is IP40 rated, protecting against dust and light water splashes. It handles humidity levels of 35 to 85% RH without condensation. The DP-101 is vibration-resistant up to 196 m/s² and shock-resistant up to 100 m/s², ensuring reliability in tough environments. Manufactured in Japan, the sensor includes a connector-attached cable as an accessory.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandPanasonic
Product NumberDP-101
Part NumberUDP101
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Type of PressureGauge pressure
Rated Pressure Range-100.0 to +100.0 kPa
Set Pressure Range-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm²
-1.010 to +1.010 bar
-14.64 to +14.64 psi
-757 to +757 mmHg
-29.8 to 29.8 inHg
Pressure Withstandability500 kPa
Applicable FluidNon-corrosive gas
Supply Voltage12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power ConsumptionNormal: 720 mW or less (30 mA max at 24 V)
ECO mode STD: 480 mW or less (20 mA max at 24 V)
ECO mode FULL: 360 mW or less (15 mA max at 24 V)
Comparative OutputNPN open-collector transistor
Max sink current: 100 mA
Applied voltage: ≤30 V DC
Residual voltage: ≤2 V at 100 mA
Comparative Output: OperationNO / NC (selectable by key operation)
Comparative Output: ModesEASY mode / Hysteresis mode / Window comparator mode
Comparative Output: HysteresisMinimum 1 digit (variable), 2 digits when using psi unit
Comparative Output: Repeatability±0.1 % F.S. (within ±2 digits)
Comparative Output: Response TimeSelectable: 2.5, 5, 10, 25, 50, 100, 250, 500, 1000, 5000 ms
Comparative Output: Short-Circuit ProtectionIncorporated
External Input-
Analog Current Output-
Analog Voltage Output-

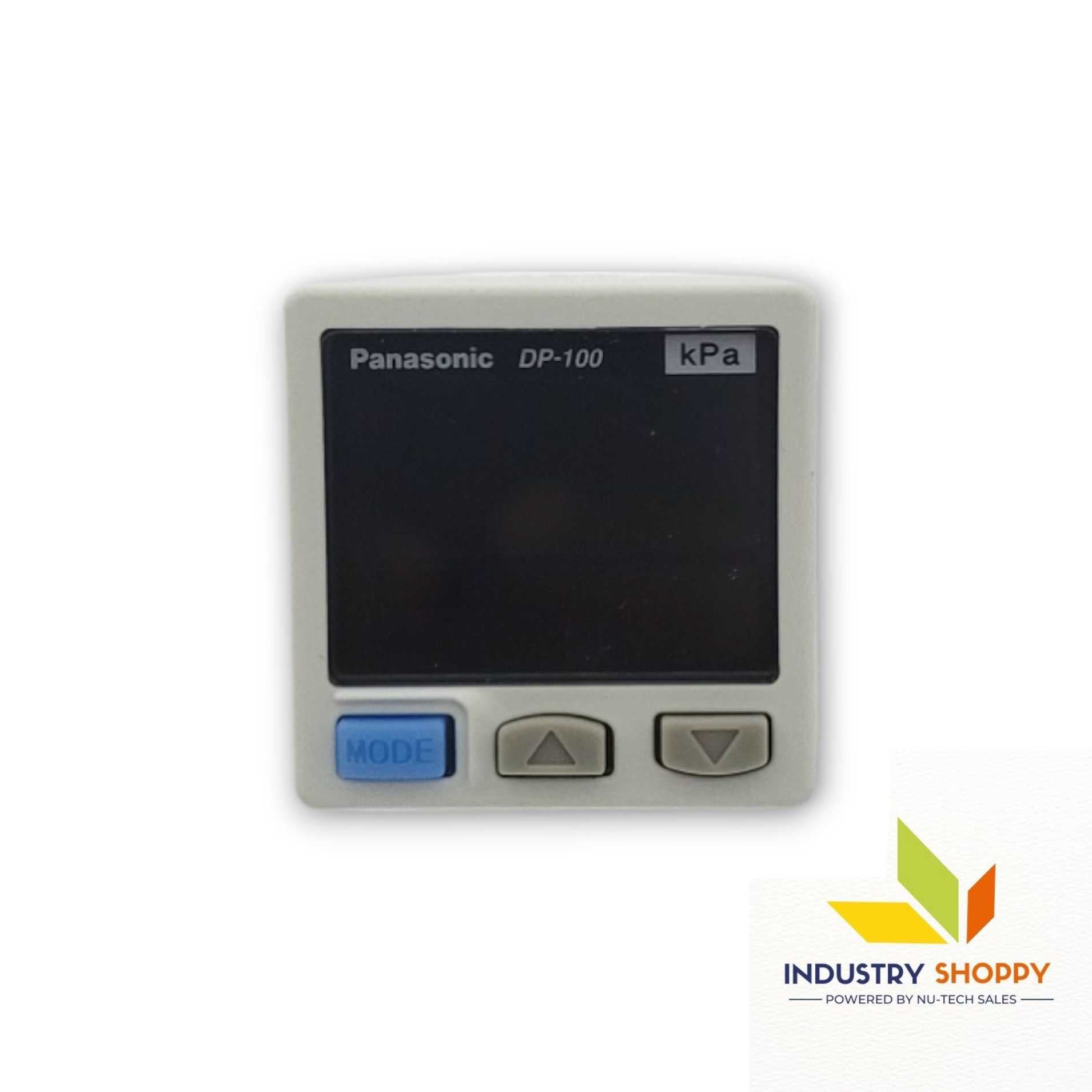

Display4 digits + 4 digits, 3-color LCD
Display refresh rate selectable: 250, 500, 1000 ms
Display: Pressure Range-101.0 to +101.0 kPa
-1.030 to +1.030 kgf/cm²
-1.010 to +1.010 bar
-14.64 to +14.64 psi
-757 to +757 mmHg
-29.8 to 29.8 inHg
IndicatorOrange LED (Lights up when each comparative output is ON)
ProtectionIP40 (IEC)
Ambient TemperatureOperating: -10 to +50 °C (14 to 122 °F)
Storage: -10 to +60 °C (14 to 140 °F)
Ambient HumidityOperating: 35 to 85 % RH (no dew or icing)
Storage: 35 to 85 % RH
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance≥50 MΩ at 500 V DC between all supply terminals connected together and enclosure
Vibration Resistance10–500 Hz, 3 mm double amplitude or max 196 m/s², X/Y/Z 2 hrs each
Panel mounted: 10–150 Hz, 0.75 mm amplitude or max 49 m/s², X/Y/Z 2 hrs each
Shock Resistance100 m/s² (approx. 10 G), X/Y/Z 3 times each
Temperature CharacteristicsWithin ±0.5 % F.S. at +20 °C (+68 °F)

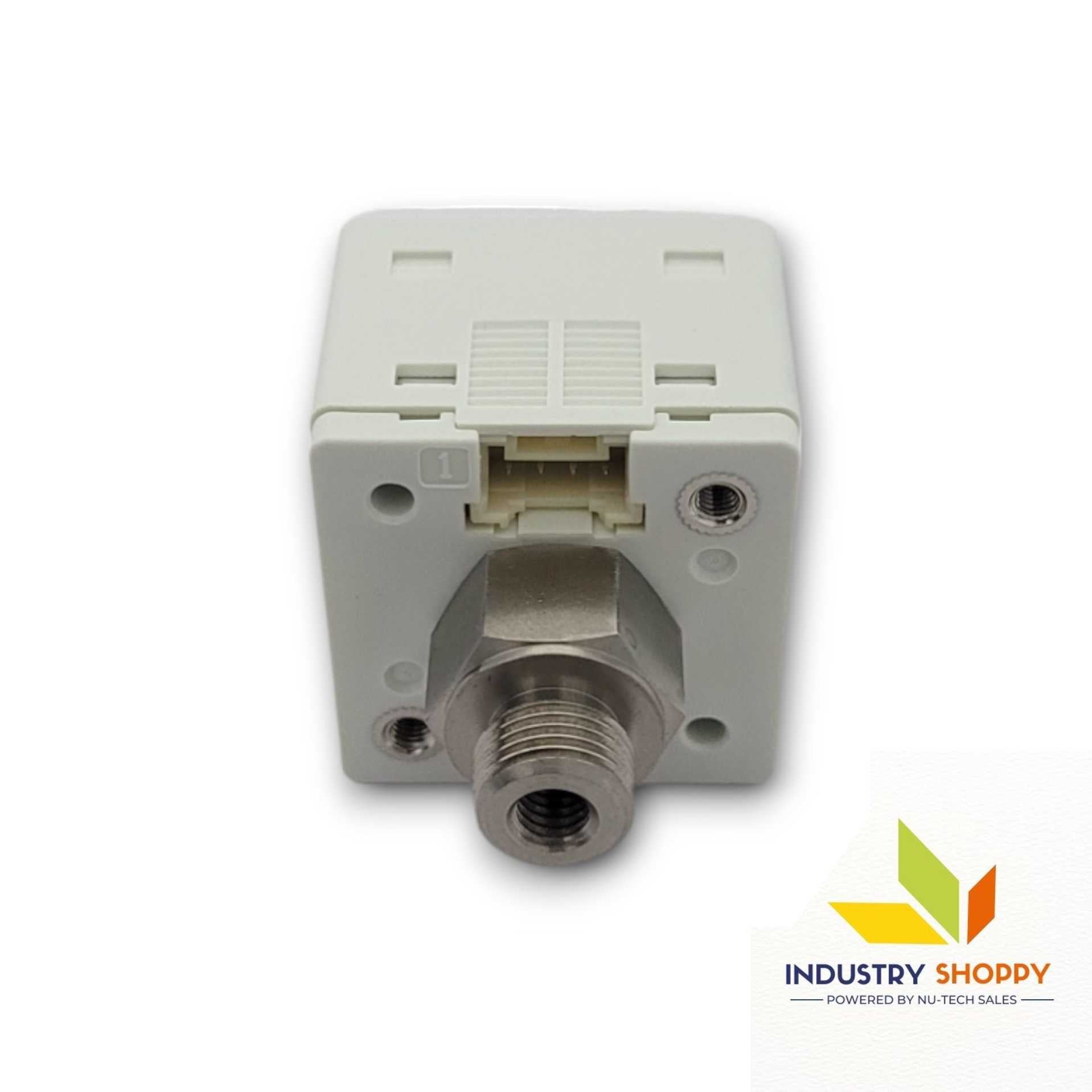

Pressure PortM5 female thread + R (PT) 1/8 male thread
MaterialEnclosure: PBT (glass fiber reinforced)
LCD display: Acrylic
Pressure port: Stainless steel (SUS303)
Mounting threaded part: Brass (nickel plated)
Switch part: Silicone rubber
Connecting MethodConnector
Cable LengthUp to 100 m (328.084 ft), ≤30 m (98.425 ft) for CE marking compliance, min 0.3 mm² cable

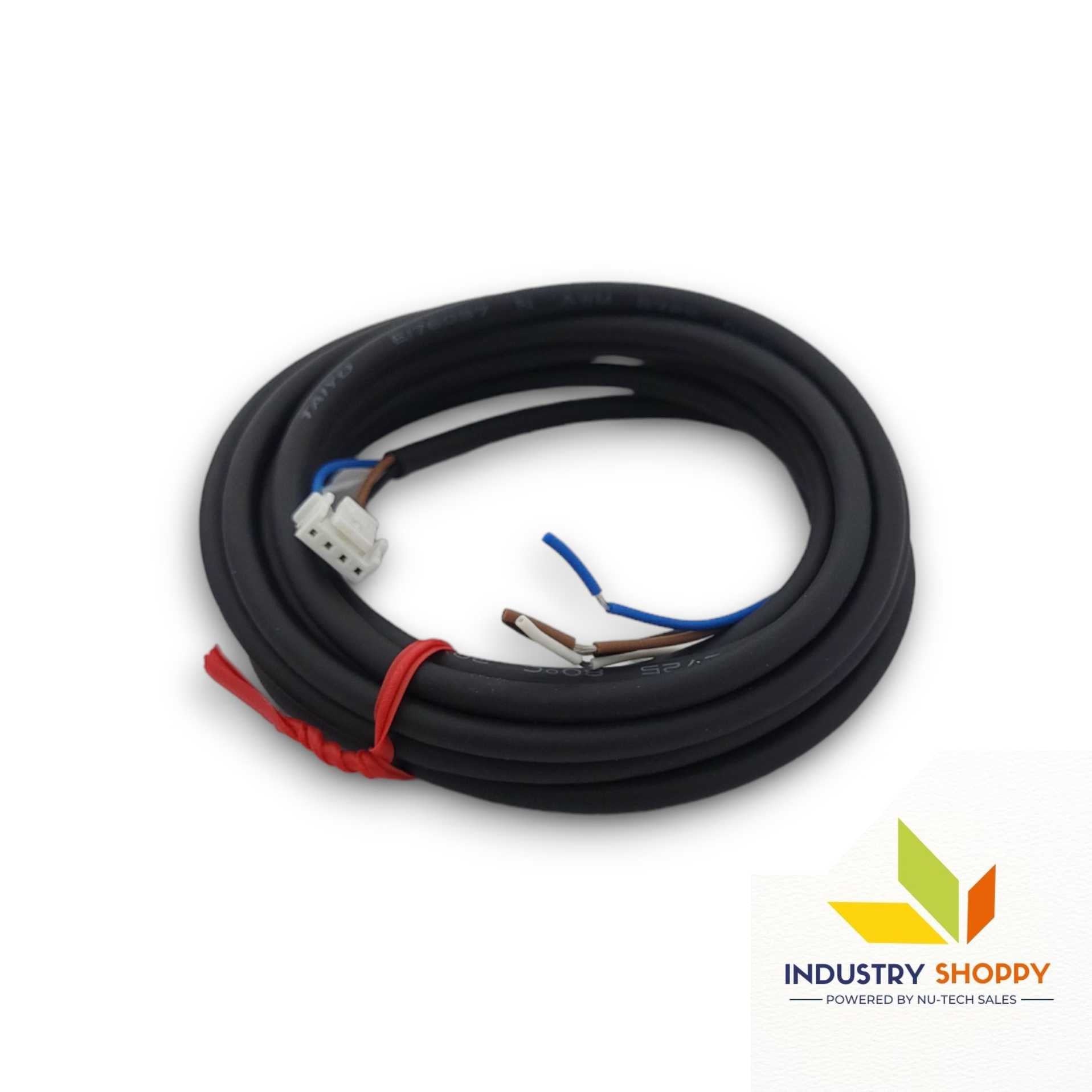

AccessoriesCN-14A-C2 (Connector attached cable 2 m / 6.562 ft), 1 pc (excluding M8 plug-in connector type)
Country of originJapan
