Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
Datalogic IS-12-C1-S2 Inductive Sensor
DataLogic

Datalogic IS-12-C1-S2 Inductive Sensor

Product SKU: NTSSEN00294
Available:
Only 10 items in stock
10 items in stock
In stock
Pre-order
Out of stock
  • Brand : Datalogic
  • Supply voltage :  12 – 24 V, DC
  • Open-circuit current : 0 … 100 mA max.
  • Output type  : PNP
  • Type of connection : M8 Connector
  • Warranty : 12 Months
Rs. 2,725.00
Rs. 4,875.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

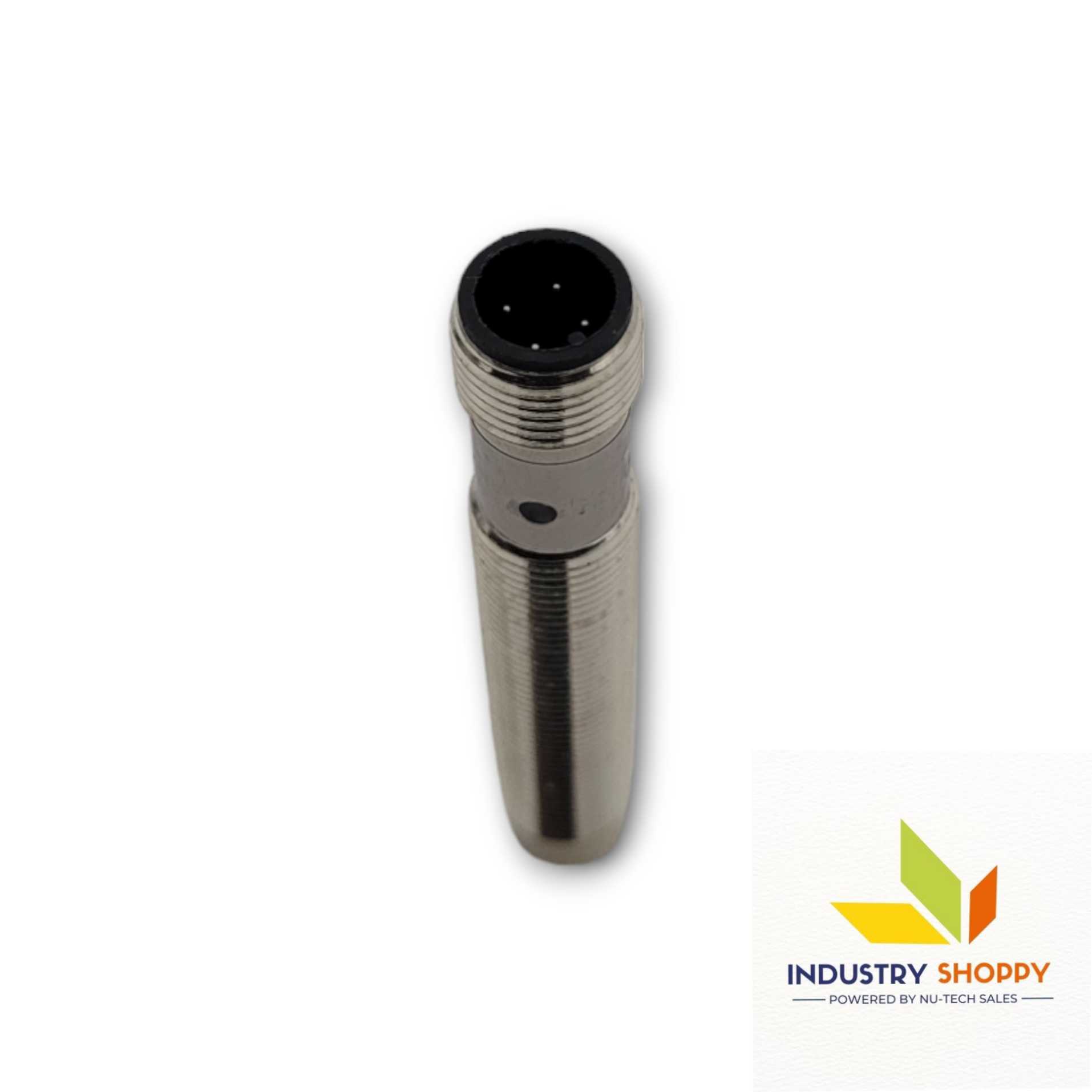

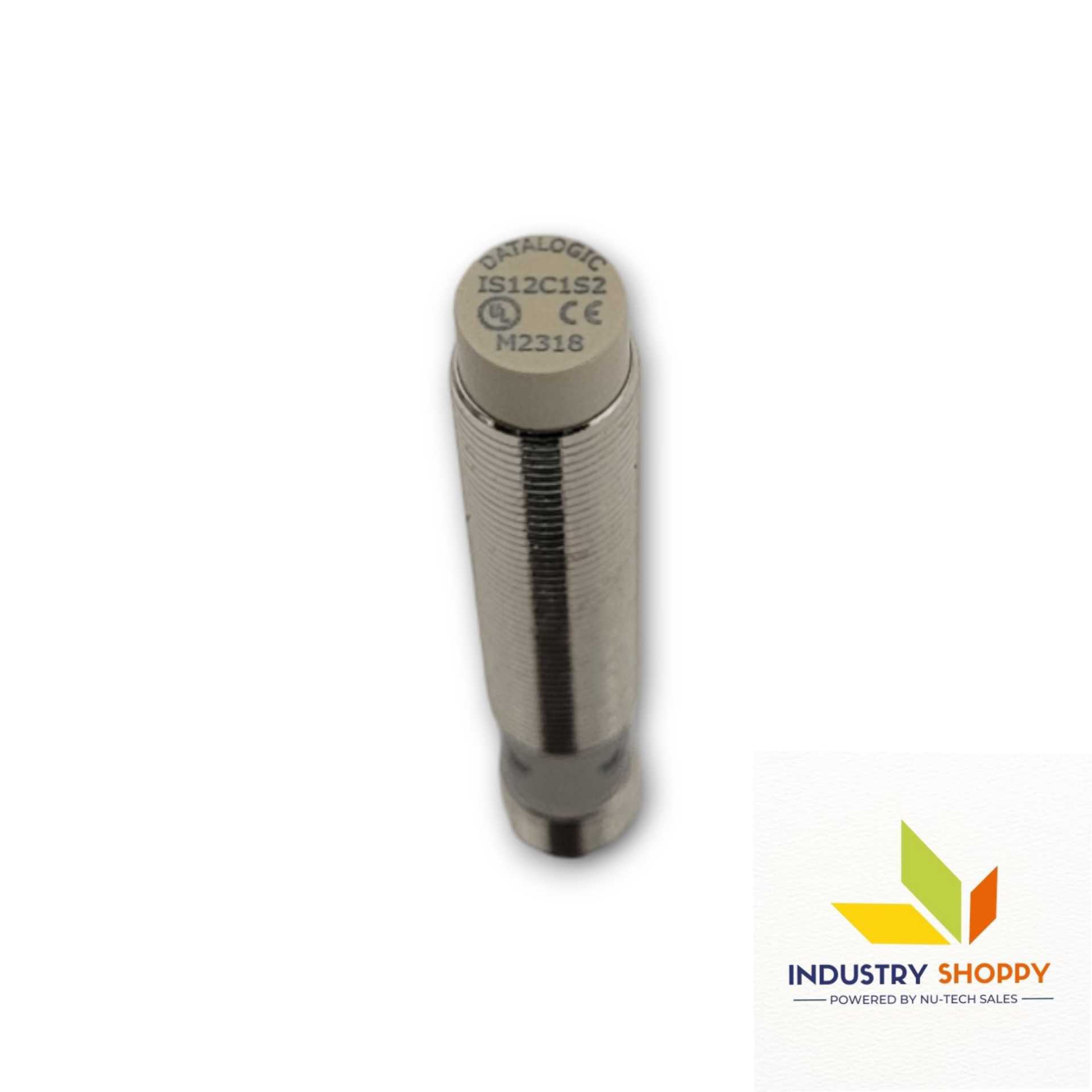

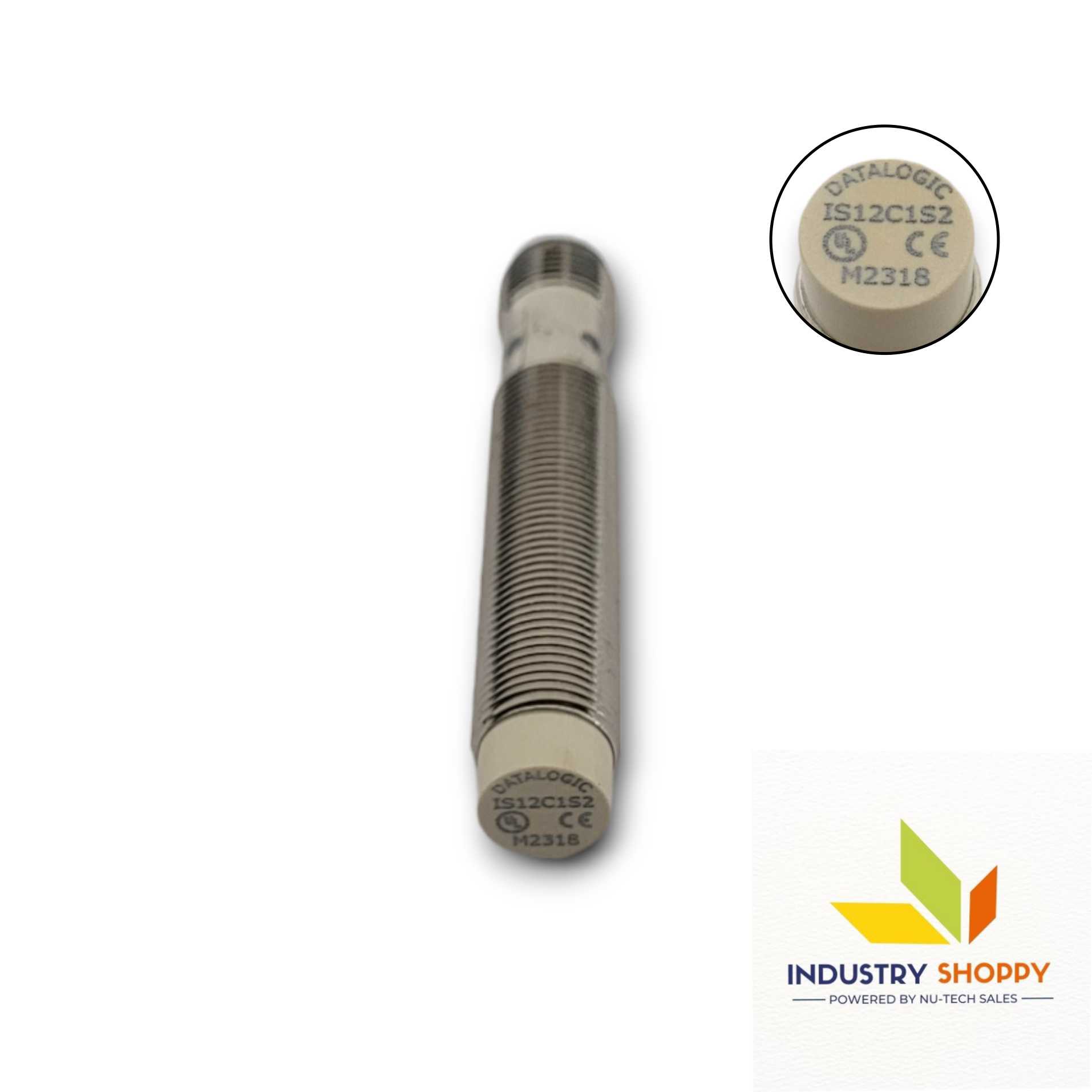

Datalogic IS-12-C1-S2 Inductive Sensor

The Datalogic IS-12-C1-S2 Inductive Sensor (IS12C1S2) with part number 95B061651, has a nominal sensing distance of 4mm and operates within a range of 0 to 3.24mm. It's designed for standard targets of 12x12mm FE360 material. The Datalogic IS-12-C1-S2 Inductive Sensor is operating on 10 to 30Vdc, it consumes ≤ 10mA of no-load supply current and supports a load current of up to 200mA. The sensor provides PNP output with NO function, a switching frequency of 1kHz, and a response time of 0.5ms.

Built for durability, the sensor features a nickel-plated brass housing and an active head made of LCP material. It's M12 standard, no-flush mount, and comes with CE, cULus, ECOLAB, and DIVERSEY approvals.




Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberIS-12-C1-S2
Part Number95B061651
Nominal sensing distance4 mm
Operating distance0 … 3.24 mm
Standard target12x12 mm FE360
Correction Factorcopper: 0.4–0.5 / aluminium: 0.4–0.6 / brass: 0.5–0.7 / stainless steel: 0.7–1.05
Repeat Accuracy< 3% (UB 24V Ta=23°C ±5°C)
Hysteresis< 10%
DescriptionM12 standard no-flush mount
FunctionsProximity
Output typePNP
Output FunctionNO
Switching frequency1 kHz
Response time0.5 ms
Operating Voltage10 … 30 VDC
No-Load supply current≤ 10 mA
Load current200 mA
Output voltage drop≤ 1.8 V @ 100 mA
Max ripple content≤ 10%
LED indicatorsYellow LED output state
Time delay before availability≤ 50 ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
Emission≥100 kHz
Protection against inductive loadsYes
MountingUnshielded
DimensionsØ12 x 72 mm
Housing MaterialNickel-plated brass
ConnectionsM12 Plug
Active Head MaterialLCP
Tightening torque6 Nm
MaterialNickel-plated brass
Diameter/DimensionM12
ApprovalsCE, cULus, ECOLAB, DIVERSEY

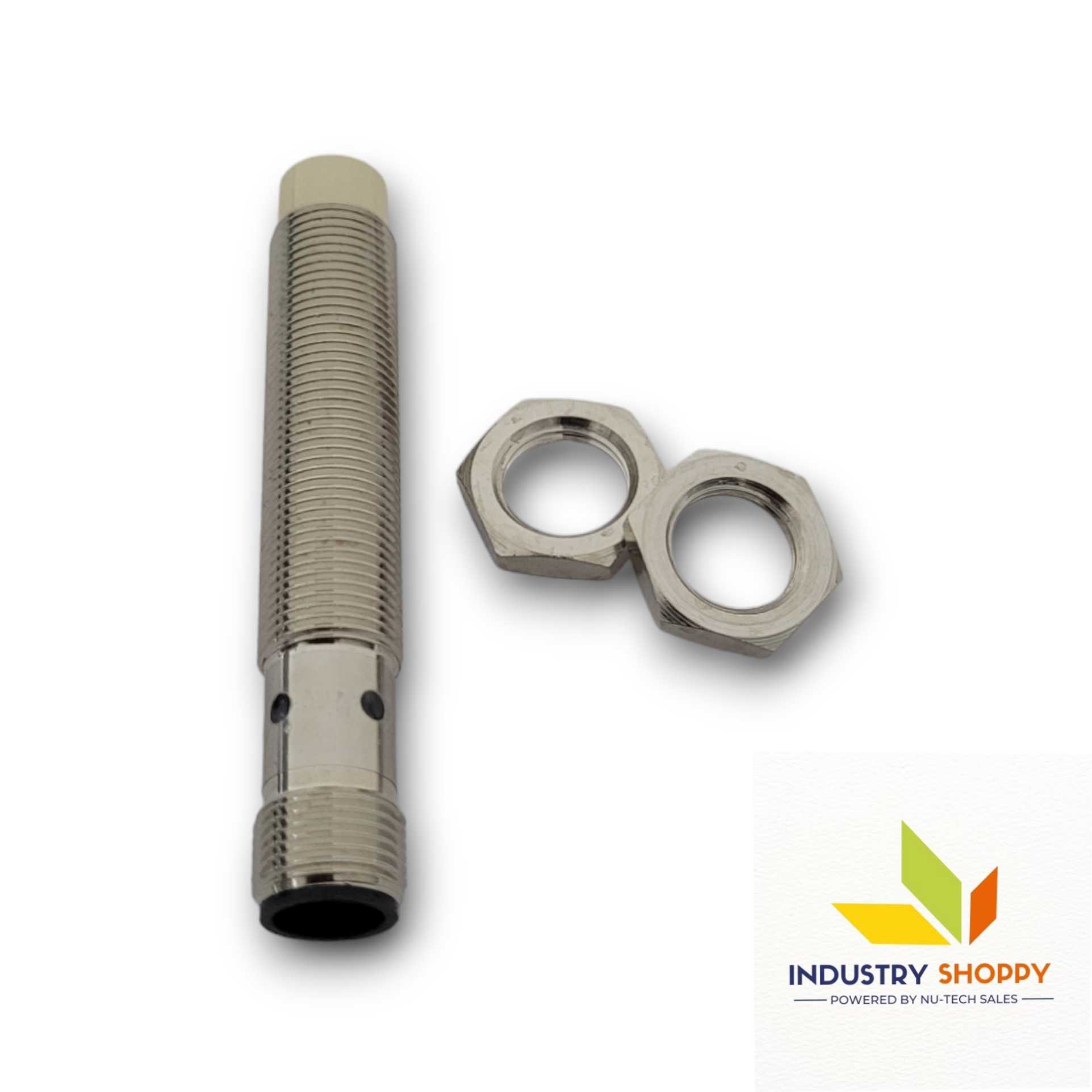

Supplied Accessories2 nuts M12x1
Mechanical ProtectionIP67
Country of originHungary
