25% Rs. 165.00
Festo QSLV2-1/8-6 Multiple Distributor
Festo QSLV2-1/8-6 Multiple distributor
Festo QSLV2-1/8-6 Multiple Distributor
Festo QSLV2-1/8-6 Multiple Distributor
Festo QSLV2-1/8-6 Multiple distributor
Festo QSLV2-1/8-6 Multiple Distributor
Festo

Festo QSLV2-1/8-6 Multiple Distributor

Product SKU: FSTCNT00012
Available:
Only 51 items in stock
51 items in stock
In stock
Pre-order
Out of stock
  • Brand : Festo
  • Part No. : 153212
  • Structural design : Push-pull principle
  • Hollow bolt material : Brass, nickel-plated
  • Warranty : 12 Months
Rs. 485.00
Rs. 650.00

+ GST @18% = Rs. 572.30

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

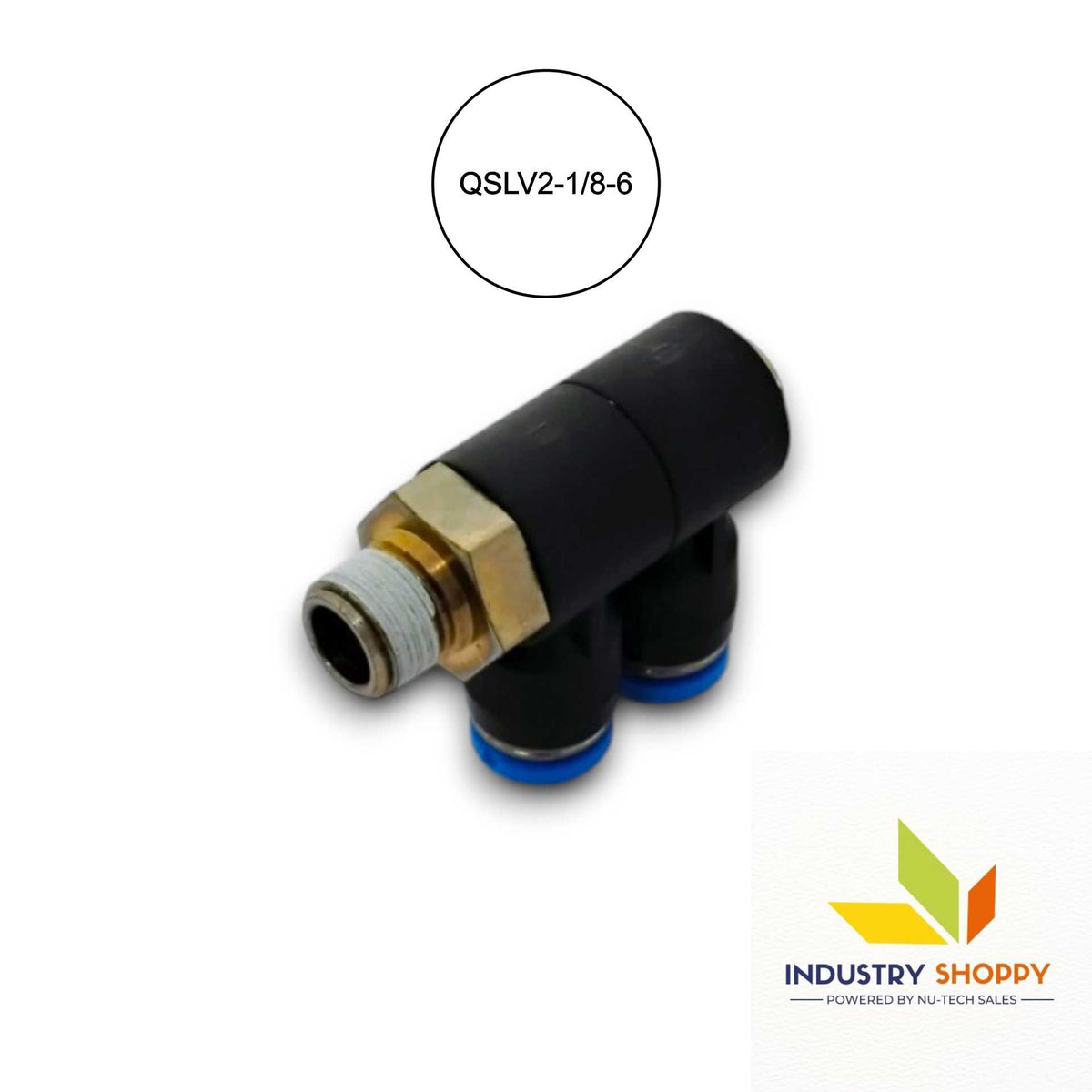

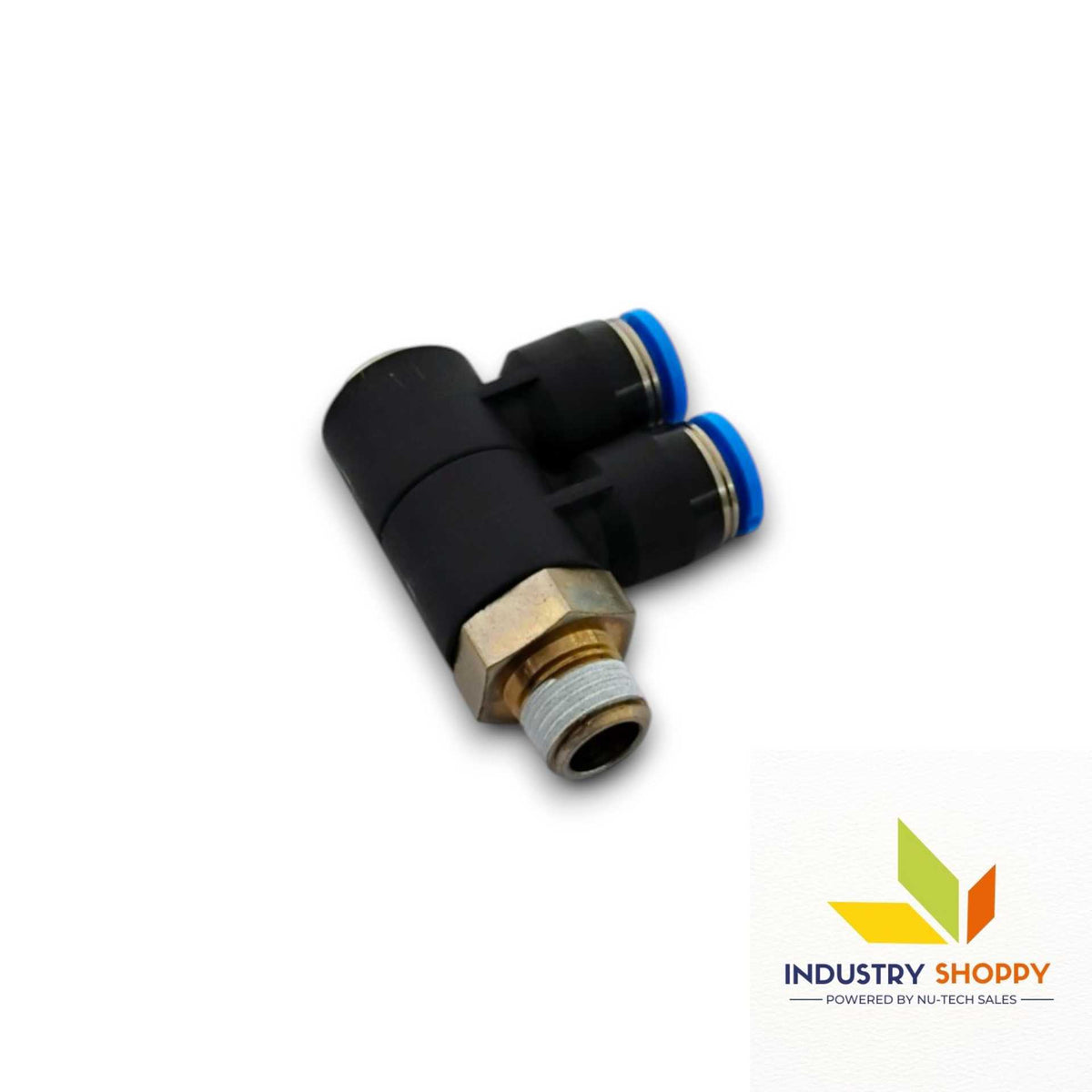

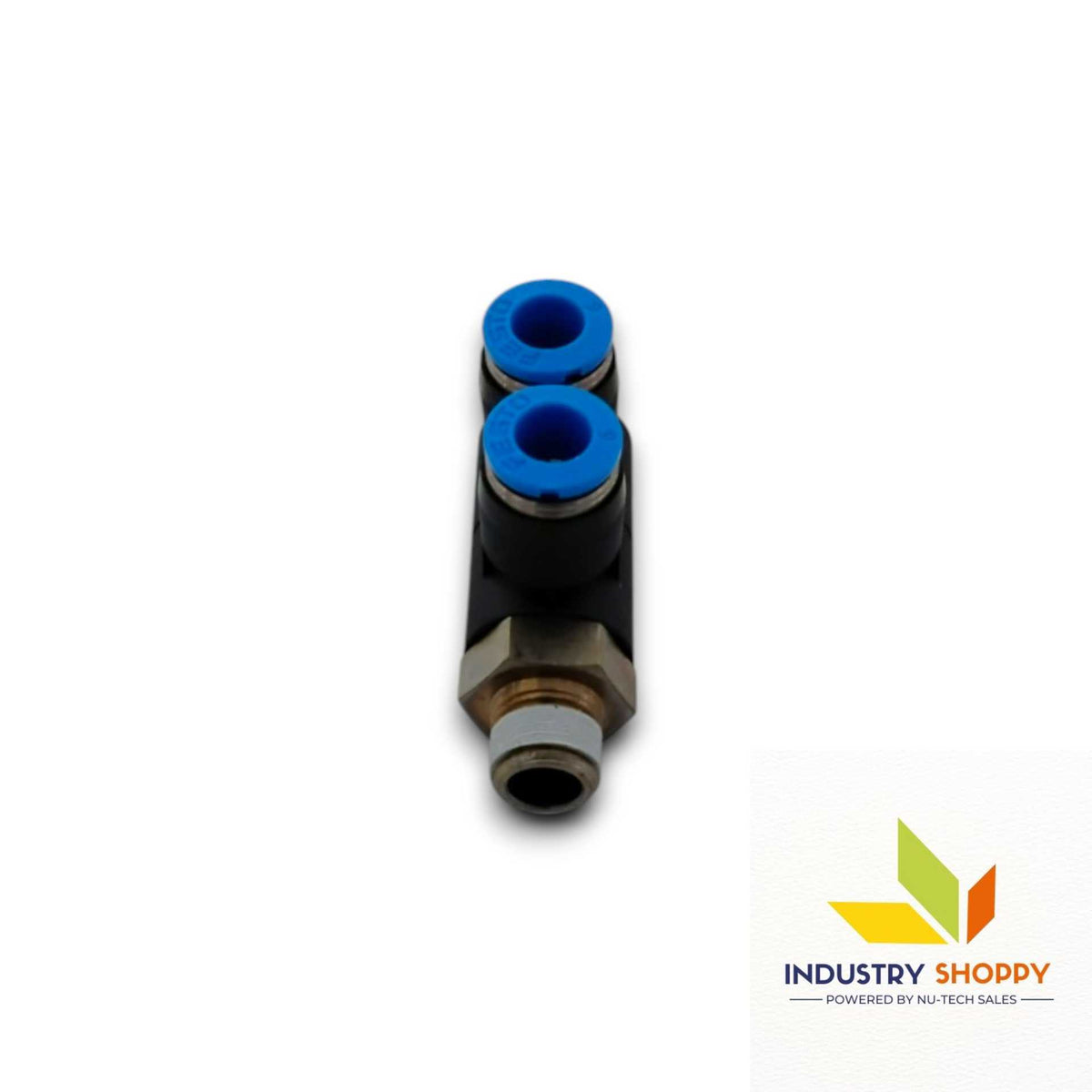

Festo QSLV2-1/8-6 Multiple Distributor

The Festo QSLV2-1/8-6 Multiple Distributors designed for efficient and secure pneumatic connections. Featuring a push-pull structural design, it allows for quick and easy tube insertion and removal, making it an ideal choice for industrial automation and pneumatic systems.

With a nominal width of 3.2 mm, this fitting supports compressed air (ISO 8573-1:2010) and water (liquid, ice-free), providing versatility across various applications. The external R1/8 thread on port 1 ensures compatibility with standard pneumatic connections, while port 2 accommodates 6 mm tubing for seamless integration.

Designed for durability, the QSLV2-1/8-6 features a PBT housing with a nickel-plated brass hollow bolt, offering high resistance to corrosion and mechanical stress. The stainless-steel tube retaining claw and NBR tubing seal enhance the fitting’s leak-proof performance and long-lasting reliability.

This fitting is RoHS-compliant and meets VDMA24364-B1/B2-L (LABS/PWIS) standards, ensuring suitability for sensitive and cleanroom applications. Operating within a temperature range of -10°C to 80°C and handling pressures from -0.095 MPa to 1.4 MPa, it guarantees optimal performance under varying conditions.

Our engineers actively inputted all the required details about this item accordance with the datasheet. Even though we strive to ensure accuracy at every step, some errors may still occur. It remains essential to stay vigilant. Some inaccuracies could still appear despite our efforts. Furthermore, all trademarks and trade names featured on our site are, without exception, the property of their respective owners. As a result, maintaining caution and awareness is key throughout the process. In addition, it is important to stay alert to ensure accuracy at every stage. Therefore, we recommend careful attention to avoid potential issues.

Ultimately, combining vigilance with proactive efforts can help minimize potential errors.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,

Product NumberQSLV2-1/8-6
BrandFesto
Part Number153212
SizeStandard
Nominal Width3.2 mm
Type of Seal on Screwed PlugCoating
Mounting PositionAny
Structural DesignPush-pull principle
Pack Size1
Operating Pressure (Entire Temperature Range)-0.095 MPa ... 0.6 MPa / -0.95 bar ... 6 bar / -13.775 psi ... 87 psi
Temperature-Dependent Operating Pressure-0.095 MPa ... 1.4 MPa / -0.95 bar ... 14 bar / -13.775 psi ... 203 psi
Information on Operating PressureWater: max. 0.6 MPa at 0 – 50 °C
Operating MediumCompressed air as per ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Information on Operating and Pilot MediaOperation with oil lubrication possible
Corrosion Resistance Class (CRC)1 - Low corrosion stress
LABS (PWIS) ConformityVDMA24364-B1/B2-L
Ambient Temperature-10 °C ... 80 °C
Nominal Tightening Torque7 Nm
Tolerance for Nominal Tightening Torque± 20%
No. of Outlets2
No. of Supply Lines1
Pneumatic Connection 1External thread R1/8
Pneumatic Connection 2For pneumatic tubing outside diameter 6 mm
Releasing Ring ColorBlue
Note on MaterialsRoHS-compliant
Housing MaterialPBT
Hollow Bolt MaterialBrass, nickel-plated
Releasing Ring MaterialPOM
Material of Tubing SealNBR
Material of Tube Retaining ClawHigh-alloy stainless steel
Country of OriginGermany
