Innolux AT070TN94 LCD Module

Innolux AT070TN94 LCD Module

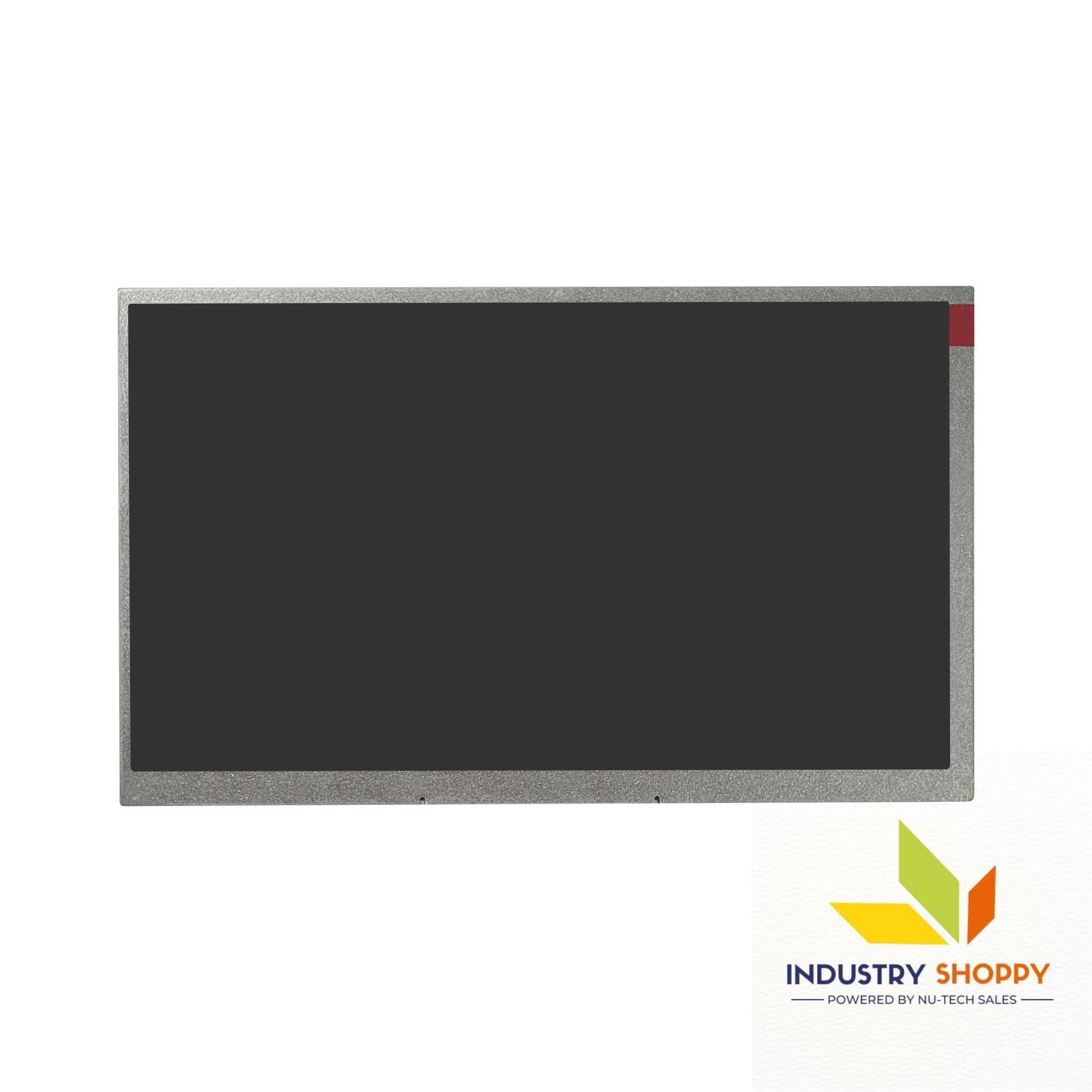

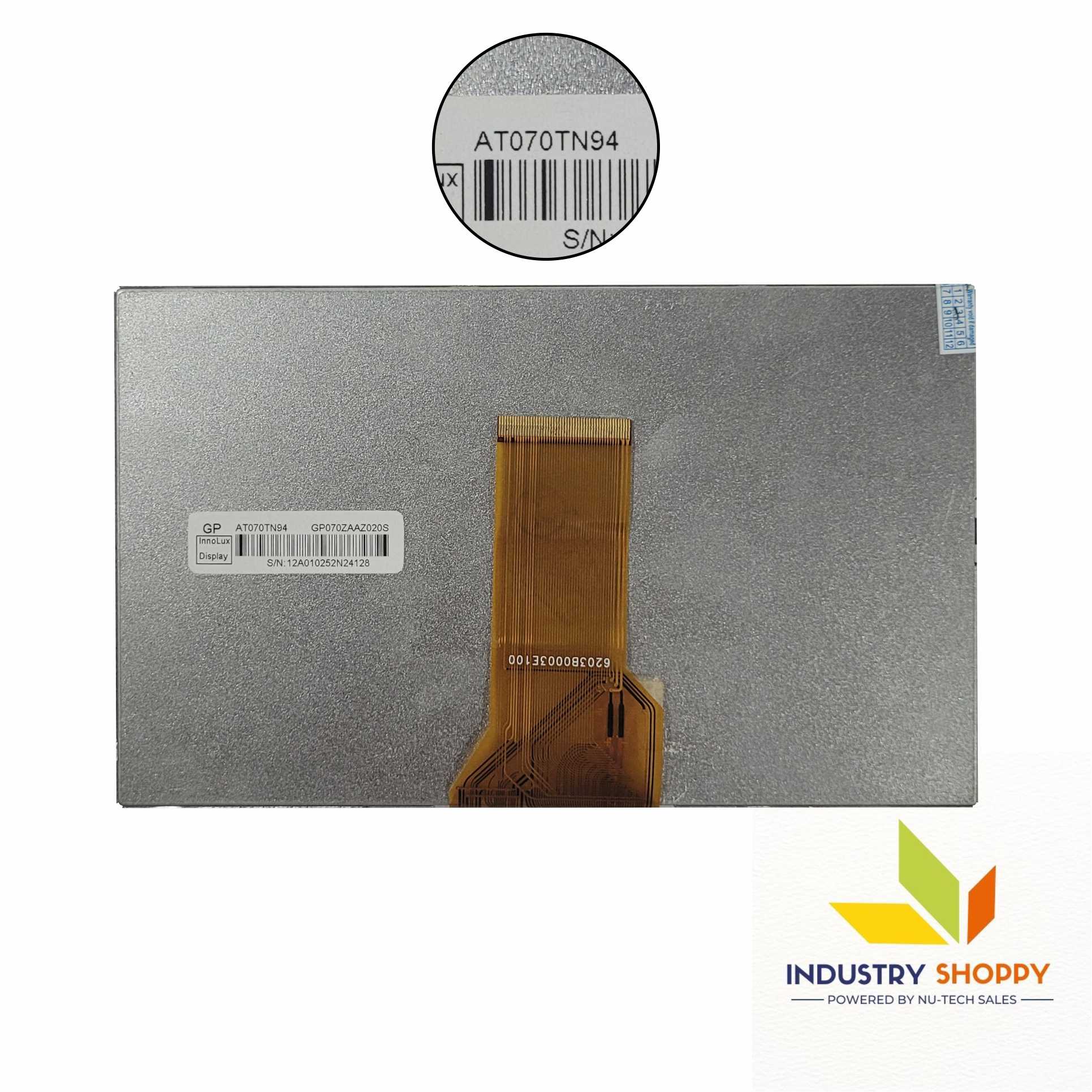

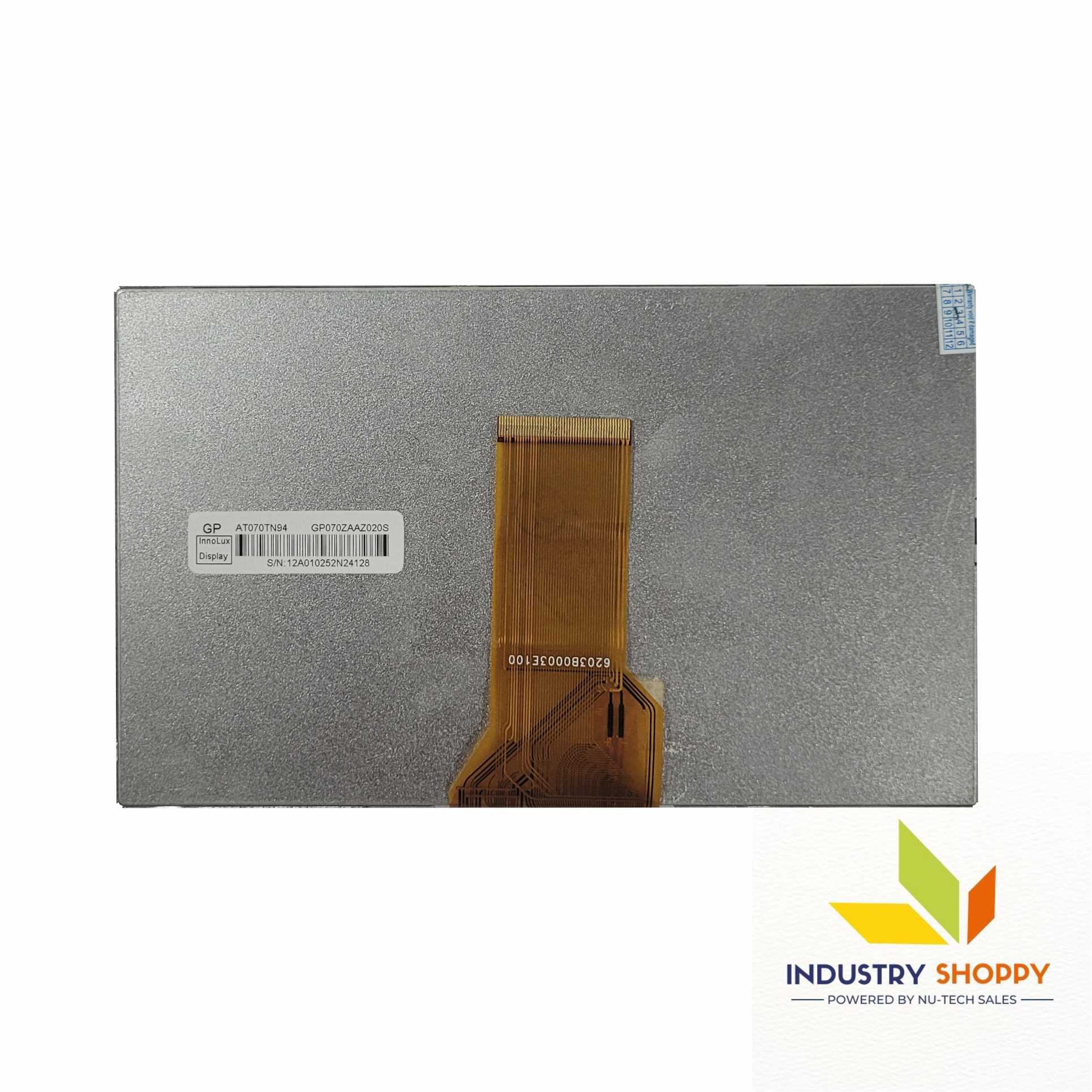

The Innolux AT070TN94 LCD Module (AT070TN-94) is 7.0" WVGA TFT-LCD Module provides an impressive 500 cd/m² luminance and a 1000:1 contrast ratio, delivering crisp, vibrant visuals even in well-lit environments. With a resolution of 800 x 480 and a 134 PPI, this module ensures clear text and images across its 154.08 x 85.92 mm active area. The compact 164.9 x 100 x 6 mm outline makes it ideal for space-constrained applications.

Featuring 70° horizontal and 70° vertical viewing angles (CR≥10), it offers consistent visibility from various directions, making it ideal for user interfaces, control panels, or embedded applications. Response time is 25 ms (rise and fall), which is suitable for static and moderate-motion content, ensuring smooth visuals.

The display operates in a TN (Twisted Nematic) mode with a normally white, transmissive configuration, providing a balance of brightness and contrast. Its antiglare surface treatment helps reduce reflections, enhancing visibility in bright settings.

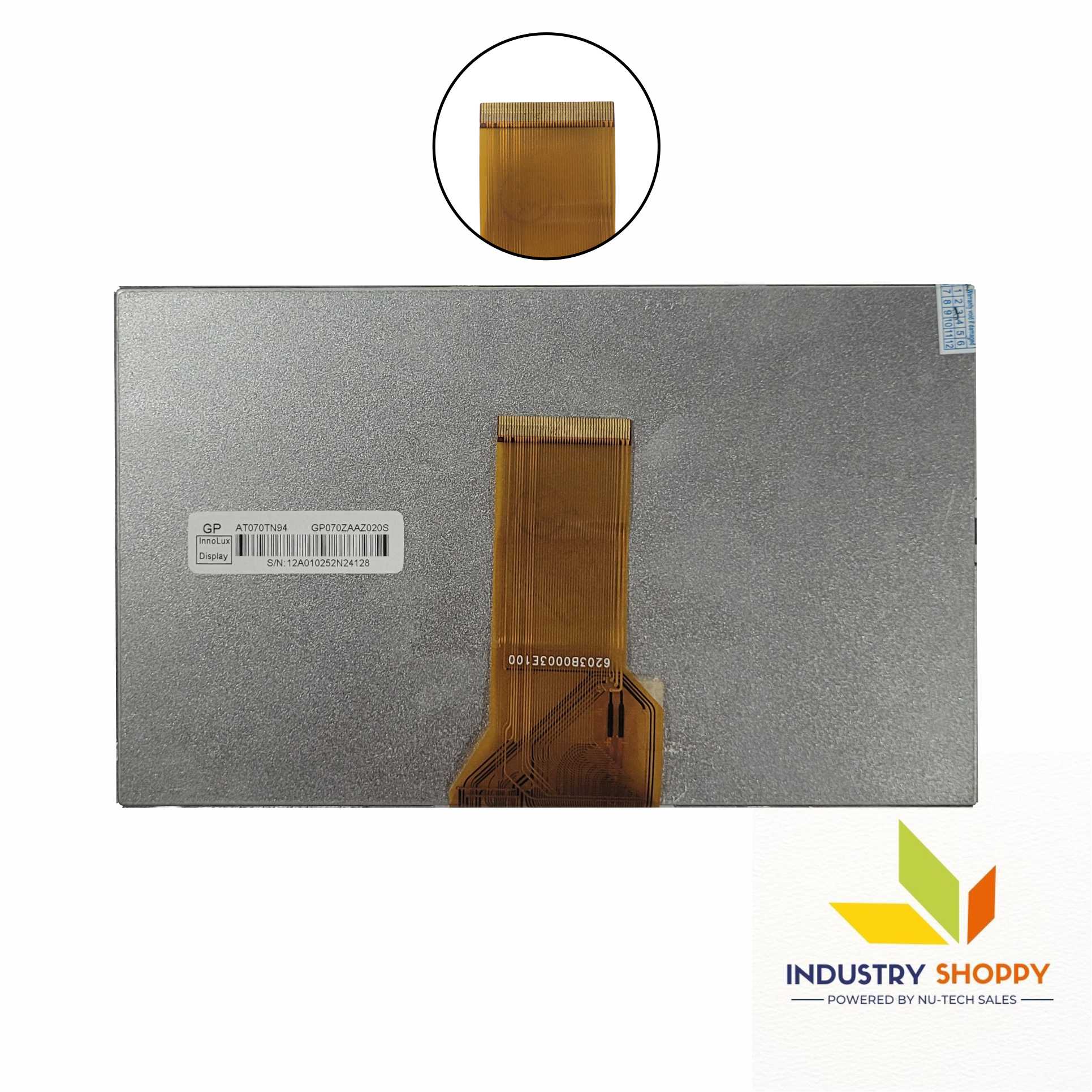

This module is powered by 3.3V and offers a 50-pin FPC interface, making it easy to integrate into embedded systems. With a WLED backlight rated for 20K hours, it ensures long-lasting performance. The wide operating temperature range from -30°C to 85°C and storage range of -30°C to 85°C make it suitable for industrial environments and harsh conditions.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
