The panel features a luminance of 400 cd/m² (typ.), offering clear visibility even in moderately lit environments, and a contrast ratio of 250:1 (typ.), which ensures acceptable image quality, though it may not be ideal for high-contrast visual requirements. The viewing angles of 60/60/50/50 (typ.) (CR≥10) indicate limited off-axis viewing capabilities, which is typical for TN panels. The response time of 50/50 ms (max.) could be a limitation for fast-moving visuals.

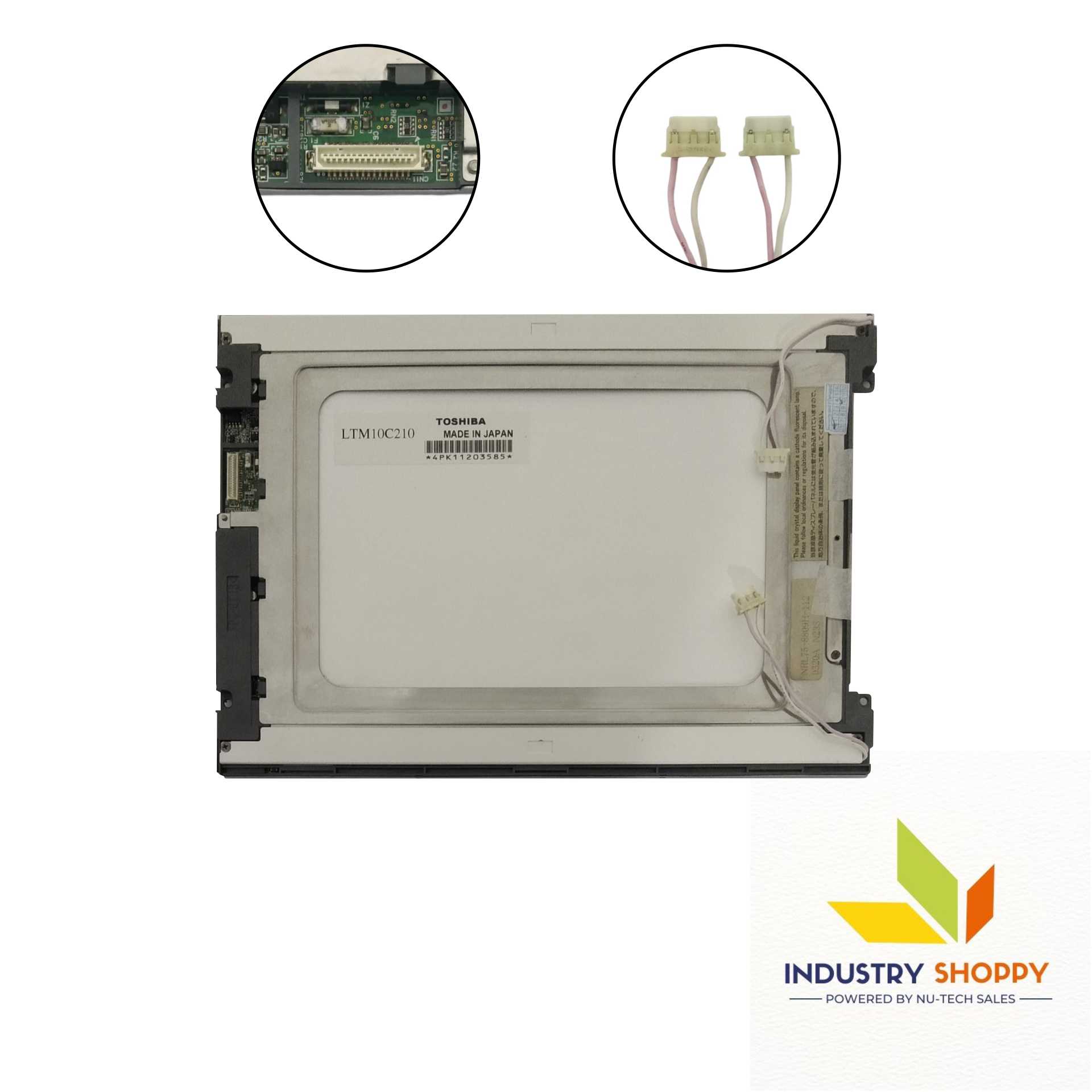

This display operates in TN mode, with normally white, transmissive characteristics. The signal interface uses parallel RGB (1 ch, 6-bit) with a 31-pin connector, ensuring compatibility with various systems. The backlight uses 2 CCFL lamps and has a lifetime of 50K hours without requiring a driver.
The operating temperature range is -20°C to 60°C, making it suitable for moderately harsh environments, while the storage temperature range is 0°C to 50°C.
