Tianma TM084SDHG01-LCD Module
Tianma TM084SDHG01-LCD Module
Tianma TM084SDHG01-LCD Module
Tianma TM084SDHG01-LCD Module
Tianma

Tianma TM084SDHG01 LCD Module

Product SKU: NTSLCD0179
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : TIANMA
  • Size : 8.4″
  • Condition : New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 13,480.00
Rs. 16,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

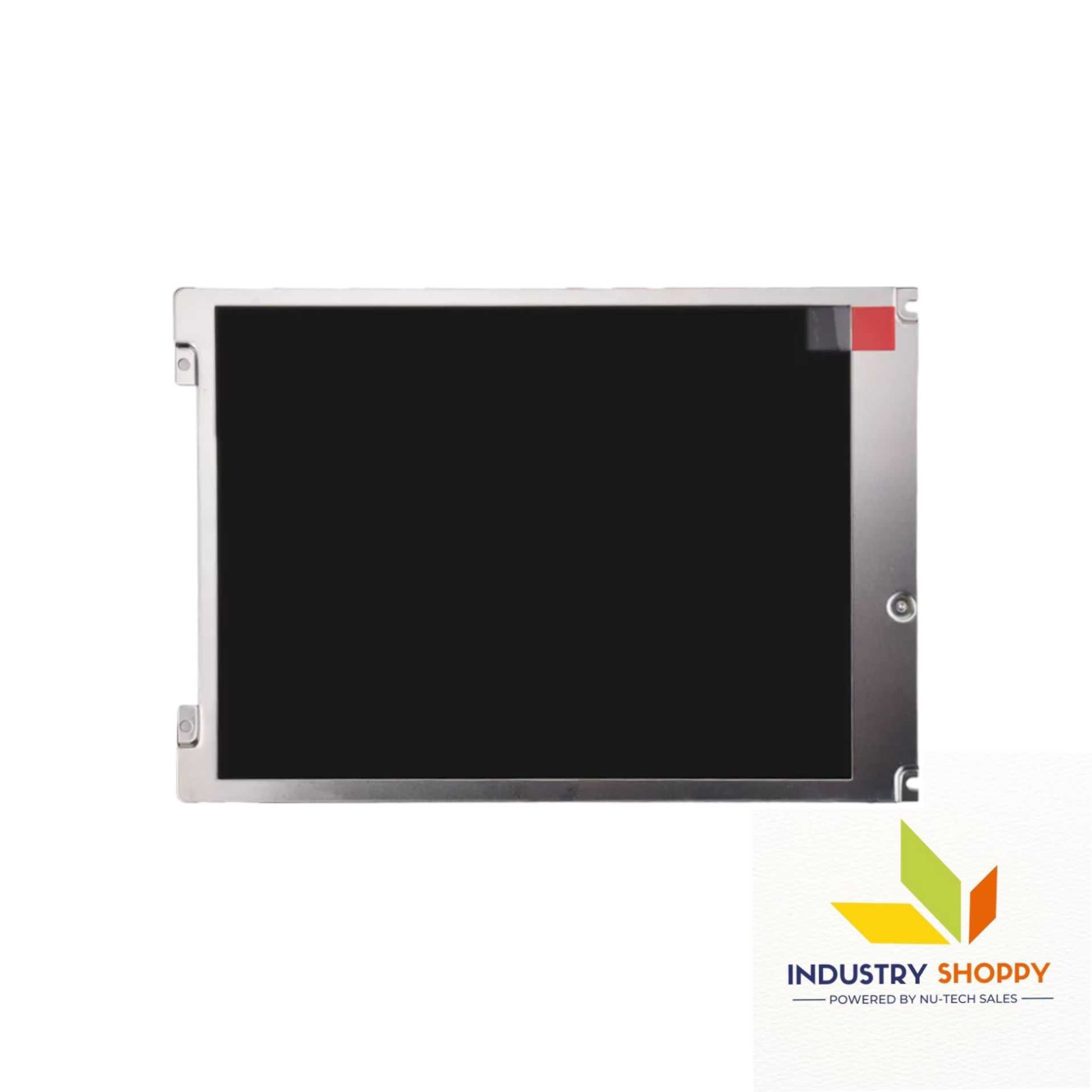

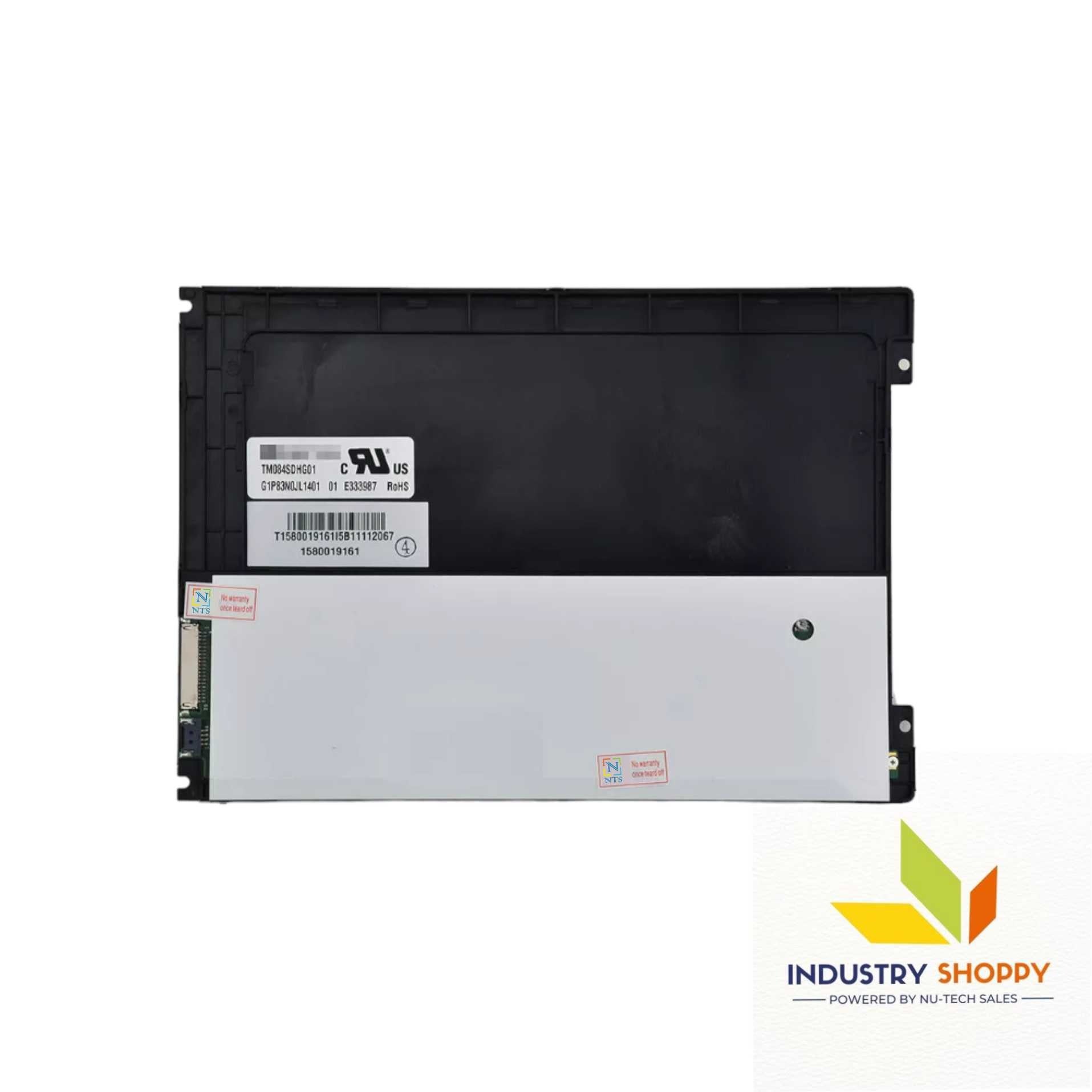

Tianma TM084SDHG01 LCD Module

The Tianma TM084SDHG01 LCD Module is 8.4-inch TFT-LCD display is a high-resolution panel with 800(RGB)×600 (SVGA) resolution and a pixel density of 119 PPI, offering sharp visuals ideal for industrial or embedded applications. It features a 170.4 mm x 127.8 mm active area housed in a 203 mm x 142.5 mm x 6.2 mm slim outline.

This a-Si TFT-LCD panel operates in TN, Normally White, Transmissive mode, ensuring clear images under various lighting conditions. It provides a typical brightness of 250 cd/m², a contrast ratio of 500:1, and a response time of 25 ms (Tr+Td), supporting smooth visual transitions. The panel also includes an antiglare treatment for enhanced readability.

It delivers decent viewing angles at 70°/70°/60°/70° (L/R/U/D) with 262K/16.7M color support and 50% NTSC color gamut. The display uses LVDS (1 ch, 6/8-bit) interface via a 20-pin connector and runs at a 60Hz refresh rate.

Powered by a 3.3V supply, the backlight system includes a 9S3P WLED array rated for 50K hours and comes with an integrated LED driver. It operates reliably between -20°C to 70°C and can be stored in conditions from -30°C to 80°C.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when inserting or disconnecting it from the input connector; moreover, this precaution ensures safety during the process.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandTianma
Diagonal Size8.4"
Resolution800(RGB)×600, SVGA, 119 PPI
Active Area170.4(W) × 127.8(H) mm
Outline Dimension203(W) × 142.5(H) × 6.2(D) mm
Luminance250 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle70/70/60/70 (Typ.) (CR≥10)
Response Time25 ms (Typ.) (Tr+Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare
Operating ModeTN, Normally White, Transmissive
Support Color262K / 16.7M, 50% NTSC
Frame Rate60 Hz
Lamp Type9S3P WLED, 50K hours, With LED Driver
Power Supply3.3V (Typ.)
BacklightLVDS (1 ch, 6/8-bit), 20 pins Connector
Operating Temp.-20 ~ 70 °C
Storage Temp.-30 ~ 80 °C
