Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma TM035KDH03 LCD Module with Touch
Tianma

Tianma TM035KDH03 LCD Module with Touch

Product SKU: NTSLCD0143
Available:
Only 4 items in stock
4 items in stock
In stock
Pre-order
Out of stock
  • Brand : TIANMA
  • Size : 3.5″
  • Condition  :  New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 3,740.00
Rs. 5,800.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

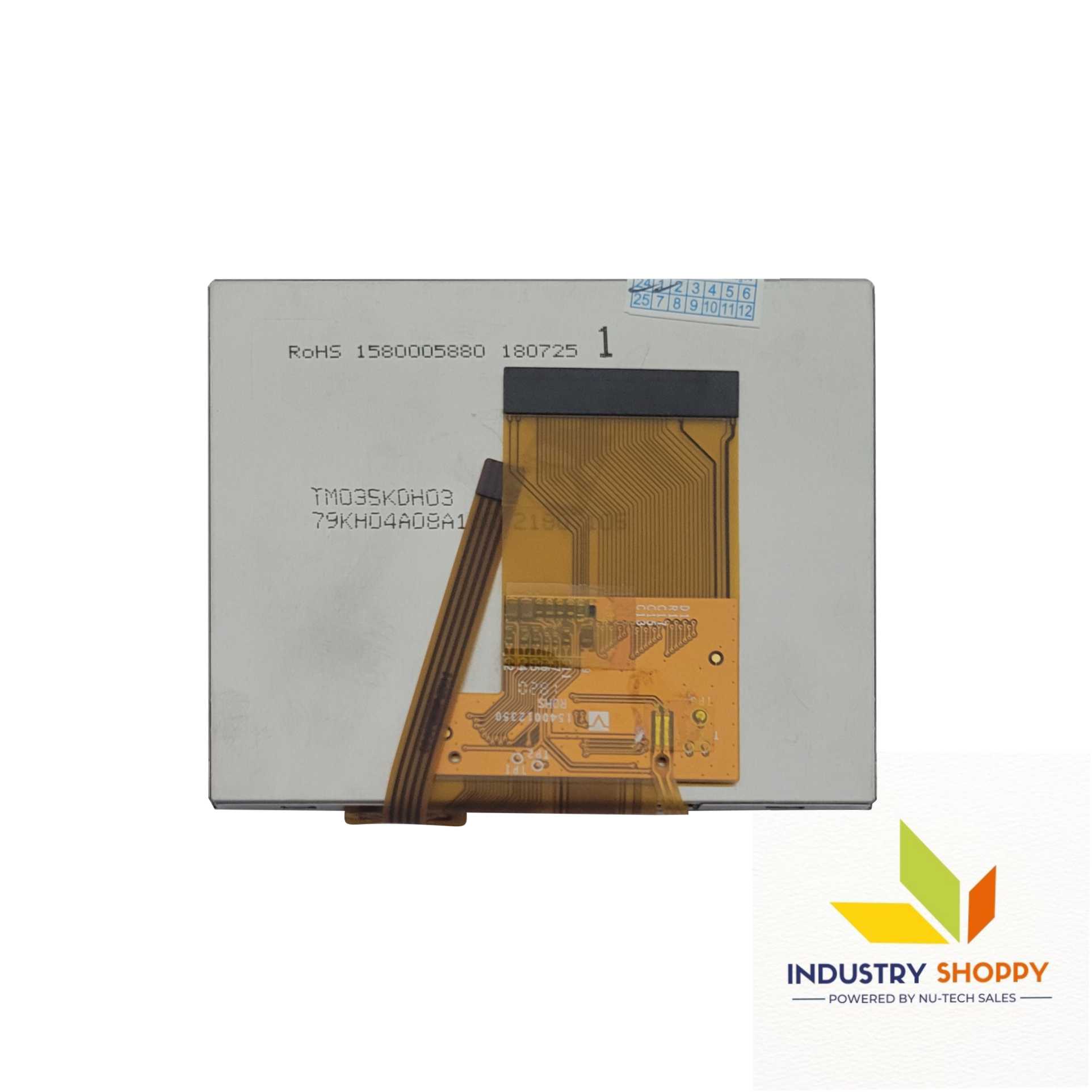

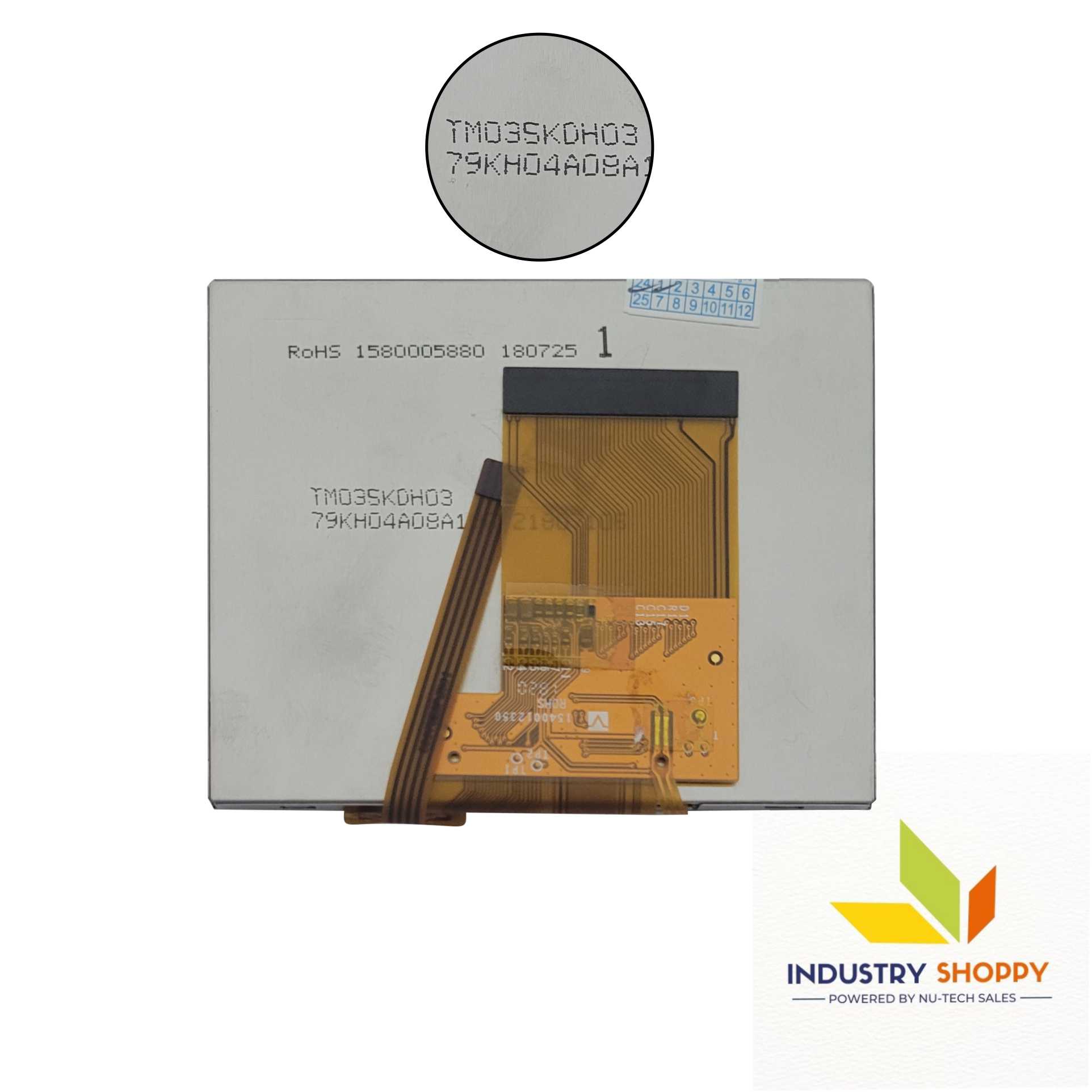

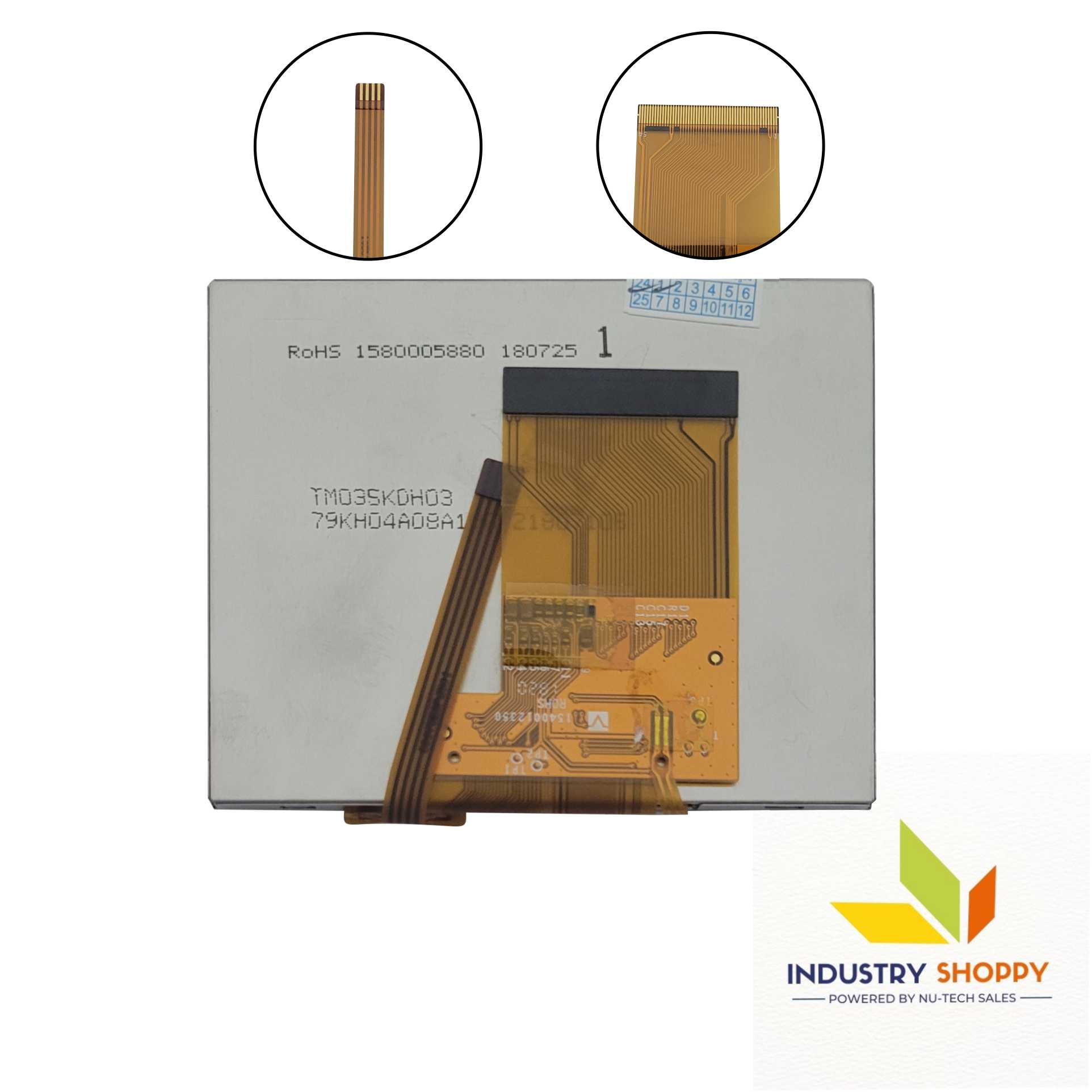

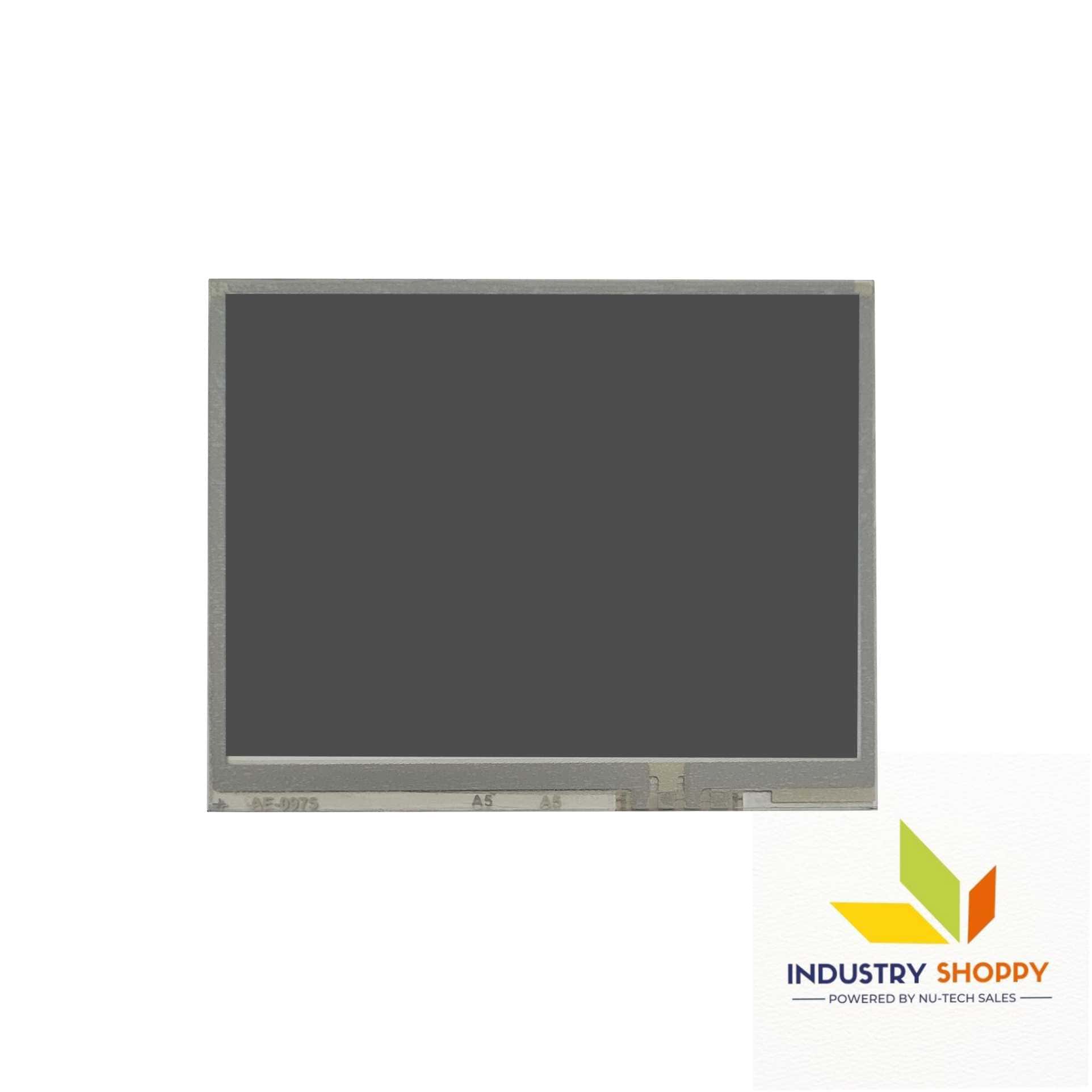

Tianma TM035KDH03 LCD Module with Touch Screen


The Tianma TM035KDH03 LCD Module with touch is 3.5-inch TFT-LCD display offers a compact yet high-performance solution ideal for embedded and handheld devices. With a resolution of 320(RGB)×240 (QVGA) and a pixel density of 115 PPI, it delivers sharp visuals within a modest active area of 70.08(W) × 52.56(H) mm. Furthermore, its slim outline dimensions of 76.9(W) × 63.9(H) × 3.35(D) mm make it an excellent choice for space-constrained designs.

In addition, the display features a 500:1 contrast ratio and a 20 ms response time, ensuring crisp, responsive images. Its viewing angles of 70/70/60/70 (CR≥10) enhance visibility from multiple directions, which is especially beneficial in user-facing interfaces.

Moreover, the display operates in TN, Normally White, Transmissive mode, balancing energy efficiency with vibrant output. It supports 16.7 million colors (60% NTSC) and uses a Parallel RGB + SPI interface for versatile integration.

Lastly, its WLED backlight offers 20,000 hours of operation, and it remains reliable across a wide operating temperature range (-20°C to 70°C), making it suitable for industrial and outdoor applications.




Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


BrandTIANMA
Diagonal Size3.5"
Resolution320 (RGB) × 240, QVGA — 115 PPI
Active Area70.08 (W) × 52.56 (H) mm
Outline Dimension76.9 (W) × 63.9 (H) × 3.35 (D) mm
Luminance Area72.88 (W) × 55.36 (H) mm
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle70/70/60/70 (Typ.) (CR ≥ 10)
Response Time20 ms (Typ., Tr+Td)
Panel Typea-Si TFT-LCD, LCM
Surface TreatmentHard coating
Operating ModeTN, Normally White, Transmissive
Support Color16.7M colors, 60% NTSC
Signal Interface TypeParallel RGB (1 ch, 8-bit) + SPI, 54-pin FPC
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
Backlight6S1P WLED, 20K hours, Without Driver
Operating Temperature-20 … 70 °C
Storage Temperature-30 … 80 °C
