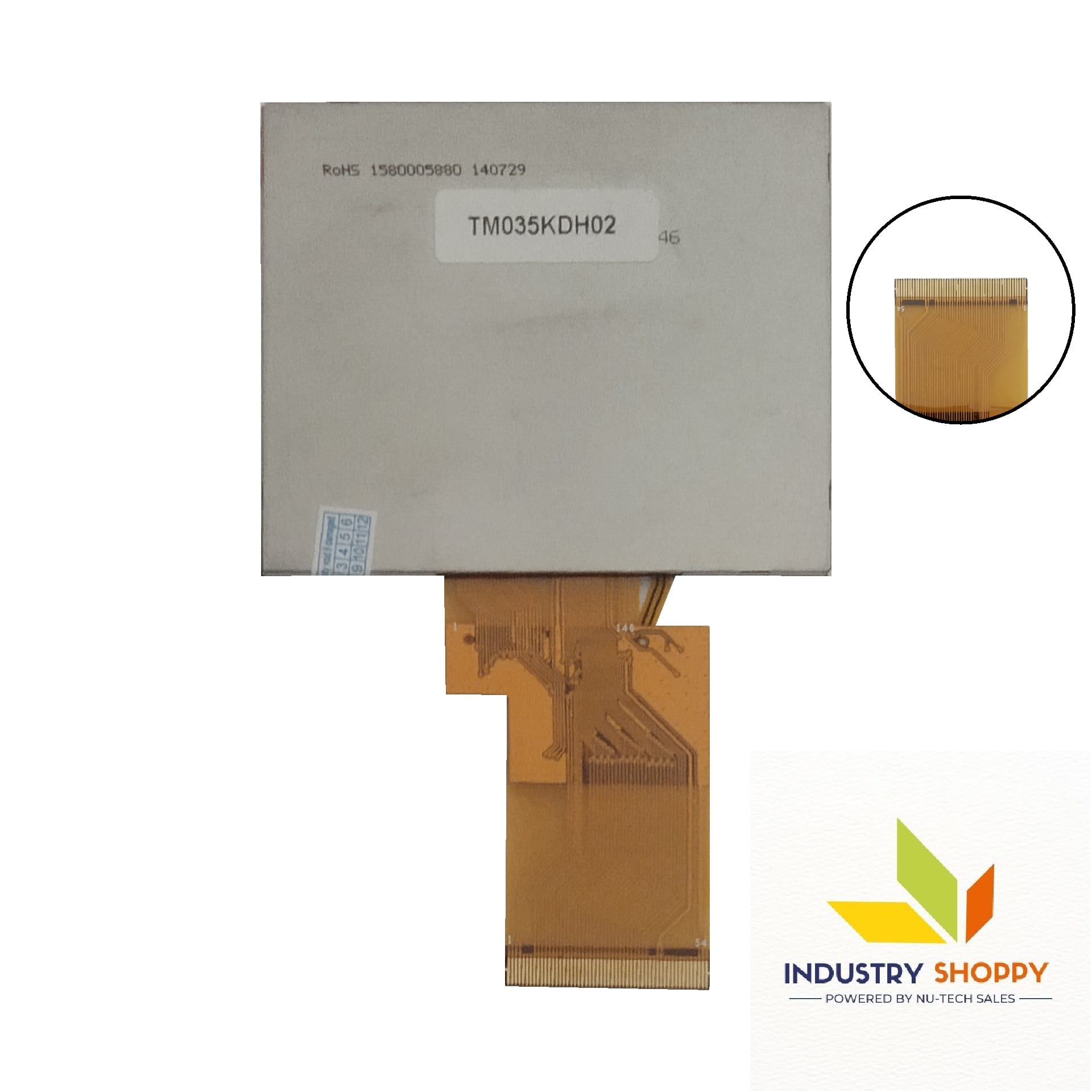

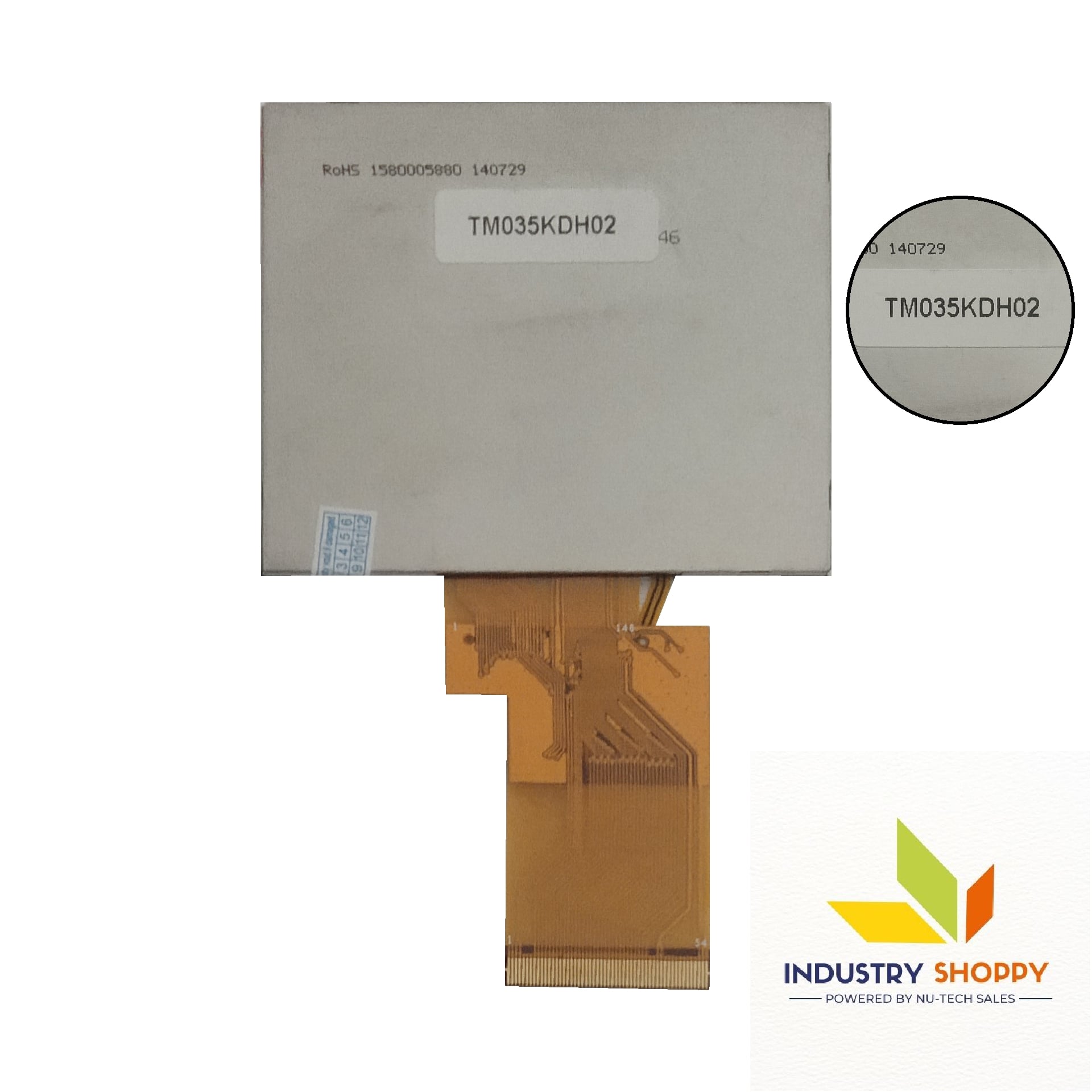

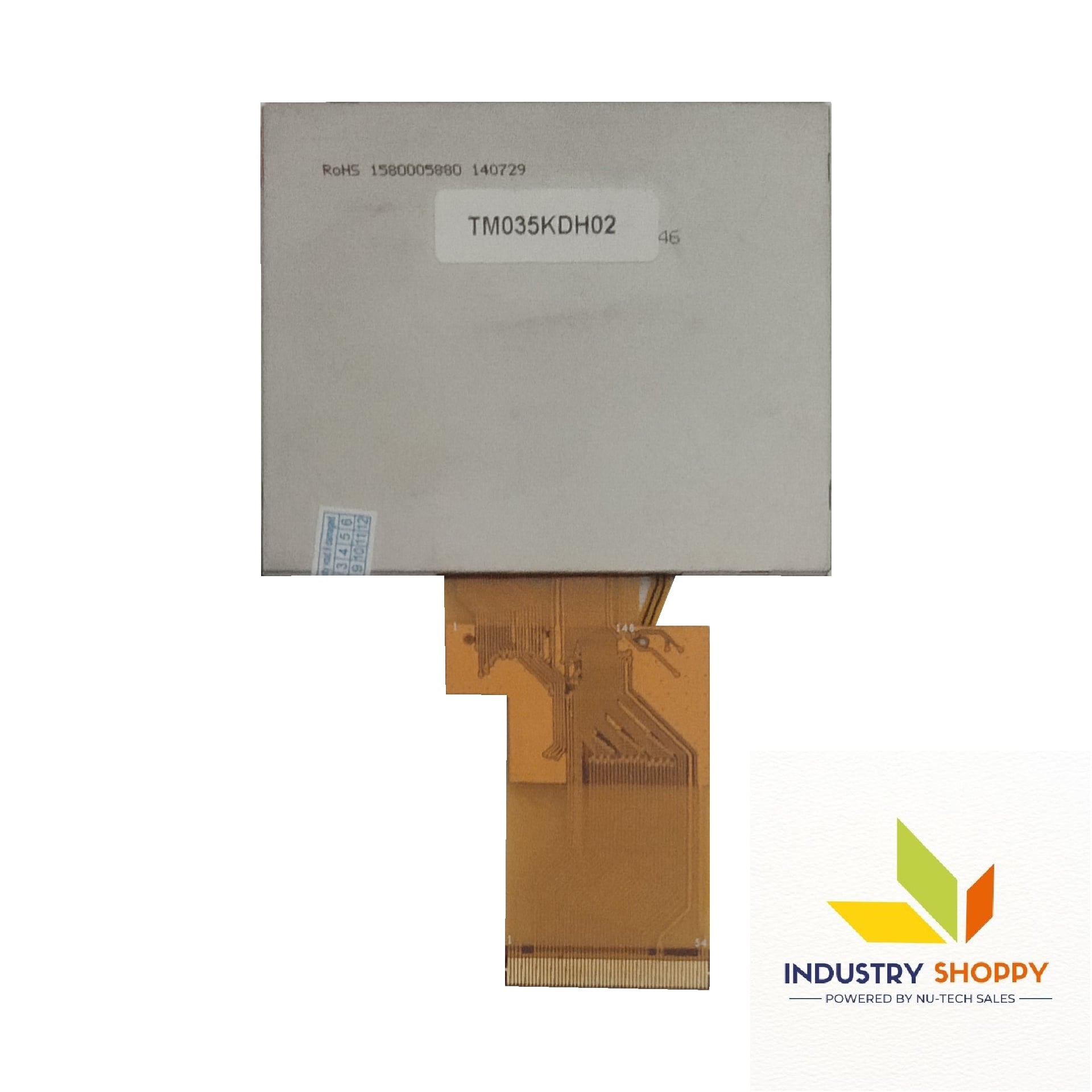

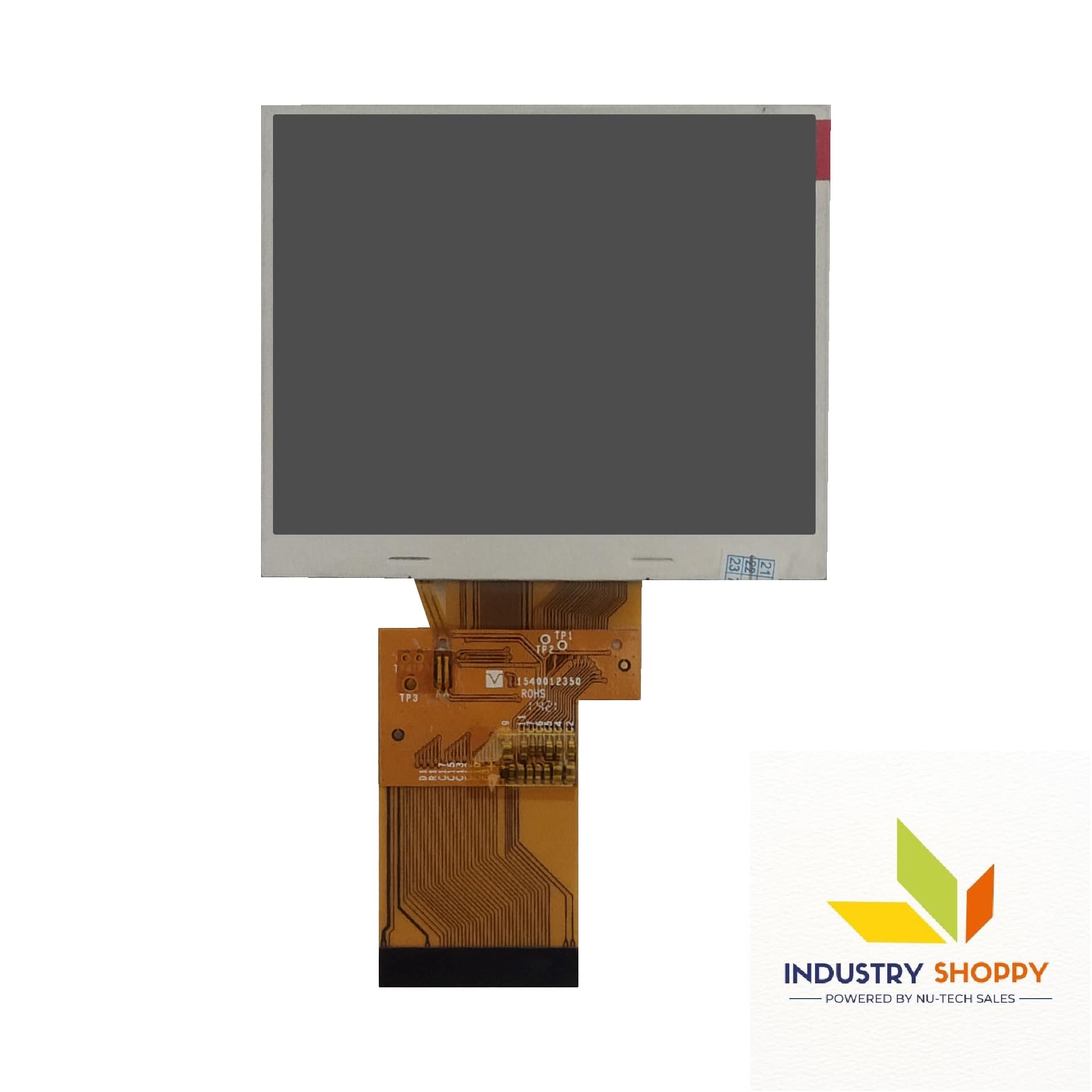

Tianma TM035KDH02 LCD Module

Tianma TM035KDH02 LCD Module - 3.5" High-Performance Display

The Tianma TM035KDH02 LCD Module delivers clear, reliable performance for compact display applications requiring sharp visuals and efficient power use. Featuring a QVGA resolution of 320(RGB) × 240 pixels at 115 PPI, it ensures crisp image quality. The active area of 70.08 × 52.56 mm is housed in a slim 76.9 × 63.9 × 3 mm outline, making it ideal for space-limited designs. With a brightness of 200 cd/m² and a 350:1 contrast ratio, it provides balanced visibility, while 60/60/40/60° viewing angles ensure consistent clarity.

The TN, normally white, transmissive panel is enhanced with antiglare treatment and 3H hard coating for durability. Supporting 16.7M colors (50% NTSC), it uses a Digital RGB (8/24-bit), SPI, and CCIR601/656 54-pin FPC interface. Powered at 3.3V, it employs a 6S1P WLED backlight (driver not included). With an operating range of -20°C to 70°C, it is robust for industrial and embedded use.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
