Sharp LQ121S1LG51 LCD Module

• Brand   :    Sharp
• Condition  :  Refurbished
• Size   :   12.1"
• Resolution   :   800 X600
• Luminance  :  350 cd/m² (Typ.)

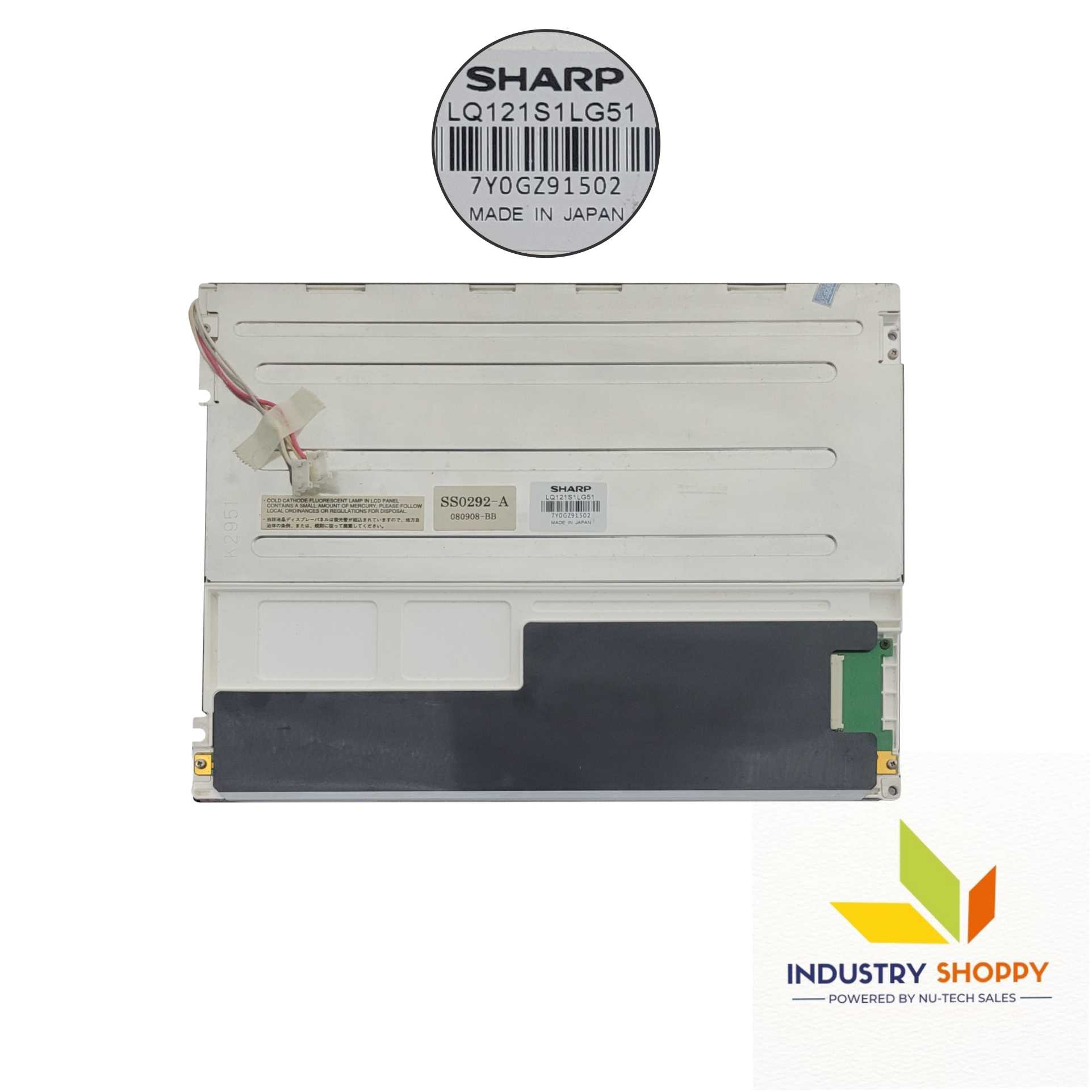

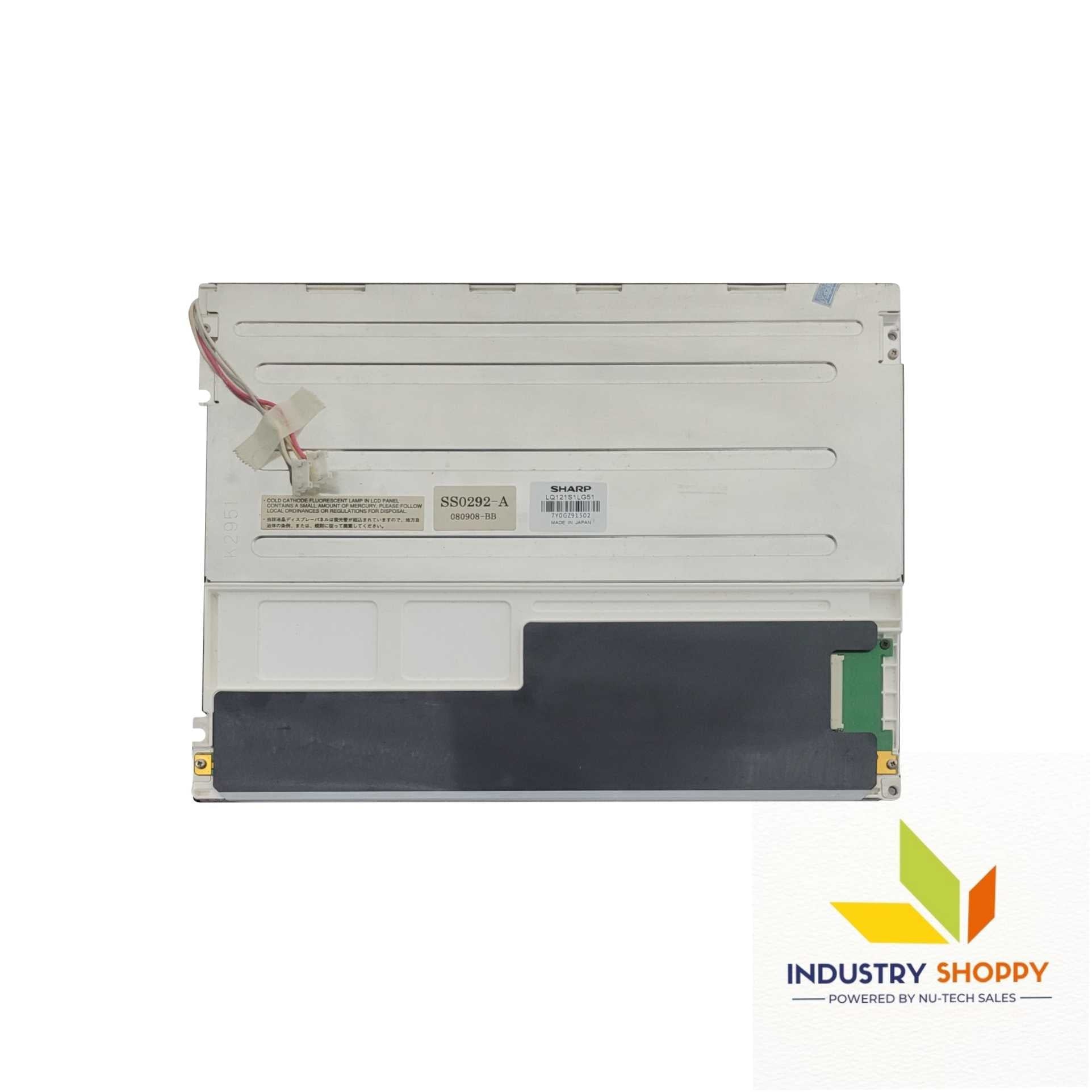

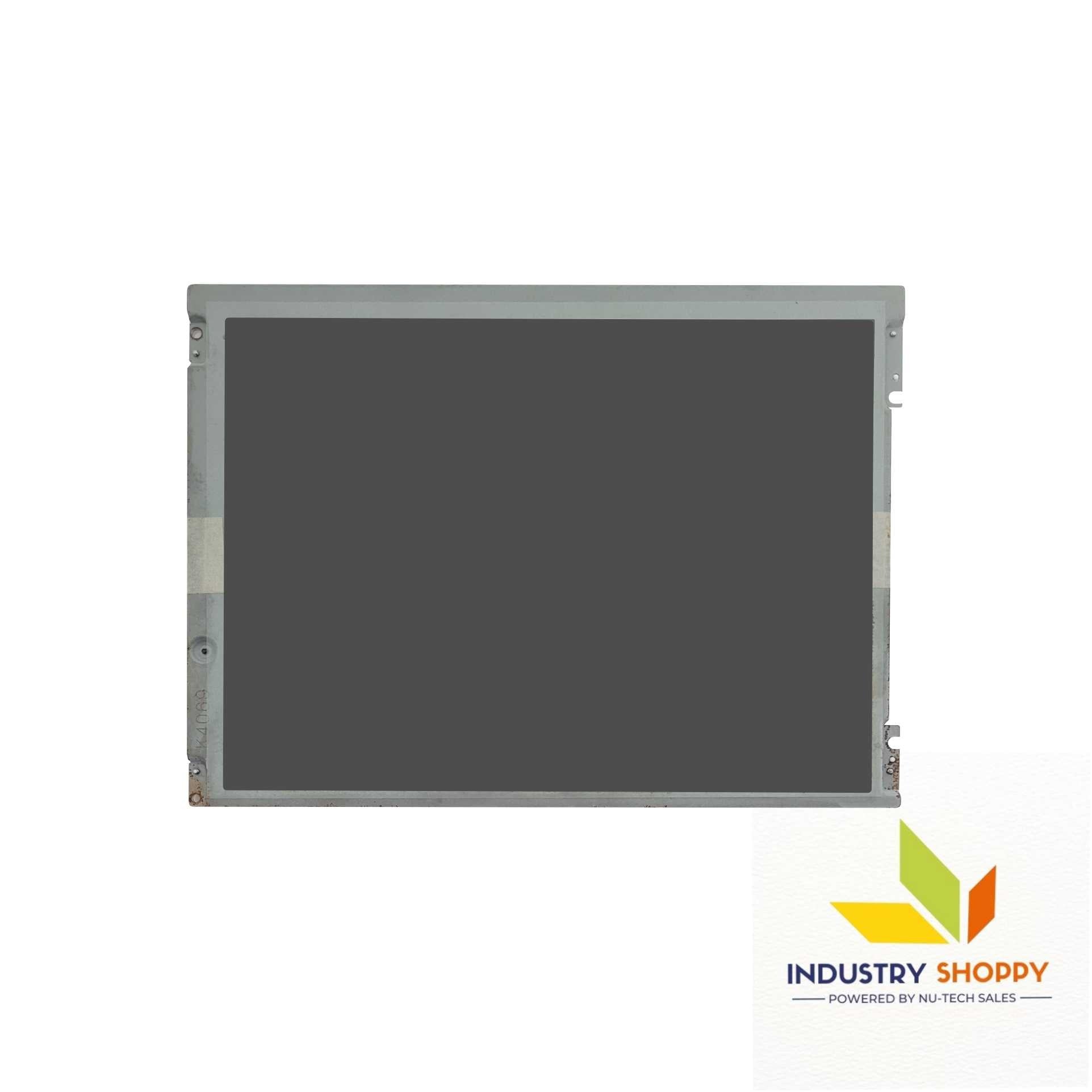

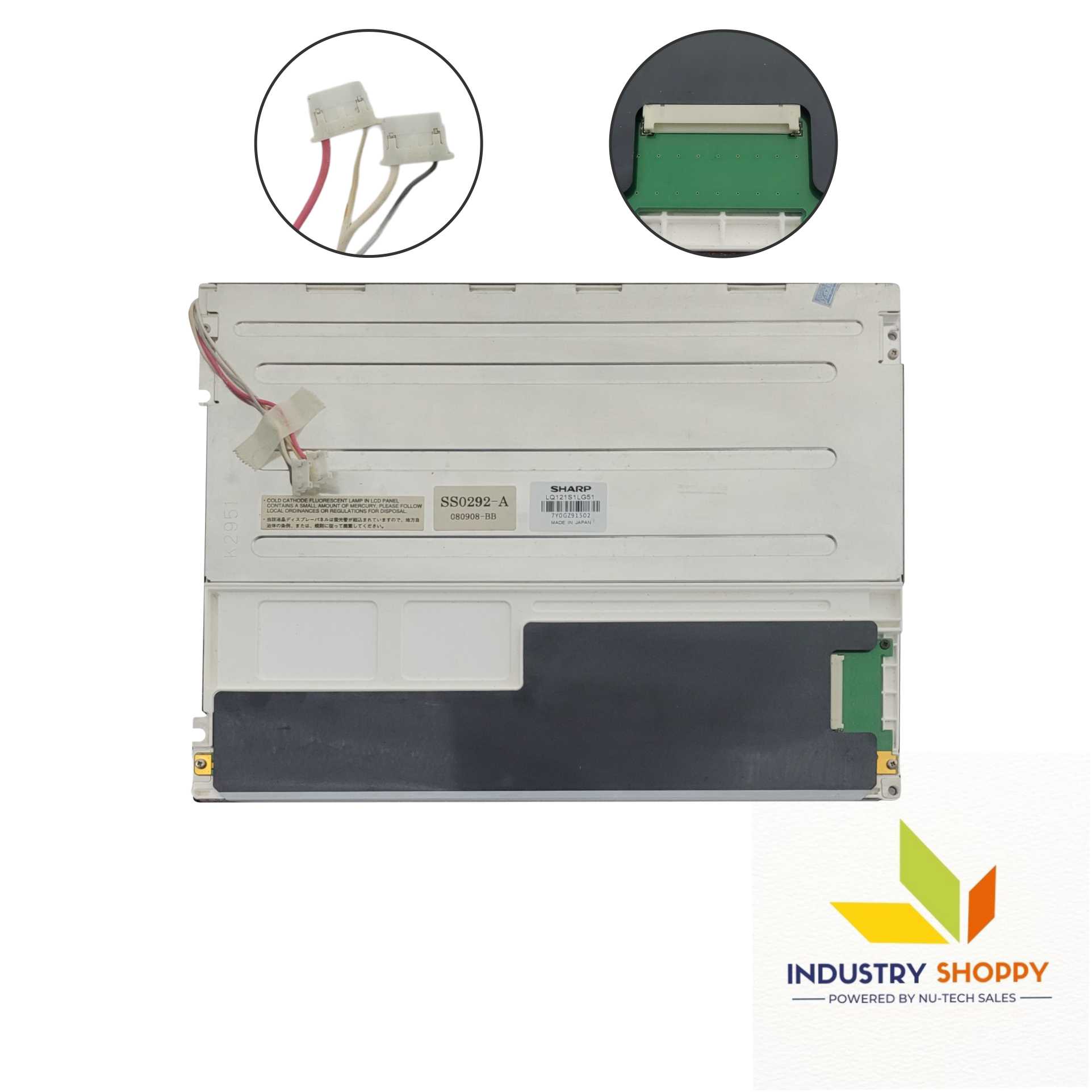

Sharp LQ121S1LG51 LCD Module

The Sharp LQ121S1LG51 is a 12.1-inch a-Si TFT-LCD module designed for industrial and gaming applications. It features an SVGA resolution of 800×600 pixels with an RGB vertical stripe format for clear and sharp image quality. The antiglare surface with 3H hard coating ensures durability and minimizes reflections.

With a brightness of 350 cd/m² and a contrast ratio of 400:1, this display provides optimal visibility in various lighting conditions. The wide viewing angles (70°/70° left/right, 50°/60° up/down) and 6 o'clock viewing direction enhance screen clarity. Additionally, its TN, normally white, transmissive display mode ensures fast response times (10/25 ms Tr/Td) for smooth visuals.

This module operates on a 3.3V power supply and connects via a 20-pin LVDS (1 ch, 8-bit) interface. It includes two CCFL backlight tubes with a 50,000-hour lifespan (driver not included), making it a long-lasting solution for gaming and industrial displays.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
