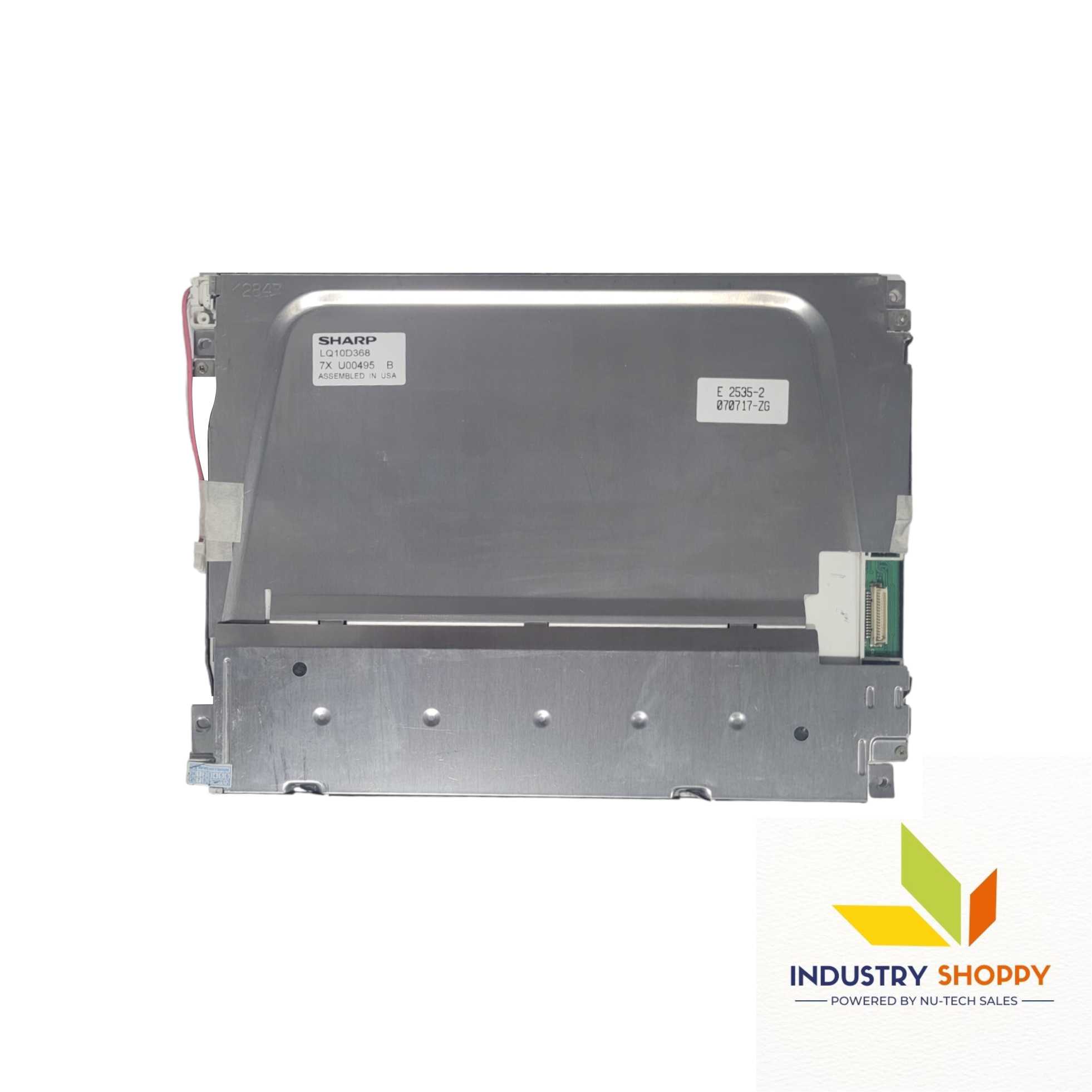

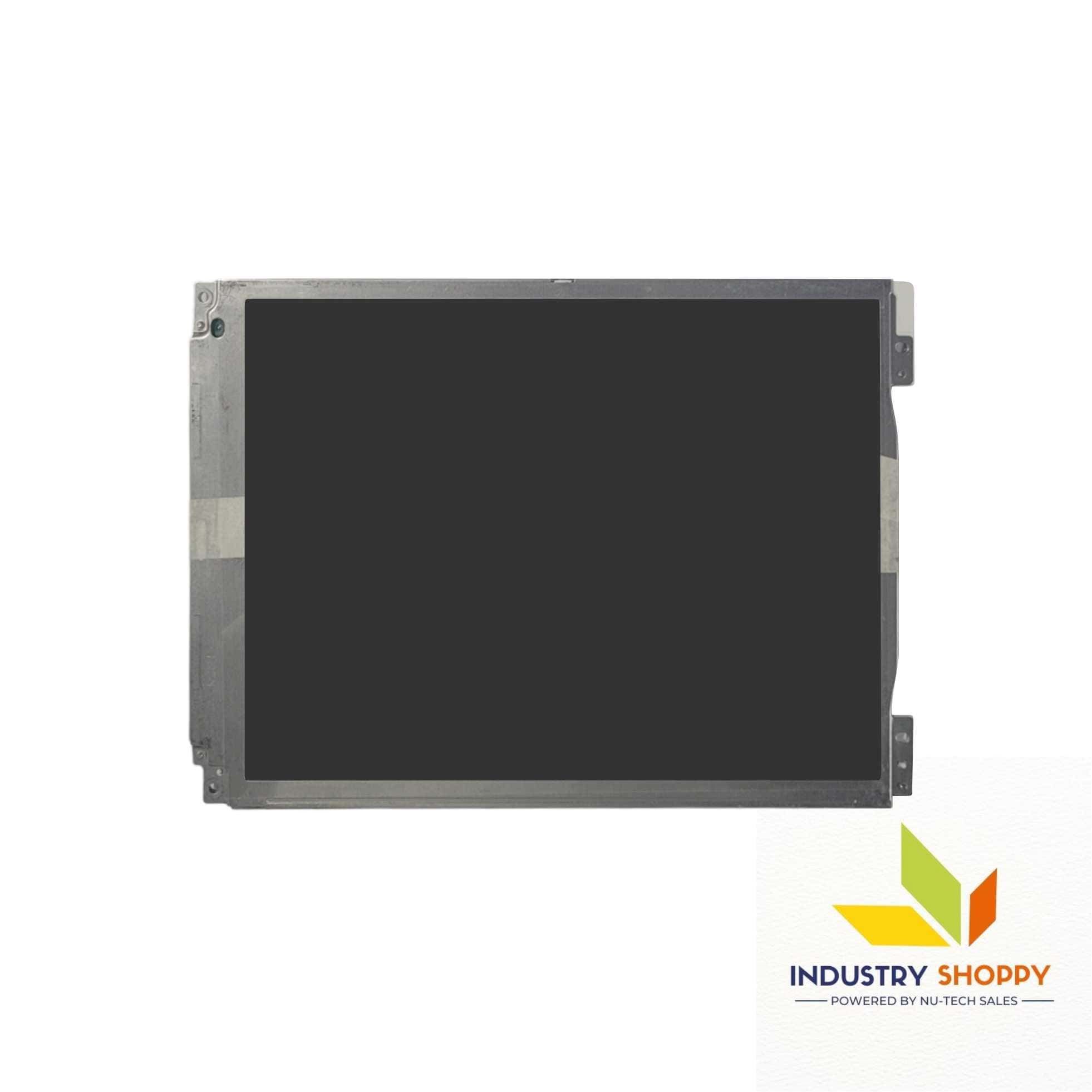

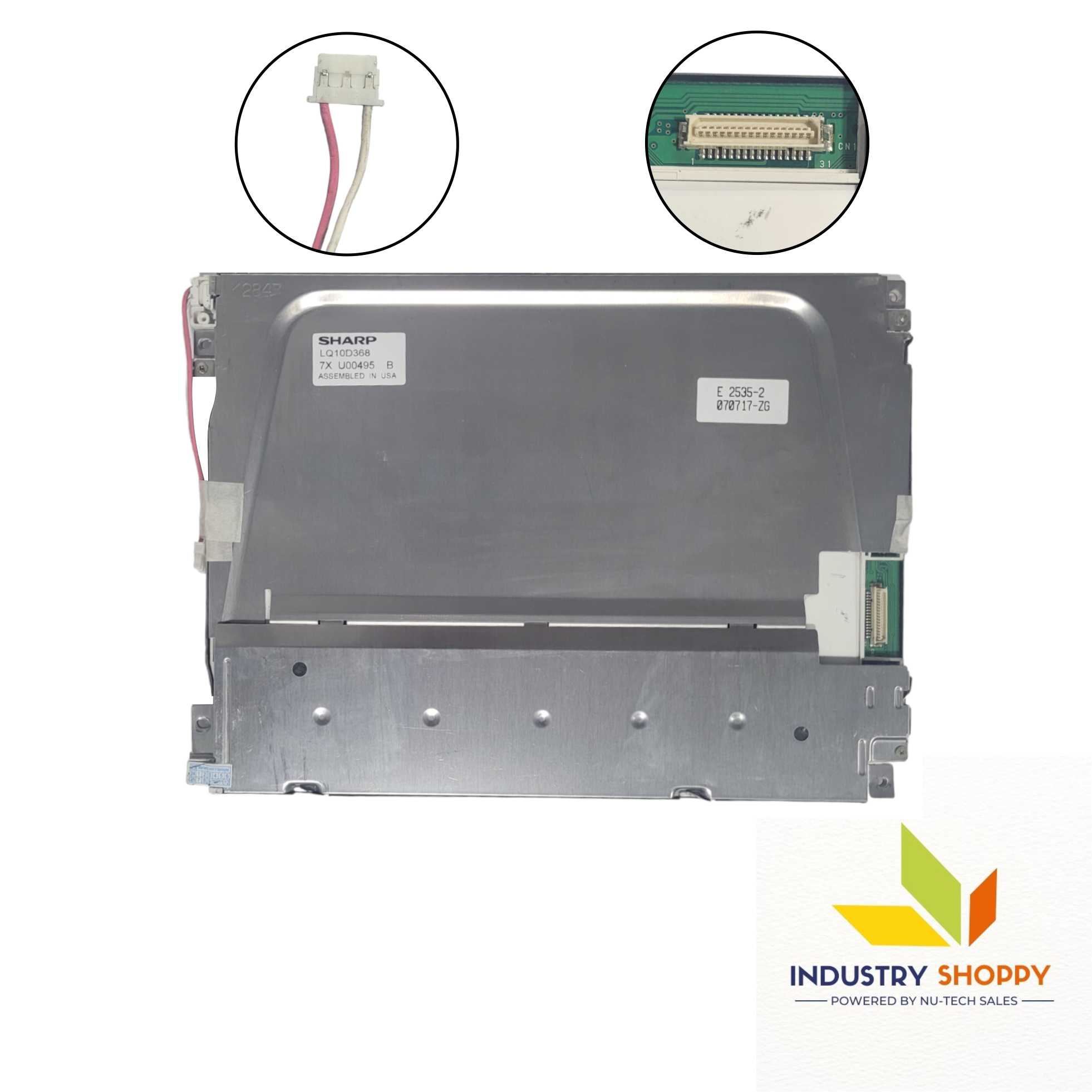

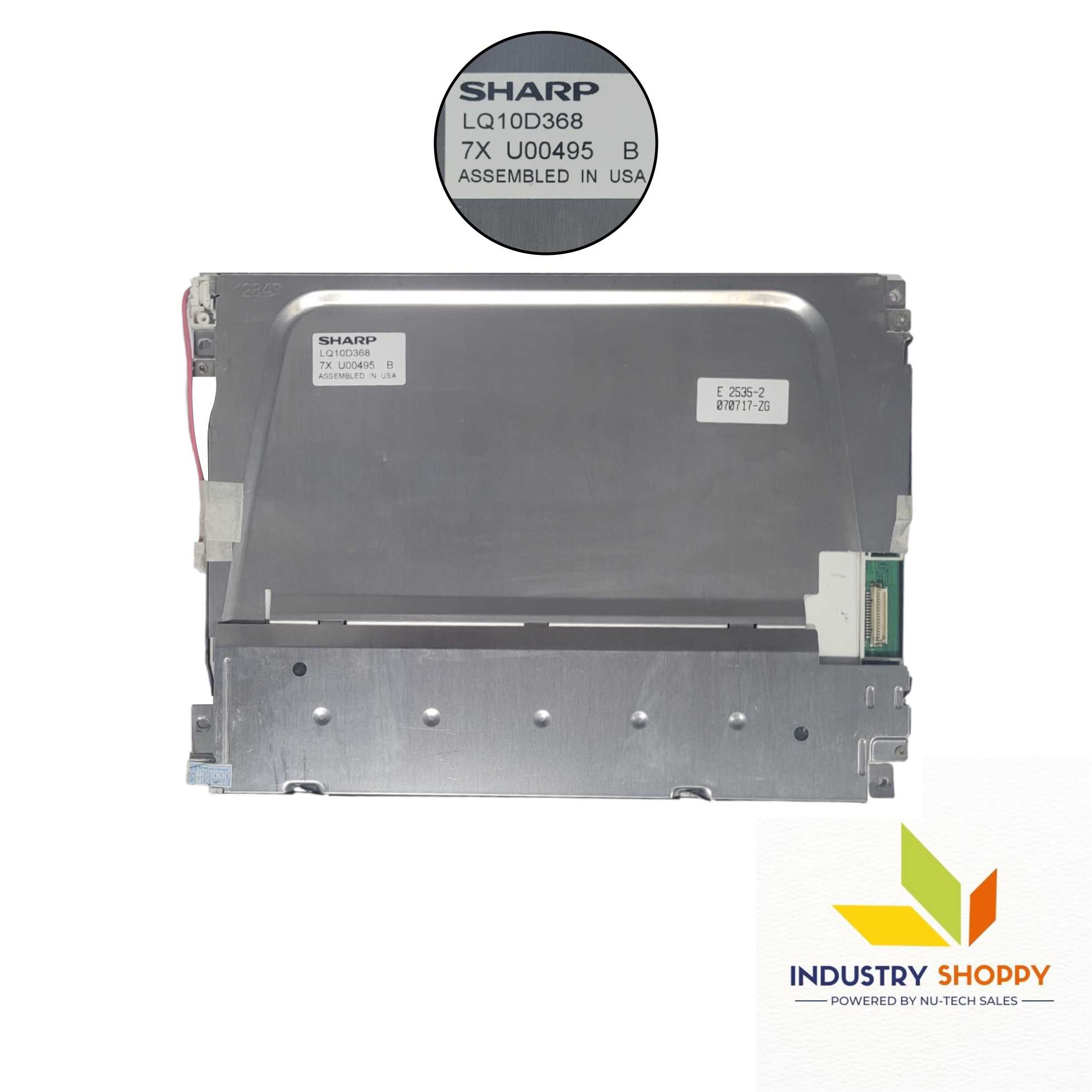

Sharp LQ10D368 LCD Module

The Sharp LQ10D368 is a 10.4-inch TFT-LCD module designed for industrial applications that require durability and high performance. With a VGA resolution of 640(RGB) × 480 pixels, it delivers clear and sharp visuals, making it ideal for automation systems, medical equipment, and control panels. The RGB vertical stripe pixel format ensures accurate color reproduction, while the TN, Normally White, Transmissive operating mode enhances brightness and contrast.

This display module features a 200 cd/m² luminance level and a 300:1 contrast ratio, ensuring readability even in challenging environments. The antiglare, hard-coated (3H) surface minimizes reflections, providing a comfortable viewing experience. With a wide operating temperature range (-10°C to 65°C) and CCFL backlight lasting up to 50,000 hours, it offers long-term reliability. Its 31-pin Parallel RGB interface ensures seamless connectivity, while the sturdy construction makes it ideal for industrial use.

The Sharp LQ10D368 LCD module is built for applications where stability and clarity are essential. With its rugged design, efficient power consumption, and consistent performance, it stands out as a reliable choice for professionals.



Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandSharp
Diagonal Size10.4"
Resolution640(RGB)×480, VGA 76 PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension246.5(W)×179.4(H)×11(D) mm
Luminance200 cd/m² (Typ.)
Contrast Ratio300:1 (Typ.) (TM)
Viewing Angle70/70/40/70 (Typ.) (CR≥10)
Response Time20/40 (Typ.) (Tr/Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K
Signal Interface TypeParallel RGB (1 ch, 6-bit), 31 pins Connector
Frame Rate-
Power Supply3.3/5.0 V (Typ.) (VCC)
Backlight1 pcs CCFL, 50K hours, Without Driver
Operating Temp.-10 ~ 65 °C
Storage Temp.-30 ~ 70 °C
