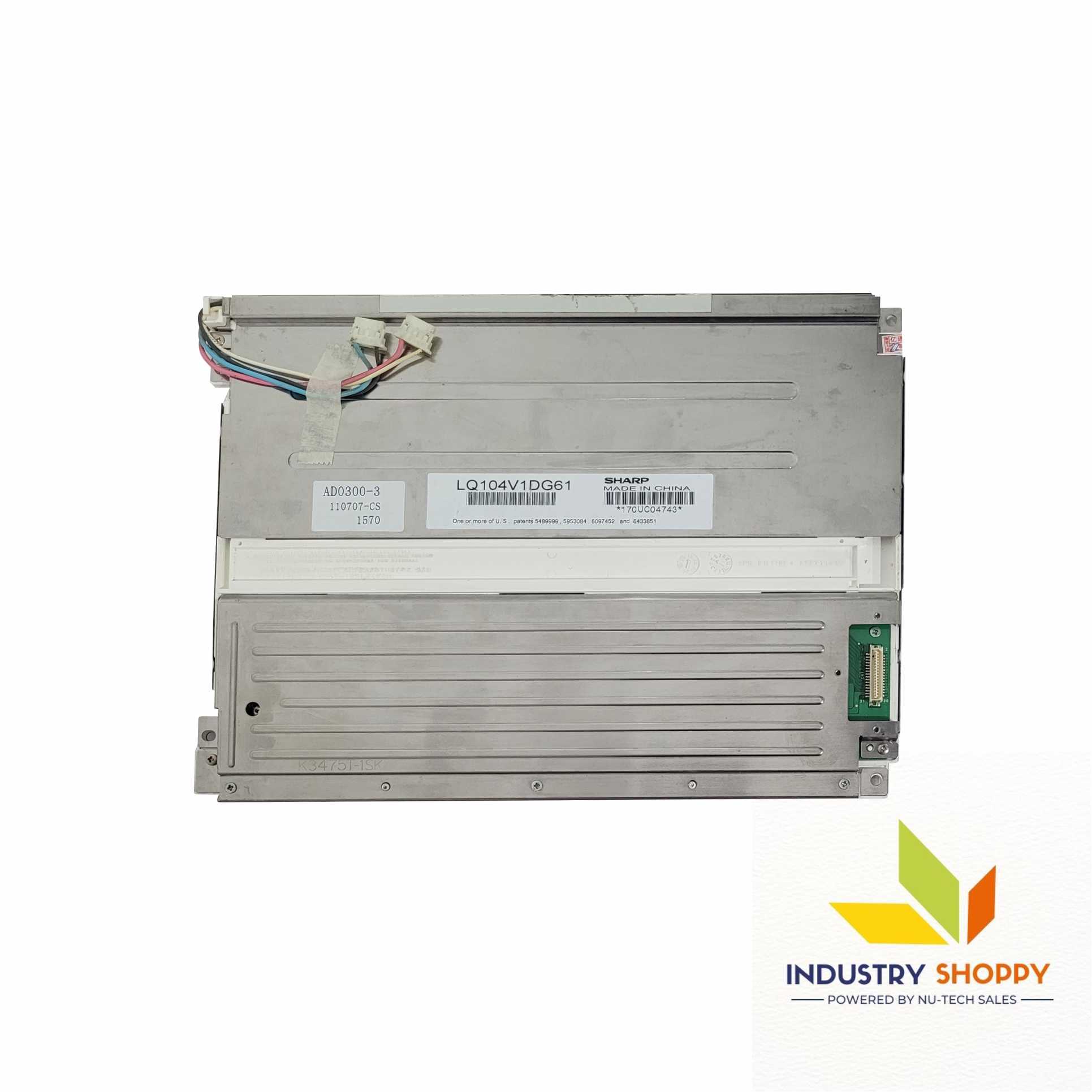

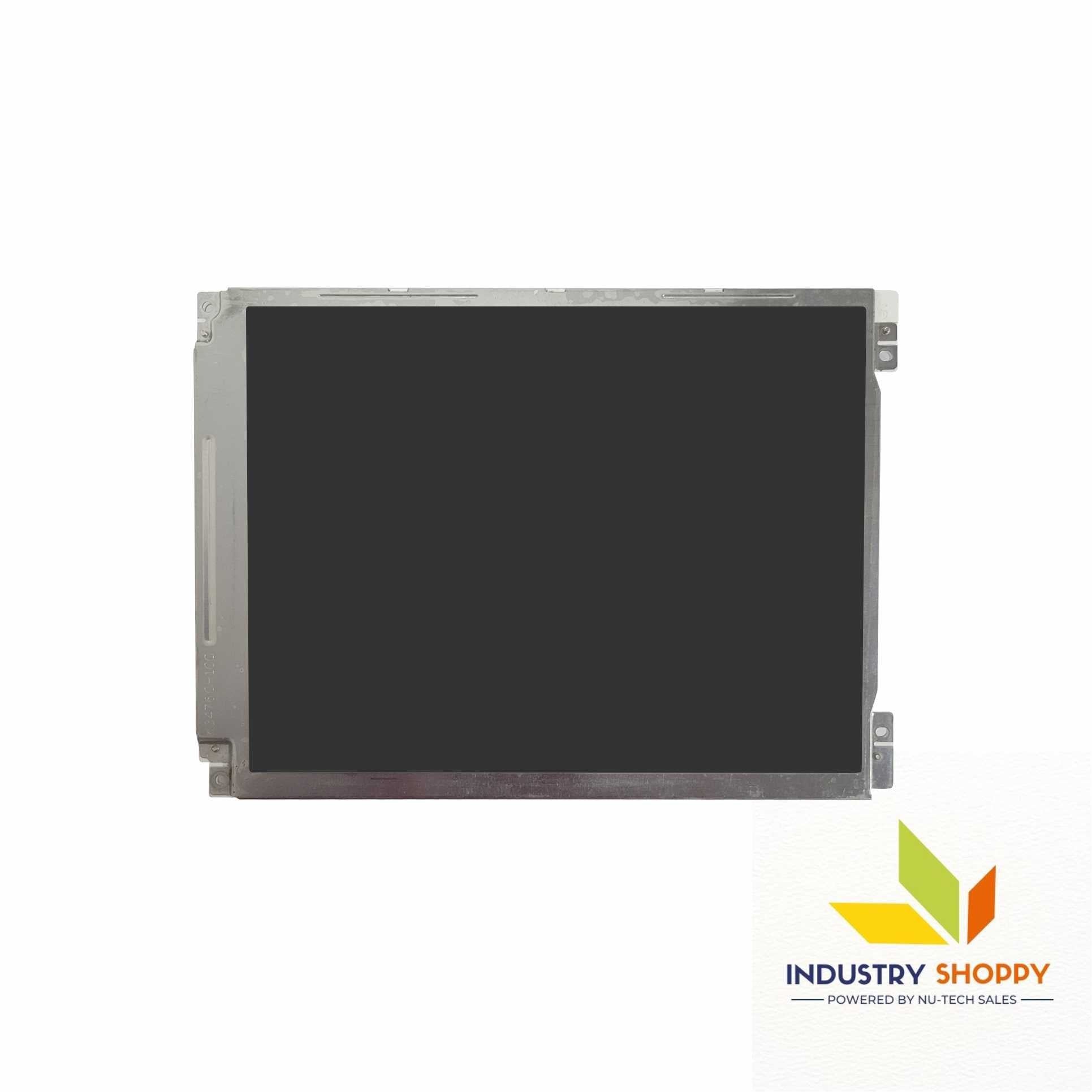

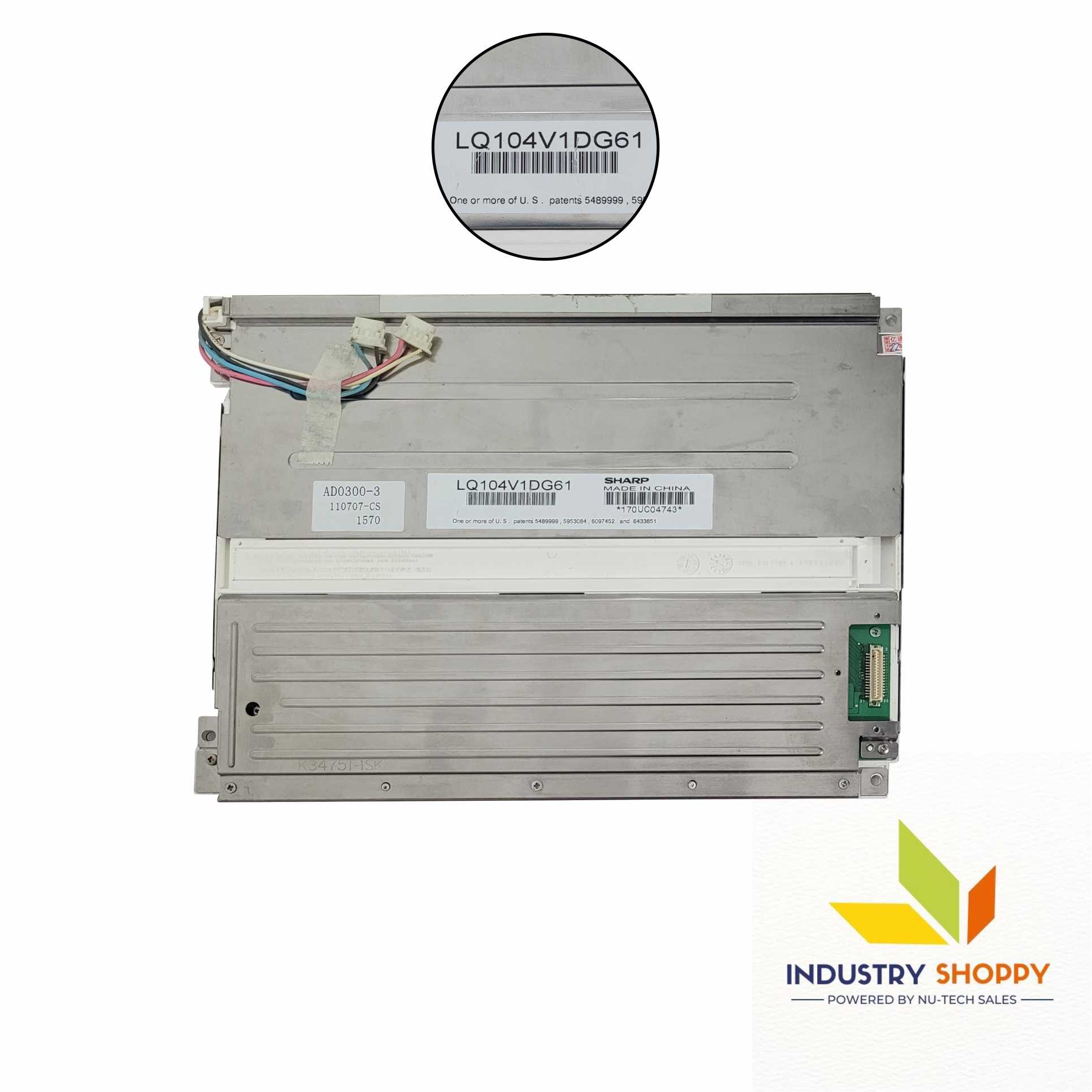

Sharp LQ104V1DG61 LCD Module
Sharp LQ104V1DG61 LCD Module
Sharp LQ104V1DG61 LCD Module
LQ104V1DG61
Sharp LQ104V1DG61 LCD Module
Sharp LQ104V1DG61 LCD Module
Sharp LQ104V1DG61 LCD Module
Sharp

Sharp LQ104V1DG61 LCD Module

Product SKU: NTSLCD0065
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand  :  Sharp
  • Size  :  10.4″
  • Condition  :  Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode  : Antiglare, Hard coating (3H), Antireflection
Rs. 15,840.00
Rs. 18,000.00
Condition
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Sharp LQ104V1DG61 LCD Module

Additionally, the panel features 10/25 ms response times (Tr/Td), offering reasonable performance for most content types. Operating in TN mode with normally white transmissive technology, the display employs antiglare and antireflection treatments, complemented by a 3H hard coating for durability. With support for 262K colors and 44% NTSC coverage, the display ensures reliable color reproduction.

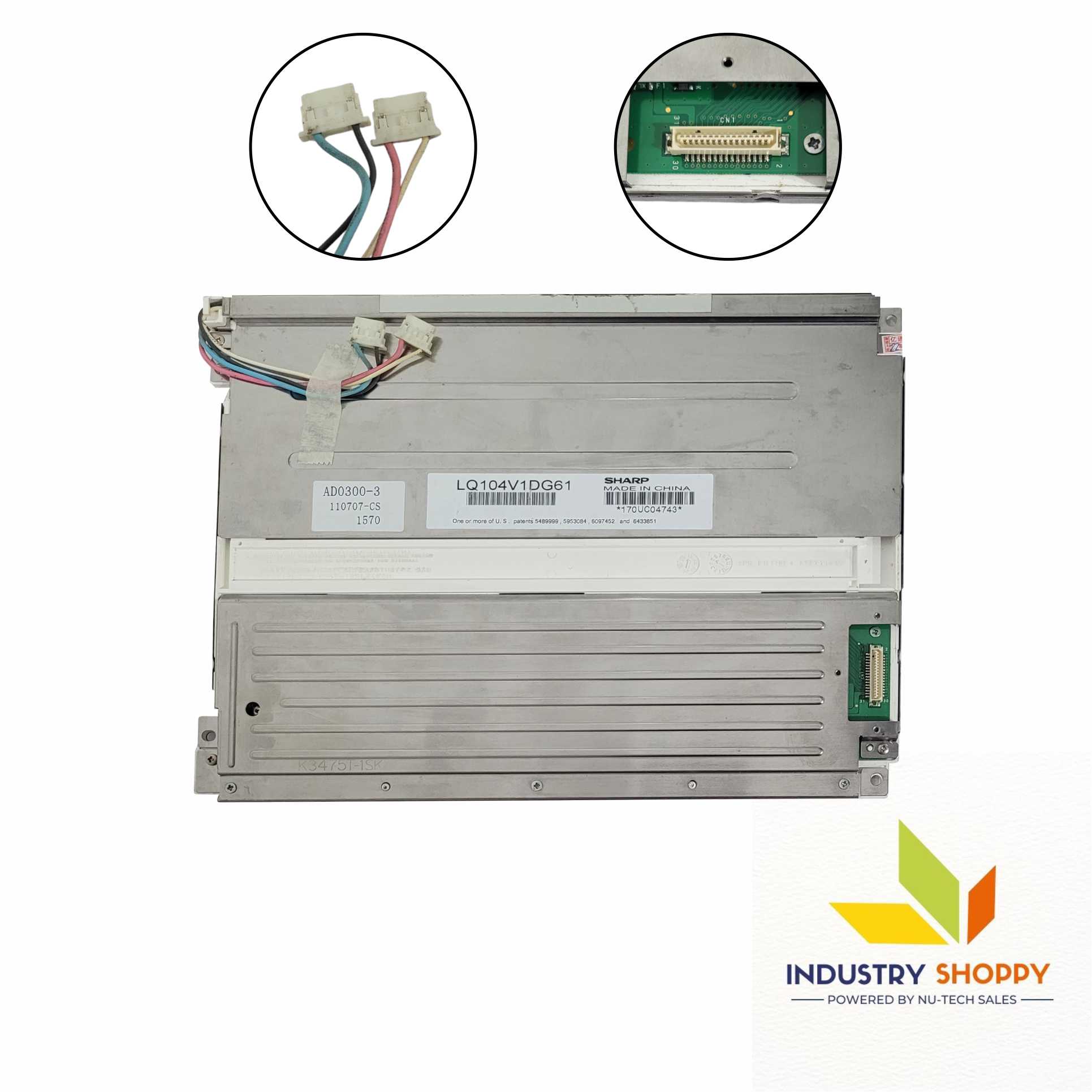

Connectivity is facilitated via a 31-pin parallel RGB (1 ch, 6-bit) interface, compatible with numerous embedded systems. The backlight consists of 2 CCFLs (50K hours) and requires no driver, providing dependable illumination. Designed for operation within a temperature range of -10°C to 70°C, and capable of storing safely between -30°C to 80°C, this panel is an excellent choice for industrial, instrumentation, or general-purpose applications. The Sharp LQ104V1DG61 LCD Module (LQ104V1DG6-1) is 10.4" LCD offers a 640 x 480 VGA resolution (76 PPI) within a 211.2(W) × 158.4(H) mm active area, housed in a 246.5(W) × 179.4(H) × 13.7(D) mm outline. With a typical luminance of 450 cd/m², it ensures optimal brightness for a range of environments. Furthermore, the 600:1 contrast ratio enhances visual clarity, delivering crisp details in standard industrial settings. Although its viewing angle is rated at 70/70/50/60 (CR ≥ 10), it provides solid legibility from various directions, making it suitable for interactive applications.



Technical Precautions:
  • It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandSharp
Diagonal Size10.4"
Resolution640(RGB)×480, VGA 76 PPI
Active Area211.2(W) × 158.4(H) mm
Outline Dimension246.5(W) × 179.4(H) × 13.7(D) mm
Luminance450 cd/m² (Typ.)
Contrast Ratio600:1 (Typ.) (TM)
Viewing Angle70/70/50/60 (Typ.) (CR≥10)
Response Time10/25 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H), Antireflection
Operating ModeTN, Normally White, Transmissive
Support Color262K, 44% NTSC
Signal Interface TypeParallel RGB (1 ch, 6-bit), 31 pins Connector
Frame Rate60Hz
Power Supply3.3/5.0V (Typ.) (VCC)
BacklightCCFL [2 pcs], 50K hours, W/O Driver
Operating Temp.-10 ~ 70 °C
Storage Temp.-30 ~ 80 °C
