18% Rs. 2,660.00

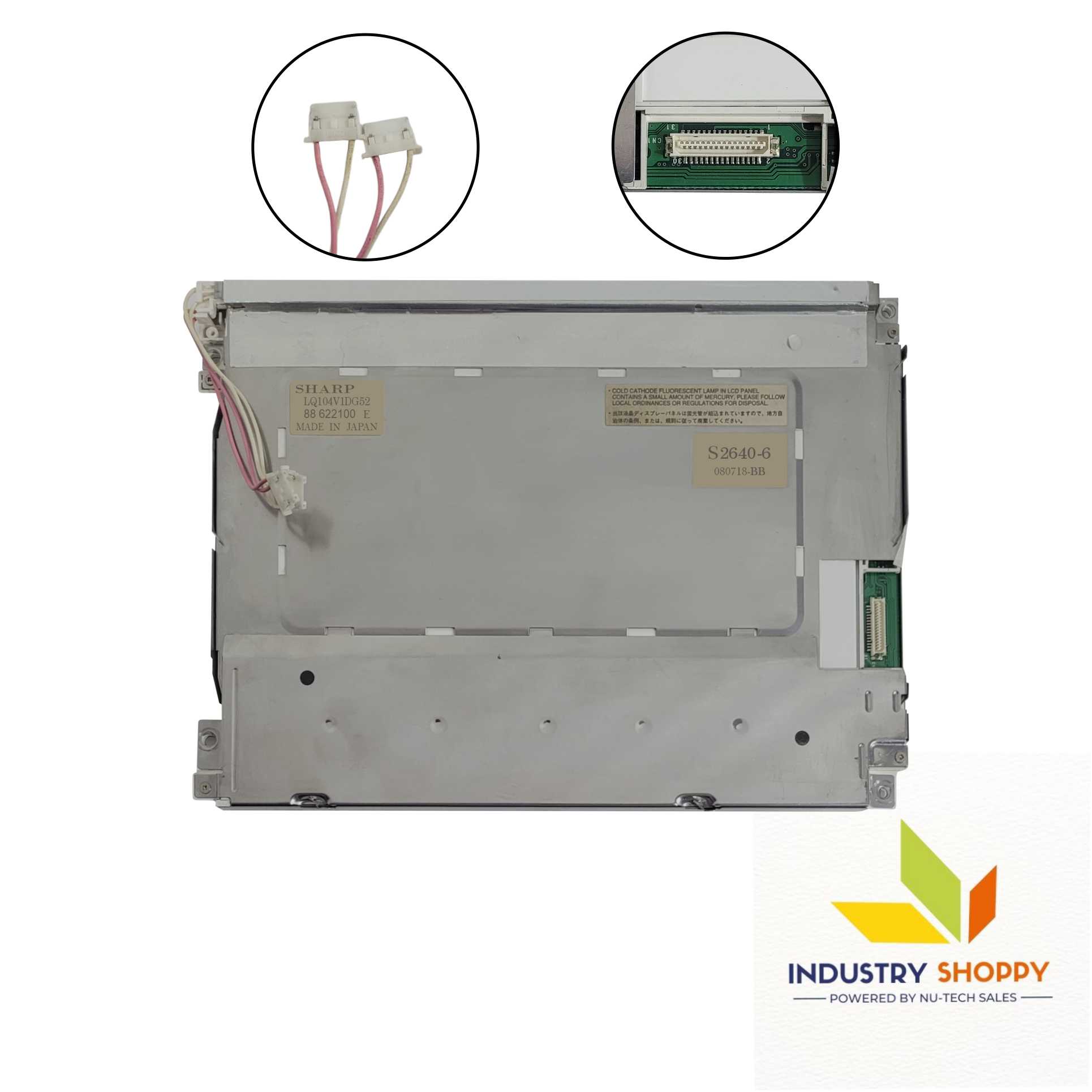

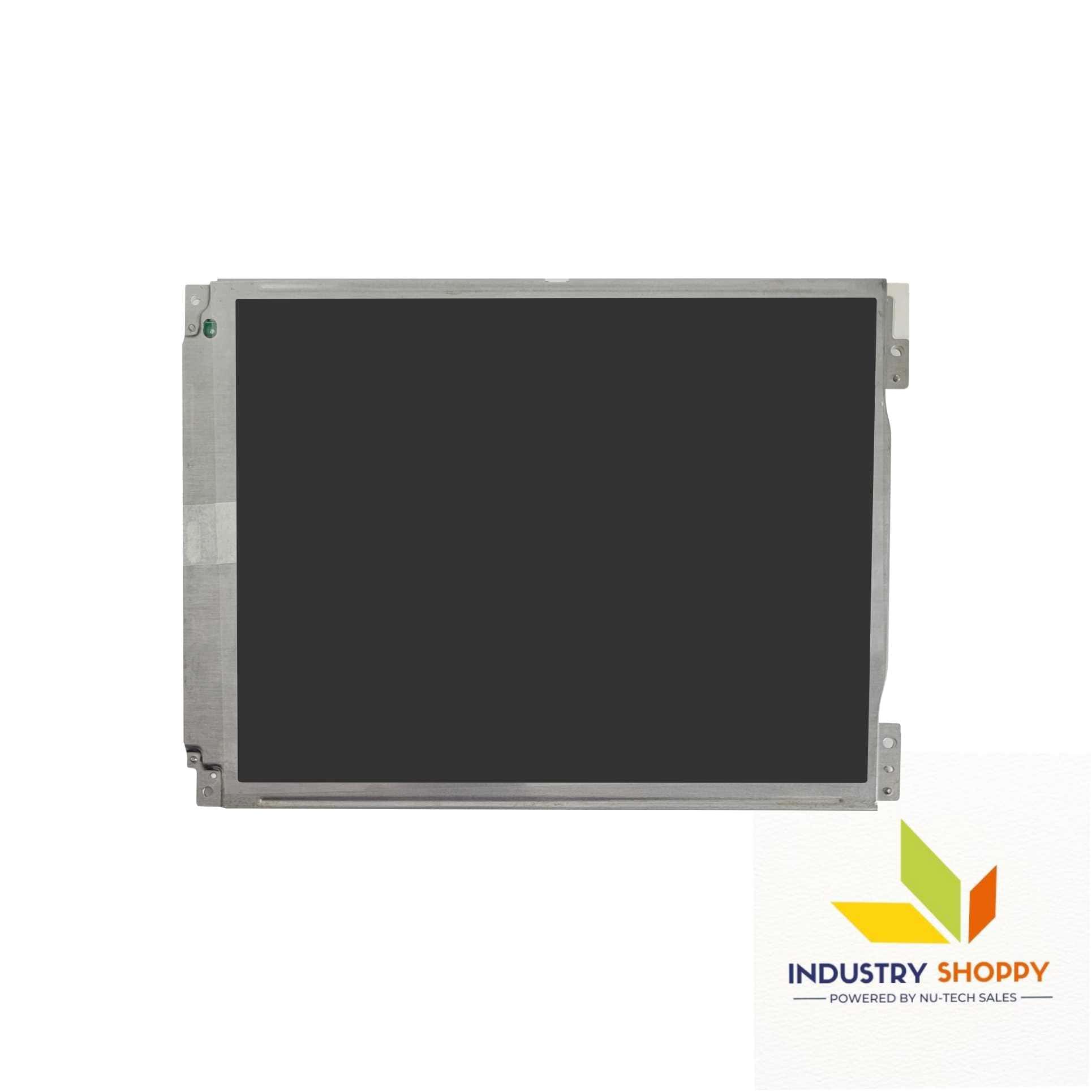

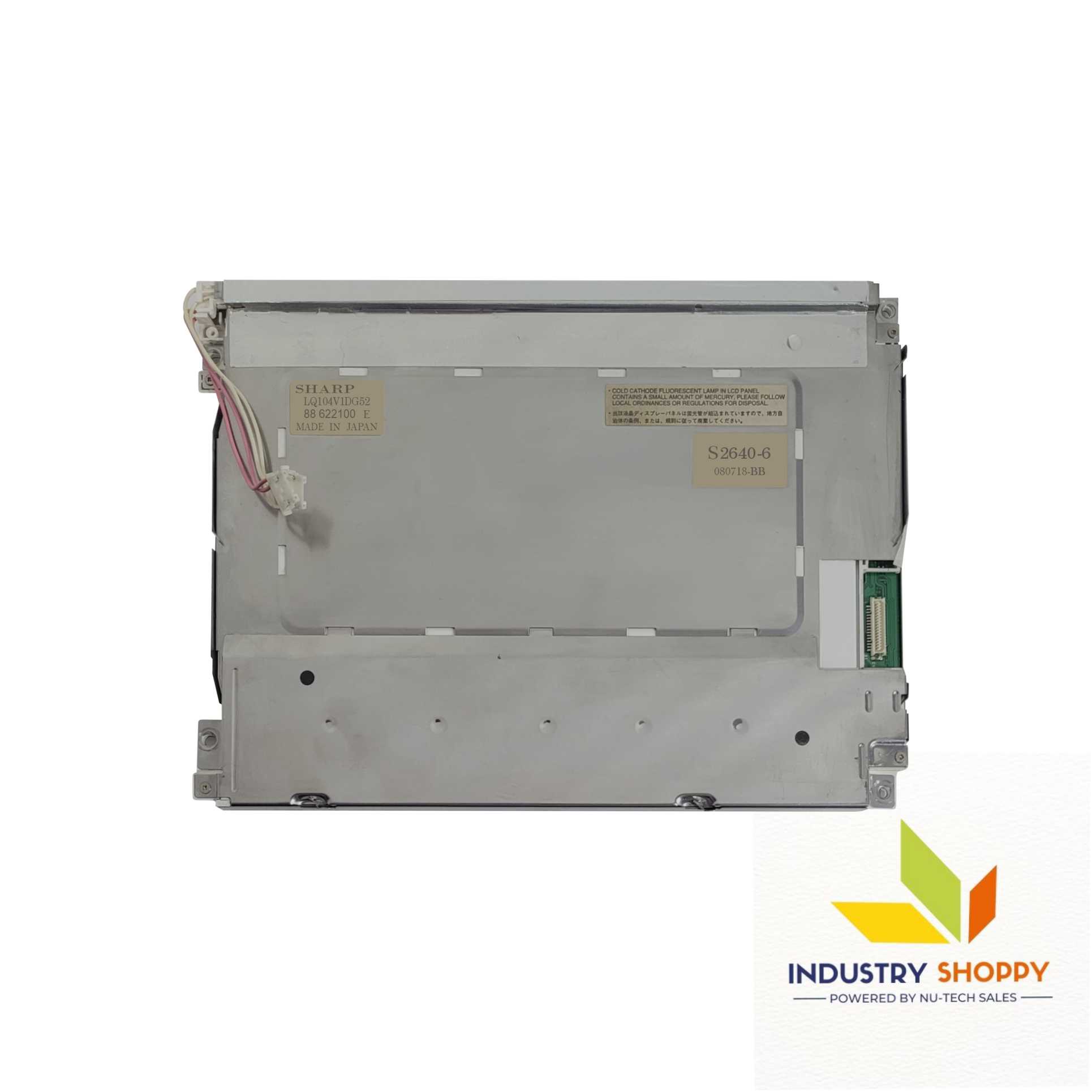

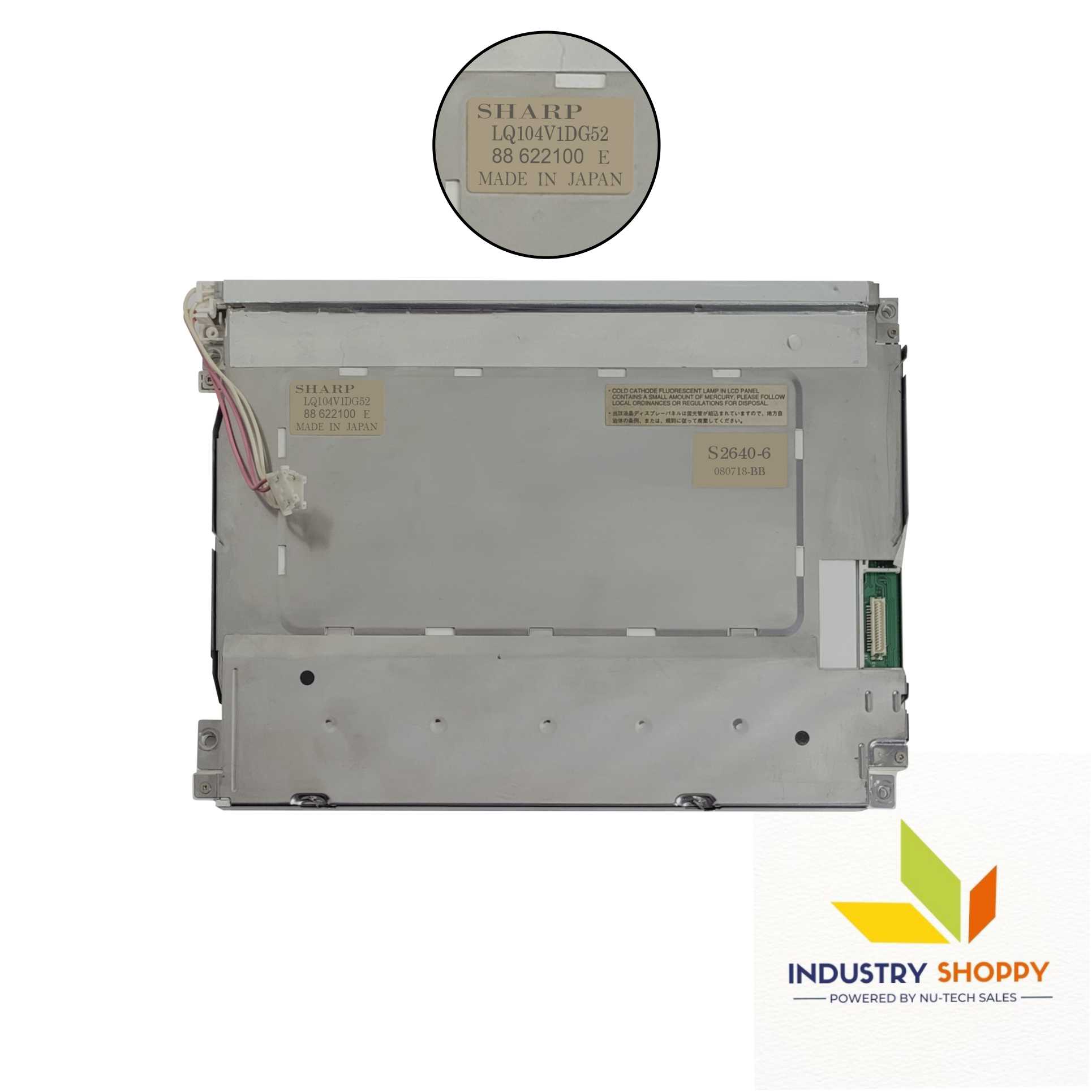

Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp LQ104V1DG52 LCD Module
Sharp

Sharp LQ104V1DG52 LCD Module

Product SKU: NTSLCD0133
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand   :    Sharp
  • Size   :   10.4"
  • Condition : Refurbished
  • Panel Type   :    a-Si TFT-LCD , LCM
  • Work Mode   : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 11,840.00
Rs. 14,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specification
  • Shipping & Returns

Sharp LQ104V1DG52 LCD Module

The Sharp LQ104V1DG52 is a 10.4-inch a-Si TFT-LCD module, designed for industrial applications requiring high durability and reliable performance. It features a VGA resolution of 640×480 pixels (76 PPI) with an RGB vertical stripe pixel format, ensuring clear and vibrant visuals. The antiglare, hard-coated (3H), and anti-reflection surface enhances visibility and reduces glare in various lighting conditions.

With a brightness of 350 cd/m² and a contrast ratio of 300:1, this display provides sharp images with good readability. The viewing angles (70° left, 70° right, 40° up, 70° down) offer decent visibility for industrial applications. Its 10/25ms response time ensures smooth operation in dynamic environments.

The CCFL backlight (two pieces) with a 50,000-hour lifespan ensures long-lasting performance, but it does not include a driver. Operating at 60Hz refresh rate, this module uses a Parallel RGB (1 ch, 6-bit) interface with a 31-pin connector for seamless integration.

Built for rugged environments, it operates within a temperature range of -10°C to 65°C and can be stored between -30°C to 70°C. This module does not include a touch screen, making it suitable for external touch integration.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandSharp
Diagonal Size10.4"
Resolution640(RGB)×480, VGA, 76 PPI
Active Area211.2(W) × 158.4(H) mm
Outline Dimension246.5(W) × 179.4(H) × 15.5(D) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio300:1 (Typ.) (TM)
Viewing Angle70/70/40/70 (Typ.) (CR≥10)
Response Time10/25 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H), Antireflection
Operating ModeTN, Normally White, Transmissive
Support Color262K
Signal Interface TypeParallel RGB (1 ch, 6-bit), 31 pins Connector
Frame Rate60 Hz
Power Supply3.3/5.0 V (Typ.)
BacklightCCFL [2 pcs], 50K hours, W/O Driver
Operating Temp.-10 ~ 65 °C
Storage Temp.-30 ~ 70 °C
