Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Sharp LQ064V3DG05 LCD Module
Kyocera

Sharp LQ064V3DG05 LCD Module

Product SKU: NTSLCD0008
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Sharp
  • Size : 6.4″
  • Condition : Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 15,840.00
Rs. 21,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

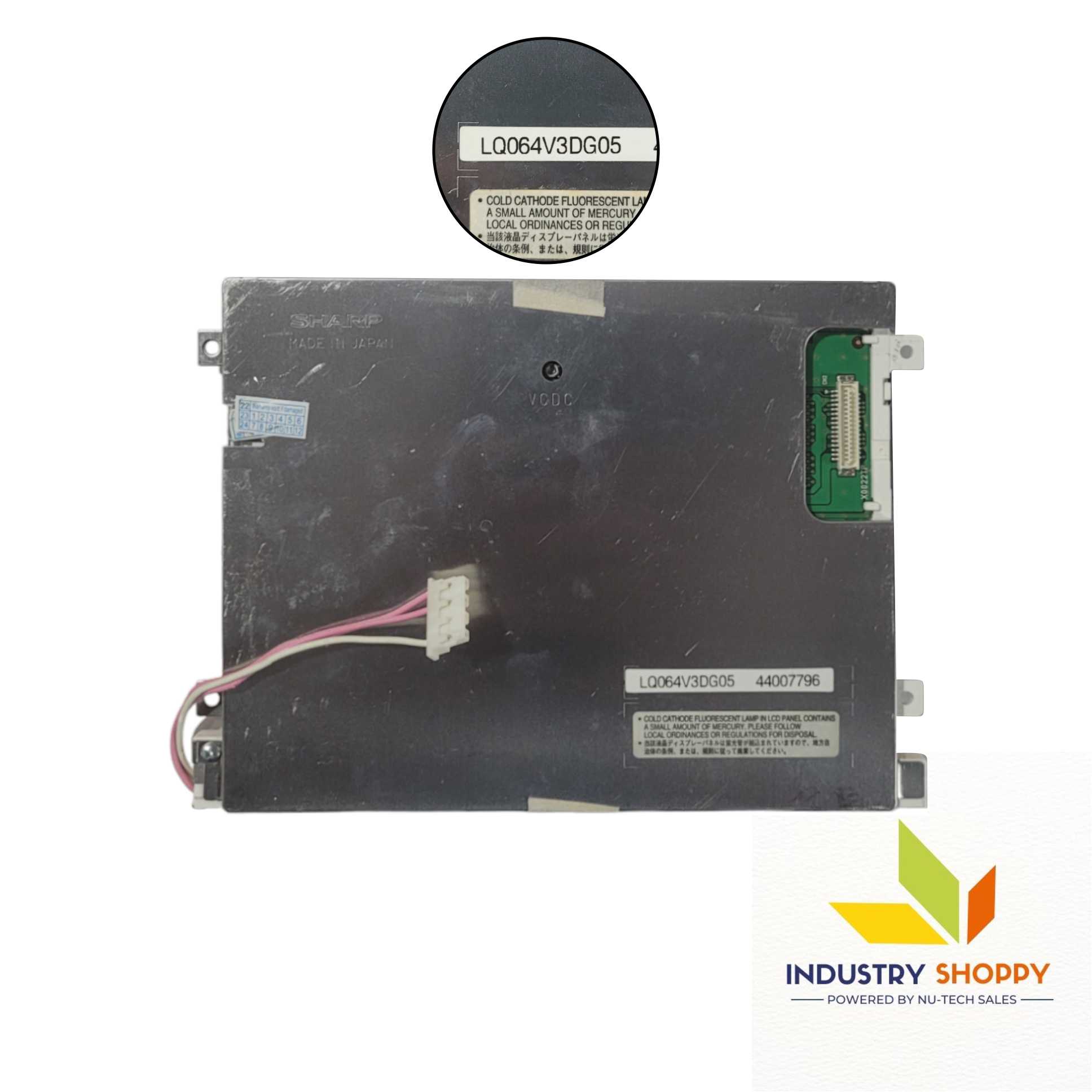

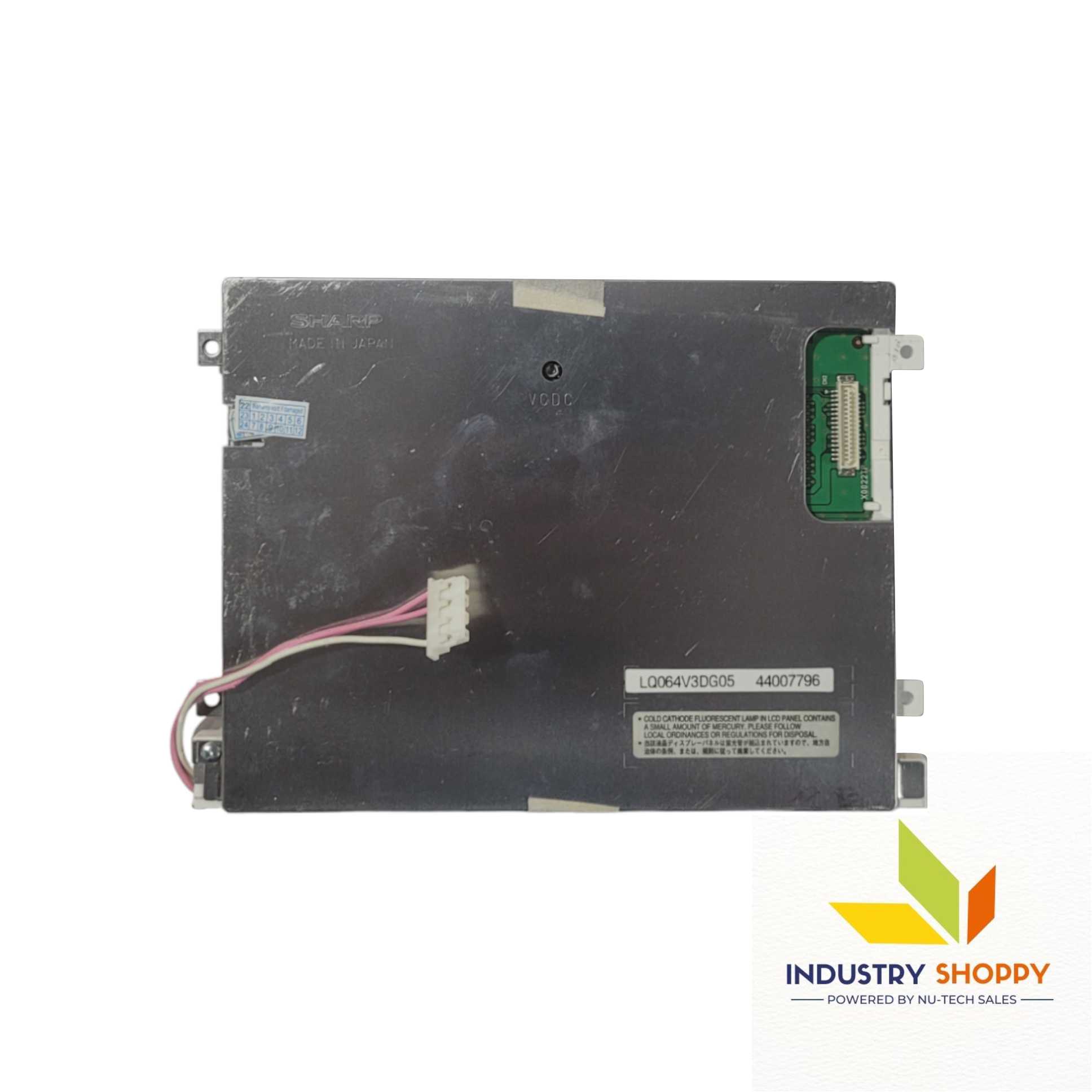

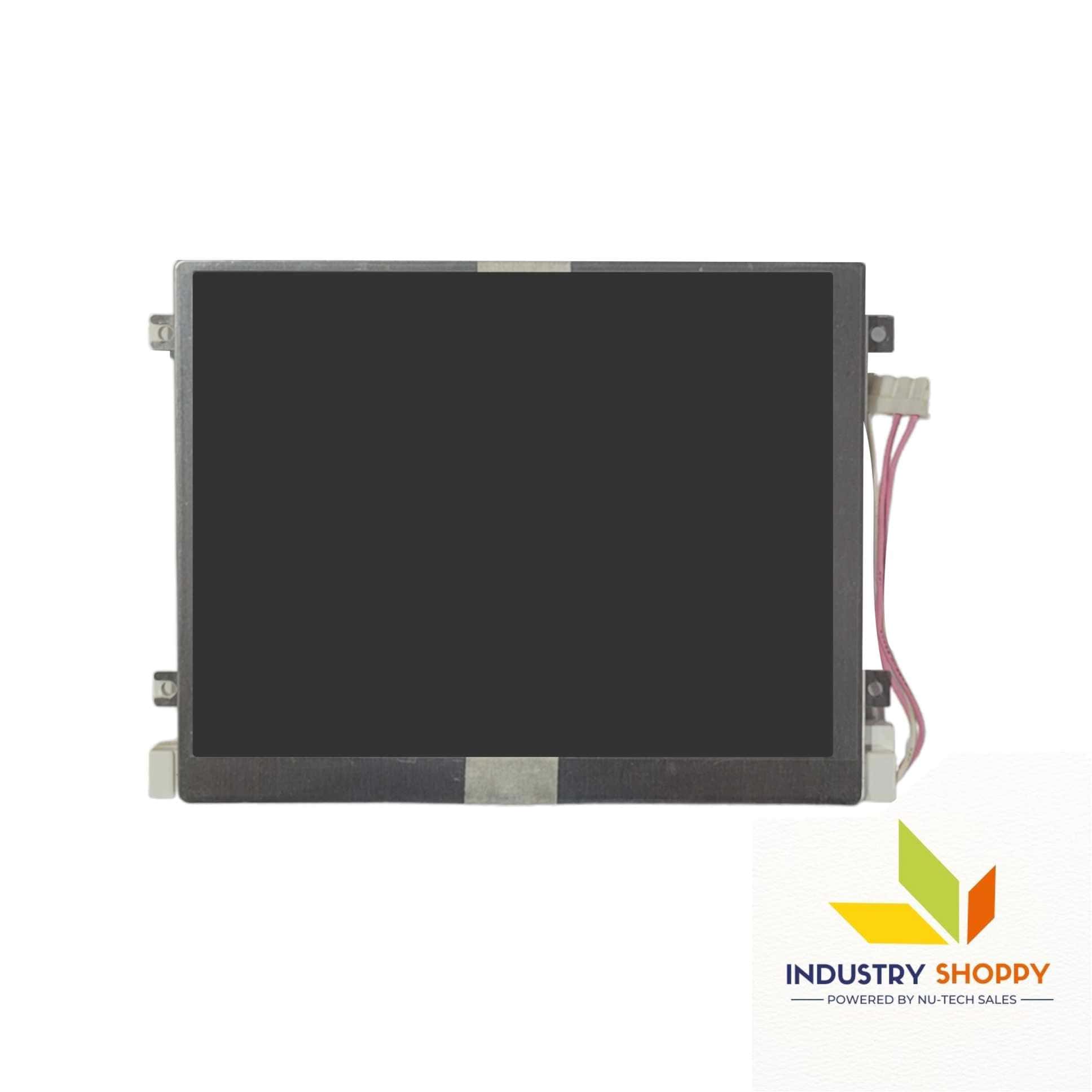

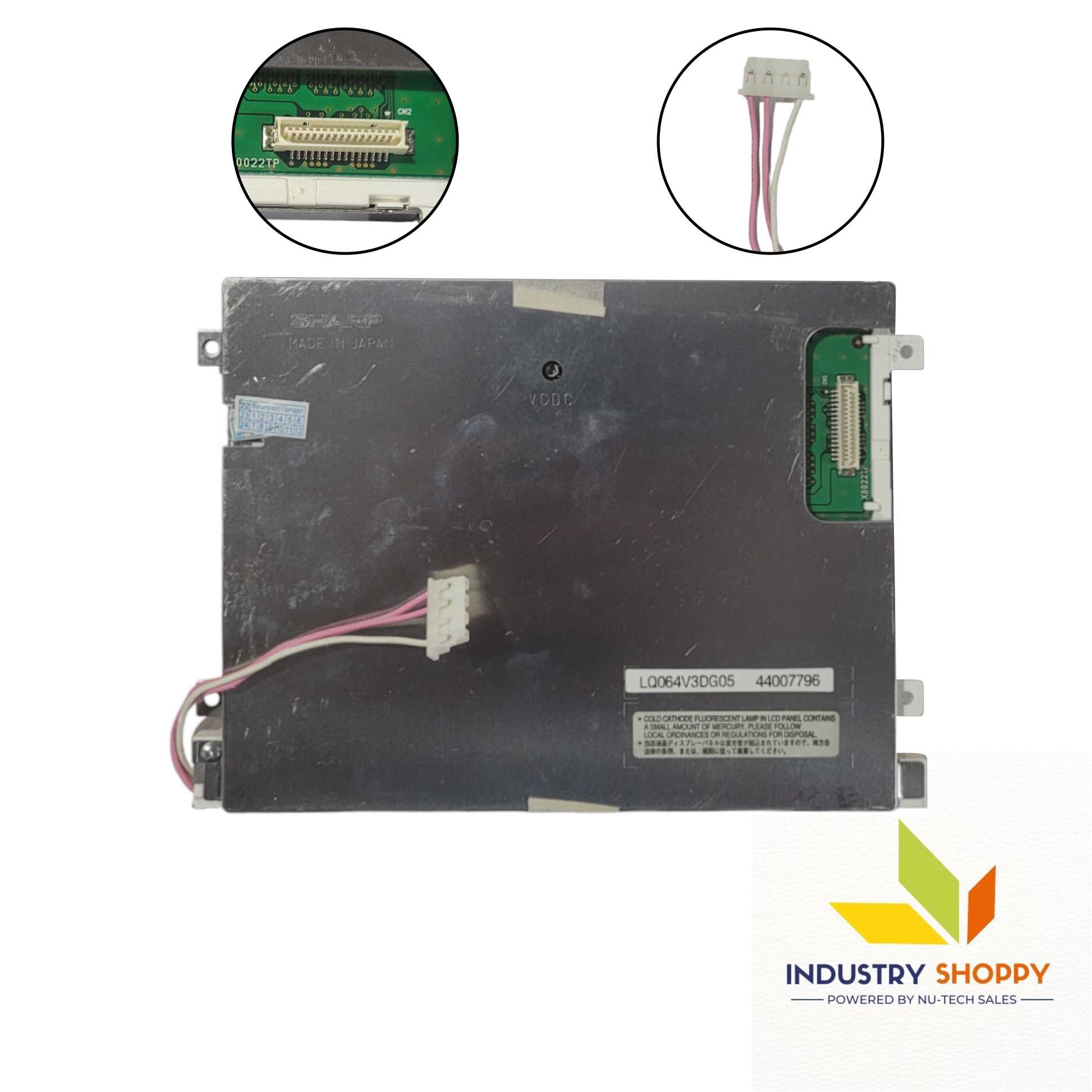

Sharp LQ064V3DG05 LCD Module

The Sharp LQ064V3DG05 LCD Module is a high-performance 6.4-inch a-Si TFT-LCD module is designed to meet the needs of compact, high-performance display systems in industrial and embedded environments. With a VGA resolution of 640(RGB)×480 and a pixel density of 124 PPI, this display delivers crisp, detailed visuals, making it ideal for use in diagnostic tools, control panels, and portable instrumentation.

Its active area of 130.56(W) × 97.92(H) mm ensures sufficient display space while maintaining a compact footprint. The module uses TN (Twisted Nematic) technology in a normally white, transmissive mode, which, when powered, offers bright and clear imagery. Furthermore, the RGB vertical stripe treatment enhances color fidelity and image sharpness, supporting a wide 262K color range.

Backlighting is provided by two CCFL tubes, delivering consistent brightness across the panel and ensuring dependable visibility over long operating cycles. Although luminance and contrast details are not specified, the CCFL system typically offers even light distribution and long life, suitable for continuous operation.

The panel interfaces through a Parallel RGB (1 channel, 6-bit) connection and runs at a 60Hz frame rate, ensuring smooth performance. While exact measurements, weight, and environmental tolerances are not available, the module’s specifications imply easy integration into diverse industrial systems.




Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandSharp
Diagonal Size6.4"
Resolution640(RGB)×480, VGA 124 PPI
Active Area130.56(W)×97.92(H) mm
Outline Dimension-
Luminance-
Contrast Ratio-
Viewing Angle-
Response Time-
Panel Typea-Si TFT-LCD, LCM
TreatmentRGB Vertical Stripe
Operating ModeTN, Normally White, Transmissive
Support Color262K
Signal Interface TypeParallel RGB (1 ch, 6-bit)
Frame Rate60 Hz
Power Supply-
BacklightCCFL [2 pcs]
Weight-
Operating Temp.-
Storage Temp.-
