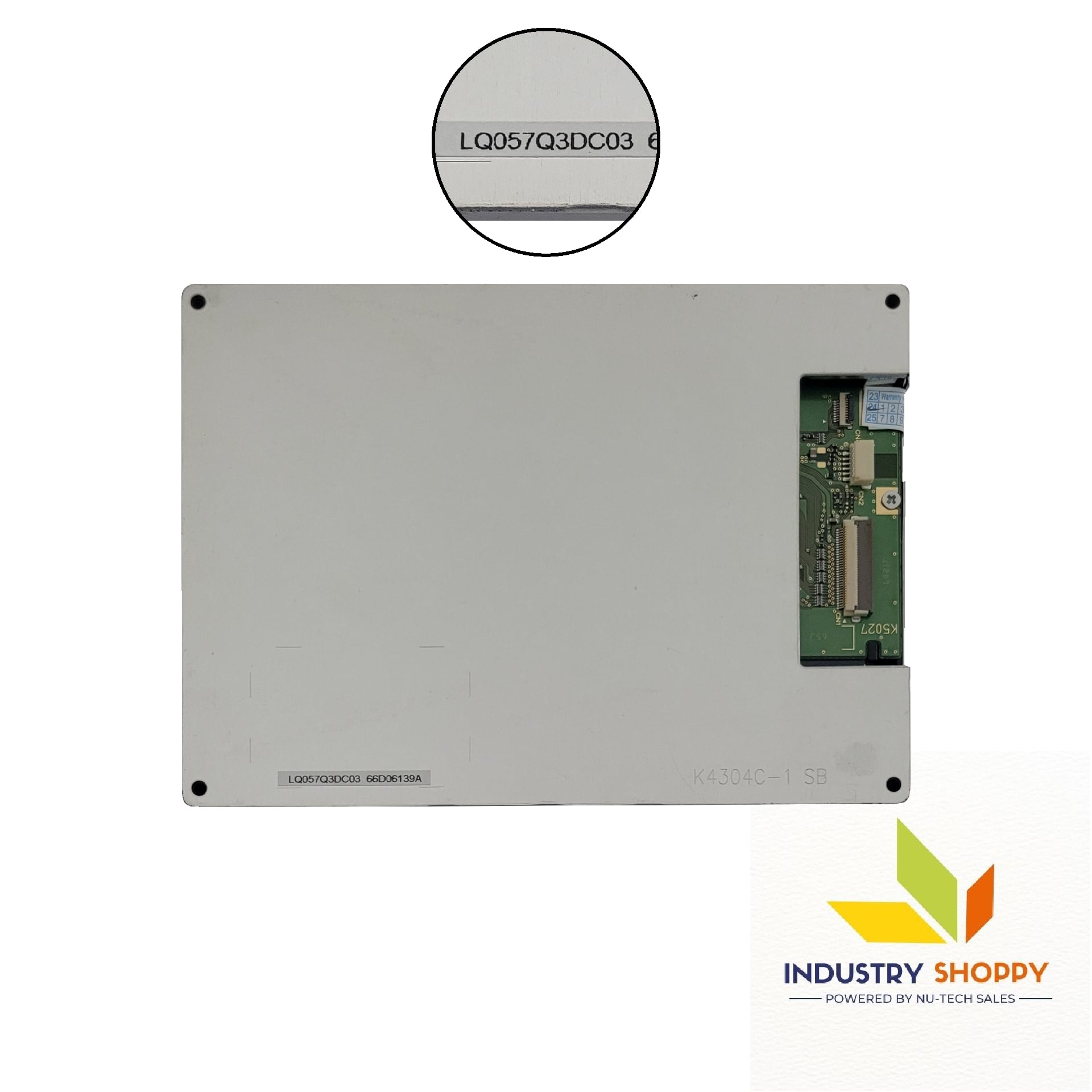

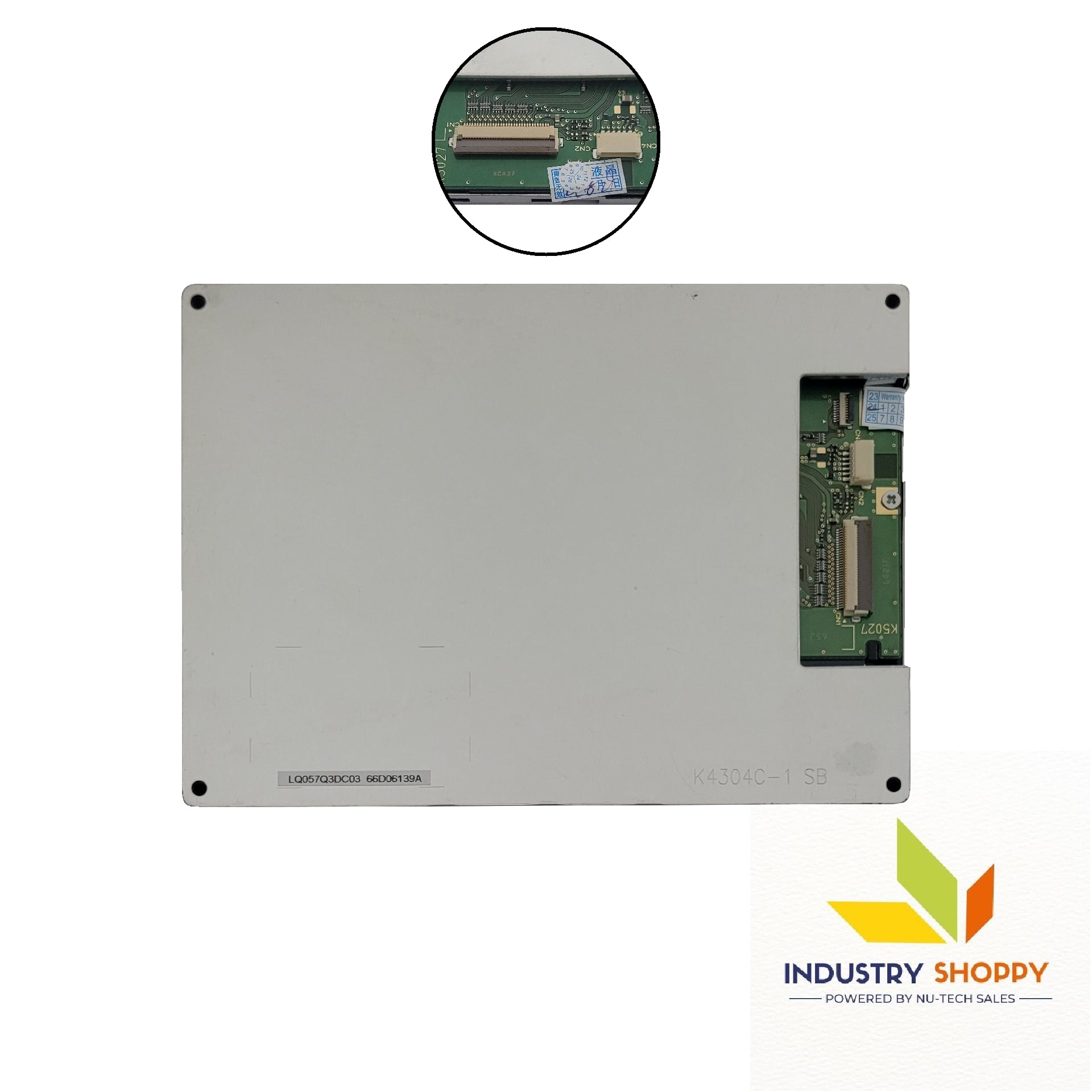

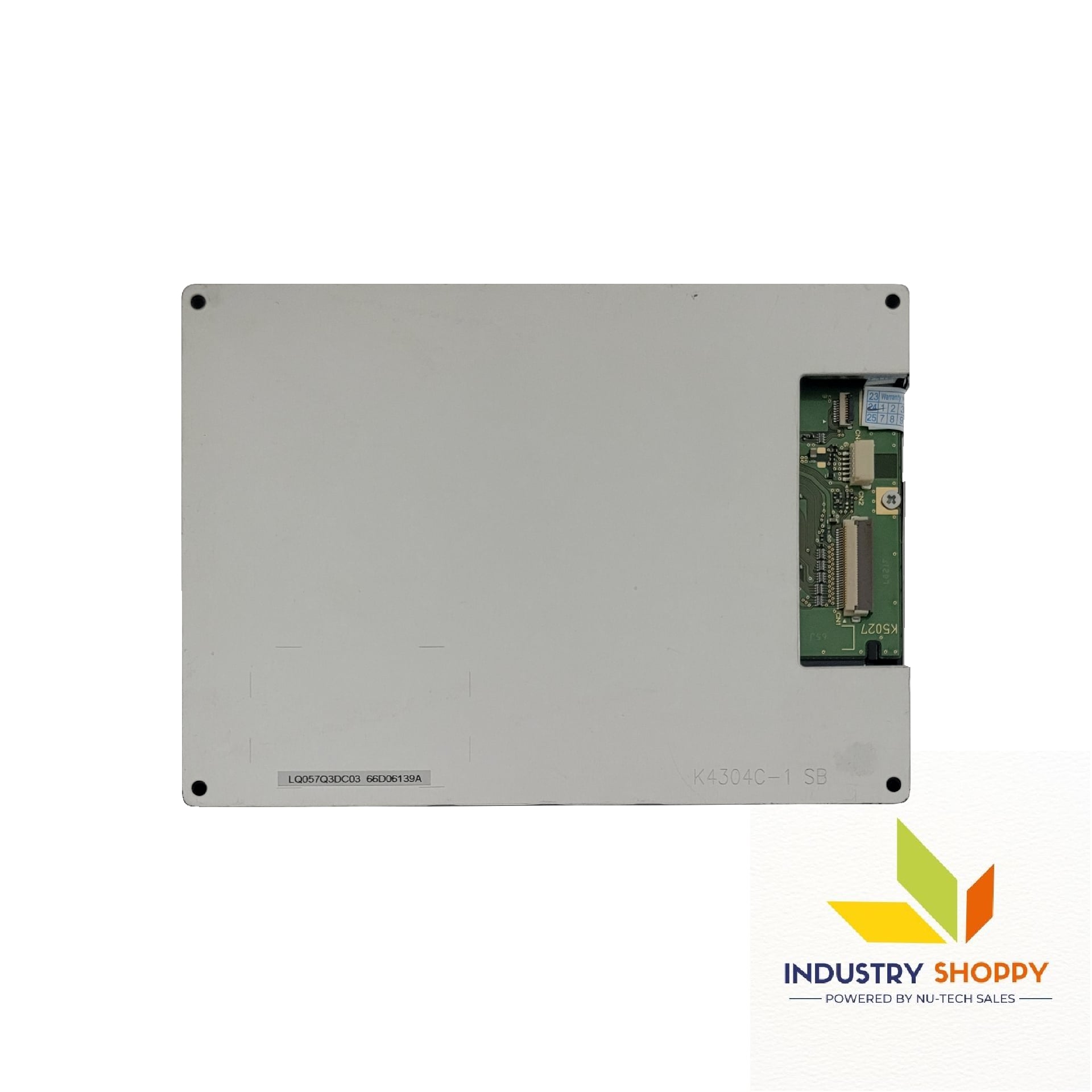

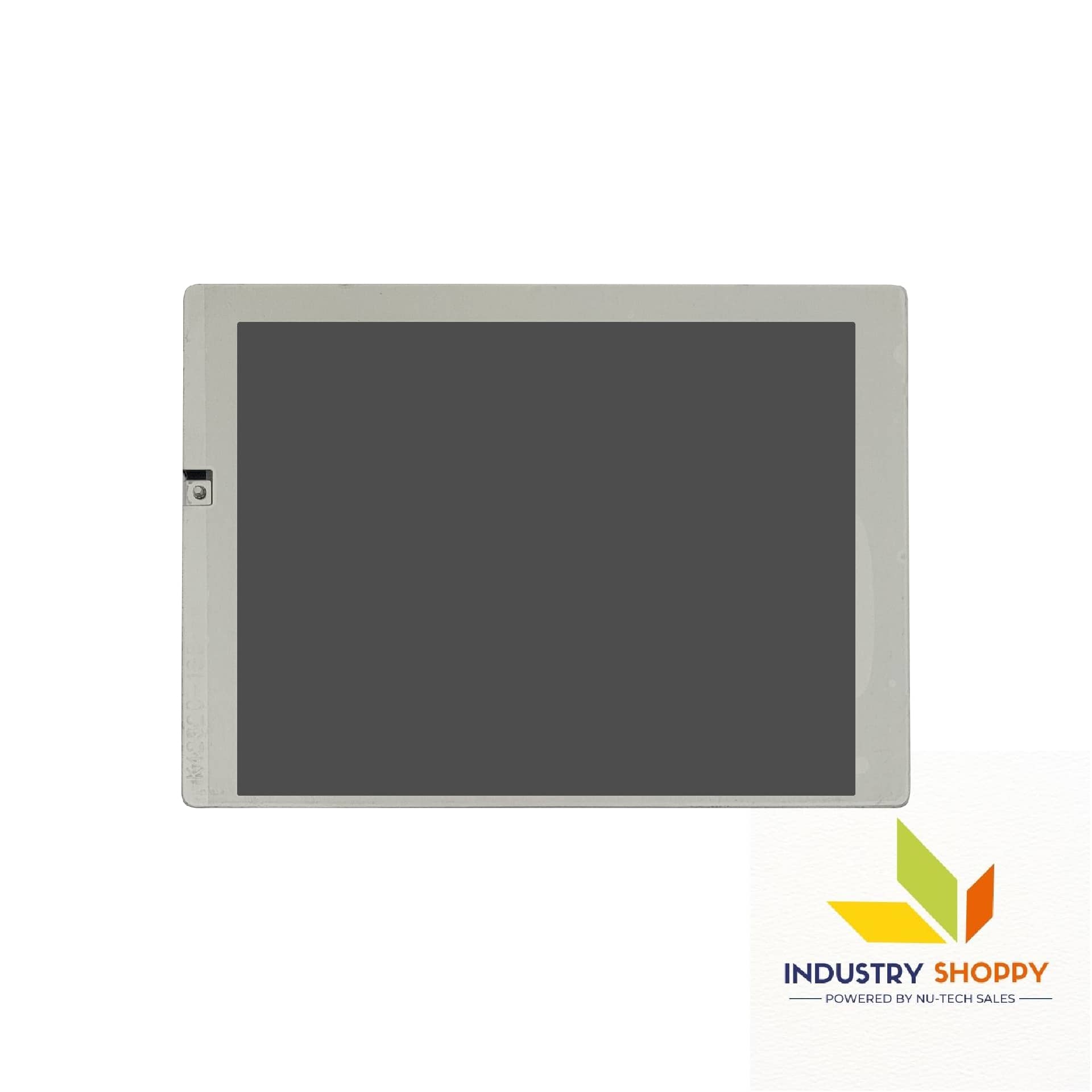

Sharp LQ057Q3DC03 LCD Module

• Brand : Sharp
• Size : 5.7″
• Condition : New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : TN, Normally White, Transmissive

Sharp LQ057Q3DC03 LCD Module

This display offers 500 cd/m² luminance, ensuring vibrant image quality even in well-lit environments. The contrast ratio is 350:1 (Min.), delivering a good balance of light and dark contrasts. With a viewing angle of 80°/80°/80°/65° (Typ.), it provides a broad field of view, minimizing color distortion and ensuring visibility from various angles.

The response time is 30 ms (Typ.), enabling smooth transitions and reduced motion blur. The panel type is a-Si TFT-LCD, and it uses an RGB Horizontal Stripe treatment, which provides clear color separation and precise image rendering.

This display supports 262K colors and operates in TN, Normally White, Transmissive mode. It features a Parallel RGB interface (1 ch, 6-bit), and the backlighting is provided by a WLED, lasting up to 50K hours. Operating with a 3.3V power supply, it is energy-efficient and ideal for portable devices and embedded systems.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
