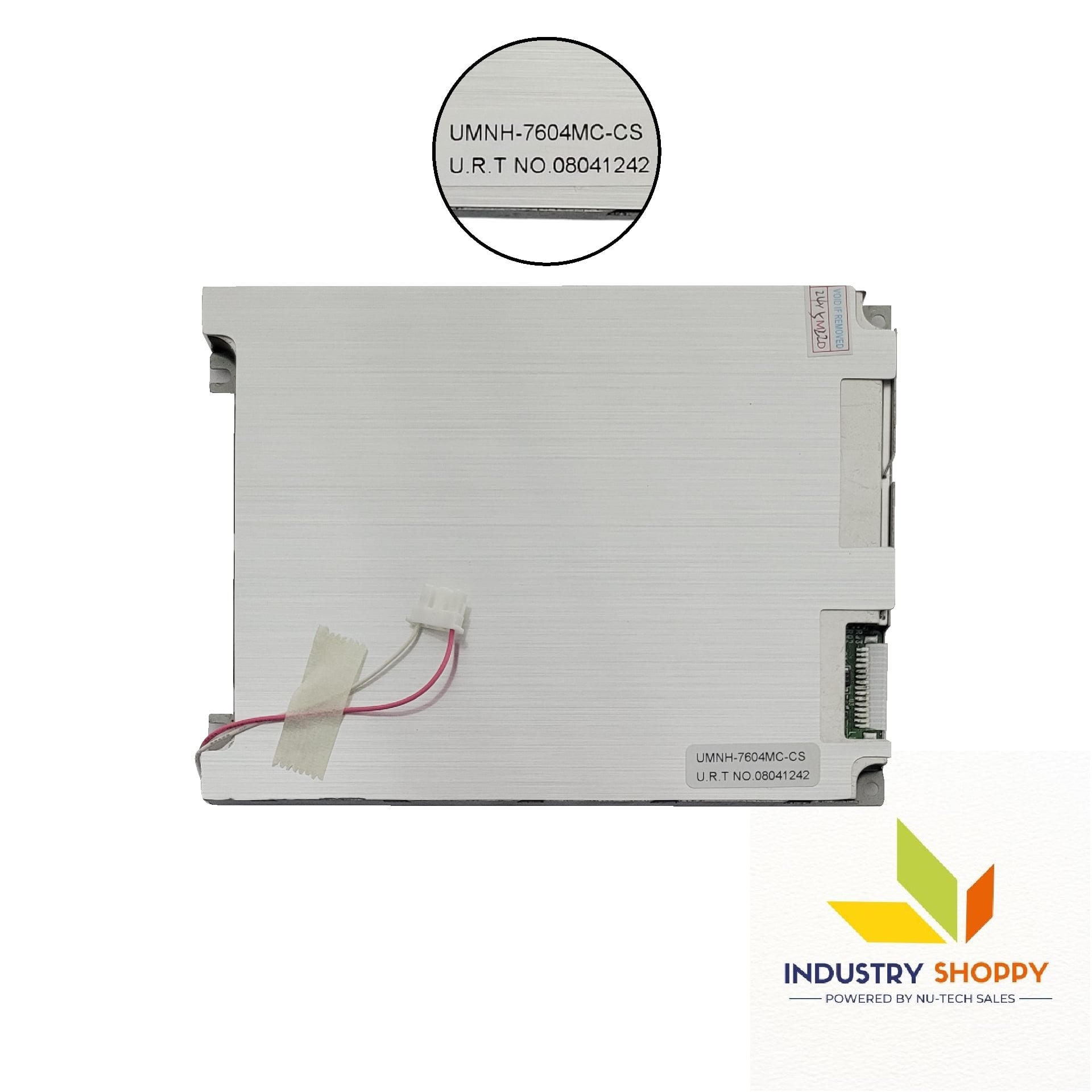

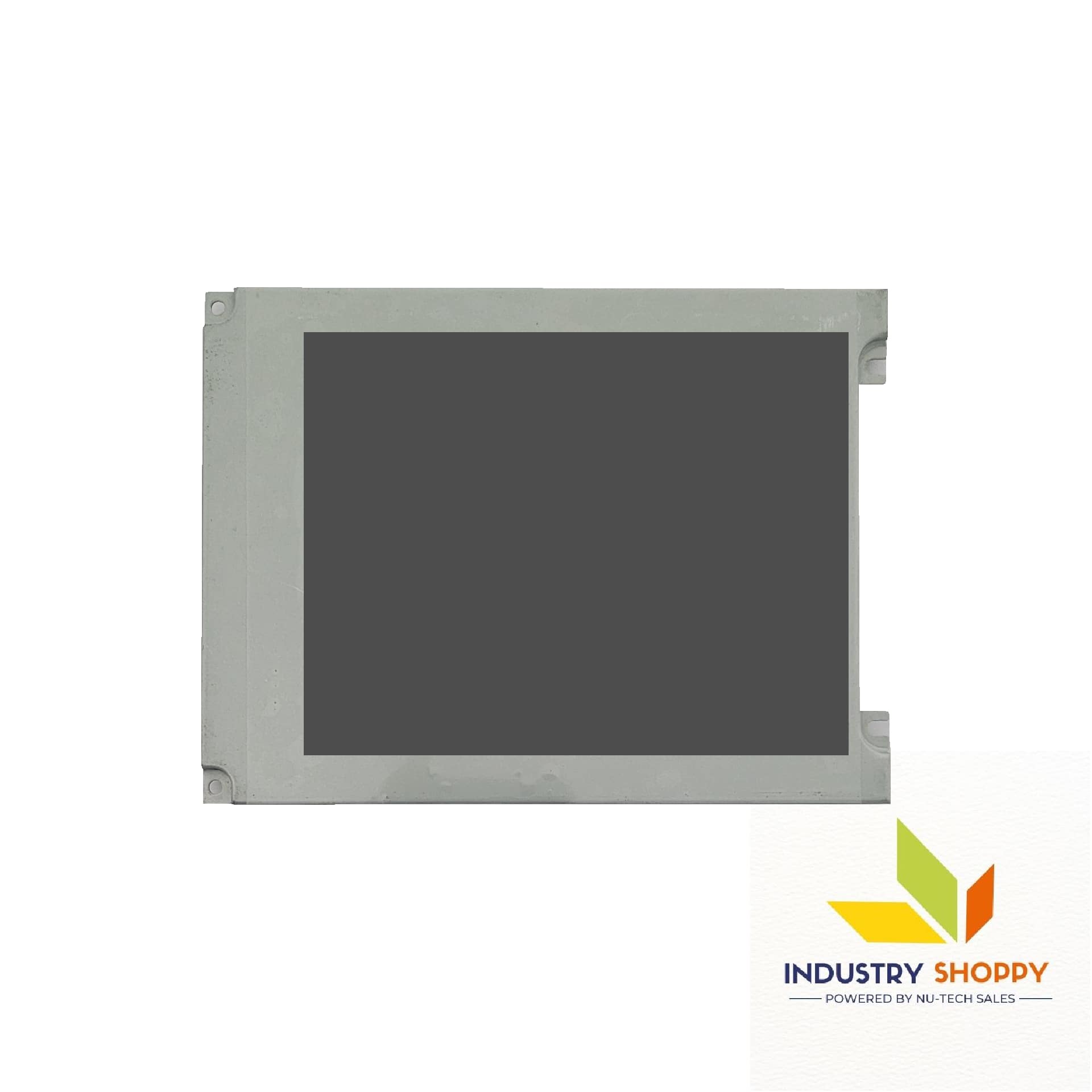

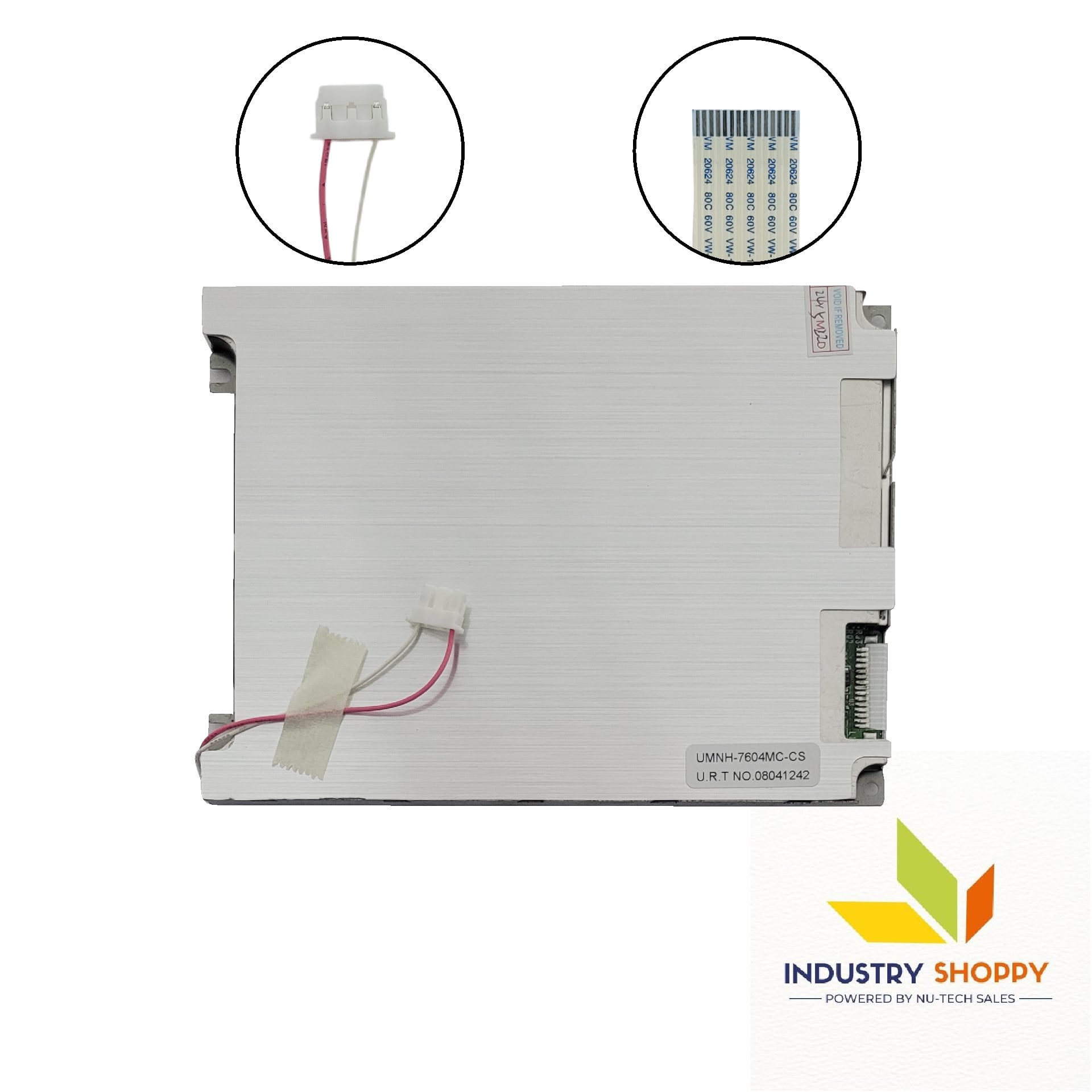

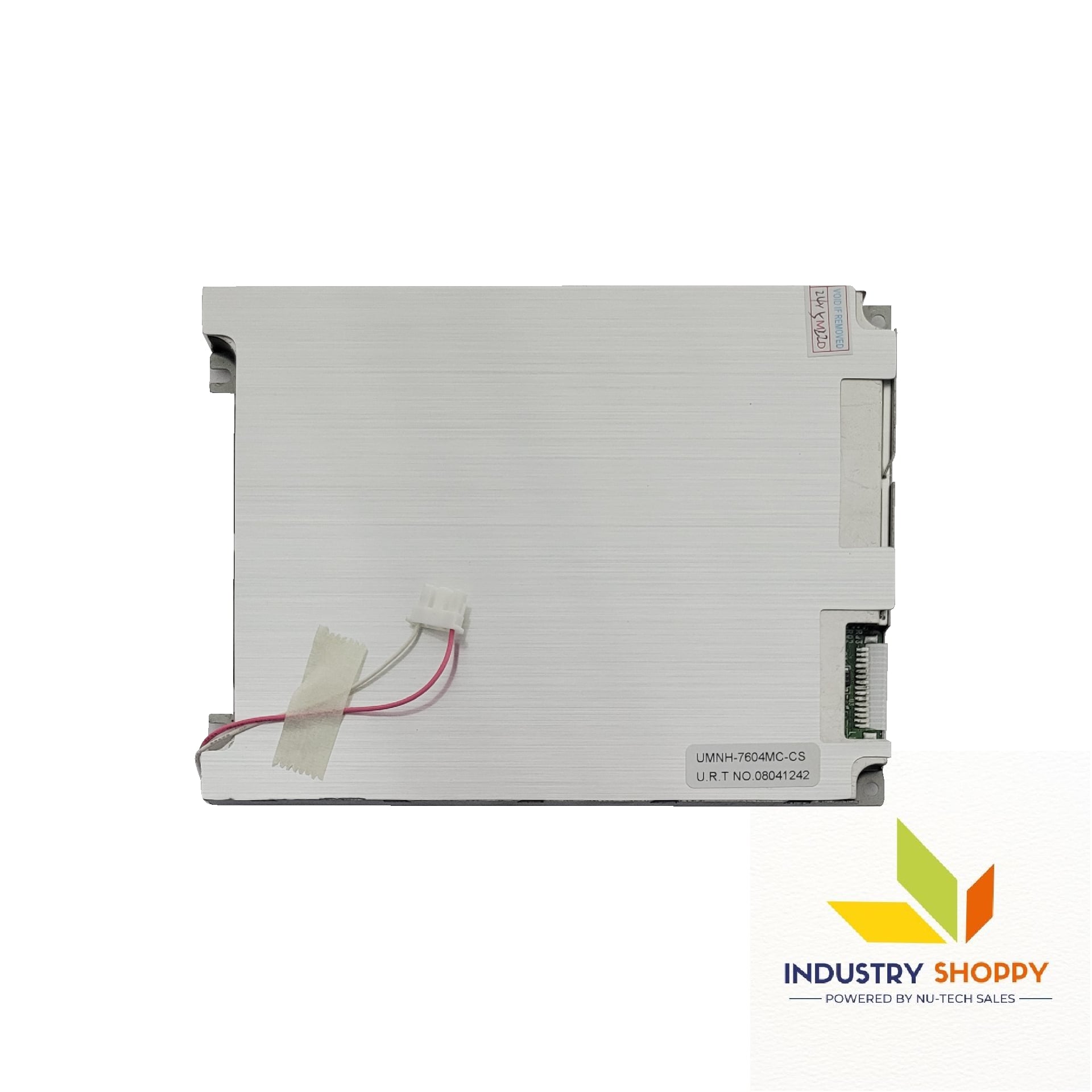

NTS UMNH-7604MC-CS LCD Module

NTS UMNH-7604MC-CS LCD Module

The NTS UMNH-7604MC-CS LCD Module 5.7-inch CSTN-LCD module offers a practical solution for a wide range of industrial and commercial display applications. With a resolution of 320×240 (QVGA), it ensures clear and legible visuals, making it well-suited for user interfaces, control systems, and monitoring equipment. Utilizing CSTN (Color Super Twisted Nematic) technology, the display provides improved color reproduction and viewing experience compared to traditional STN displays.

Operating in a transmissive mode, the panel enhances visibility, especially when used with its integrated CCFL (Cold Cathode Fluorescent Lamp) backlight, delivering consistent illumination across the display. Although specifications for active area, luminance, contrast ratio, and response time are not detailed, CSTN panels generally offer decent optical performance with lower power consumption, making them ideal for portable and embedded systems.

Moreover, the transmissive nature of the display allows it to maintain good performance in various ambient lighting conditions. While exact details about signal interface, frame rate, and power requirements are not specified, the module is designed to fit standard 5.7-inch device formats, facilitating straightforward integration into most applications.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
