NTS SX14Q004 LCD Module

NTS SX14Q004 LCD Module

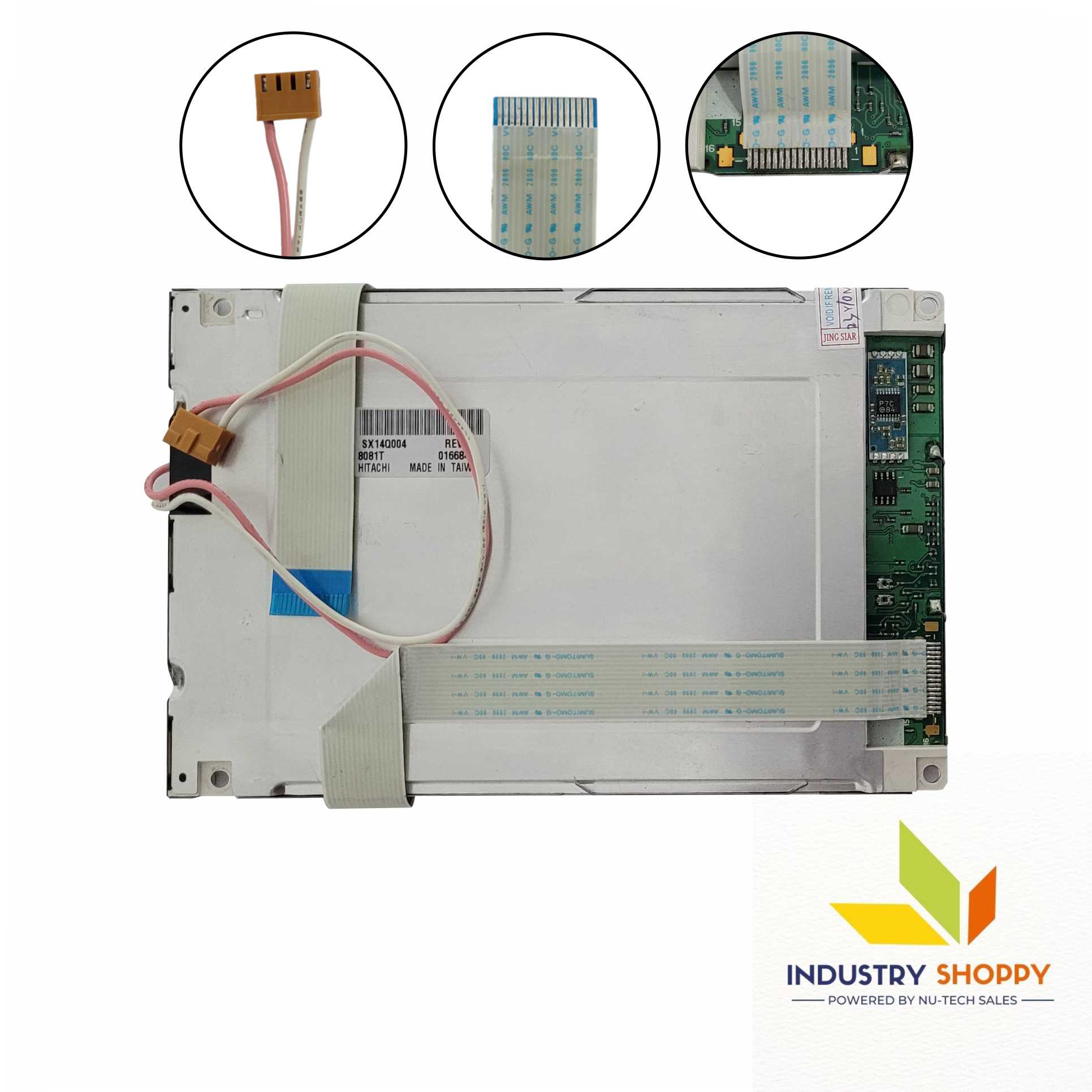

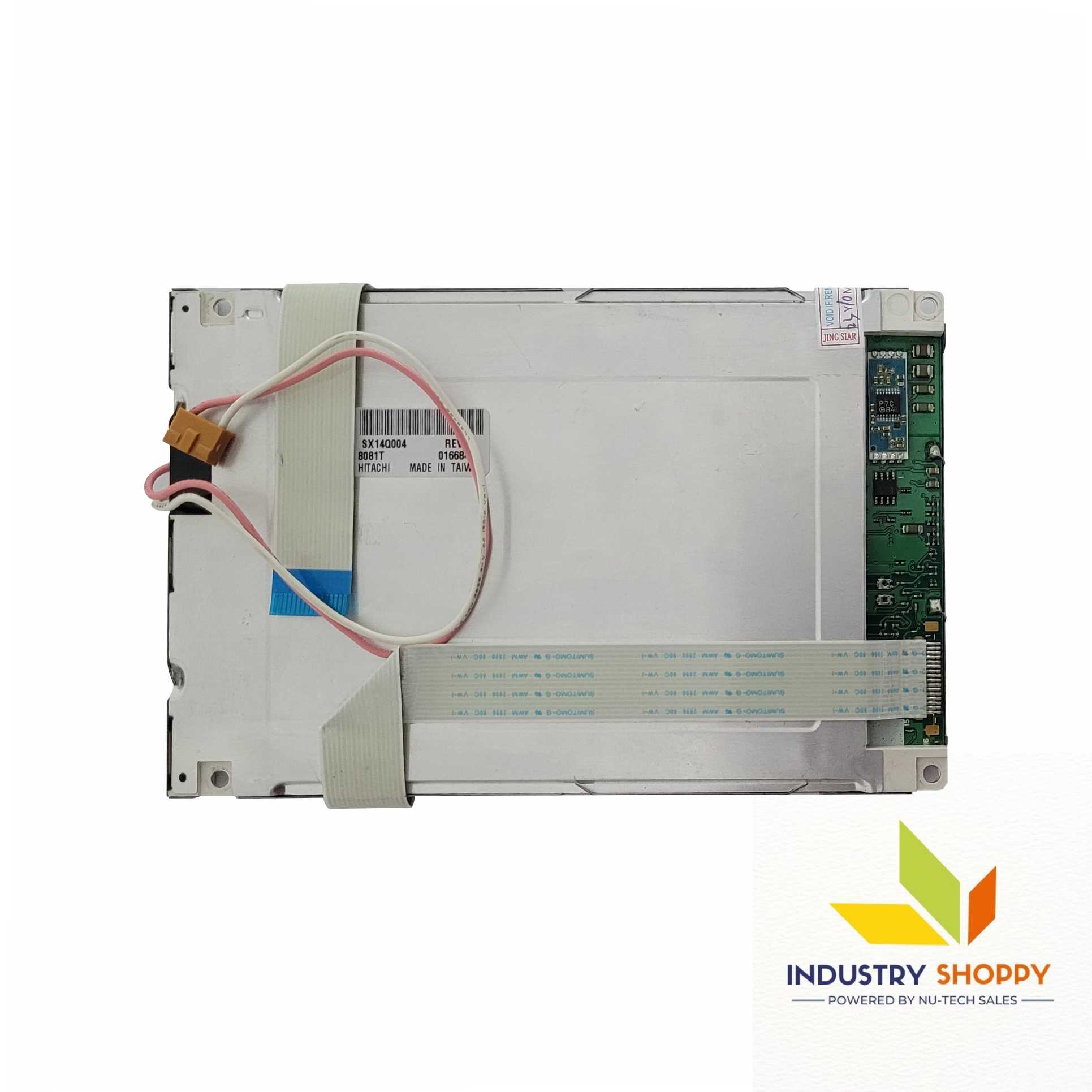

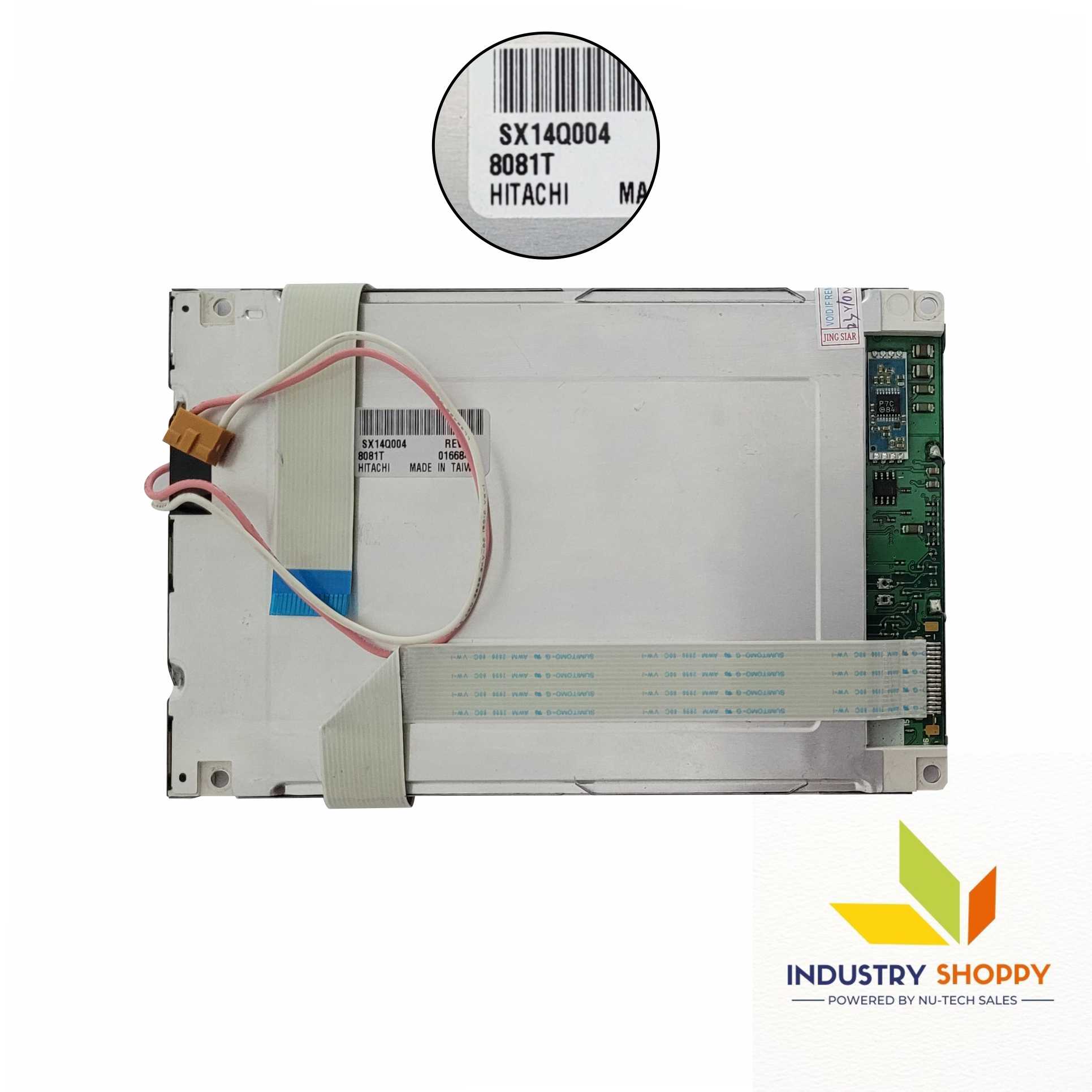

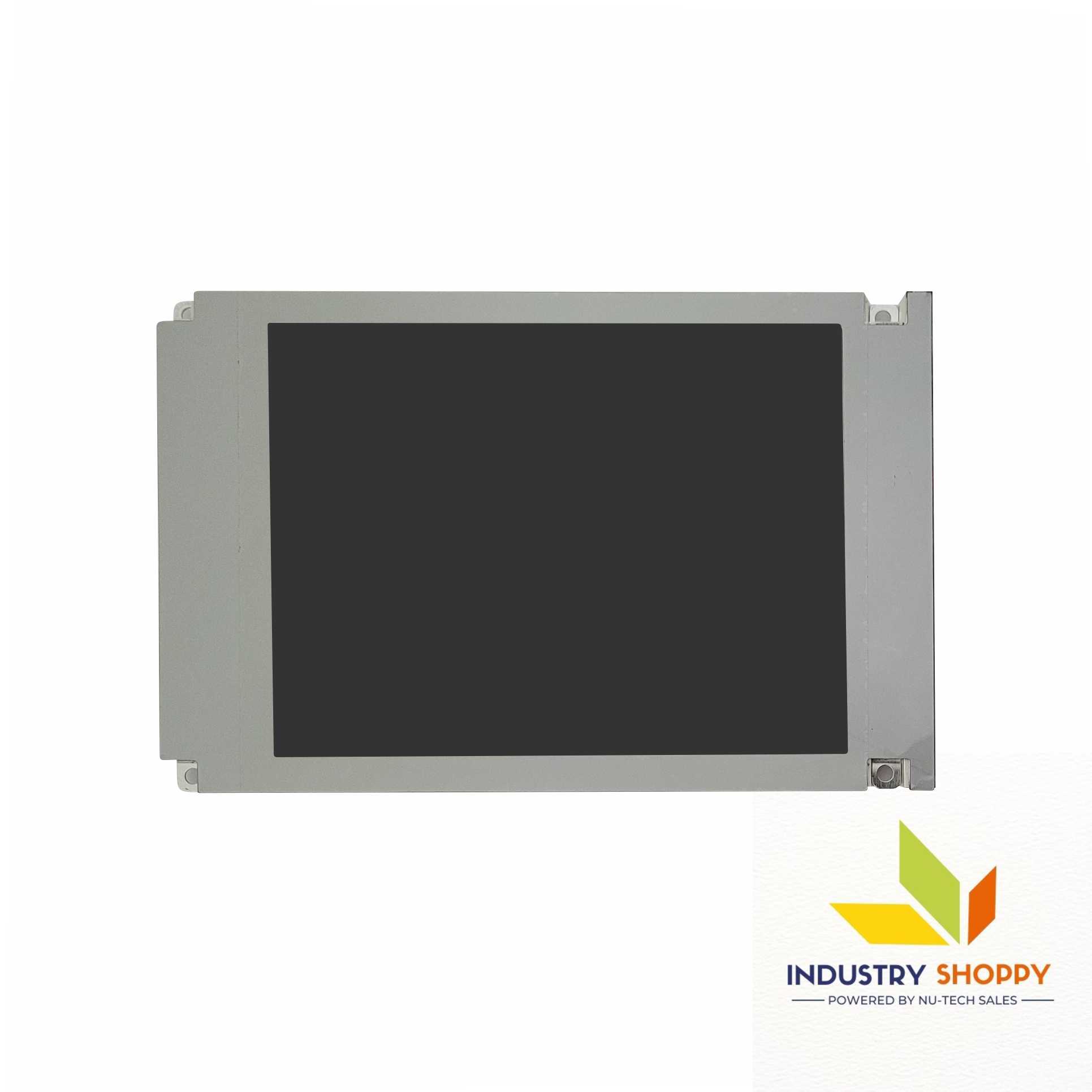

The NTS SX14Q004 LCD Module is 5.7-inch QVGA CSTN-LCD Module is designed for applications where cost-effectiveness and basic display functionality are required. With a 320×240 resolution at 70 PPI, this module offers sufficient clarity for simple text and graphical content across its 115.2 x 86.4 mm active area. The module's 167 x 109 x 9.2 mm outline allows for easy integration into space-constrained devices.

While its 200 cd/m² luminance is relatively low, it is suitable for indoor applications where high brightness is not a primary requirement. The 45/45/35/45 viewing angle and 45/45 contrast ratio (CR≥2) provide moderate visibility, making it appropriate for non-critical uses in environments with controlled lighting.

This module operates in STN (Super Twisted Nematic) mode, featuring a normally black, transmissive configuration. With rise and fall response times of 250 ms and 200 ms, respectively, it excels in static or low-motion content but is less suited for dynamic video or real-time feedback.

Powered by 3.3V, the module connects through a 41-pin parallel RGB (1 ch, 6-bit) interface. It utilizes a single CCFL backlight with a lifespan of 50K hours. Operating between 0°C and 60°C, and with a storage tolerance from -20°C to 70°C, the module is adaptable to various environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
