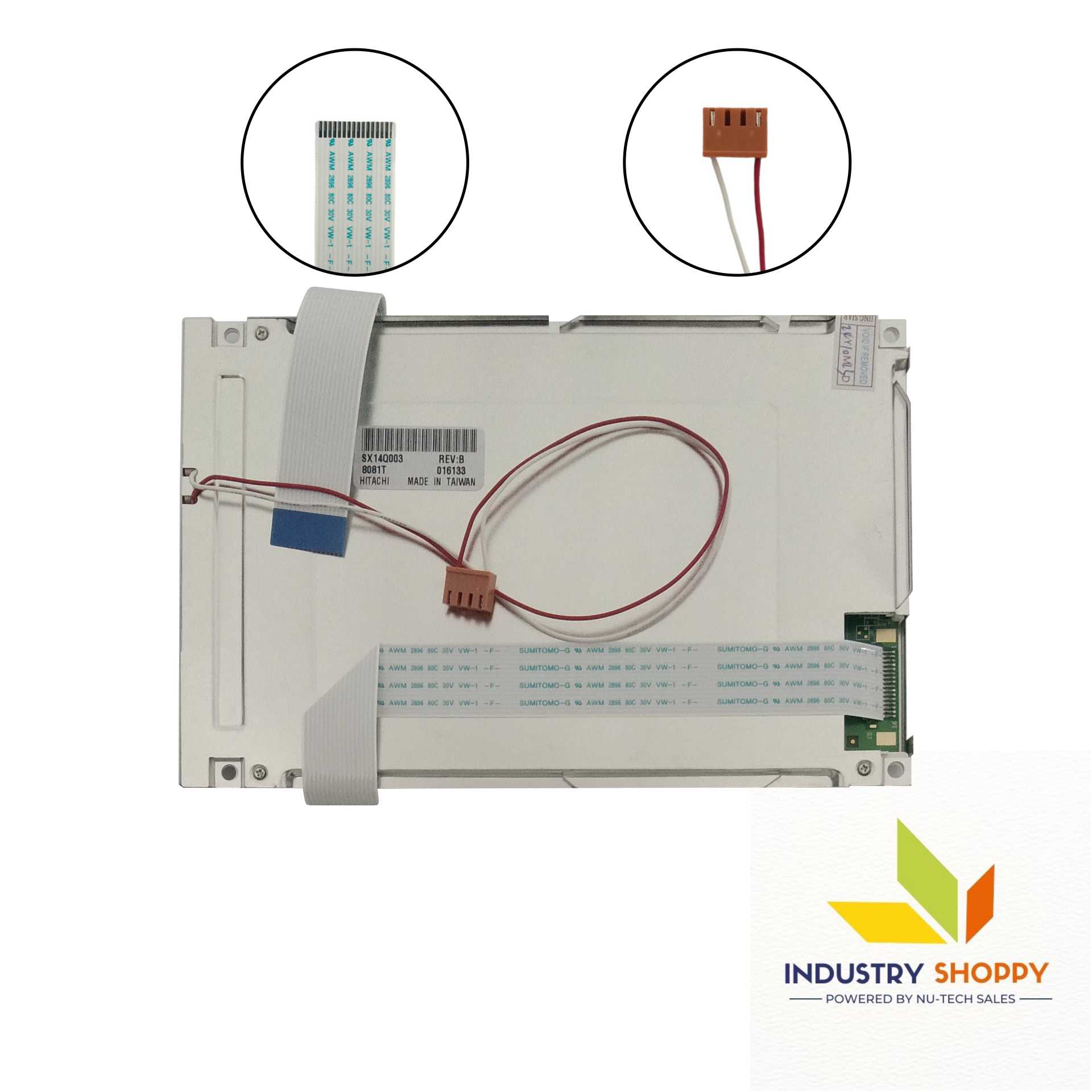

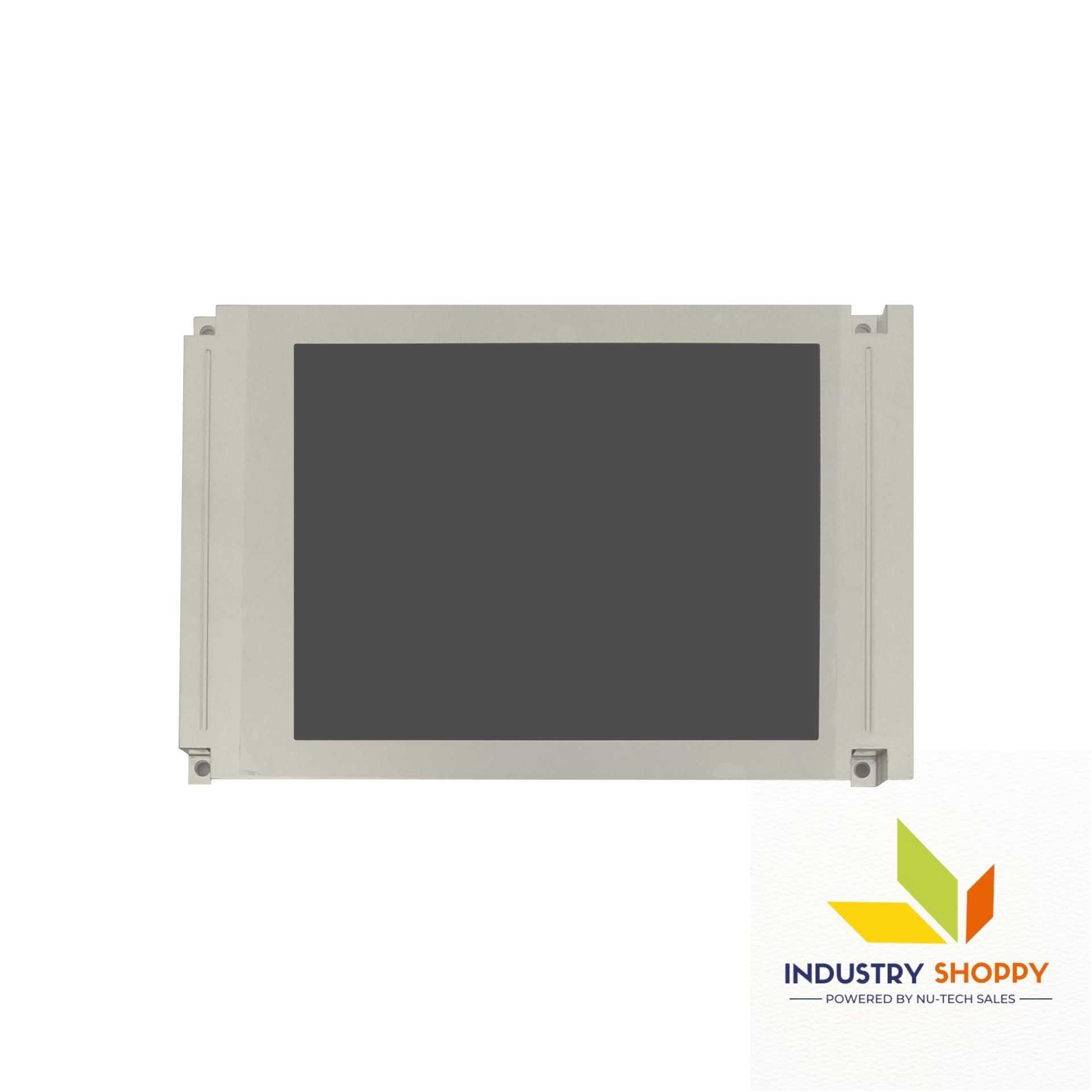

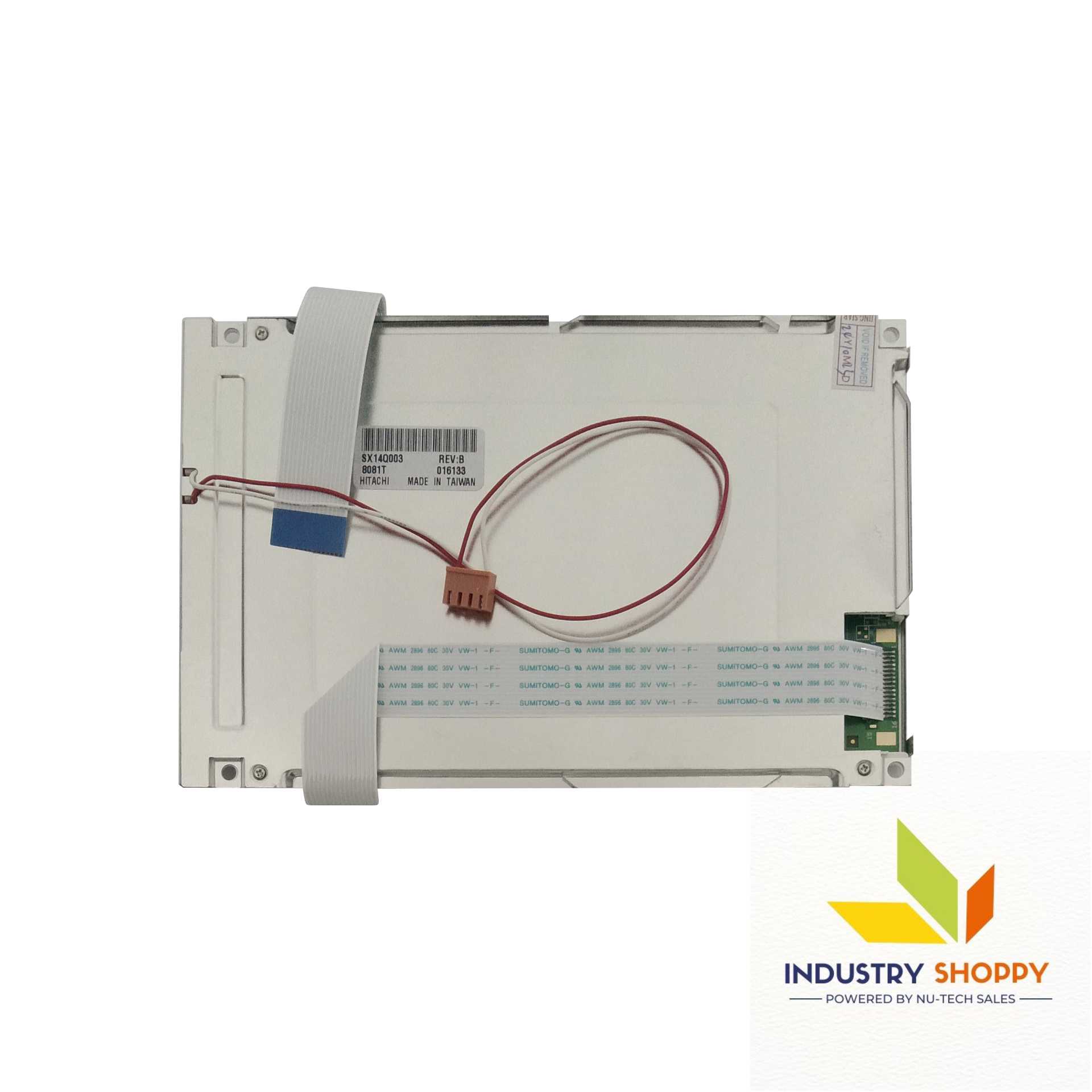

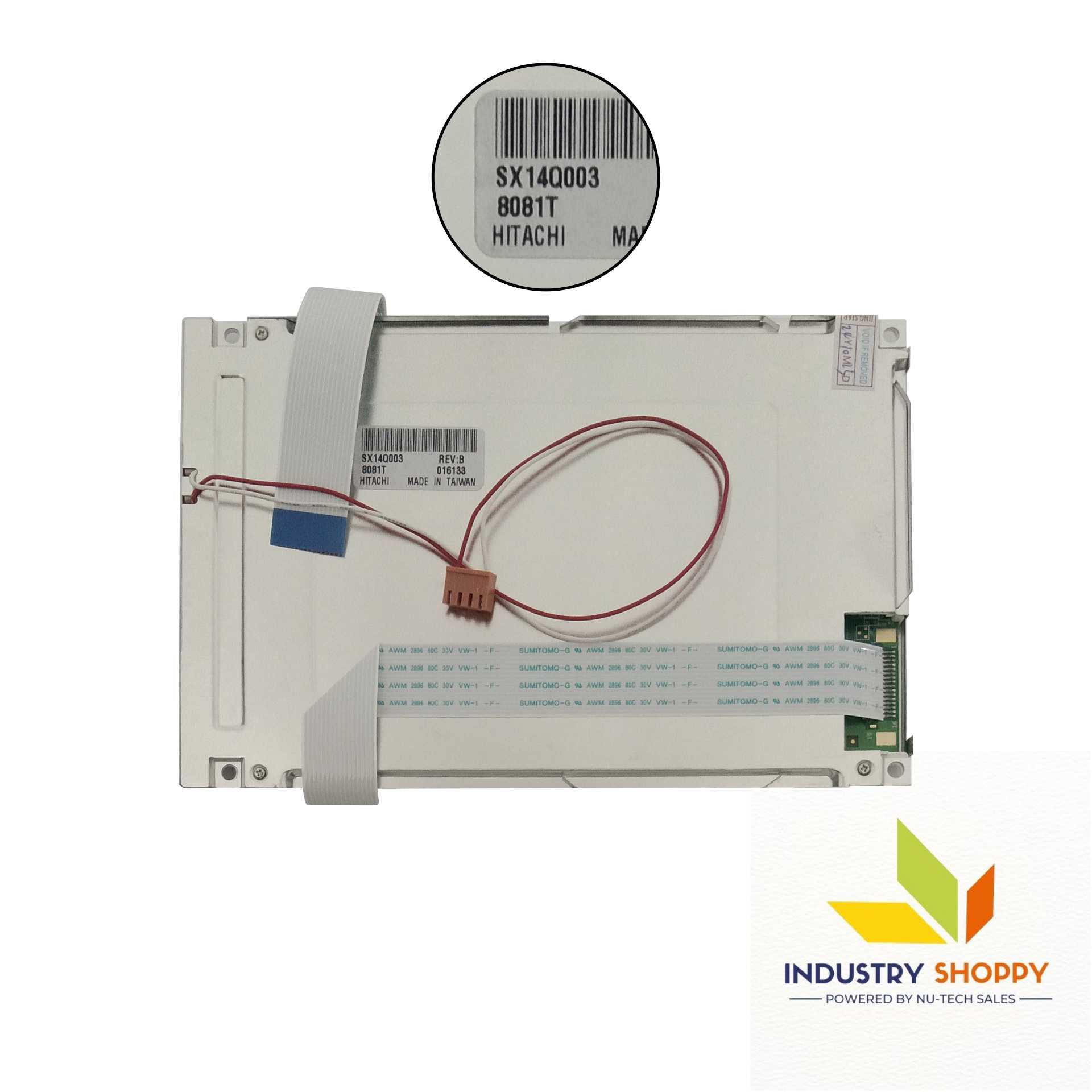

NTS SX14Q003 LCD Module

• Brand : NTS
• Size : 5.7″
• Condition  :  New
• Panel Type : CSTN-LCD, LCM
• Operating Mode : STN, Normally Black, Transmissive

NTS SX14Q003 LCD Module

The NTS SX14Q003 LCD Module is 5.7" CSTN-LCD panel offers a reliable display solution for applications requiring basic color visuals. With a resolution of 320(RGB)×240 (QVGA) and a pixel density of 70 PPI, it provides adequate clarity for simple graphical and text displays across a 115.2(W)×86.4(H) mm active area. Although the outline dimensions are unspecified, its compact size makes it suitable for space-constrained environments.

Operating in STN, Normally Black, Transmissive mode, this panel ensures a clear contrast between active and inactive pixels, enhancing the overall visibility of the content. It supports color display, adding vibrancy and flexibility for a variety of applications. The signal interface uses Parallel Data (1 channel, 8-bit), enabling straightforward integration with standard controllers.

While luminance, contrast ratio, viewing angle, and response time details are not provided, the panel features a CCFL backlight, ensuring consistent illumination, though an external driver might be necessary for operation. Despite missing specifics on power supply, operating temperature, and vibration resistance, its CSTN technology is generally valued for its low power consumption and cost-effectiveness.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
