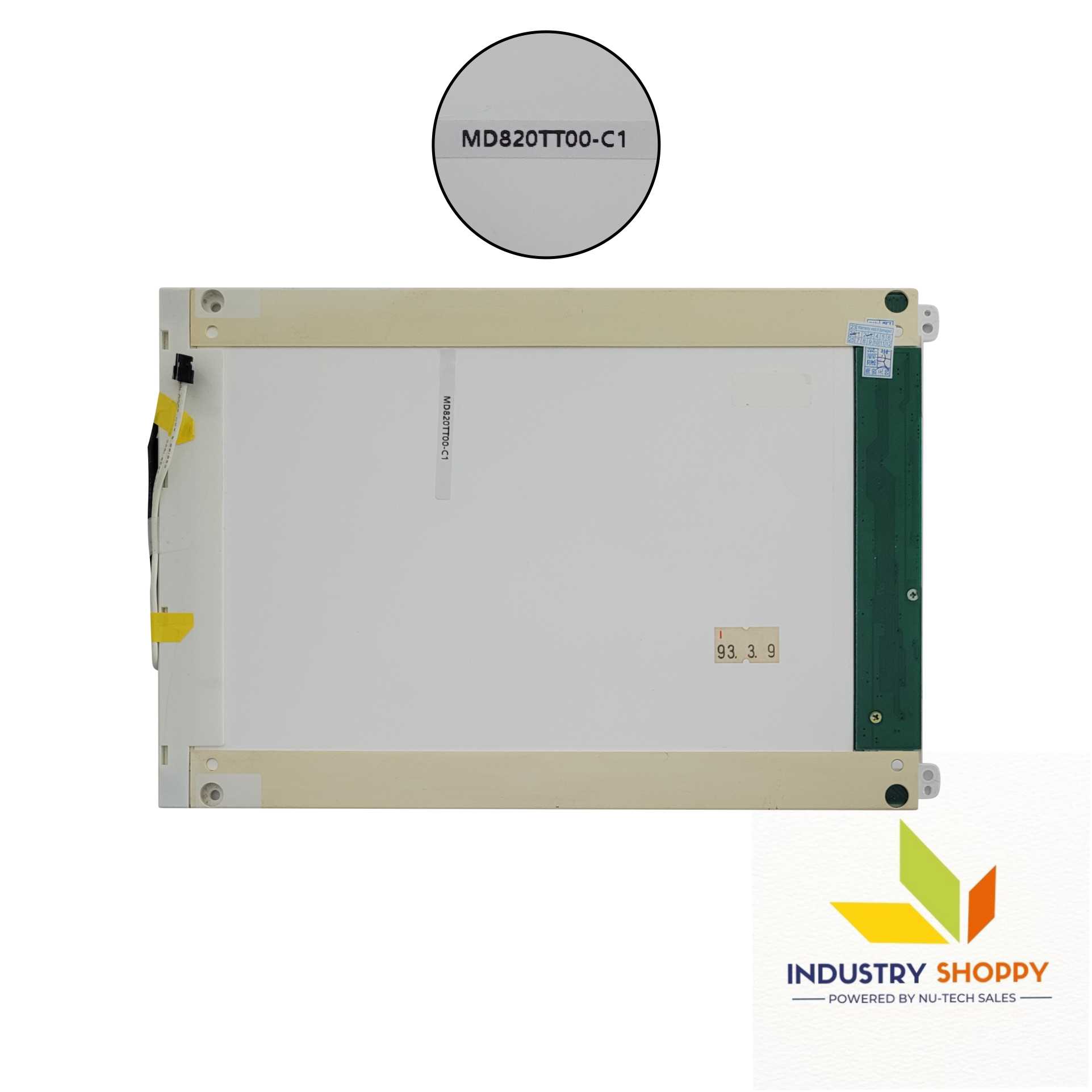

NTS MD820TT00-C1 LCD Module

NTS MD820TT00-C1 LCD Module

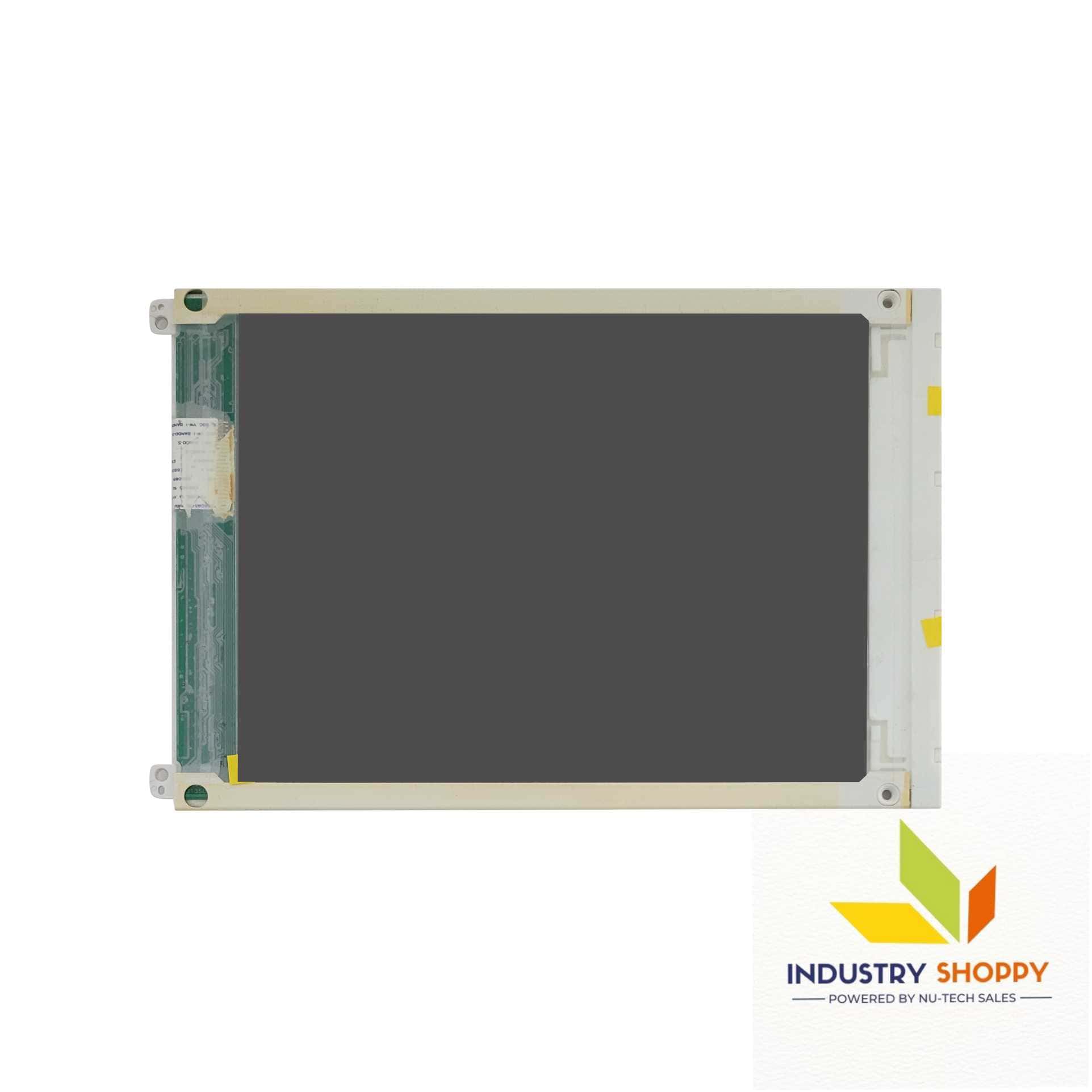

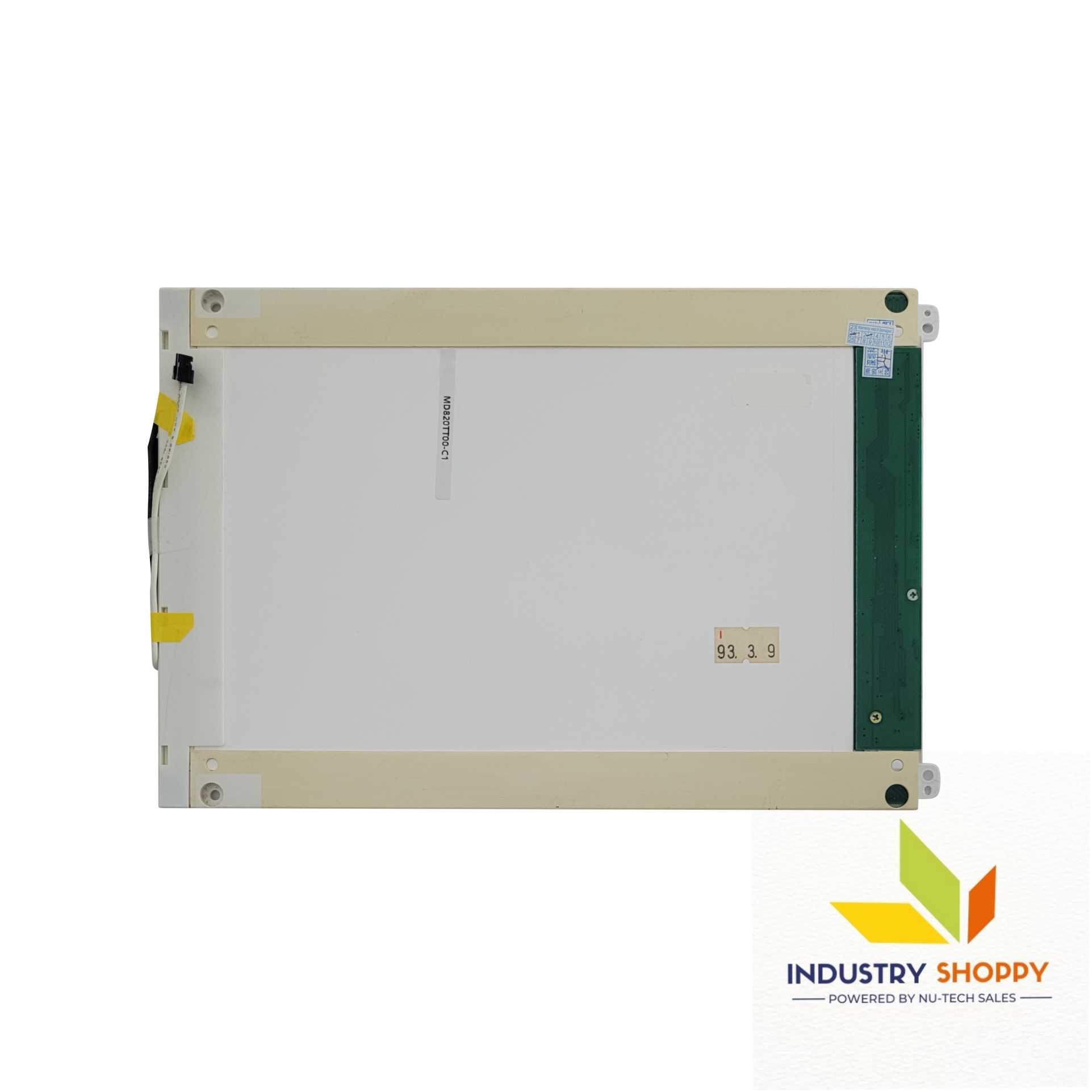

The NTS MD820TT00-C1 LCD Module is 9.4" display is a basic LCD panel featuring a 640×480 (VGA) resolution, which delivers standard-definition visuals suitable for a wide range of general-purpose applications. While detailed specifications such as luminance, contrast ratio, and viewing angles are not provided, the use of a CCFL backlight system suggests that the display is built for legacy systems or industrial setups where CCFL technology remains in use for its longevity and proven reliability.

The display’s diagonal size of 9.4 inches places it in the mid-size category, making it suitable for applications such as instrumentation panels, legacy industrial machines, or embedded systems requiring a reasonably sized screen. Given its resolution, it provides an adequate pixel density for displaying clear text and graphics in typical human-machine interfaces or monitoring setups.

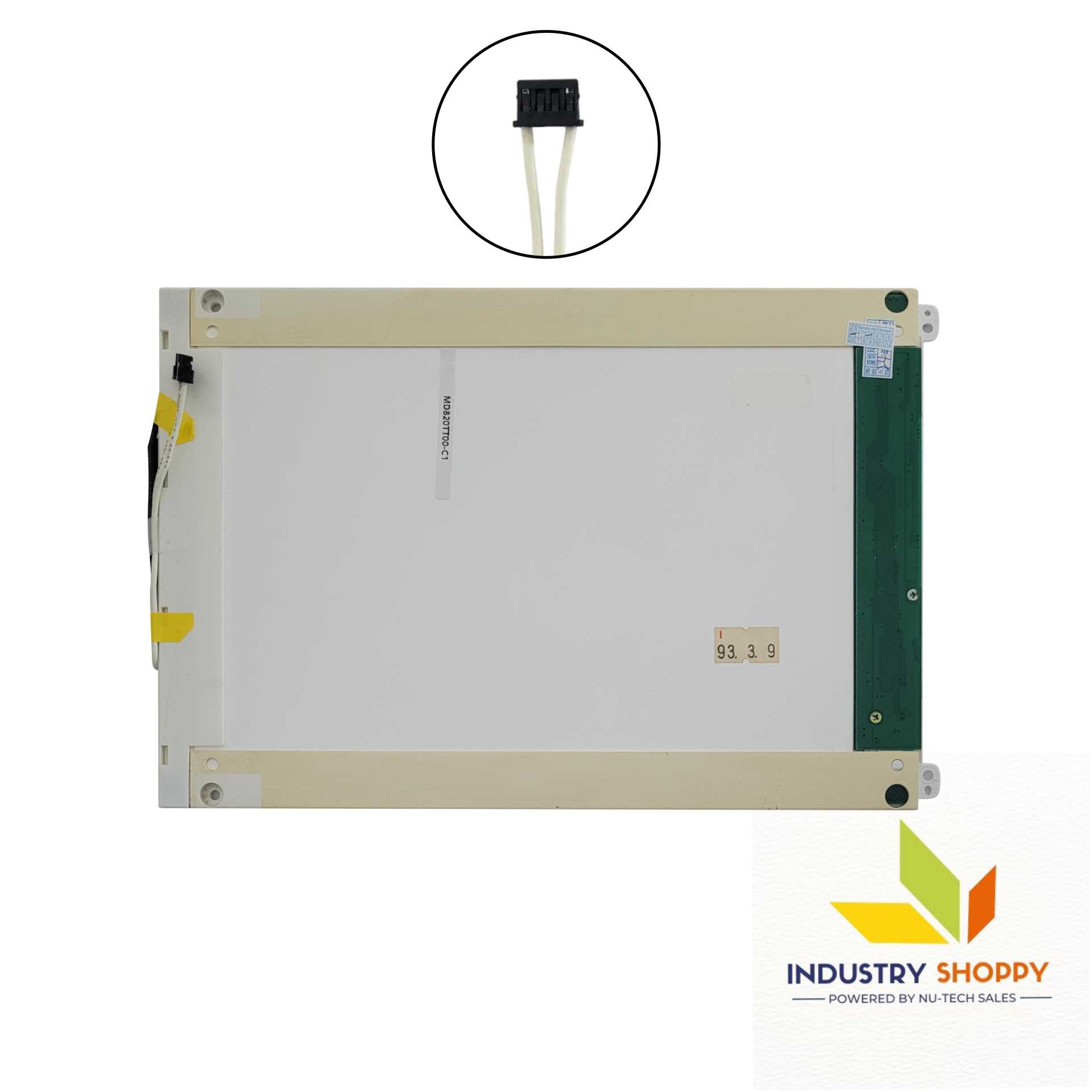

As a panel based on older CCFL technology, it likely requires an external driver/inverter for the backlight, and may not match the brightness or efficiency of modern LED-backlit displays. However, it remains a viable choice in environments where display uniformity, robustness, and established support infrastructure are more critical than cutting-edge visuals.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.
