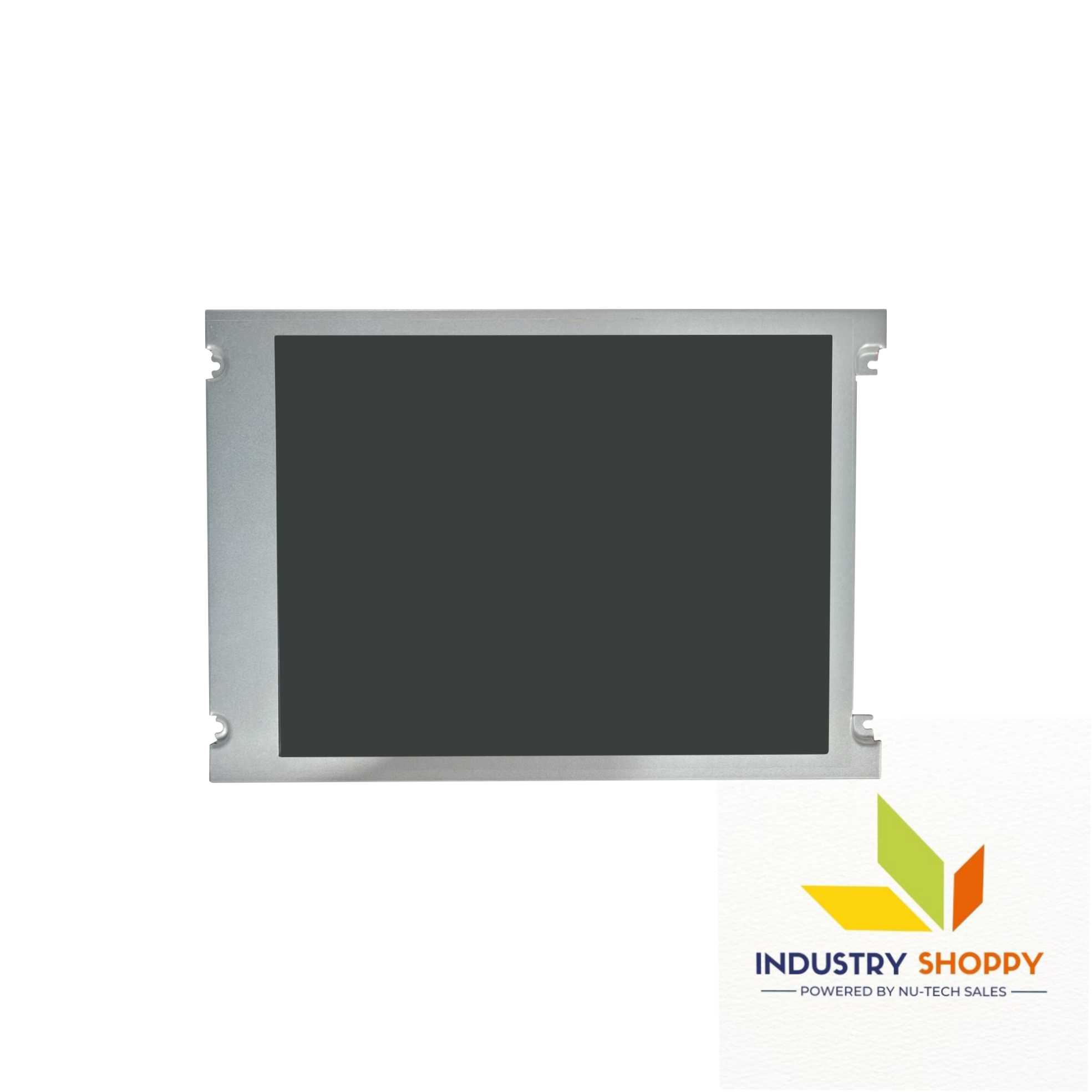

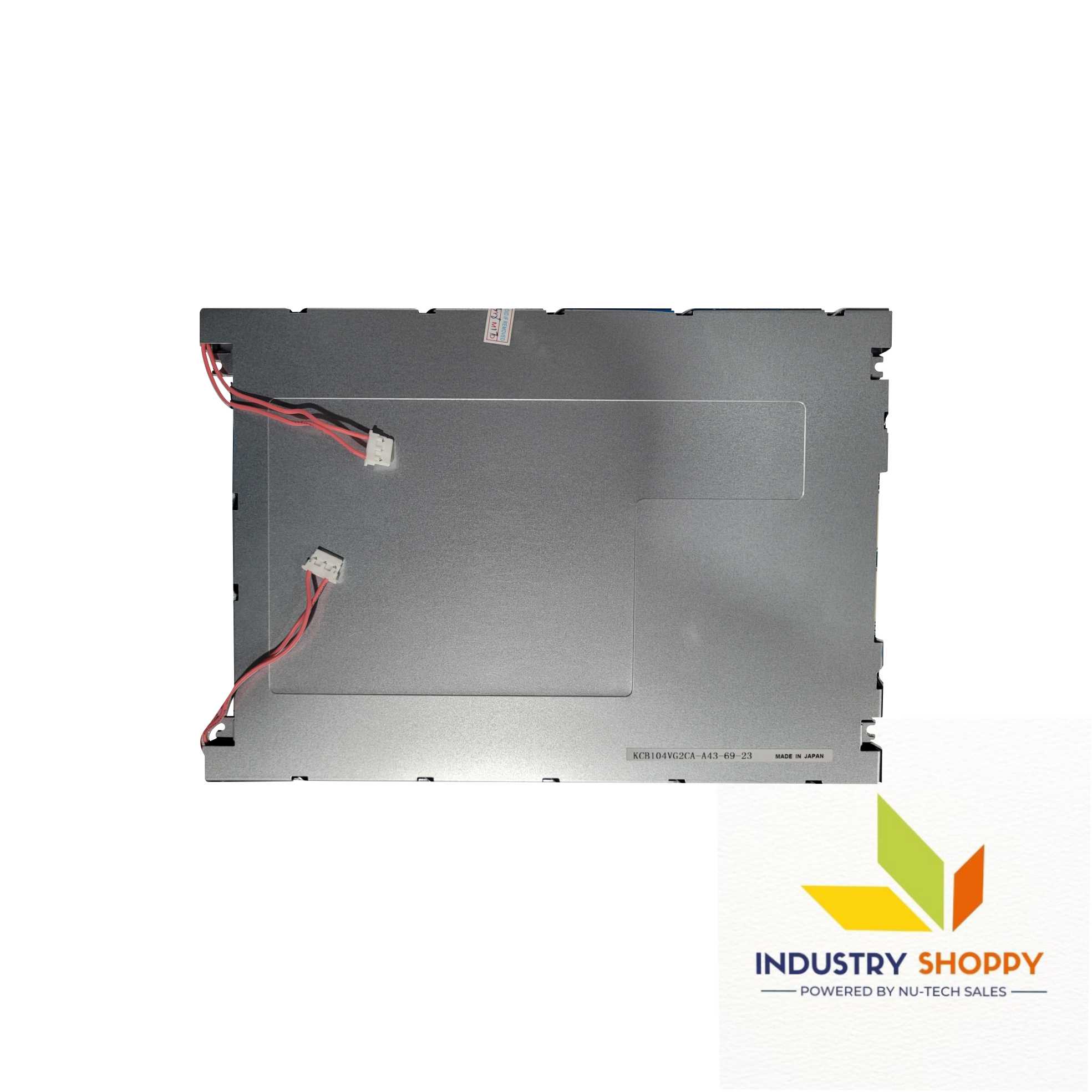

NTS KCB104VG2CA-A43 LCD Module

• Size   :   10.4"
• Panel Type   :    CSTN-LCD, LCM

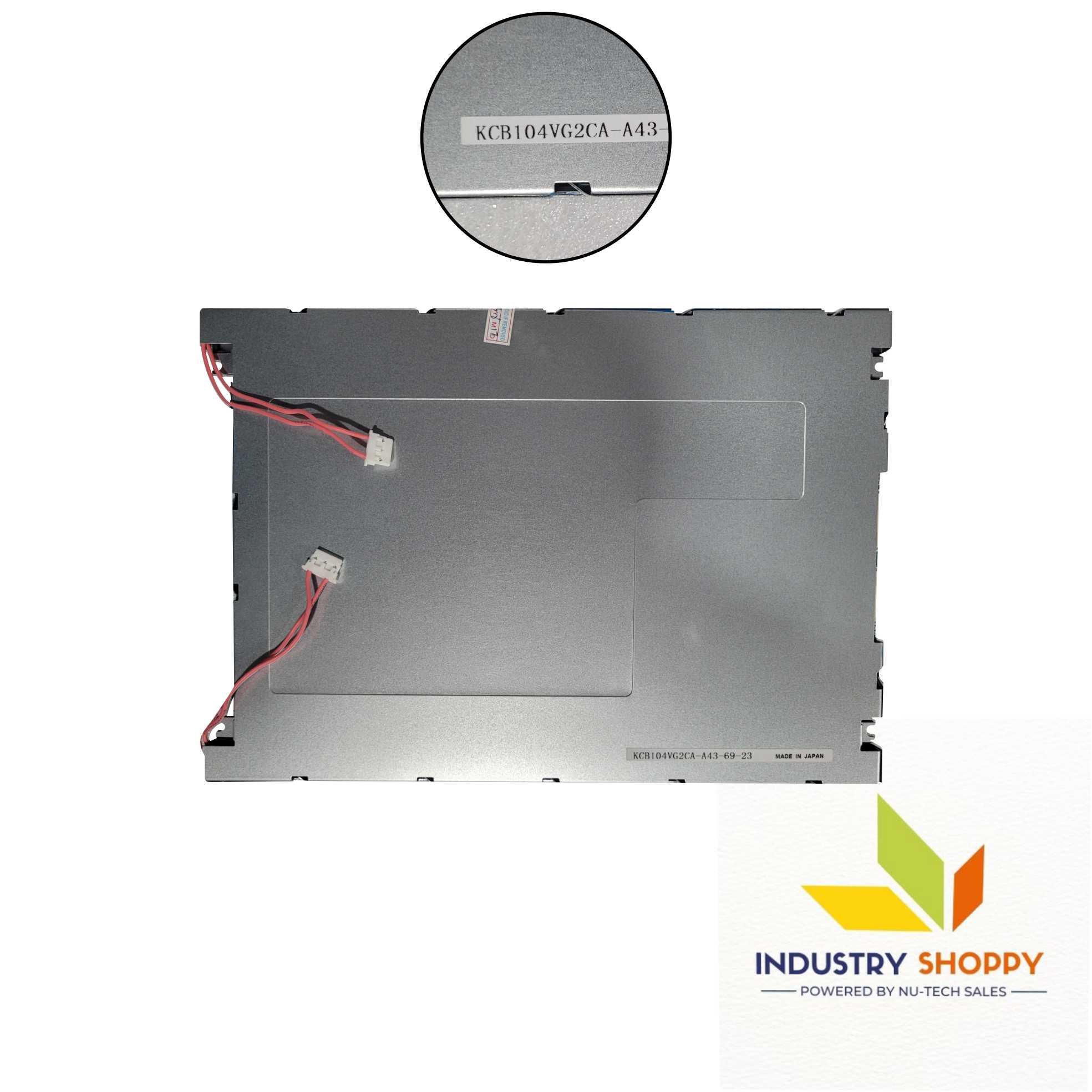

• Panel Model   :  KCB104VG2CA-A43
• Condition  :  New
• Resolution   :  640(RGB)×480, VGA  76PPI
• Brightness  :  160 cd/m² (Typ.)

NTS KCB104VG2CA-A43 LCD Module

The NTS KCB104VG2CA-A43 LCD Module is a 10.4-inch CSTN-LCD display designed for industrial and professional applications requiring clear and reliable visuals. With a VGA resolution of 640(RGB)×480 and a contrast ratio of 30:1, this display ensures crisp images and accurate color representation.

Key features include a 160 cd/m² brightness, RGB vertical stripe pixel format, and an antiglare surface for enhanced readability. The CCFL backlight provides uniform illumination, while the STN, Normally Black, Transmissive display mode ensures excellent contrast and viewing performance.

The parallel data interface (1ch, 8-bit, 29-pin connector) allows seamless integration with a variety of systems. The module operates at 5.0V input voltage, with a 75Hz refresh rate for smooth display performance. Its rugged design supports an operating temperature range of 0 to 50°C, making it suitable for various industrial environments.

• Brand   :    NTS
• Size   :   10.4"
• Panel Type   :    CSTN-LCD, LCM
• Panel Model   :  KCB104VG2CA-A43
• Condition  :  New
• Resolution   :  640(RGB)×480, VGA  76PPI
• Brightness  :  160 cd/m² (Typ.)
• Viewing Angle   : 45/45/35/20 (Typ.)(CR≥2)
• Contrast Ratio   :  30:1 (Typ.) (TM)
• Display Colors   :  540g (Typ.)
• Pixel Format   :  RGB Vertical Stripe
• Display Area  :  211.2(W)×158.4(H) mm
• Display Mode   :  STN, Normally Black, Transmissive
• Lamp Type   :  CCFL
• Outline Size  :  264(W)×183(H)×9(D) mm
• Surface  :  Antiglare
• Panel Weight   : 540g (Typ.)
• Response Time   :  15/10 (Typ.)(Tr/Td)
• Frequency    :  75Hz

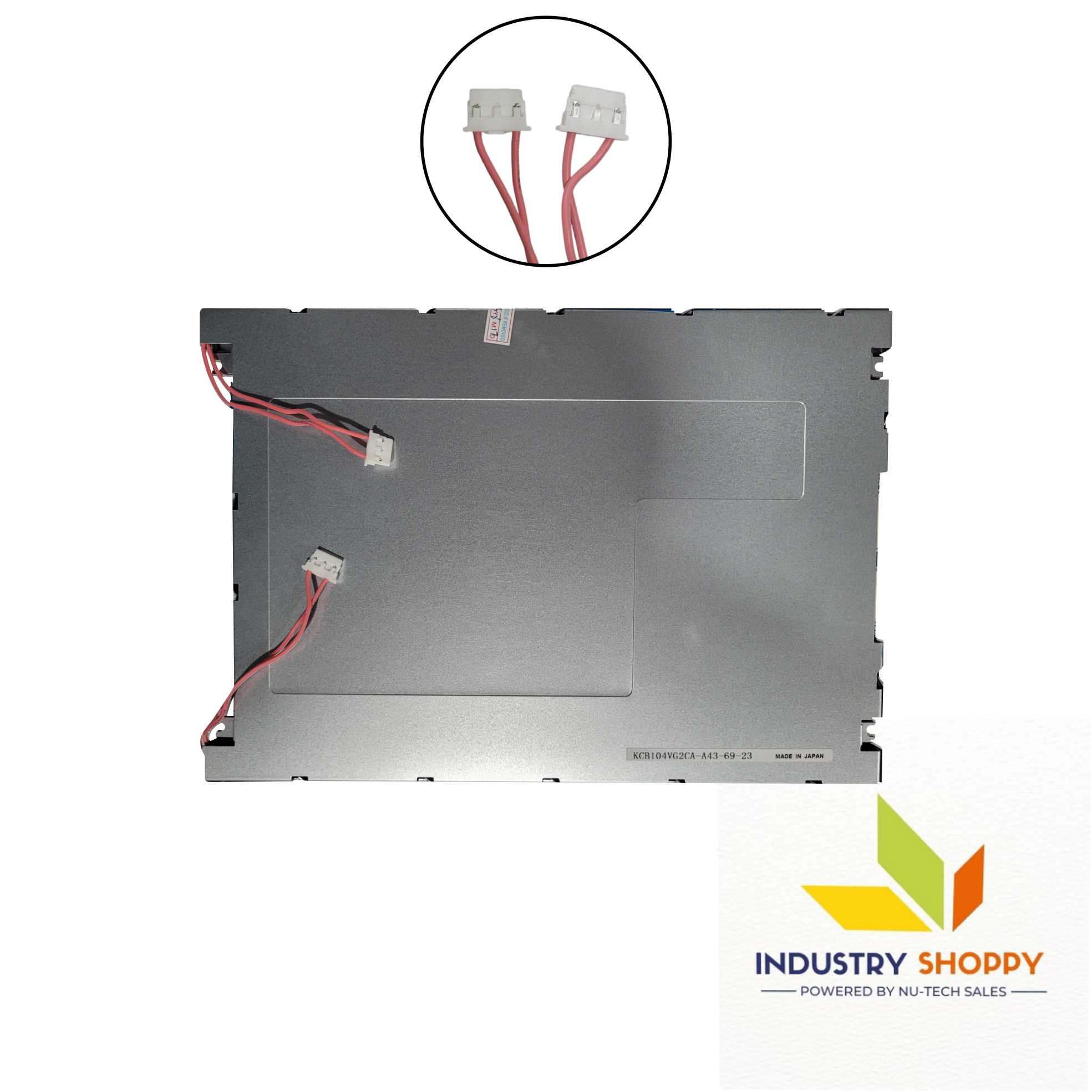

• Signal Interface  : Parallel Data (1ch, 8-bit) 29 pins Connector
• Input Voltage   :  5.0V (Typ.)
•  Environment   :  Operating Temperature: -0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
