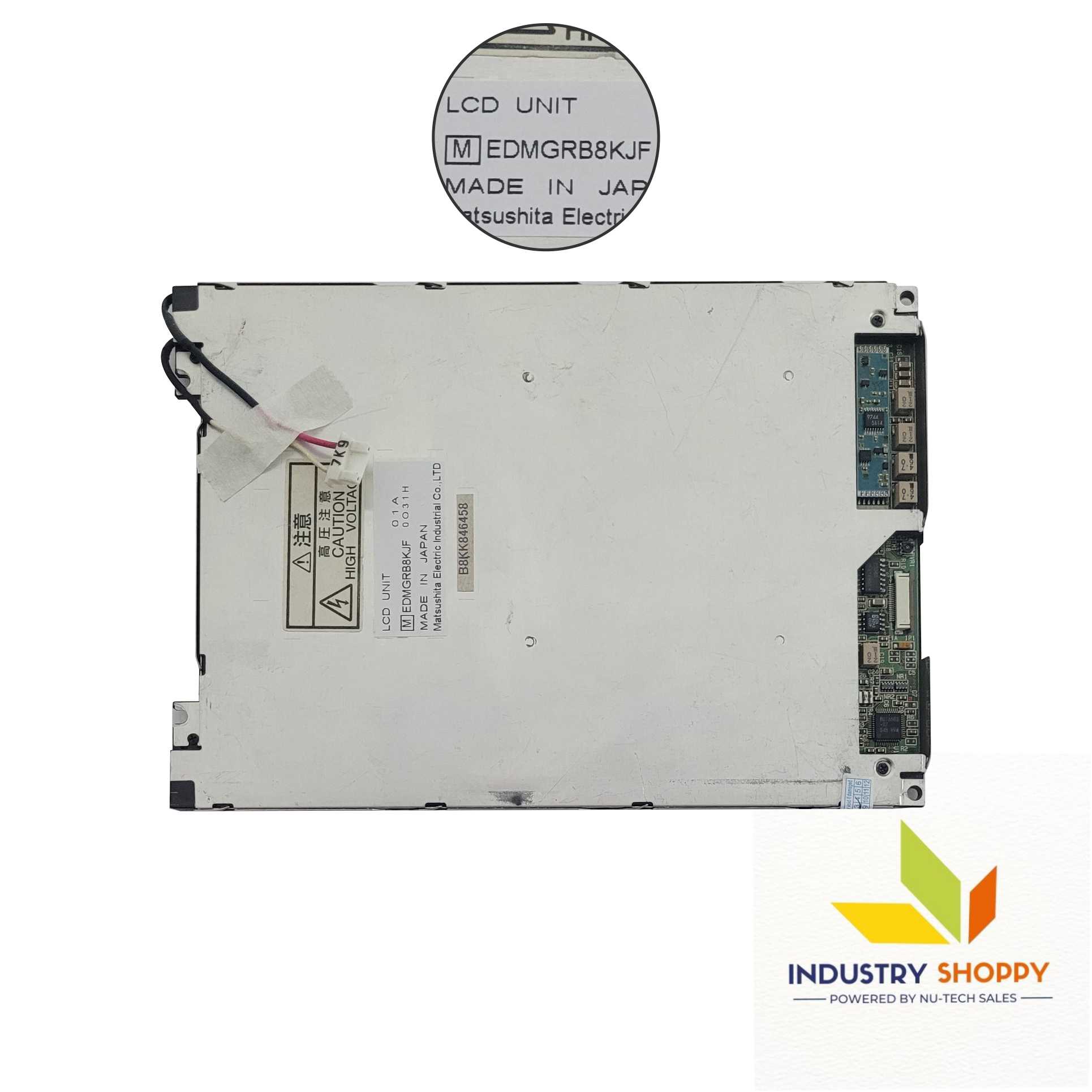

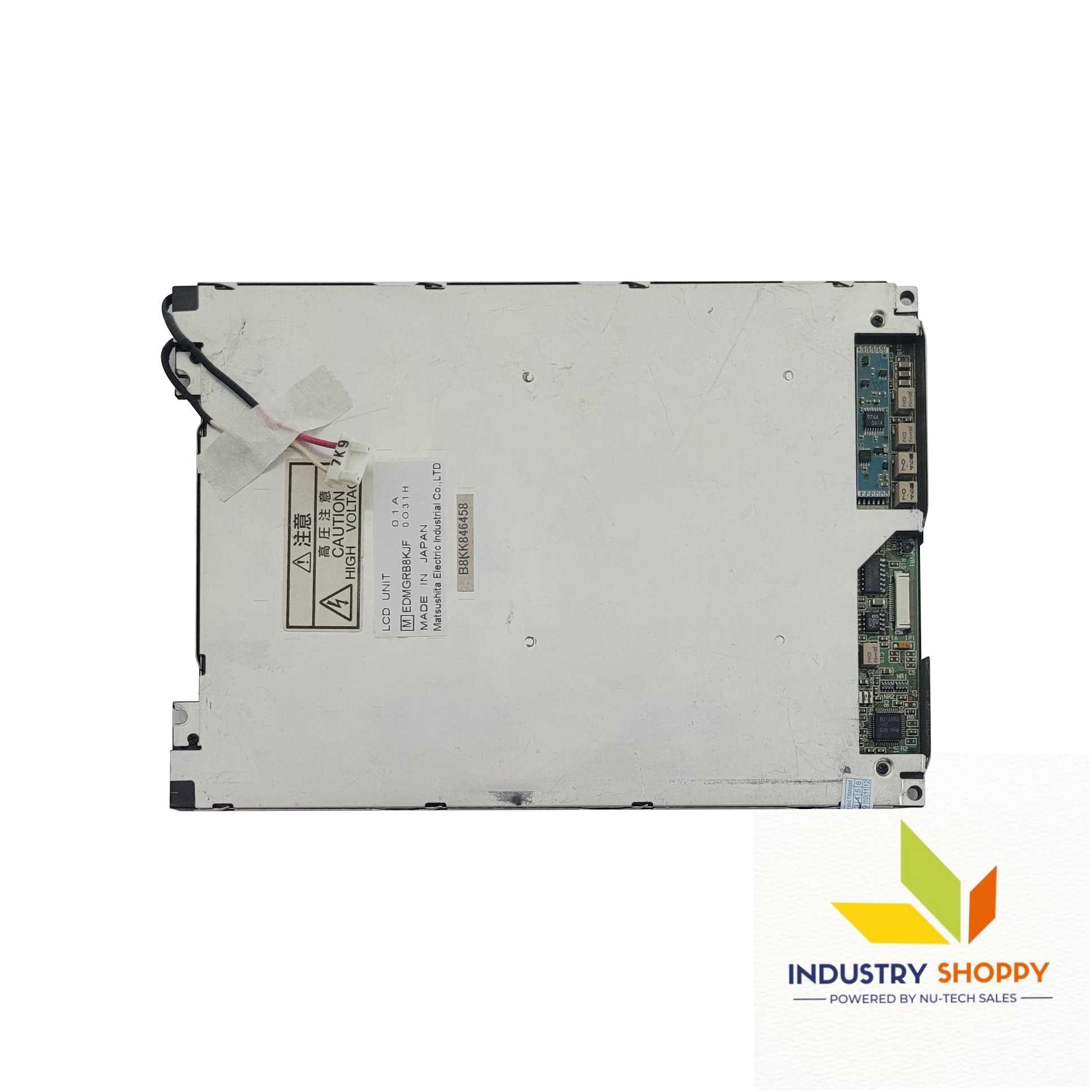

NTS EDMGRB8KJF LCD Module

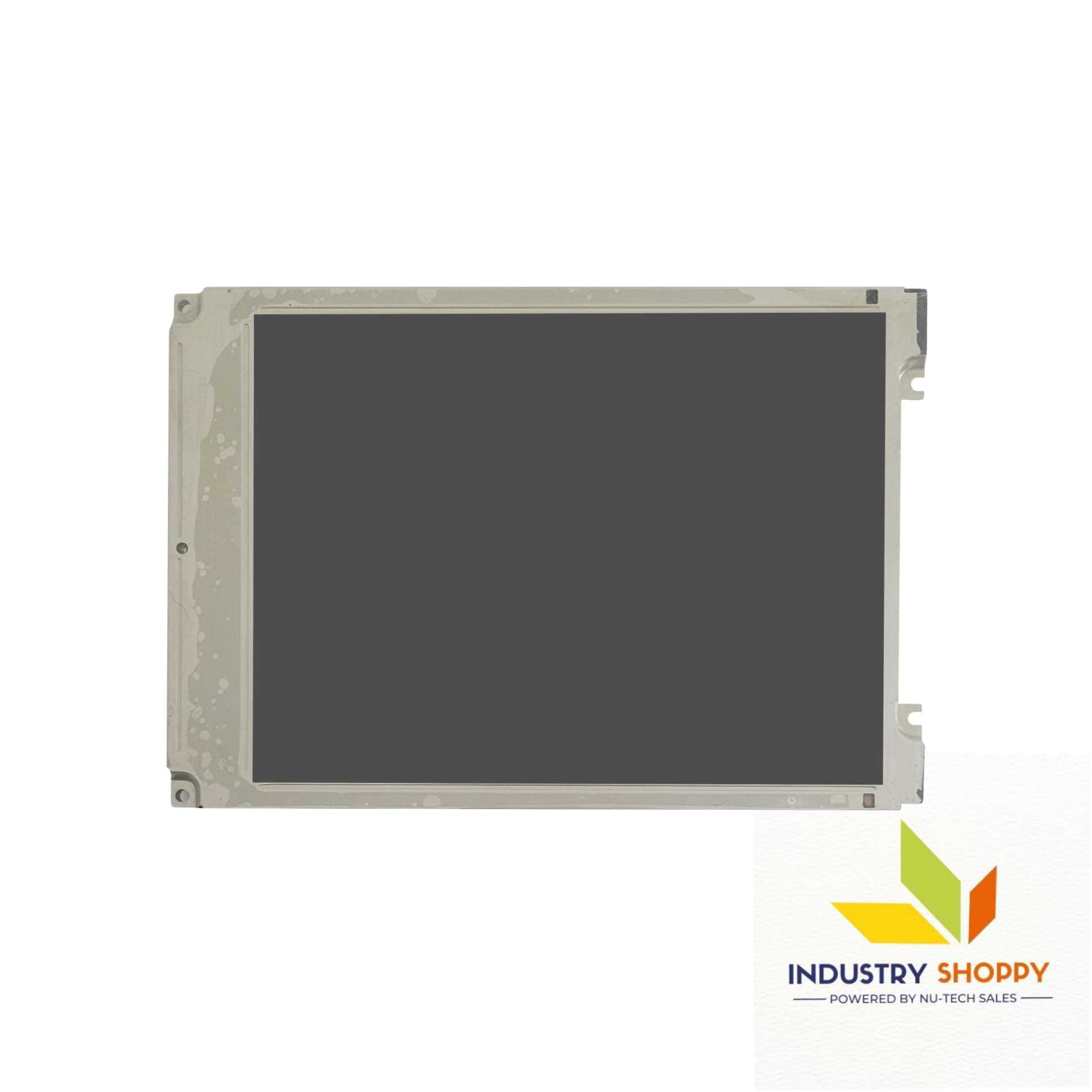

The NTS EDMGRB8KJF LCD Module (EDMGRB8KJF) is one 7.8-inch CSTN-LCD is a color display panel with a resolution of 640(RGB)×480 (VGA), offering a pixel density of 103 PPI for moderate clarity. Its active area measures 157.42 mm by 118.06 mm, and the overall dimensions are 195.2 mm (W) × 137.5 mm (H), making it a mid-sized module suitable for embedded systems or industrial equipment.

The display uses STN, Normally Black, Transmissive technology, which enhances contrast by appearing darker when off. It supports color output and uses a clear, hard-coated (2H) surface treatment for durability. The panel provides a luminance of 60 cd/m² and a contrast ratio of 30:1, suitable for basic indoor environments.

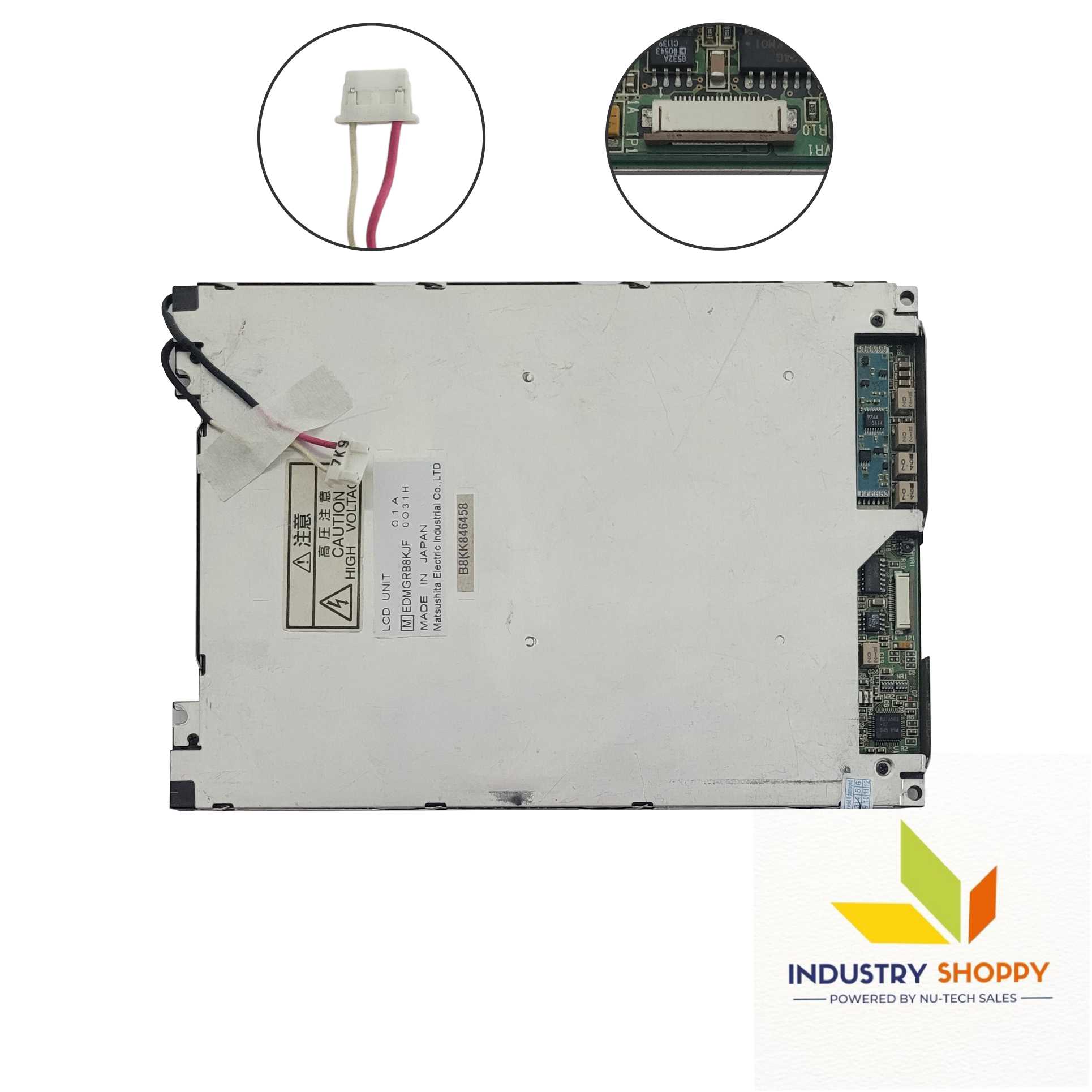

The viewing angles are limited, at 45/45/30/20 (left/right/up/down), and the response time is 200/150 ms (Tr/Td), typical for CSTN panels. It uses a parallel 8-bit data interface with a 20-pin connector and operates at 3.3V or 5.0V.

Backlighting is provided by a single CCFL tube (10K hour life) without an integrated driver. The panel works in temperatures from 0°C to 40°C, with storage conditions ranging from -20°C to 60°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.

Our engineers acts wisely inputted all the required details of LCD Module according to the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur.
