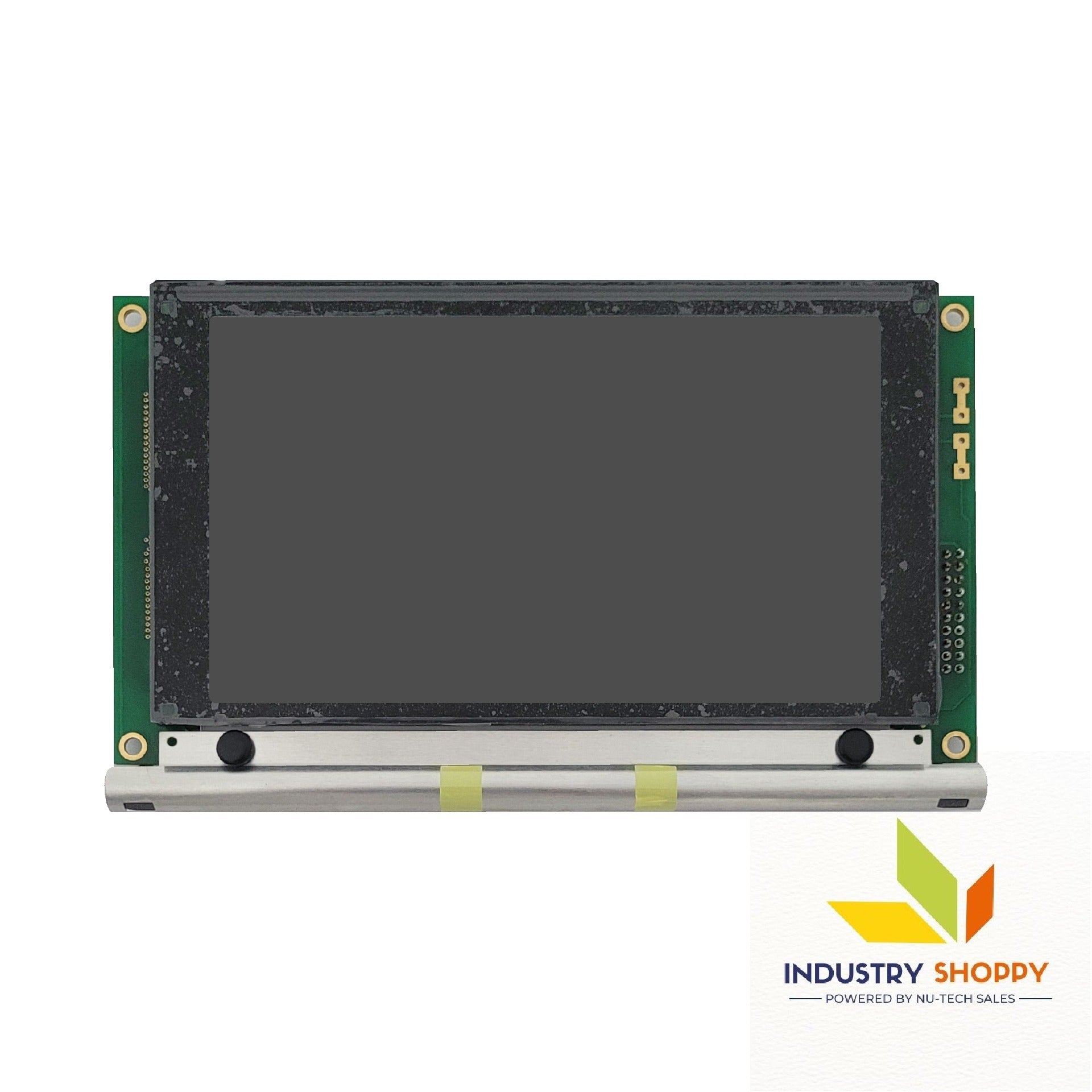

NTS DMF50773NF-FW LCD Module

• Brand :  NTS
• Size : 5.4"
• Condition : New
• Panel Type : FSTN-LCD, LCM
• Work Mode : STN, Black/White mode, Transflective

NTS DMF50773NF-FW LCD Module

The NTS DMF50773NF-FW LCD Module 5.4-inch FSTN-LCD Module is a versatile and reliable display solution, designed for applications that require clear monochrome visuals. With a 240×128 resolution and a pixel density of 50 PPI, this module offers sharp image quality suitable for industrial equipment, handheld devices, and control panels. Its active area of 119.97(W)×63.97(H) mm provides ample space for displaying data or graphics clearly.

The module features FSTN (Film Compensated Super Twisted Nematic) technology, delivering better contrast and a sharper image compared to traditional STN displays. Operating in STN Black/White mode, the display is transflective, allowing it to function well in both high and low lighting conditions. Its luminance of 40 cd/m² and contrast ratio of 6:1 (Typ.) ensures clear visibility even in challenging environments.

With a 200/300 ms response time and a frame rate of 70Hz, the display offers smooth image transitions, suitable for real-time monitoring applications. The 8-bit parallel signal interface with a 22-pin connector simplifies integration into various systems.

This LCD module operates on a 5V power supply and includes a YG-LED backlight, ensuring reliable illumination without the need for an external driver. Designed to endure demanding conditions, it operates within a temperature range of 0 to 50°C and can be stored safely in environments as cold as -20°C and as warm as 60°C. Weighing 250g, this module is robust yet compact, making it an excellent choice for various professional applications.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
