NEC NL8060BC26-17 LCD Module

NEC NL8060BC26-17 LCD Module

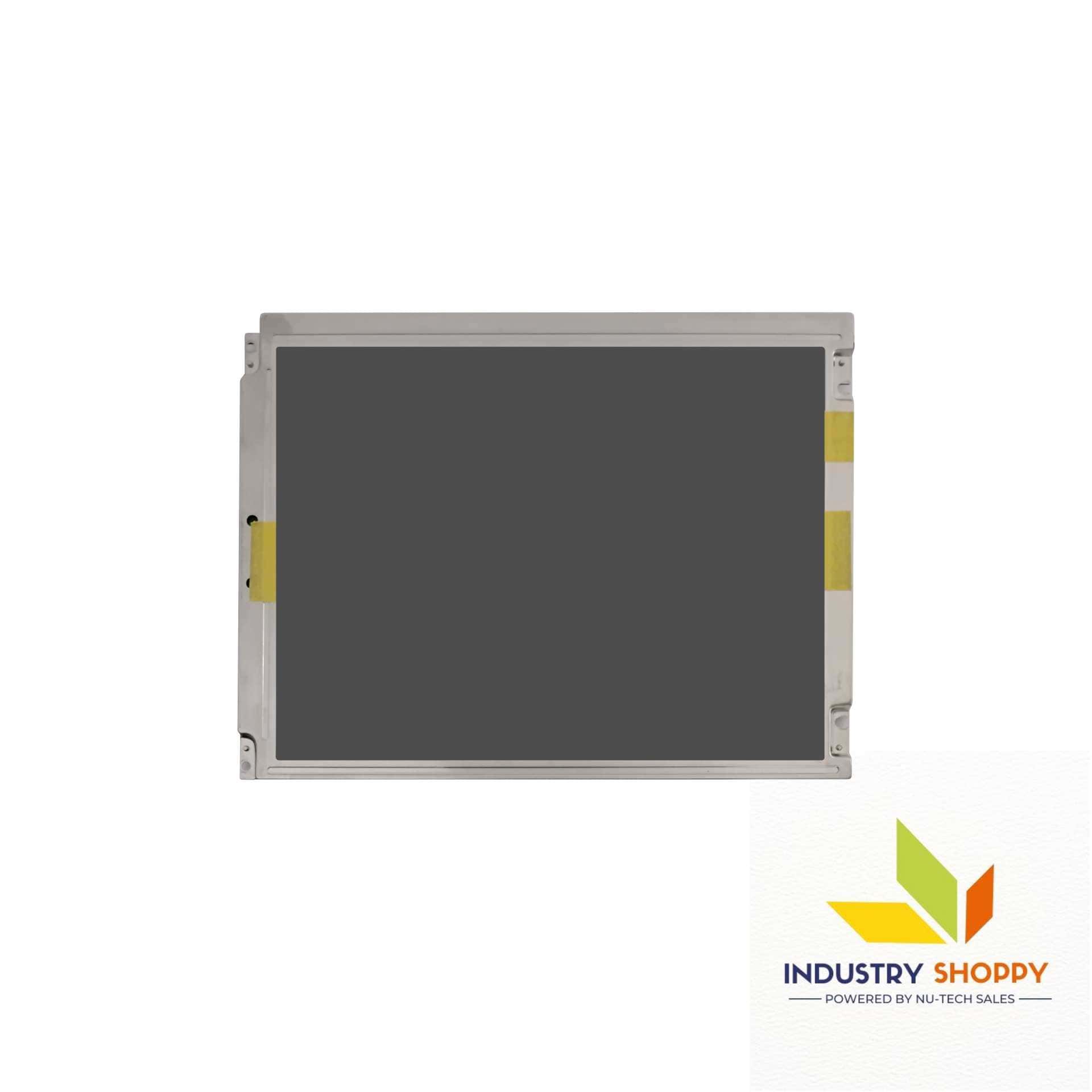

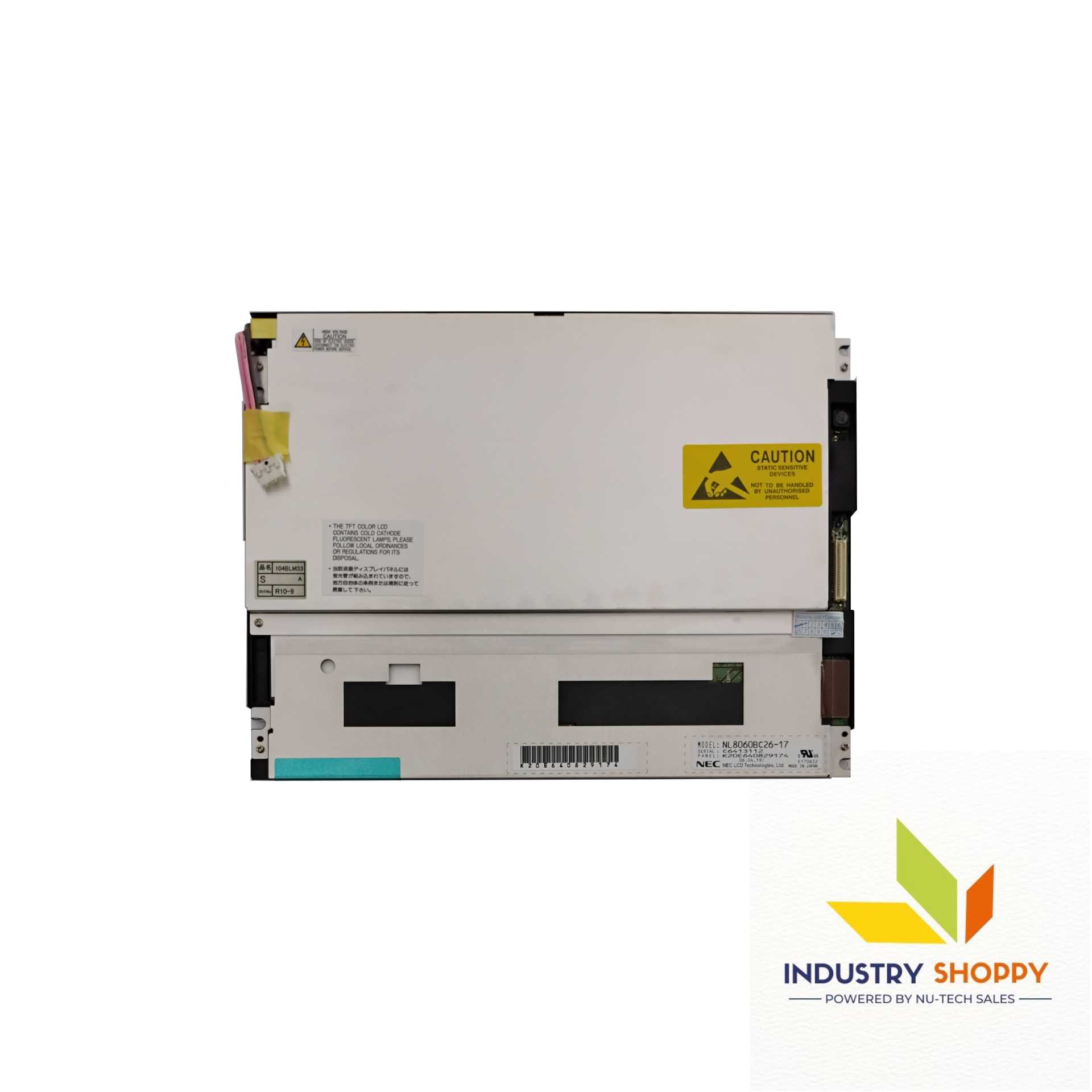

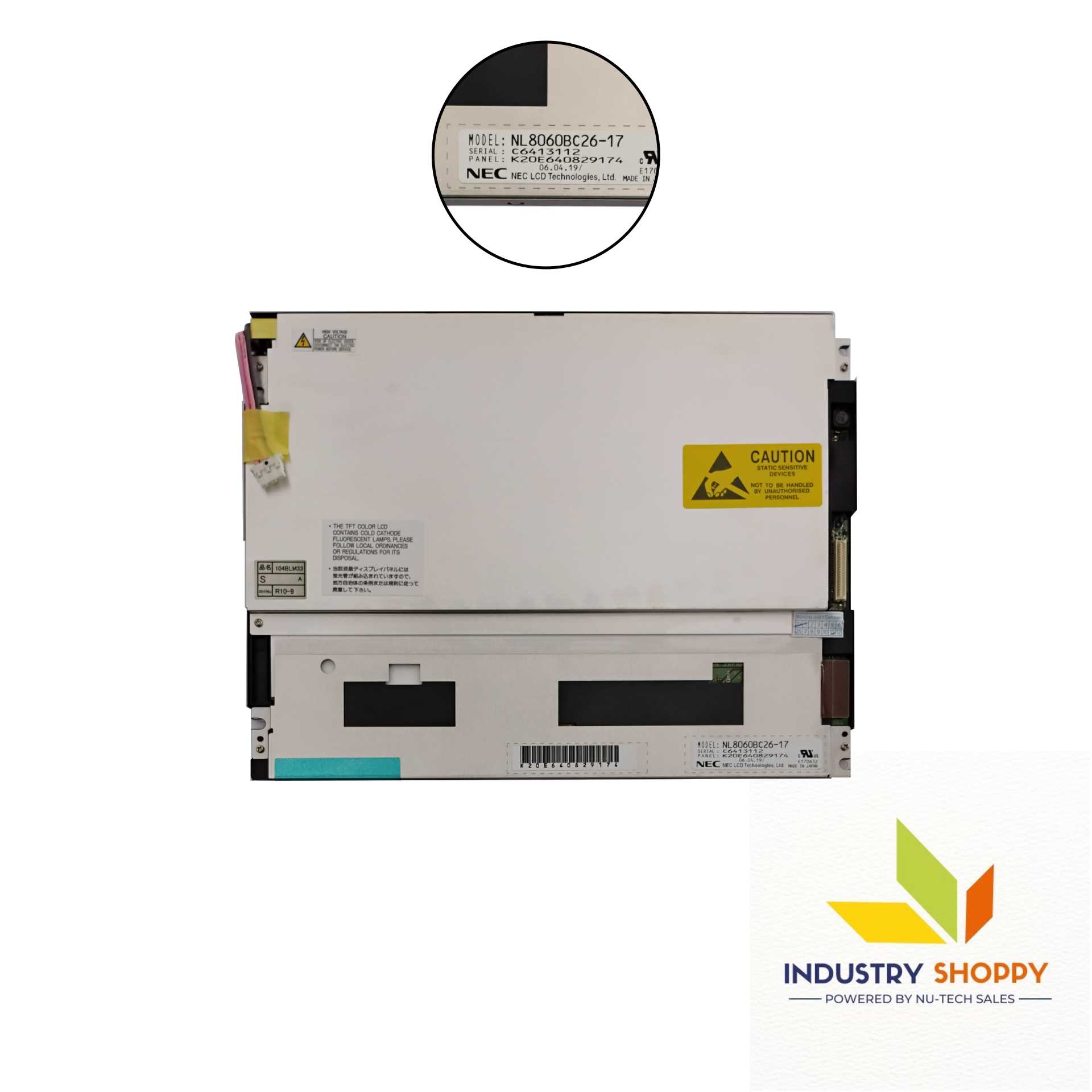

The NEC NL8060BC26-17 LCD Module is a durable and versatile display ideal for industrial and embedded applications. With a resolution of 800×600 and 96 PPI, it delivers sharp, clear images. The active area measures 211.2×158.4 mm, while the overall dimensions are 243×185.1×11.5 mm, offering a compact yet robust form factor. The display provides 280 cd/m² typical brightness and a 300:1 contrast ratio, making it suitable for standard indoor usage.

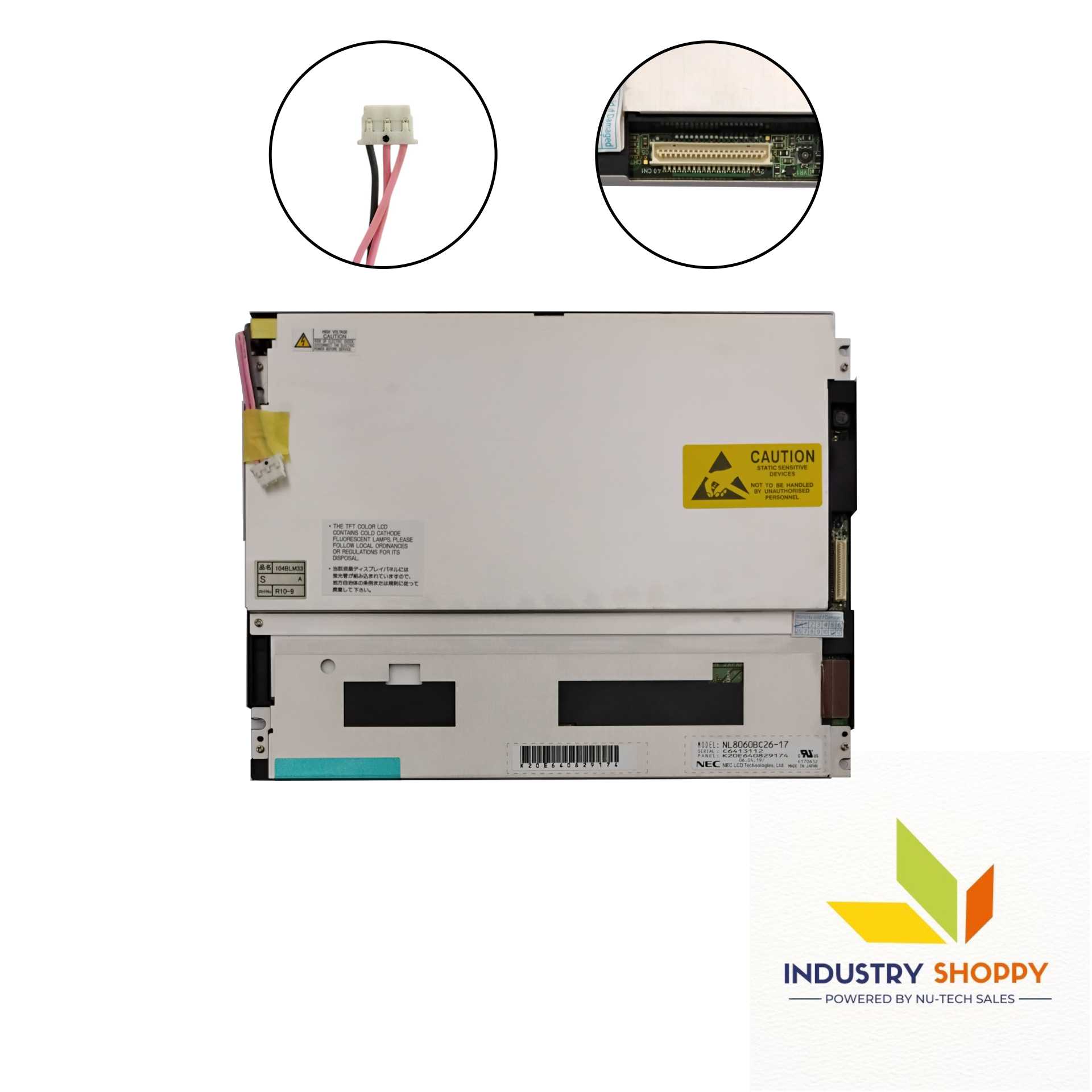

The NEC NL8060BC26-17 LCD Module uses TN technology with a normally white, transmissive mode, offering viewing angles of 50°/50°/35°/45° (L/R/U/D). The panel supports 262K colors at 43% NTSC and features an antireflection coating with 3H hard surface for durability. The signal interface is CMOS (1 ch, 6-bit) via a 41-pin connector running at 60Hz. Power input is flexible with 3.3V or 5V (typical) support. The backlight system uses 2 CCFL lamps (without driver) and is rated for extended use. Designed for resilience, it operates at 0~50°C and can be stored between -20~60°C, with a vibration resistance of 2.0G.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
