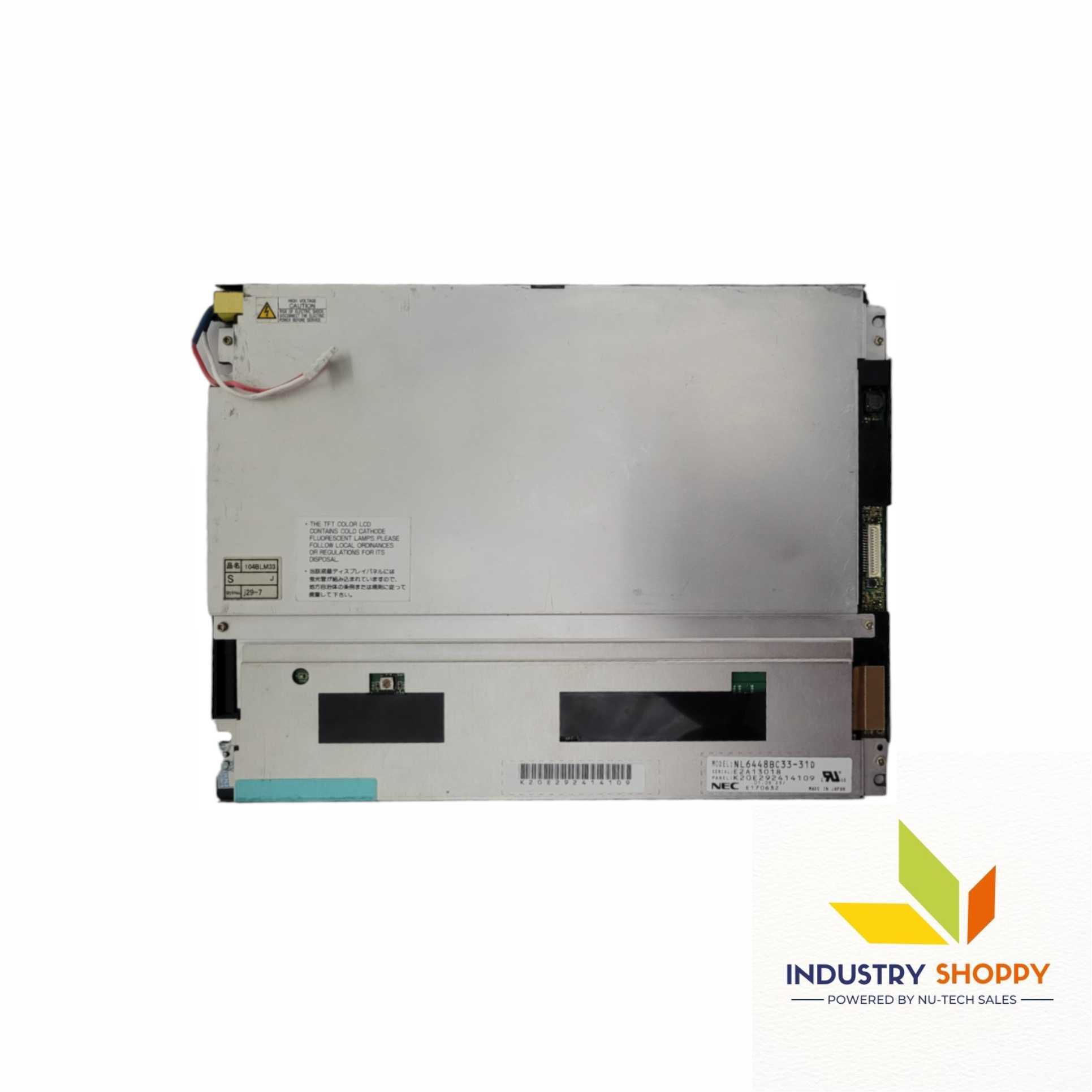

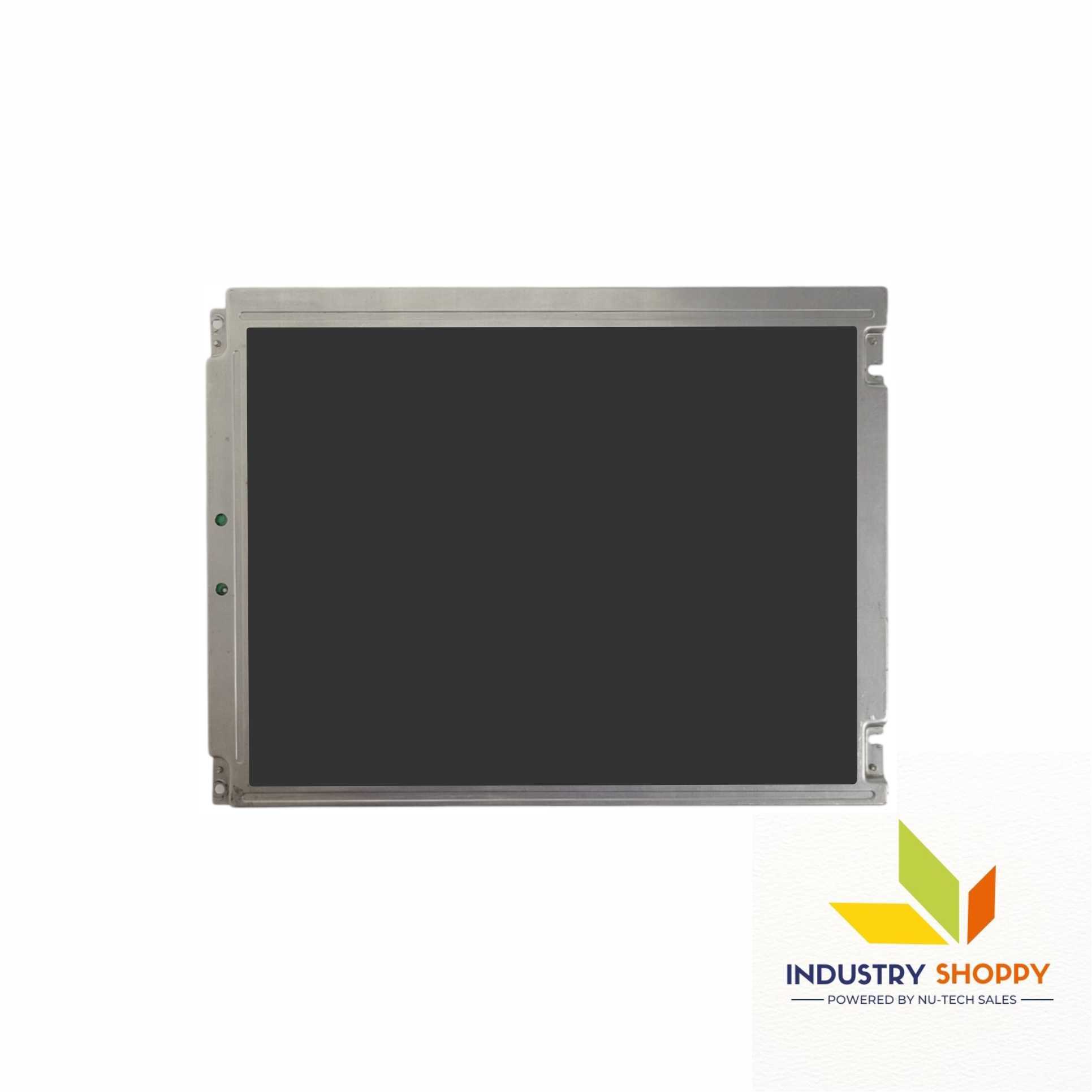

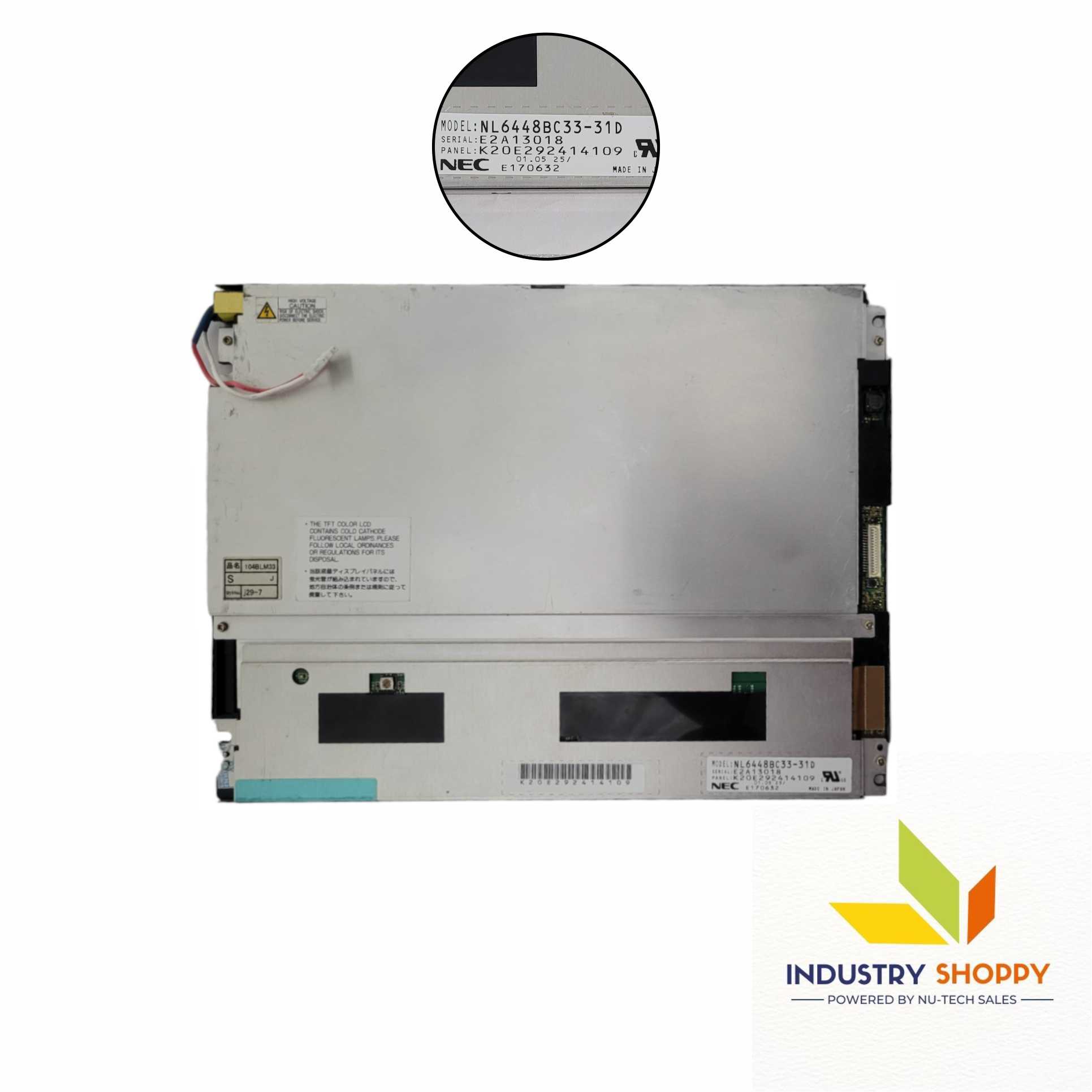

NEC NL6448BC33-31D LCD Module

The NEC NL6448BC33-31D LCD Module is a 10.4-inch TFT-LCD panel features VGA resolution at 640(RGB)×480 pixels with a 76 PPI density, providing clear and readable output for industrial or embedded systems. It offers a generous active area of 211.2 mm × 158.4 mm within a 243 mm × 185.1 mm × 11.5 mm housing.

Engineered with a-Si TFT-LCD technology, the display runs in TN mode with a normally white, transmissive setup. It includes both antiglare and antireflection surface treatments to enhance visibility in ambient light environments.

With a typical brightness of 350 cd/m² and a contrast ratio of 300:1, this panel delivers steady, readable output. Viewing angles extend to 50° left/right, 40° upward, and 45° downward (CR≥10). The response time is rated at 15 ms (rise) and 70 ms (fall), making it suitable for static or low-motion interfaces.

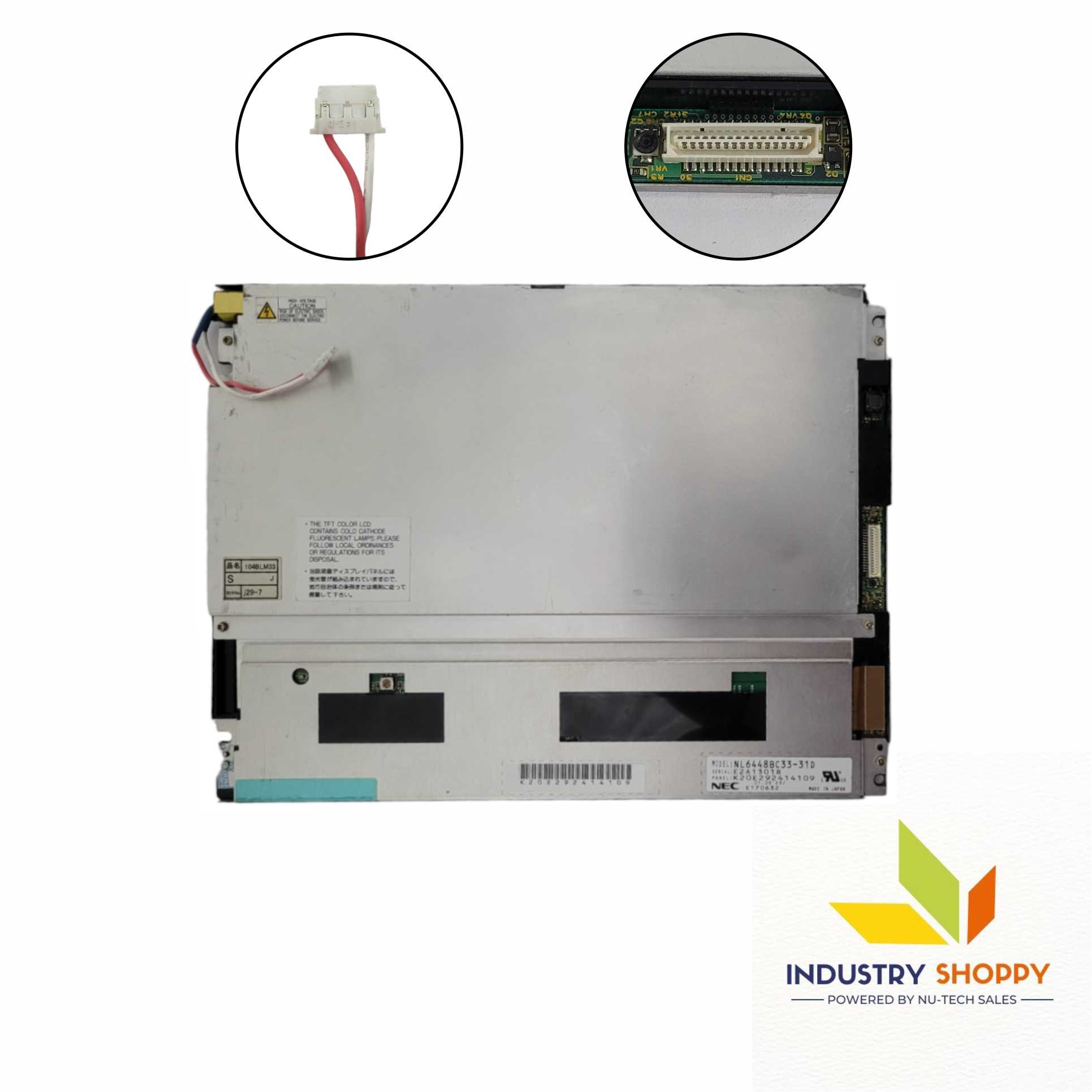

Color support includes 262K colors at 43% NTSC coverage. The panel interfaces through a 31-pin CMOS connector (1-channel, 6-bit) and runs at a standard 60Hz frame rate. It accepts a 3.3V or 5.0V typical power supply.

Backlighting is provided by two CCFLs (external driver required), ensuring dependable performance. Designed for practical deployment, this panel operates in temperatures from -20°C to 60°C, with a storage range of 0°C to 50°C.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube


BrandNEC
Diagonal Size10.4"
Resolution640(RGB)×480, VGA, 76 PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension243(W)×185.1(H)×11.5(D) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio300:1 (Typ.) (TM)
Viewing Angle50/50/40/45 (Typ.) (CR≥10)
Response Time15/70 ms (Typ. Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Antireflection
Operating ModeTN, Normally White, Transmissive
Support Color262K, 43% NTSC
Signal Interface TypeCMOS (1 ch, 6-bit), 31 pins Connector
Frame Rate60 Hz
Power Supply3.3/5.0 V (Typ.) (VCC)
Backlight2 pcs CCFL, No Driver
Operating Temp.-20 ~ 60 °C
Storage Temp.0 ~ 50 °C
