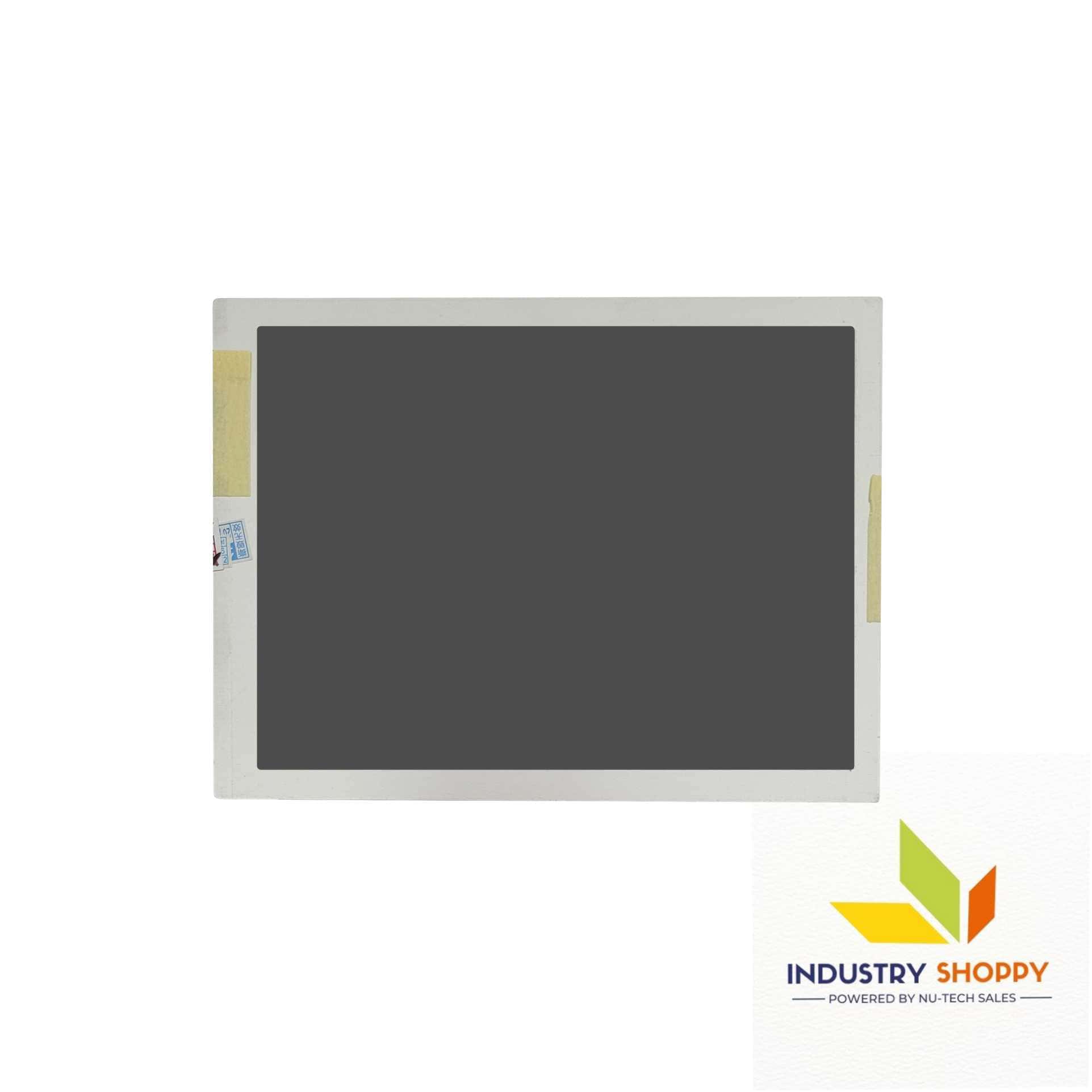

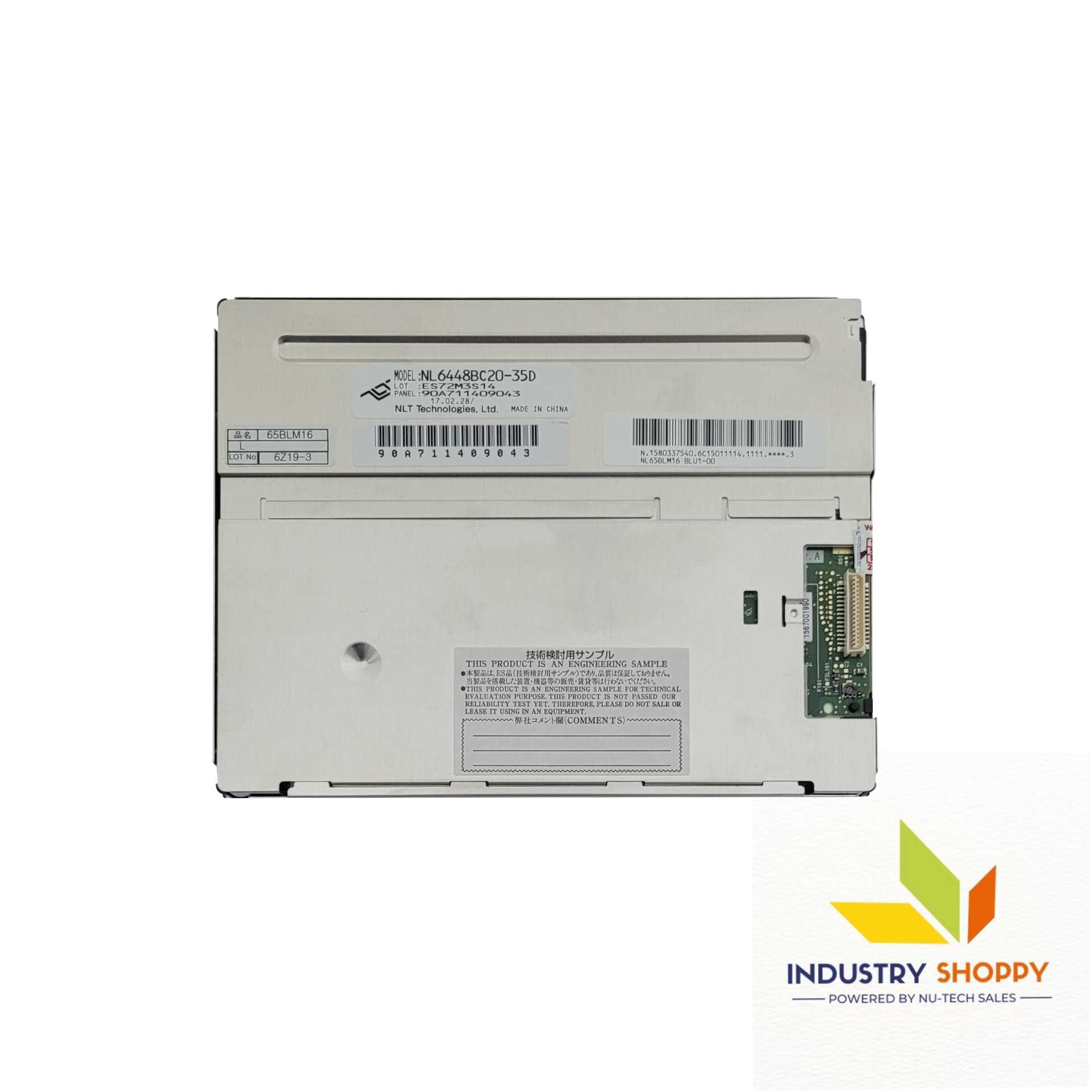

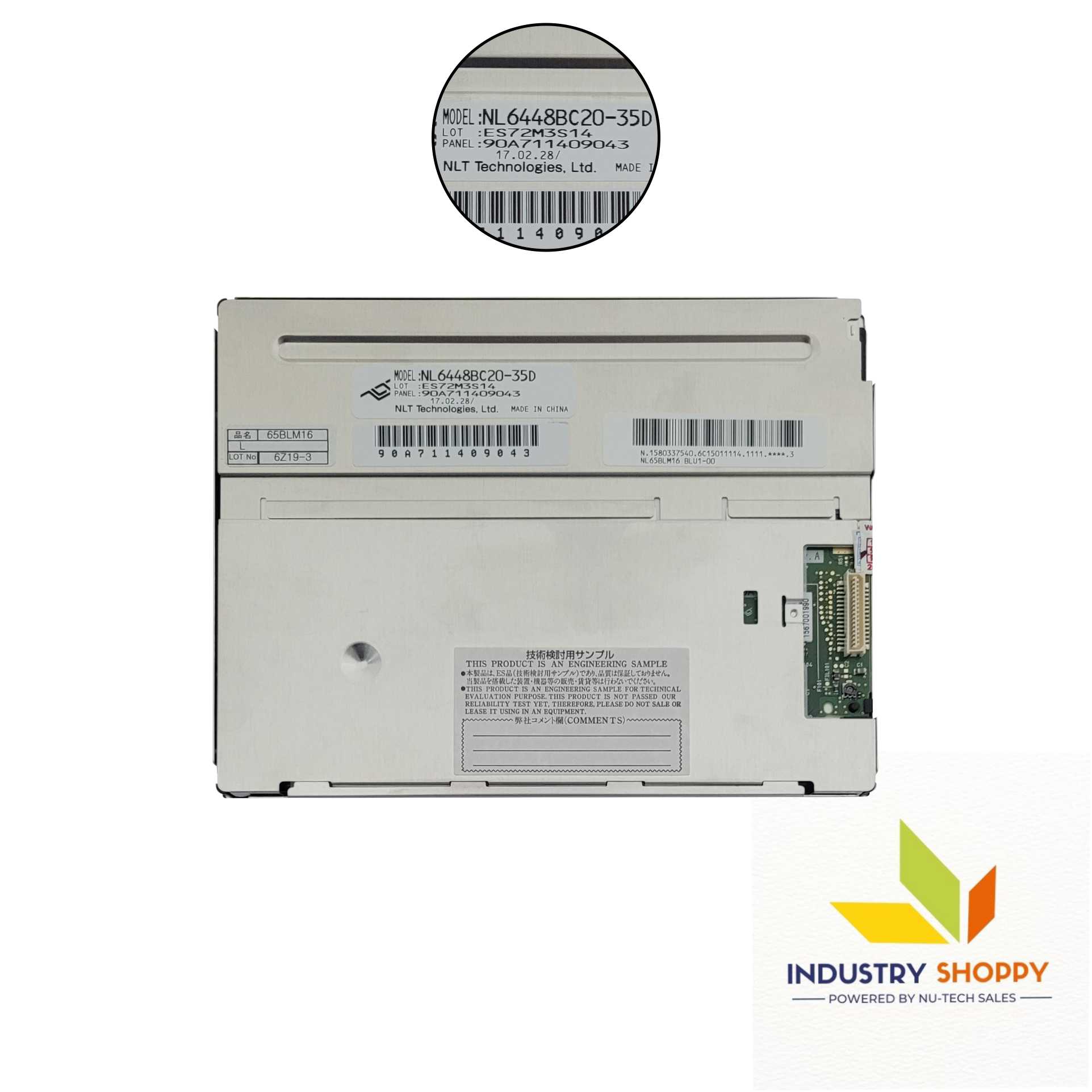

NEC NL6448BC20-35D LCD Module

The NEC NL6448BC20-35D LCD Module is 6.5" VGA TFT-LCD module delivers premium display performance in a compact format—perfect for industrial equipment, medical interfaces, and rugged embedded systems that demand high visibility and durability.

With a crisp 640×480 resolution at 122 PPI, this display packs fine detail into a 132.48 × 99.36 mm active area, all within a slim and space-efficient 153 × 118 × 8.7 mm housing. Its 600 cd/m² luminance and 800:1 contrast ratio ensure excellent readability—even in brightly lit environments or direct light conditions.

Thanks to its wide 80° viewing angles in all directions (CR≥10) and fast response time of 3/15 ms (Tr/Td), the panel supports dynamic content with minimal ghosting or distortion, whether viewed head-on or from the side.

Built with a-Si TFT-LCD technology and featuring antiglare and 3H hard coating, this TN, Normally White, Transmissive display is ready for demanding use. It reproduces up to 262K colors (40% NTSC), connected via CMOS interface (1 ch, 6-bit) using a 31-pin connector, with a standard 60Hz refresh rate.

The backlight system features three WLED strings rated for a 70,000-hour lifespan, ensuring long-term brightness without an onboard driver. Operating over a wide temperature range of -30°C to 80°C, it’s engineered for resilience in both indoor and outdoor conditions.



Technical Precautions :-

  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube


BrandNEC
Diagonal Size6.5"
Resolution640(RGB)×480, VGA 122 PPI
Active Area132.48(W)×99.36(H) mm
Outline Dimension153 × 118 × 8.7 (H×V×D) mm
Luminance600 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
Viewing Angle80/80/80/80 (Typ.) (CR≥10)
Response Time3/15 (Typ.) (Tr/Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K, 40% NTSC

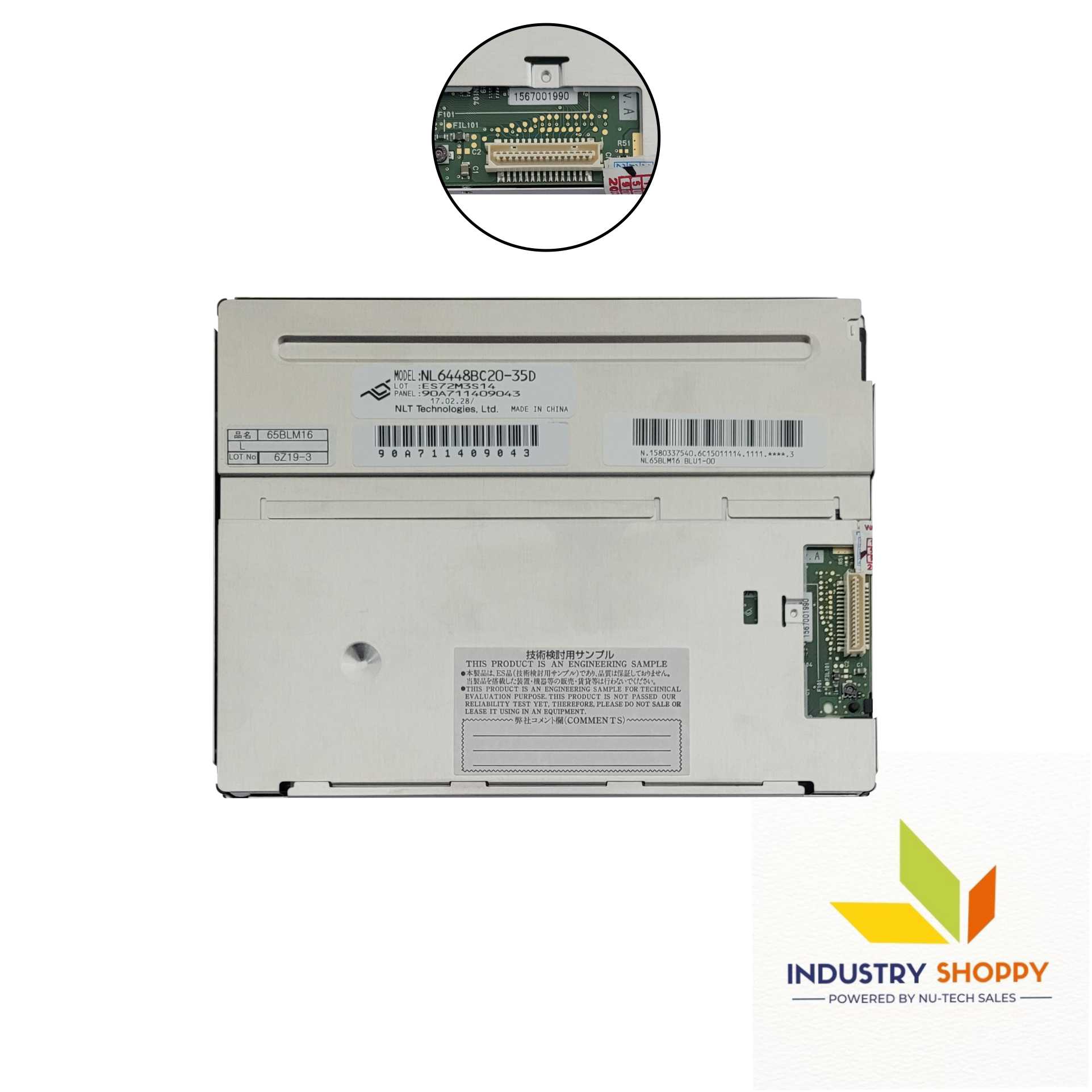

Signal Interface TypeCMOS (1 ch, 6-bit), 31 pins Connector
Frame Rate60 Hz
Power Supply3.3/5.0 V (Typ.)
Backlight3 strings WLED, 70K hours, No Driver
Operating Temp.-30 ~ 80 °C
Storage Temp.-30 ~ 80 °C
