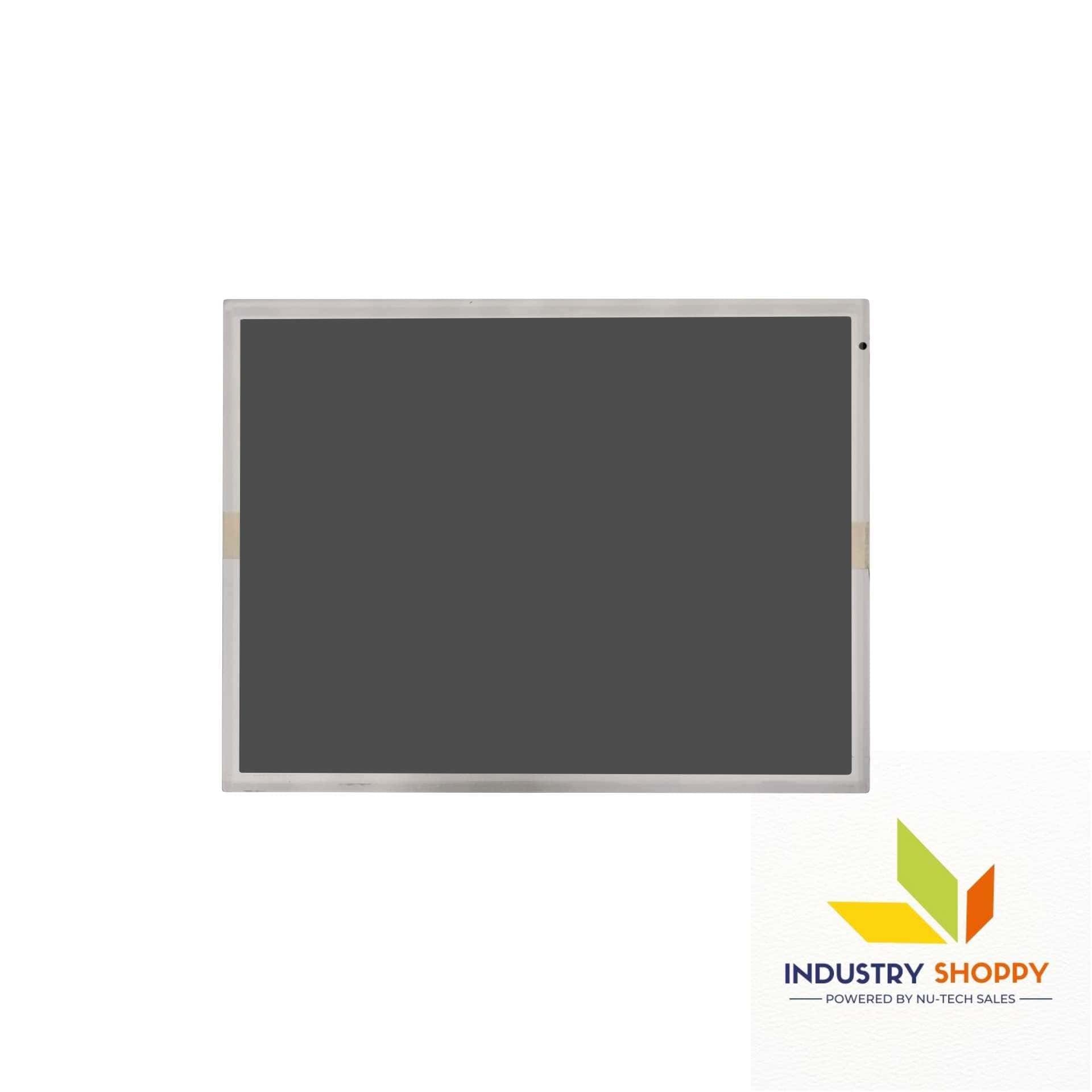

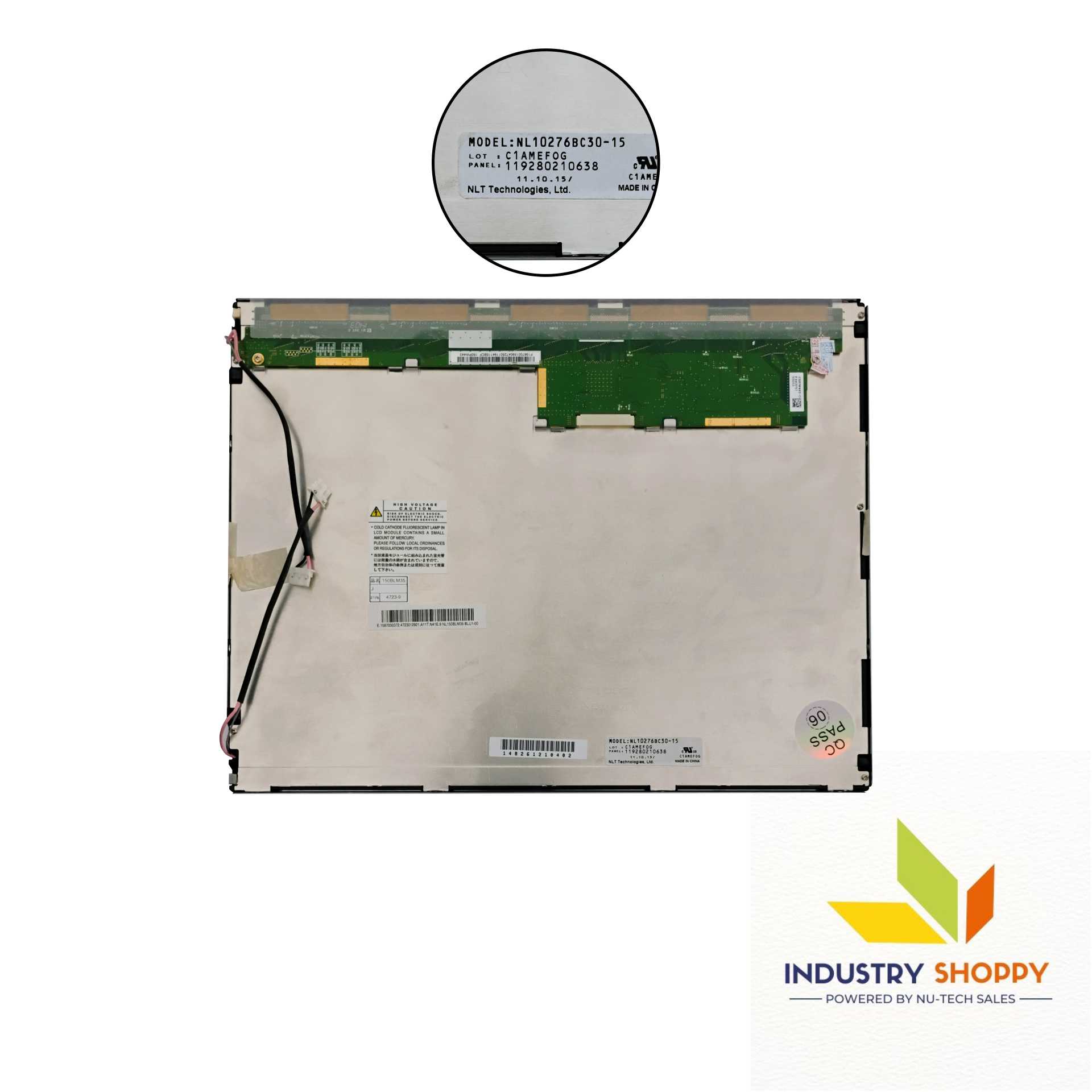

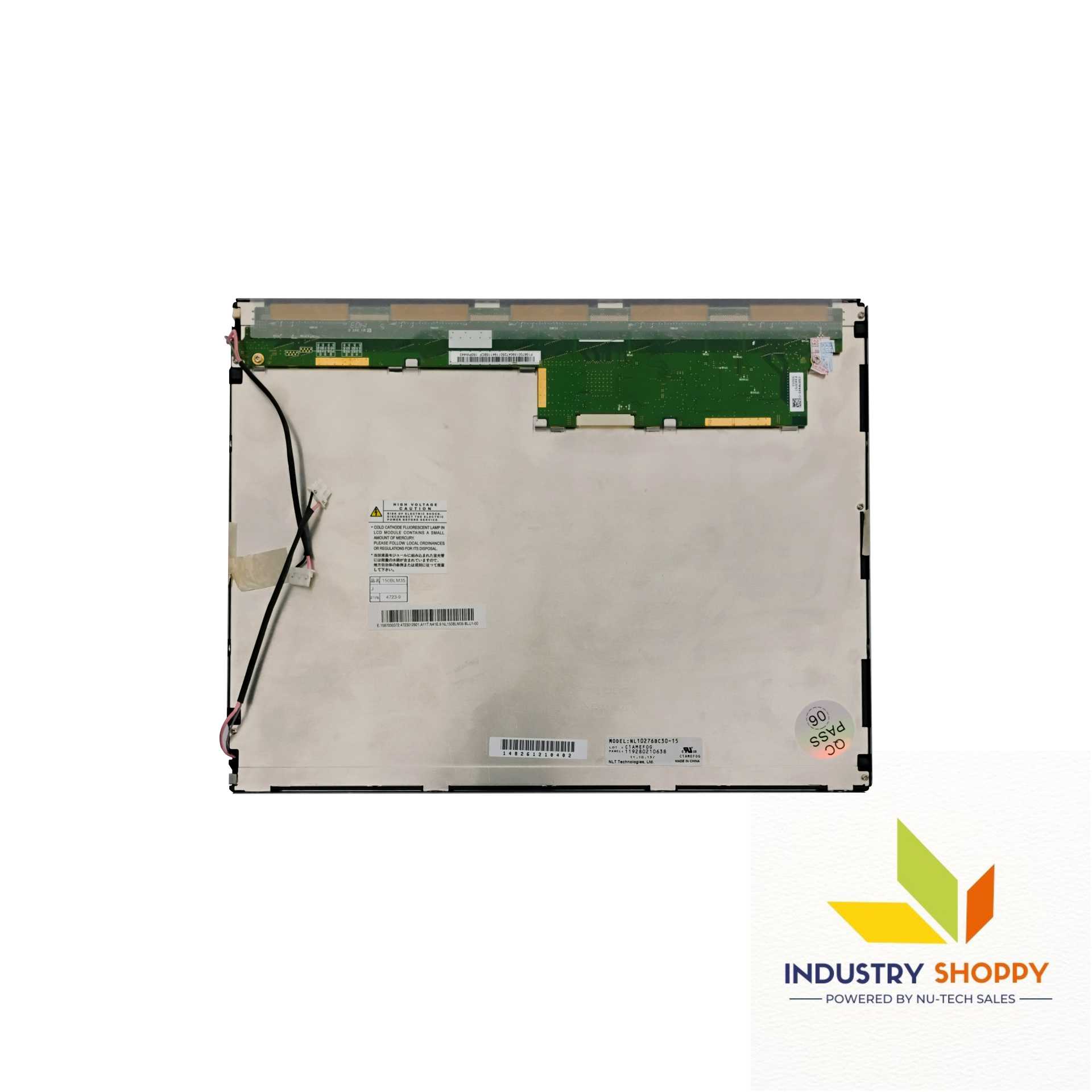

NEC NL10276BC30-15 LCD Module

• Brand :  NEC
• Size : 15.0"
• Condition : New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : TN, Normally White, Transmissive

NEC NL10276BC30-15 LCD Module

The NEC NL10276BC30-15 LCD Module 15.0" display offers a 1024×768 XGA resolution with a pixel density of 85 PPI, delivering a balance between clarity and screen size for a variety of uses. The active area measures 304.128 mm (W) × 228.096 mm (H), and the outline dimensions are 328 mm (W) × 252 mm (H) × 11.5 mm (D), making it suitable for medium-sized applications.

With a luminance of 250 cd/m², this display is designed for environments where high brightness is not a primary requirement, while the contrast ratio of 400:1 ensures a decent level of image sharpness. The viewing angle of 60/60/40/60 degrees provides good visibility from most angles, although the contrast ratio may reduce at extreme angles.

The response time of 8/17 ms (Tr/Td) offers moderate performance for general use. This a-Si TFT-LCD panel features antiglare treatment with a hard coating (3H), making it more durable in challenging environments. The display supports 16.7M colors with 60% NTSC color coverage, providing a wide range of color representation.

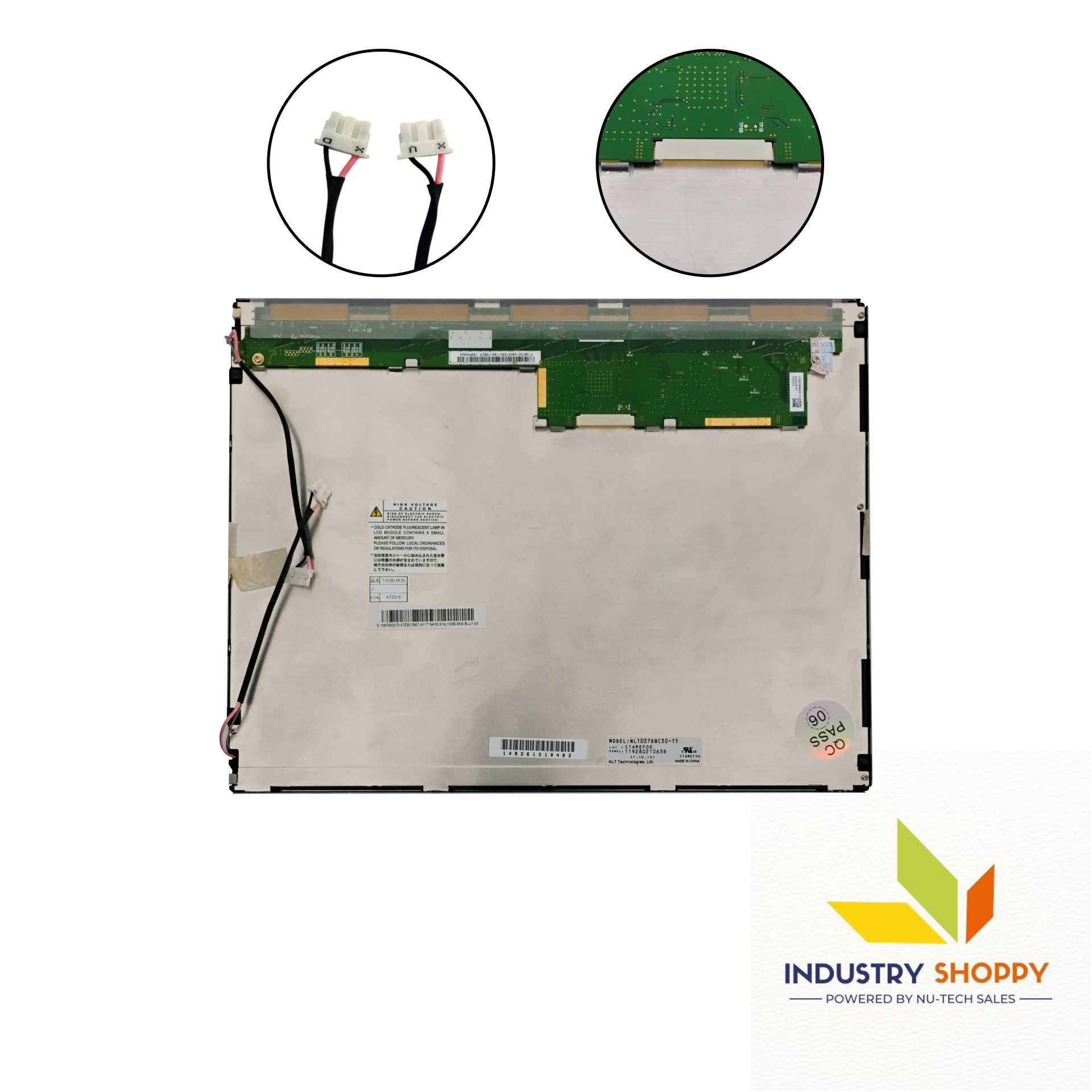

It uses a LVDS interface and operates on a 3.3V power supply, with a CCFL backlight (2 pcs) that lasts around 50K hours. The display is suitable for operating temperatures between 0°C and 50°C and can be stored at -20°C to 60°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
