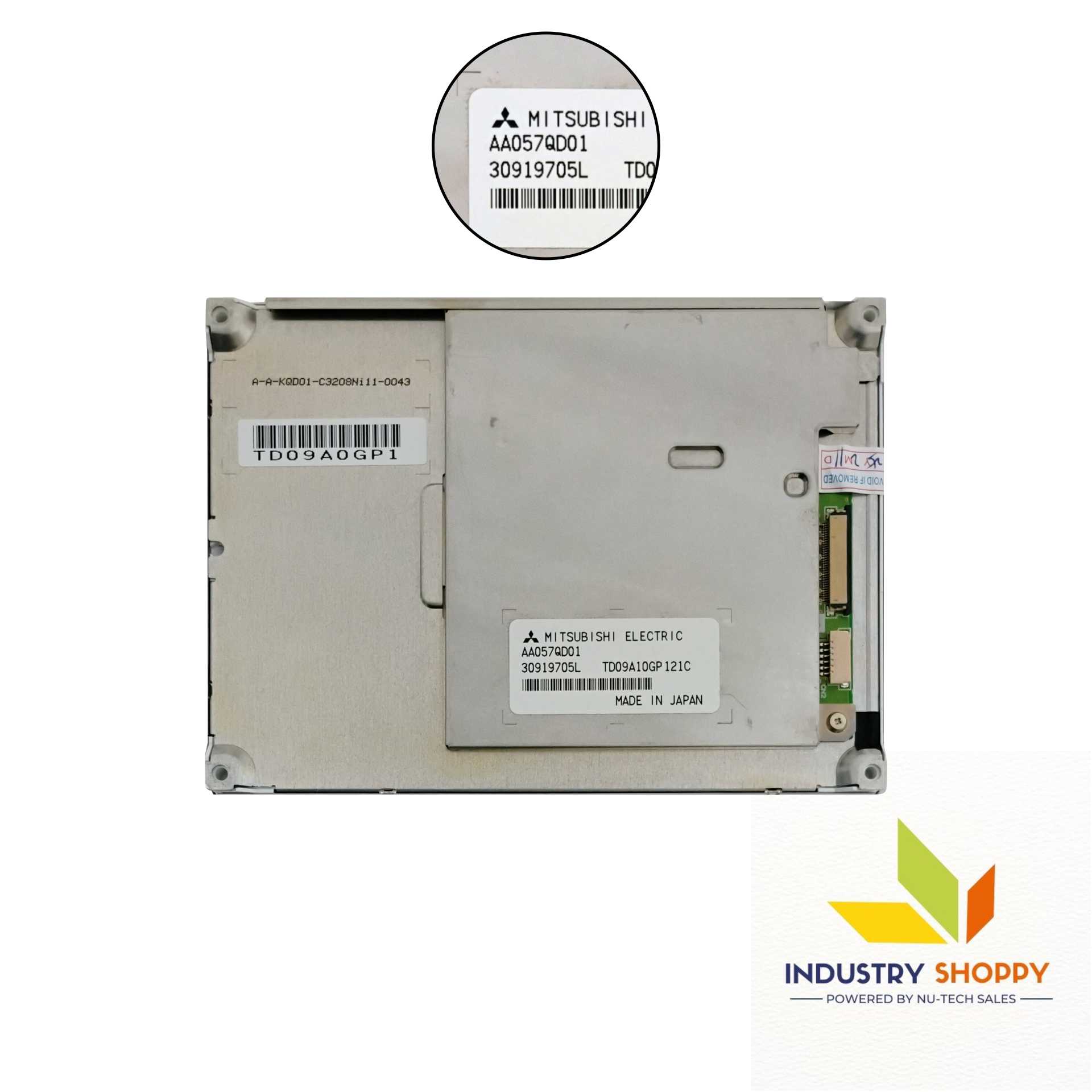

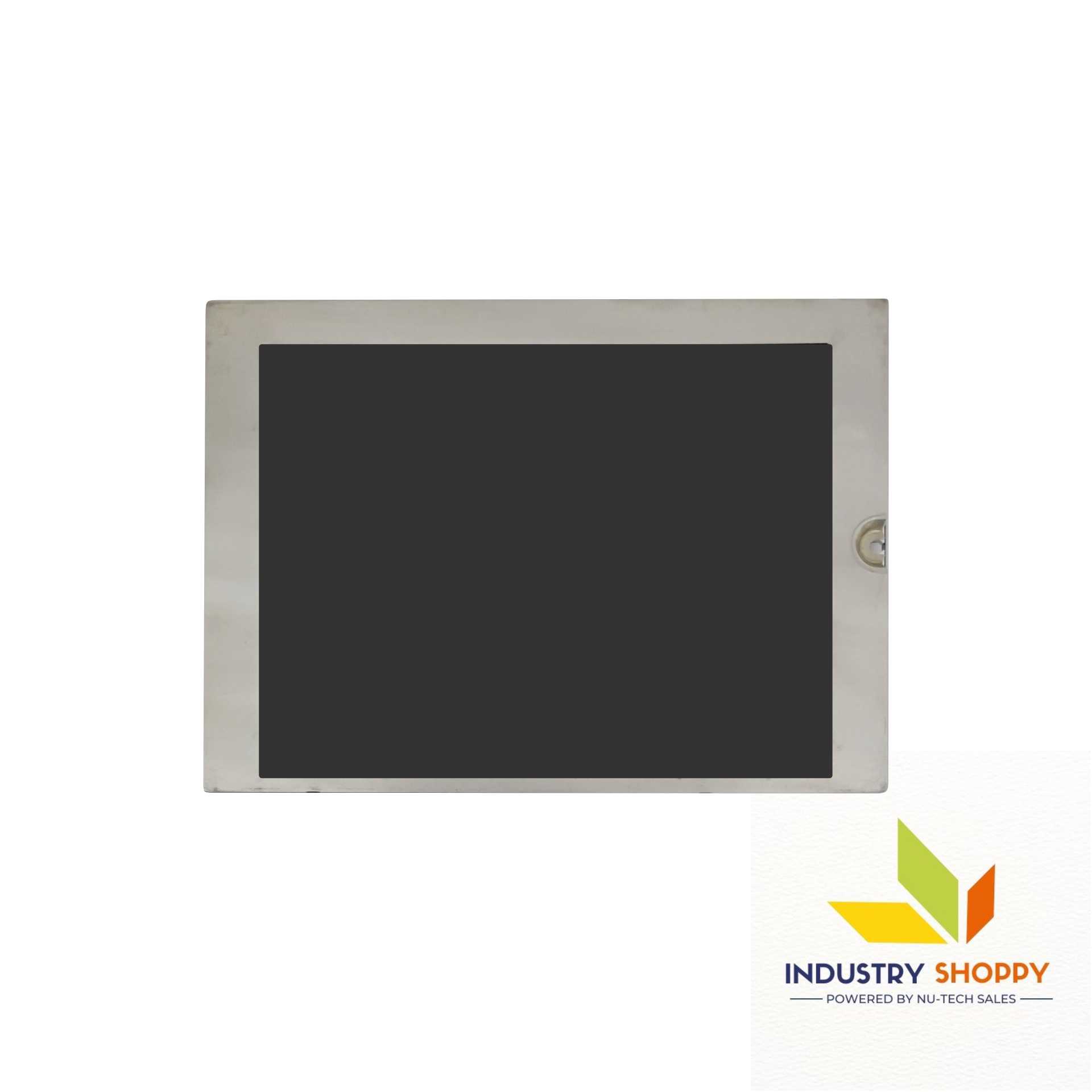

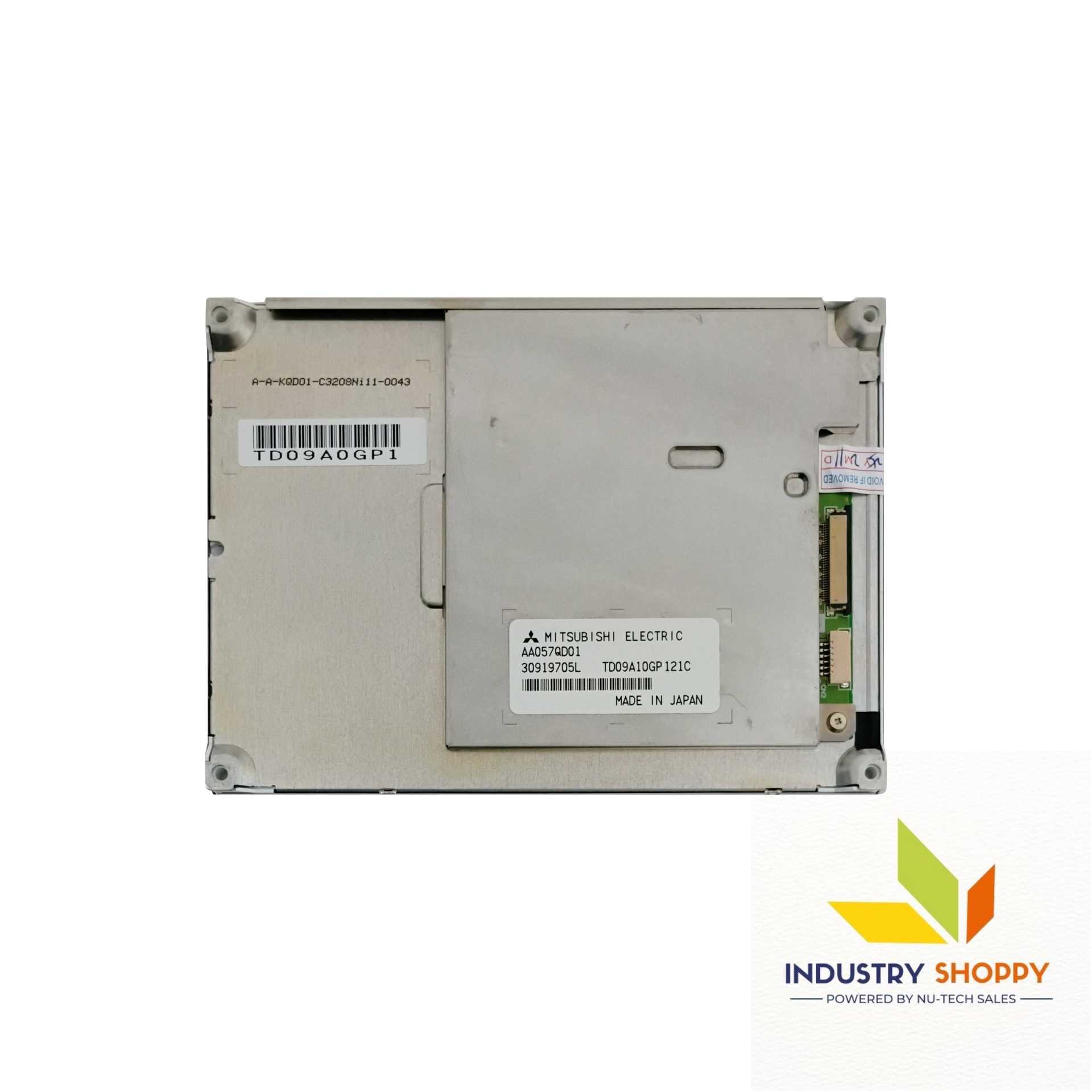

Mitsubishi AA057QD01 LCD Module

• Brand : Mitsubishi
• Size : 5.7″
• Condition : Refurbished
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : TN, Normally White, Transmissive

Mitsubishi AA057QD01 LCD Module

The Mitsubishi AA057QD01 LCD Module is a 5.7" a-Si TFT-LCD panel delivers a 320×240 QVGA resolution with a 70 PPI pixel density, offering clear and crisp visuals. It features an active area of 115.2(W)×86.4(H) mm, and its overall dimensions are 144(W)×104.6(H)×9.3(D) mm, ensuring compact and flexible integration into devices.

This panel provides a high luminance of 450 cd/m² and an impressive contrast ratio of 800:1, delivering vibrant images with deep contrasts. The display supports wide viewing angles of 80/80/80/60 degrees (CR≥10), ensuring consistent image quality from different perspectives. The response time is 8/22 ms (Tr/Td), enabling smooth transitions.

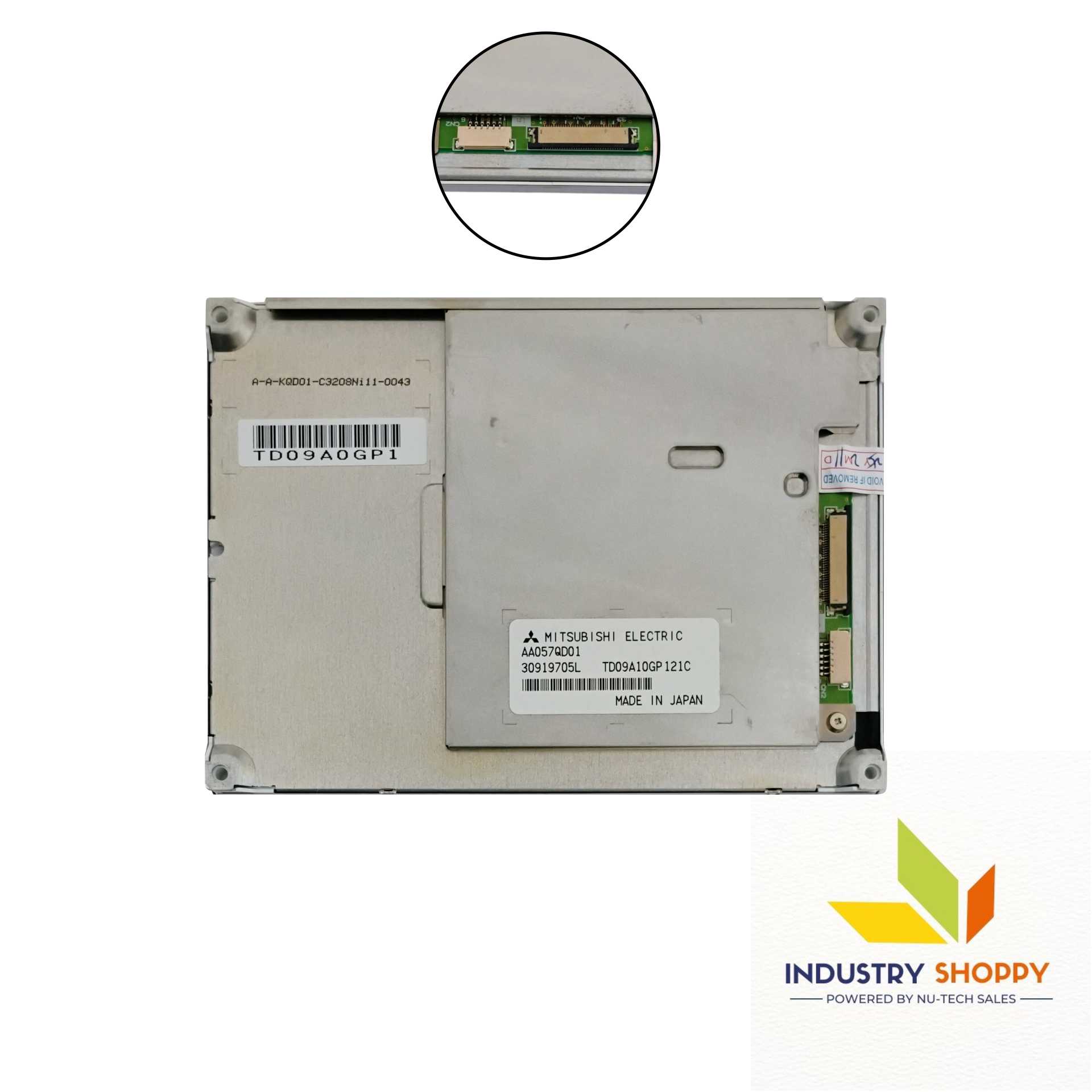

Protected with a clear, 3H hard coating, the panel is durable and glare-resistant. It operates in TN mode, is normally white, and transmissive, supporting 262K colors at 50% NTSC gamut. The CMOS (1 ch, 6-bit) signal interface uses a 33-pin connector, and the panel runs at 60Hz.

Powered by 3.3V (Typ.), it features a WLED backlight with an impressive 100,000 hours lifespan and includes an integrated LED driver. The module is highly reliable, functioning within -30°C to 80°C for both operating and storage environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
