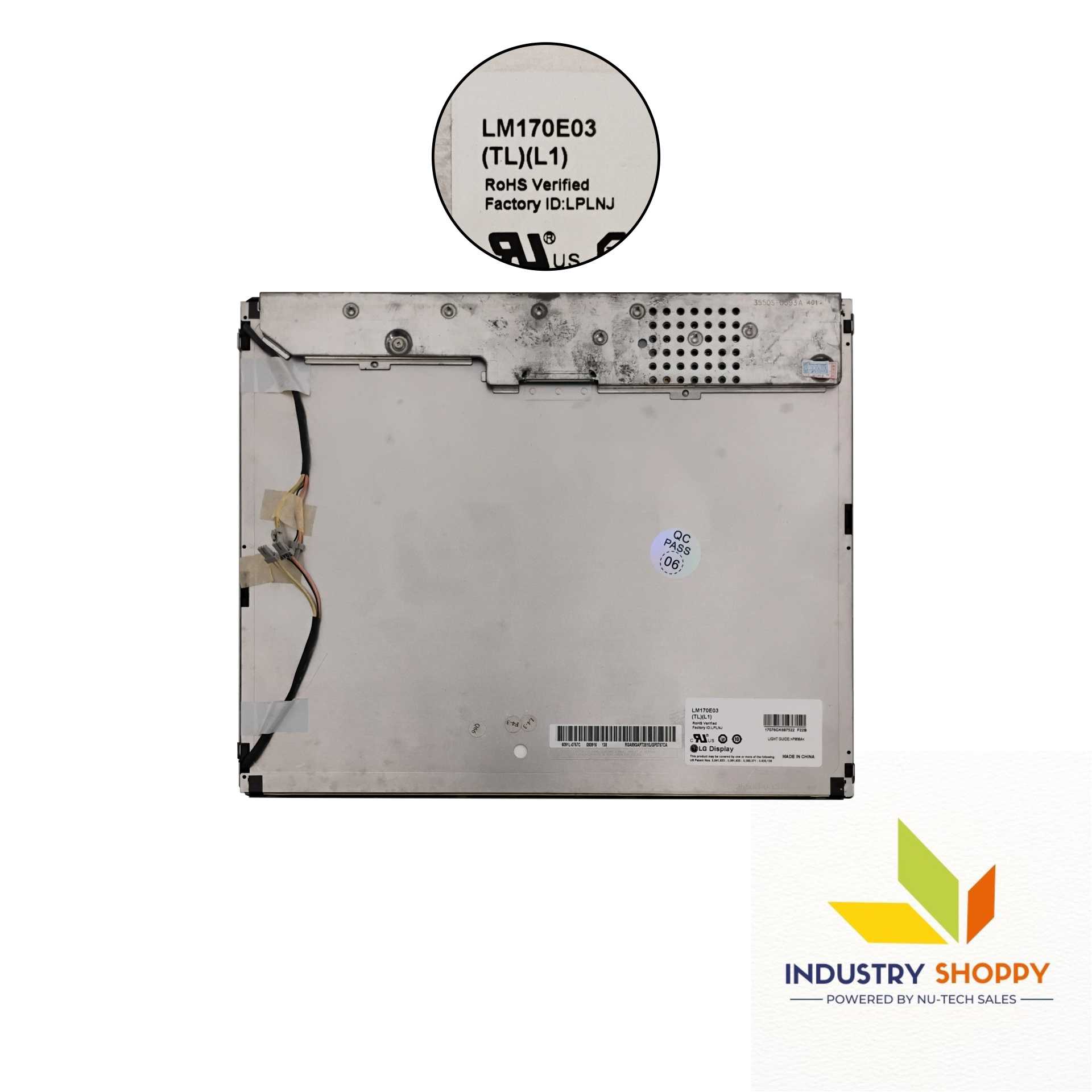

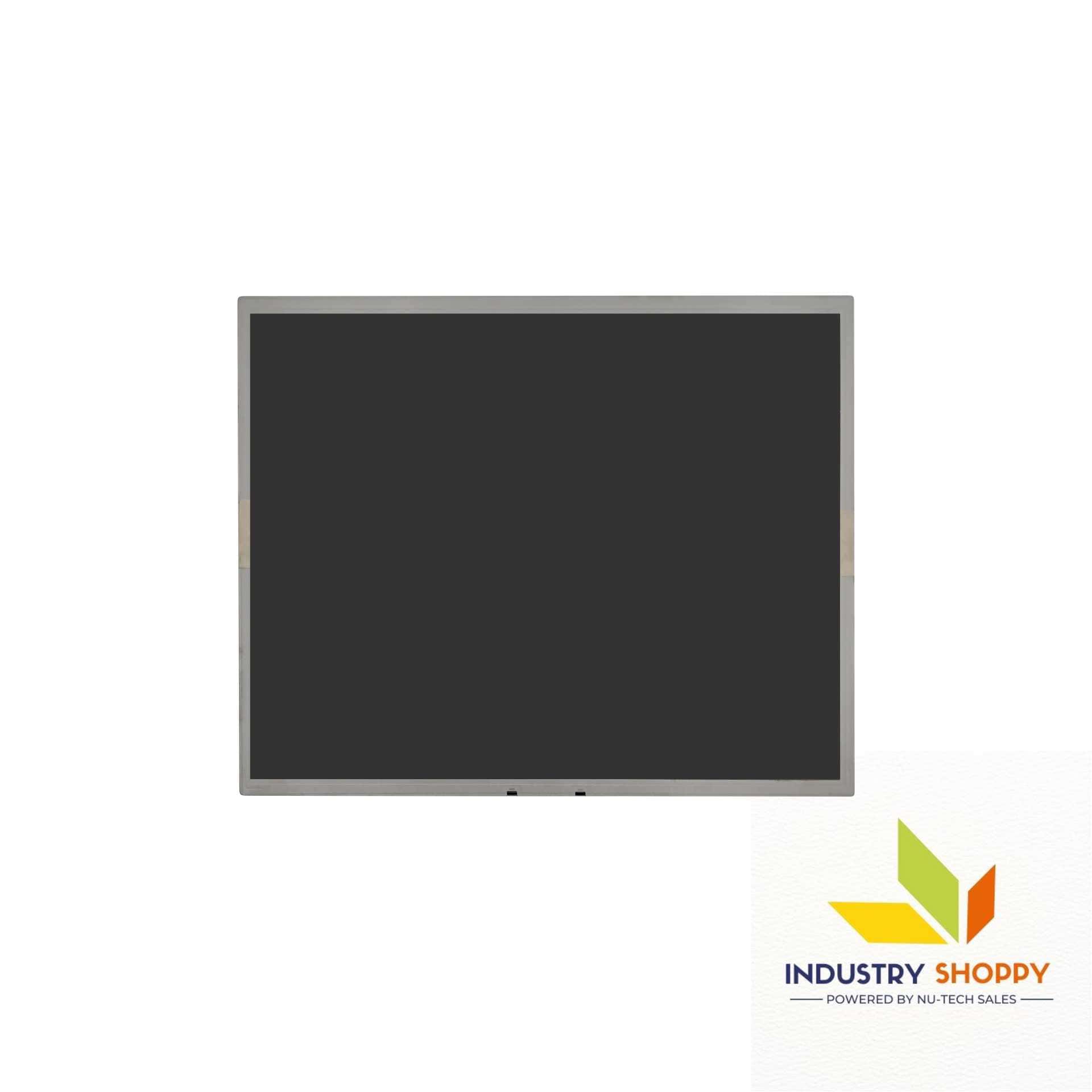

LG.Philips LM170E03-TL-L1 LCD Module

LG.Philips LM170E03-TL-L1 LCD Module

The LG.Philips LM170E03-TL-L1 LCD Module offers crisp visuals with a 1280×1024 resolution and 96 PPI, ensuring sharp, detailed images. Its 300 cd/m² brightness and 800:1 contrast ratio deliver excellent clarity and rich contrast, making it ideal for professional displays. With wide viewing angles of 80°/80°/75°/85° (CR≥10), the screen maintains consistent color accuracy from different perspectives.

Additionally, the fast 1.2/3.8 ms response time (Tr/Td) minimizes motion blur, ensuring smooth visuals in dynamic applications. The antiglare, hard-coated (3H) surface effectively reduces reflections for enhanced readability in various lighting conditions. Operating in TN, Normally White, Transmissive mode, this display supports 16.7 million colors with 72% NTSC color coverage, providing vibrant and true-to-life visuals.

For connectivity, it features an LVDS (2 ch, 8-bit) 30-pin interface, supporting a 75Hz refresh rate for smooth performance. The panel operates on a 5.0V power supply and is backlit by four CCFL tubes, offering 50,000 hours of longevity. Designed for reliable operation, it withstands temperatures from 0 to 50°C and can be stored between -20 and 60°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
