IVO M070SWP1-R4 LCD Module

IVO M070SWP1-R4 LCD Module

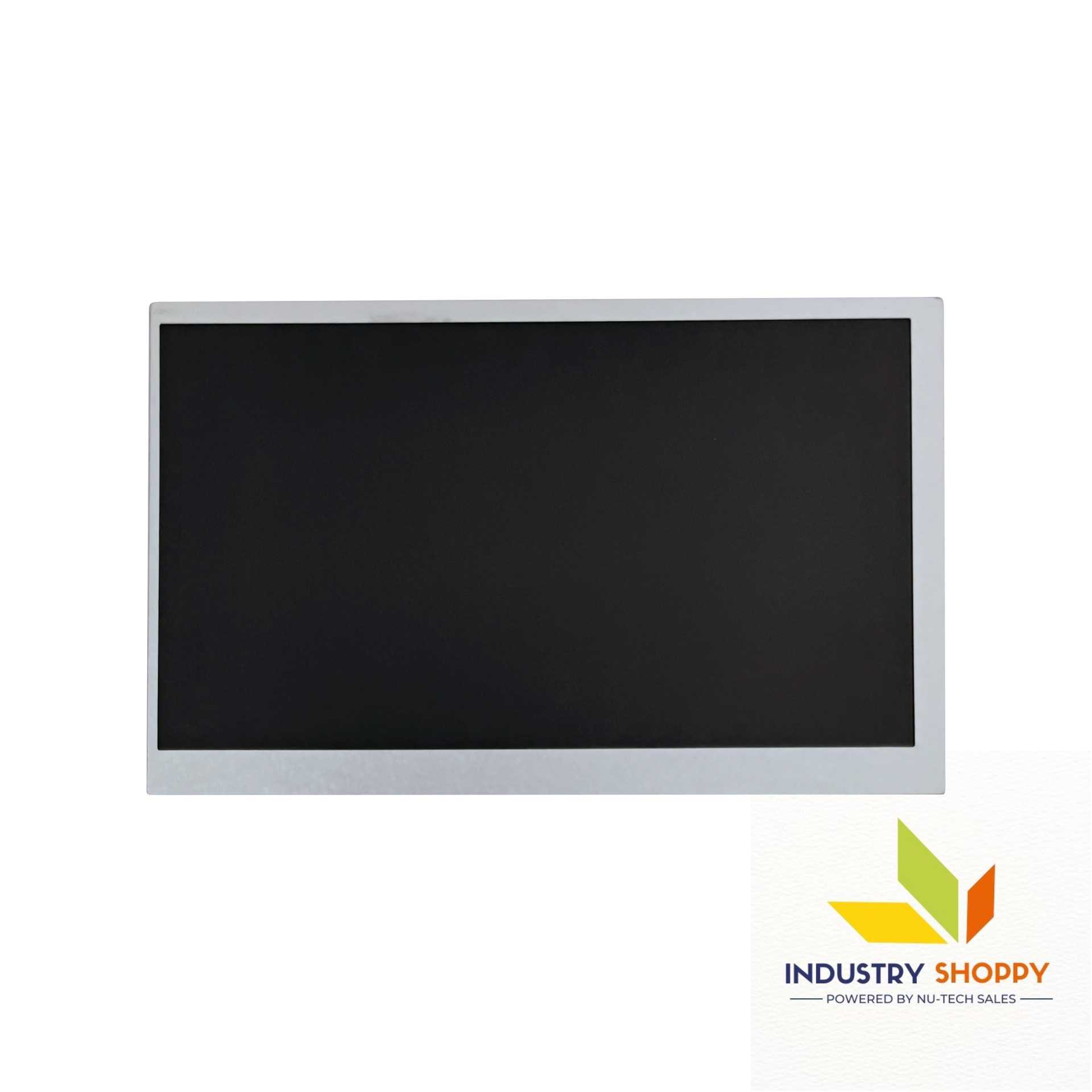

The IVO M070SWP1-R4 LCD Module is a 7.0-inch TFT-LCD panel delivers 800×480 WVGA resolution with a 134 PPI pixel density, ensuring clear and vibrant visuals. Its wide 70/70/50/60° viewing angles enhance visibility from different perspectives, making it suitable for industrial, commercial, and embedded applications.

With a 500 cd/m² luminance and 500:1 contrast ratio, this display provides excellent brightness and sharp contrast, ensuring optimal readability even in varying light conditions. The antiglare hard coating (3H) minimizes reflections and enhances durability, making it more resistant to scratches and environmental factors.

Operating in TN mode with a normally white, transmissive design, this display offers consistent color output and reliable performance. The 16.7M colors with 50% NTSC coverage ensure rich and accurate color representation, improving the viewing experience.

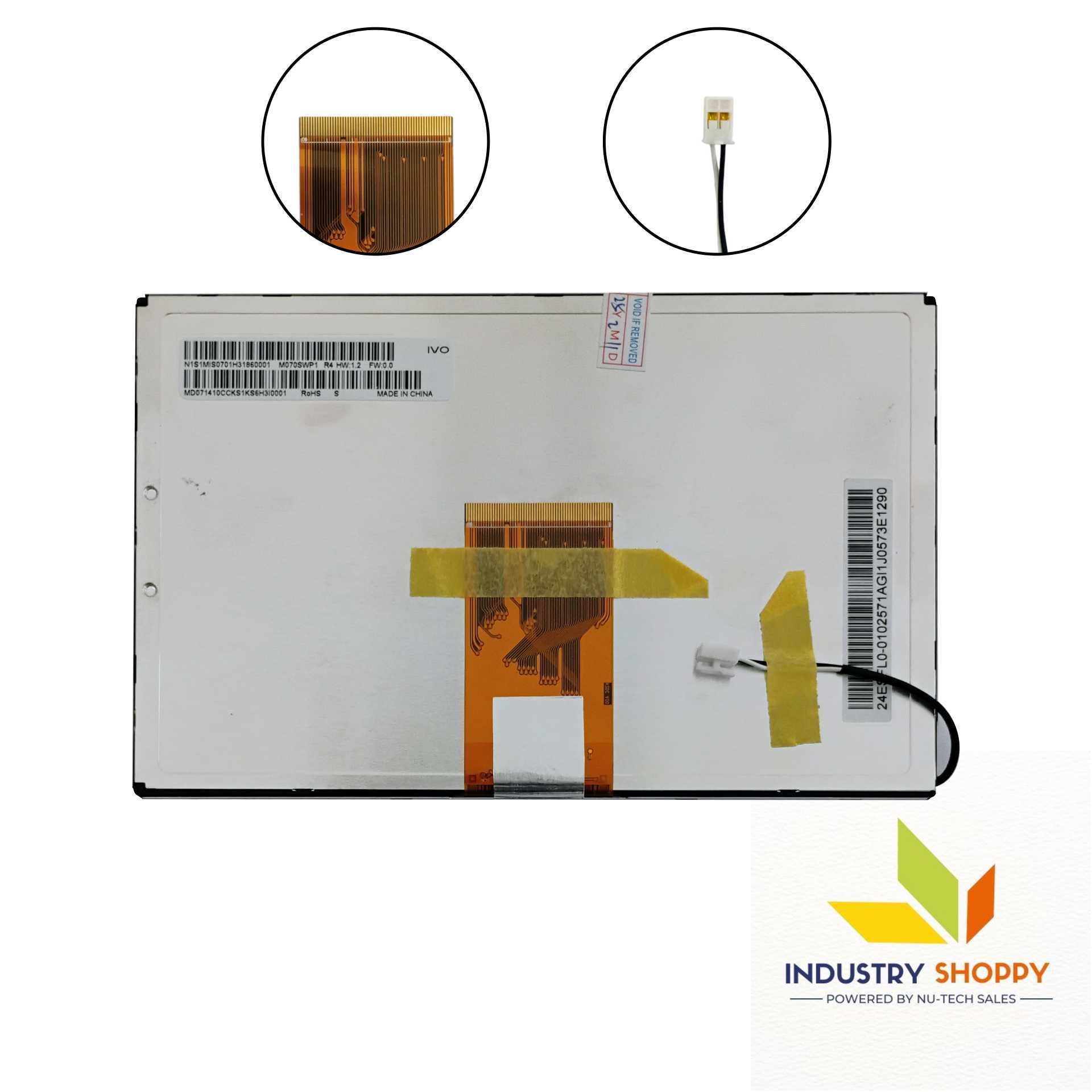

For seamless integration, the panel features a TTL (1 ch, 8-bit) signal interface with a 60-pin FPC connector, supporting a 60Hz refresh rate for smooth visuals. It runs on a 3.3V/10.4V/22V/-7V power supply, ensuring stable operation with low power consumption.

Equipped with a WLED backlight (8S2P) rated for 50,000 hours, this display ensures long-lasting performance. Moreover, this display is built to withstand harsh conditions, as it operates efficiently within a temperature range of -20°C to 70°C. Furthermore, its storage temperature range of -30°C to 80°C ensures long-term durability, even in extreme environments.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
