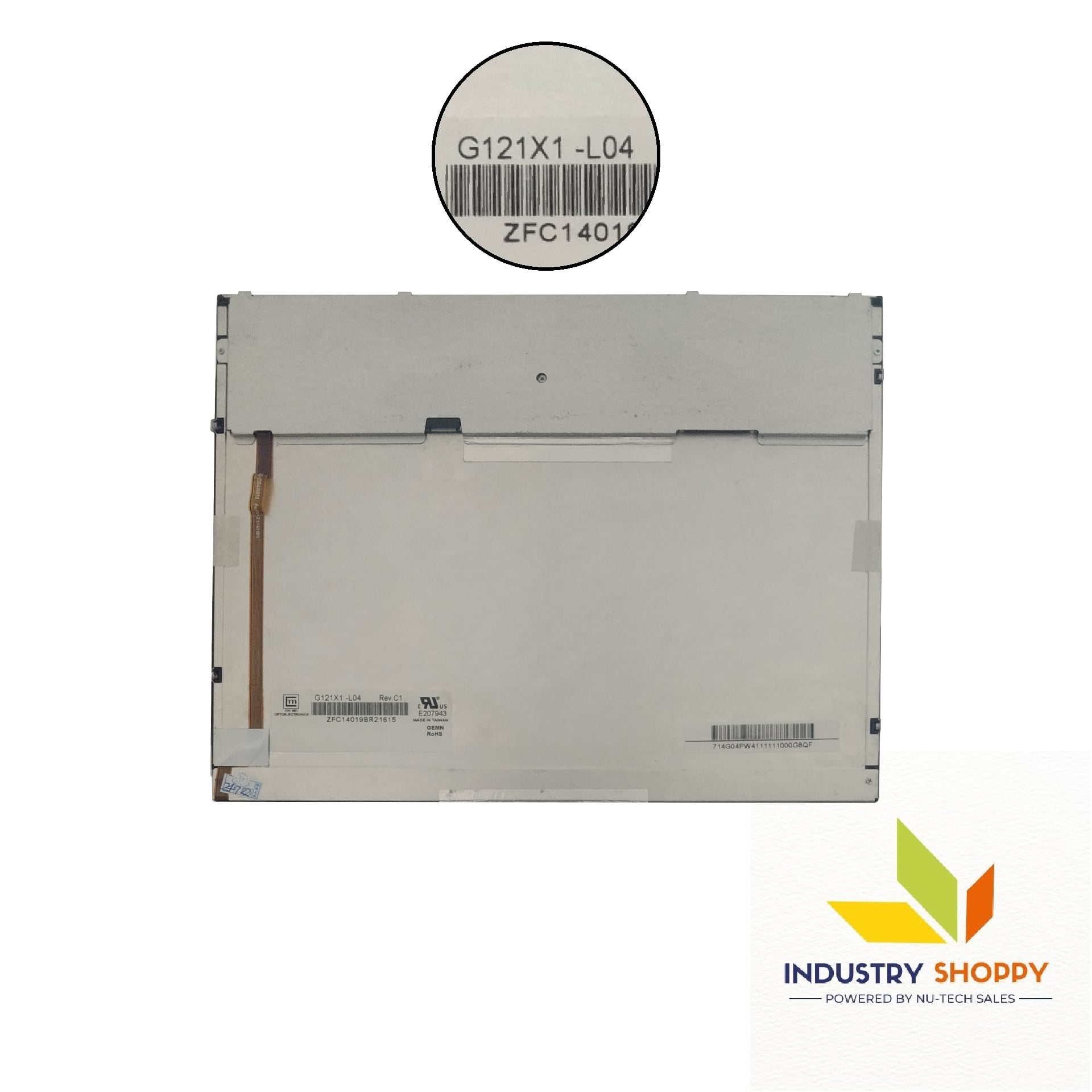

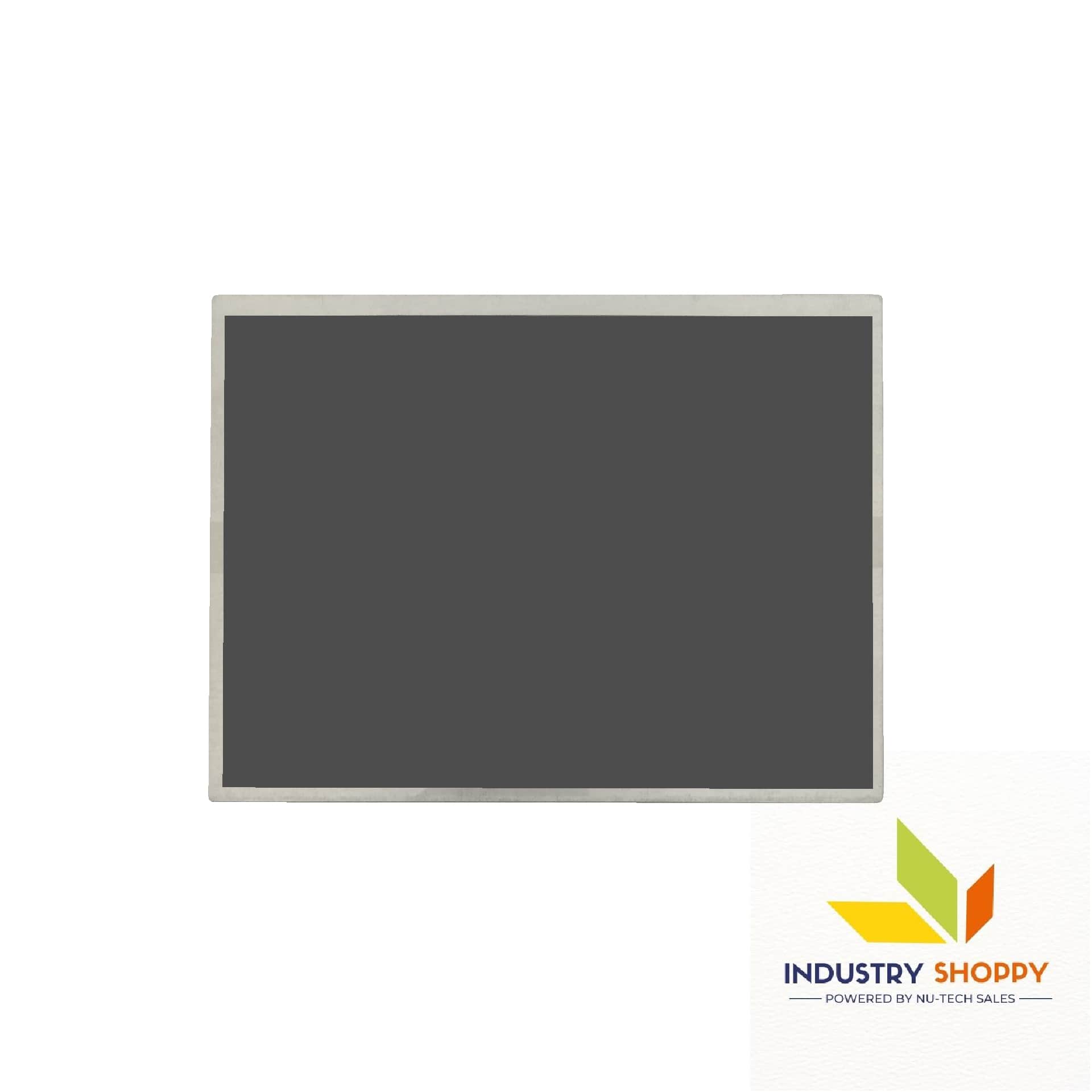

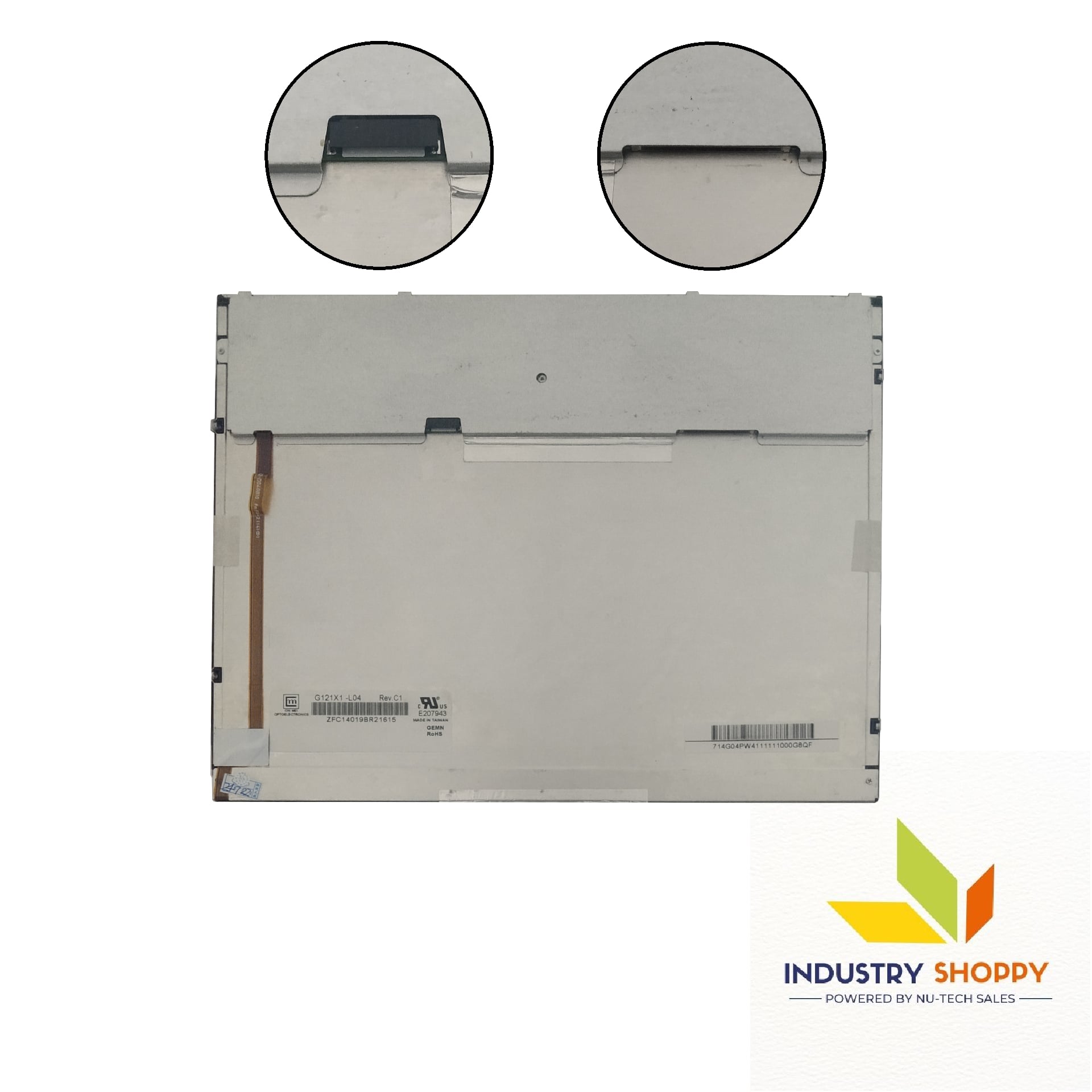

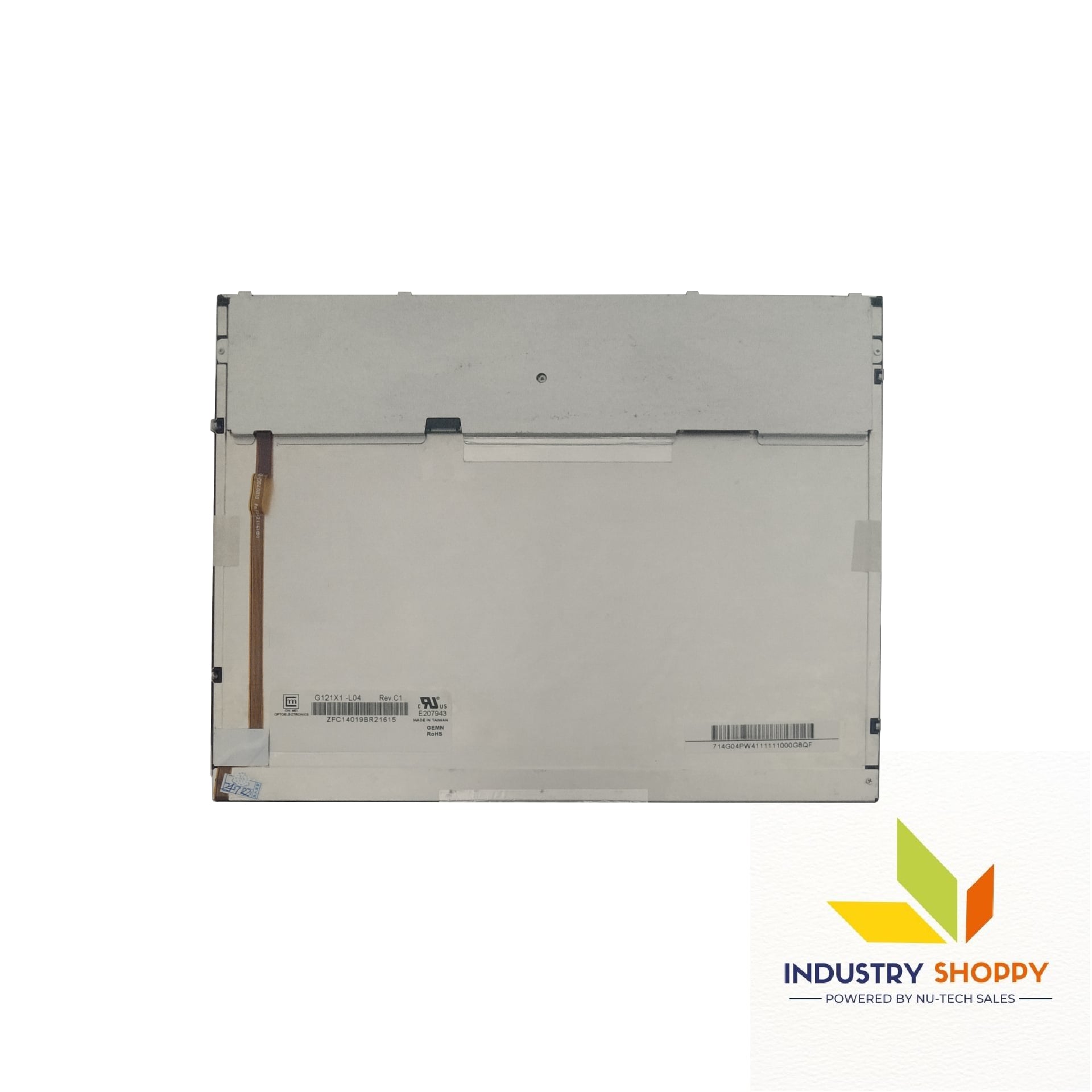

Innolux G121X1-L04 LCD Module

Innolux G121X1-L04 LCD Module

Furthermore, its high luminance of 500 cd/m² and a 700:1 contrast ratio ensure vivid, high-contrast images even in brighter environments. The wide viewing angles (80/80/70/70, CR≥10) further enhance visibility from various positions, making it versatile for multitasking or collaborative setups.

Powered by a-Si TFT-LCD technology, it runs in TN, Normally White, Transmissive mode, which optimizes power usage while maintaining fast response times of 5 ms (rise) / 11 ms (fall). It supports both 262K and 16.2M colors, covering 63% of the NTSC color gamut.

Connectivity-wise, it features a 20-pin LVDS interface, and operates on 3.3/5.0V. The integrated WLED backlight, rated at 30K hours, comes with a built-in driver, simplifying system integration. Additionally, its wide operating temperature range (-30°C to 70°C) makes it reliable for harsh or fluctuating environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
