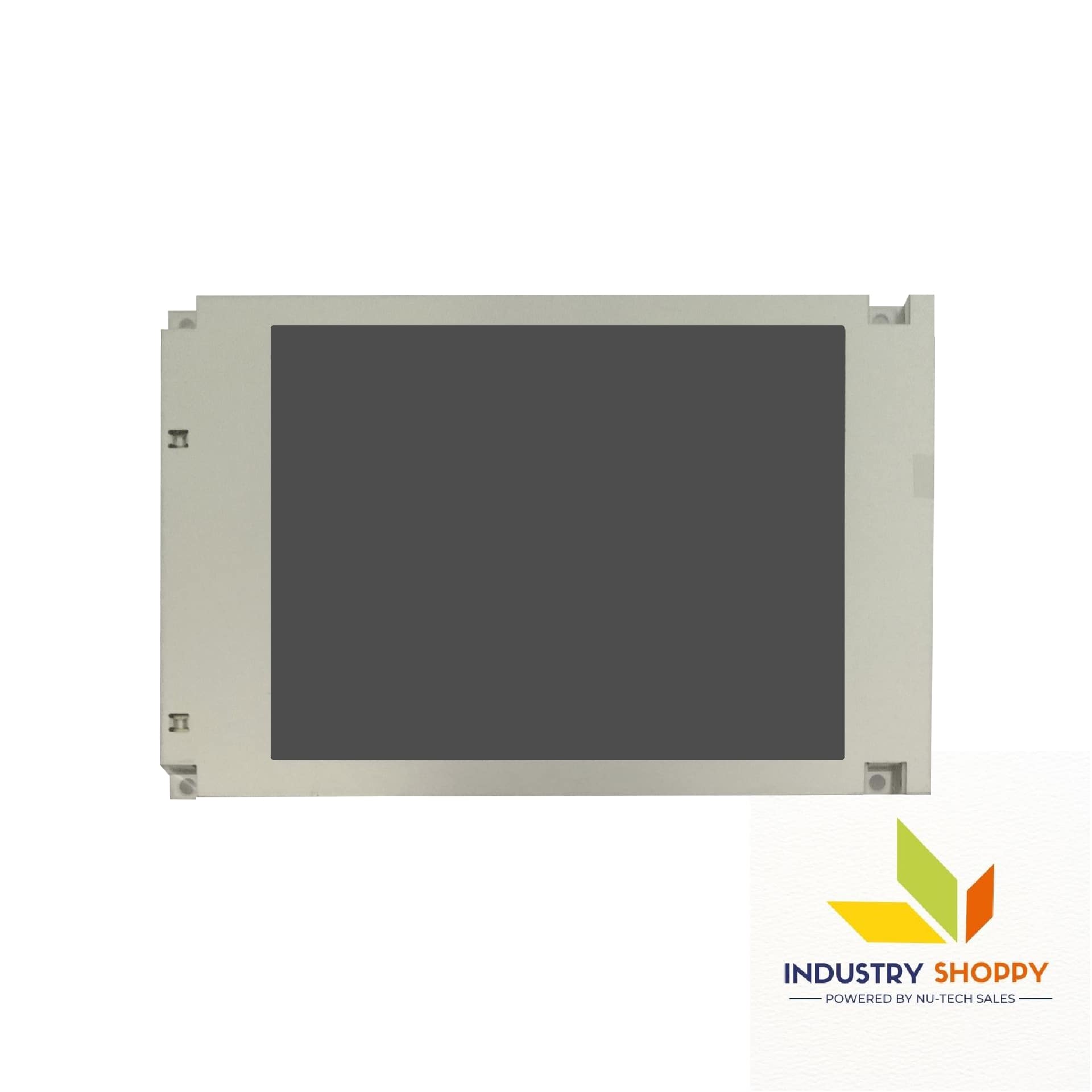

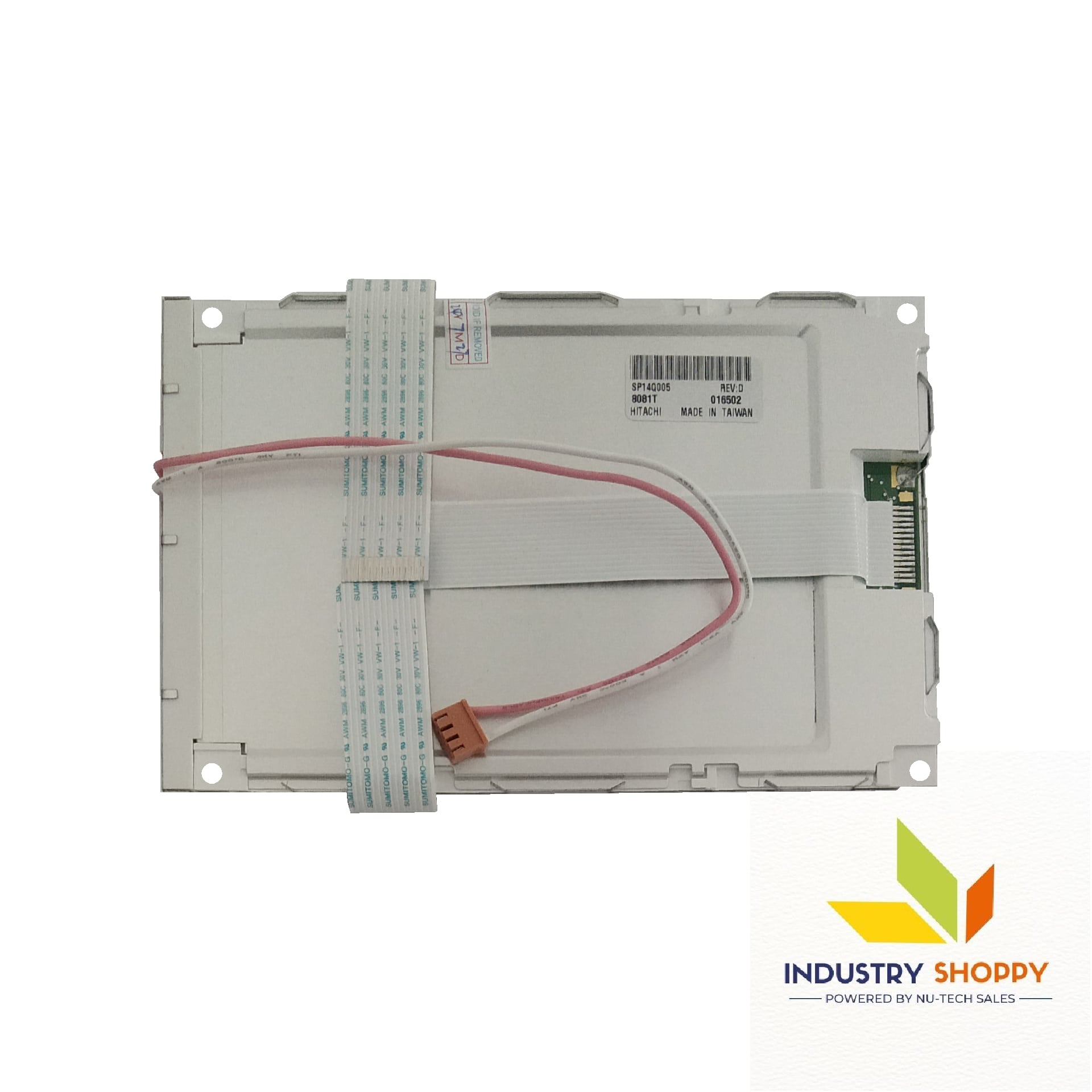

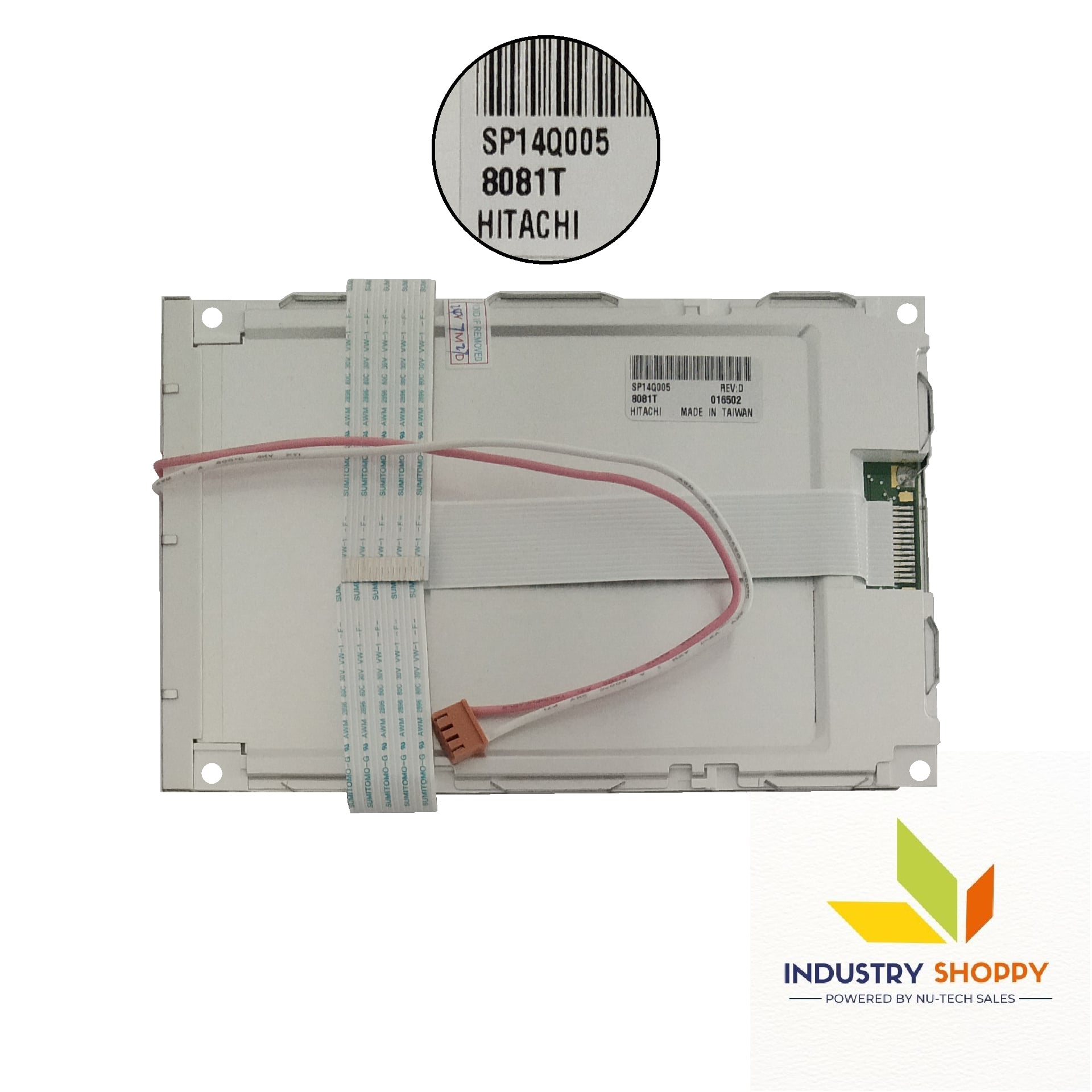

Hitachi SP14Q005 LCD Module

• Brand   :    Hitachi
• Size   :   5.7″
• Condition : New
• Panel Type   : FSTN-LCD, LCM
• Work Mode   : STN, Black/White (Positive), Transmissive

Hitachi SP14Q005 LCD Module

The Hitachi SP14Q005 LCD Module 5.7" display features a QVGA resolution of 320×240 with 70 PPI, providing decent image clarity for a variety of applications. Its active area measures 115.185 mm (W) × 86.385 mm (H), offering ample space for text or simple graphics.

With a luminance of 220 cd/m², the display performs well in indoor lighting conditions, while its contrast ratio of 25:1 ensures basic differentiation between light and dark areas. The viewing angle of 40/40/30/50 (Typ. CR≥2) allows for moderate visibility from various directions, though it may not be as wide as more advanced displays.

This screen utilizes FSTN-LCD technology in a black/white mode, offering a monochrome display that is suitable for low-power, simple visual interfaces. The response time of 330 ms (Tr) and 150 ms (Td) is relatively slow, but this is common for STN displays, making it less ideal for high-speed applications.

The power supply is 3.3/5.0V, and the backlight is powered by a single CCFL with a long 50K-hour lifespan. It also operates within a wide temperature range, from -30°C to 80°C, making it durable in diverse environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

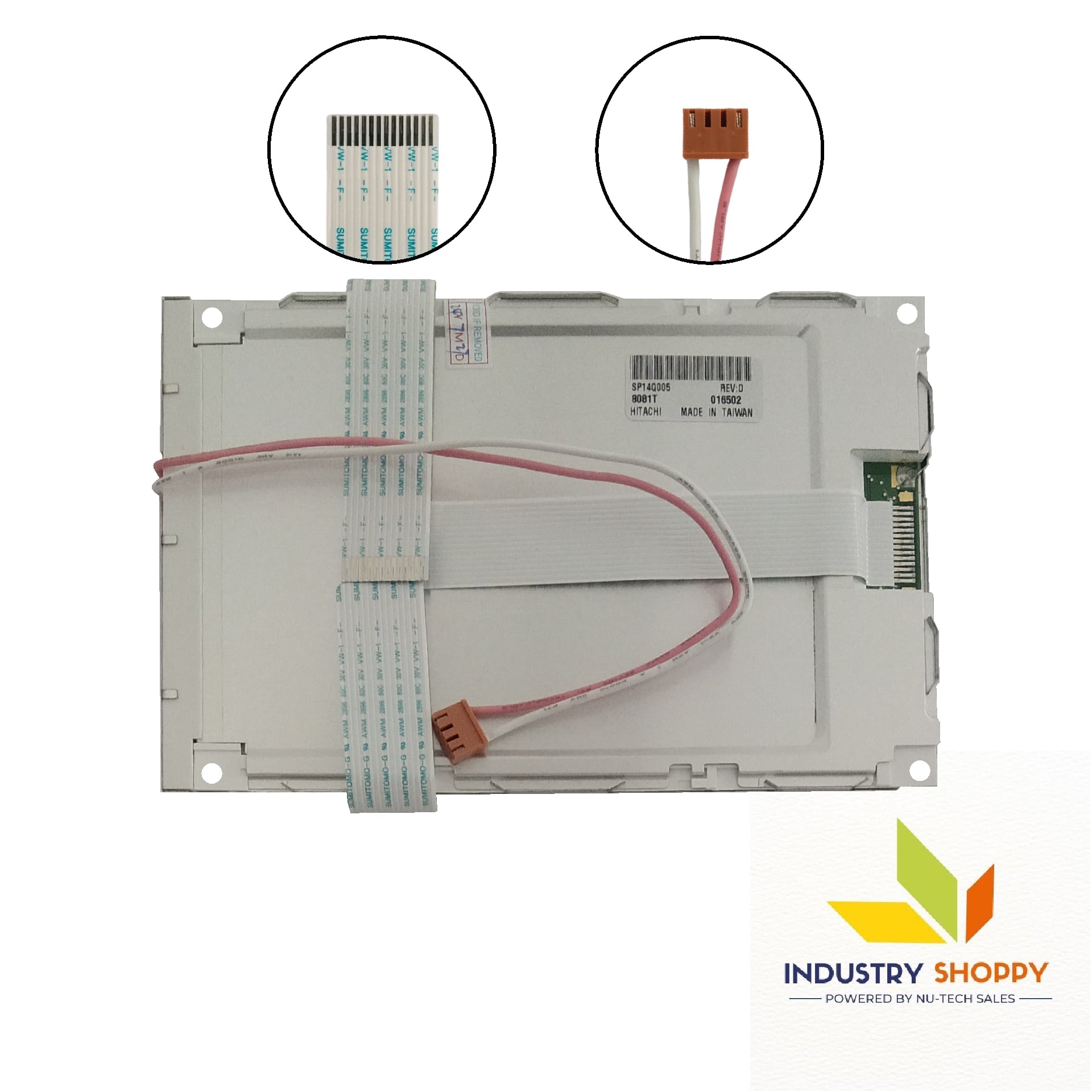

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
