HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
HannStar HSD070IDW1-Rev.0 LCD Module
Hannstar

HannStar HSD070IDW1-Rev.0 LCD Module

Product SKU: NTSLCD0159
Available:
Only 4 items in stock
4 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Hennstar
  • Size  : 7.0″
  • Condition : New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 5,250.00
Rs. 7,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

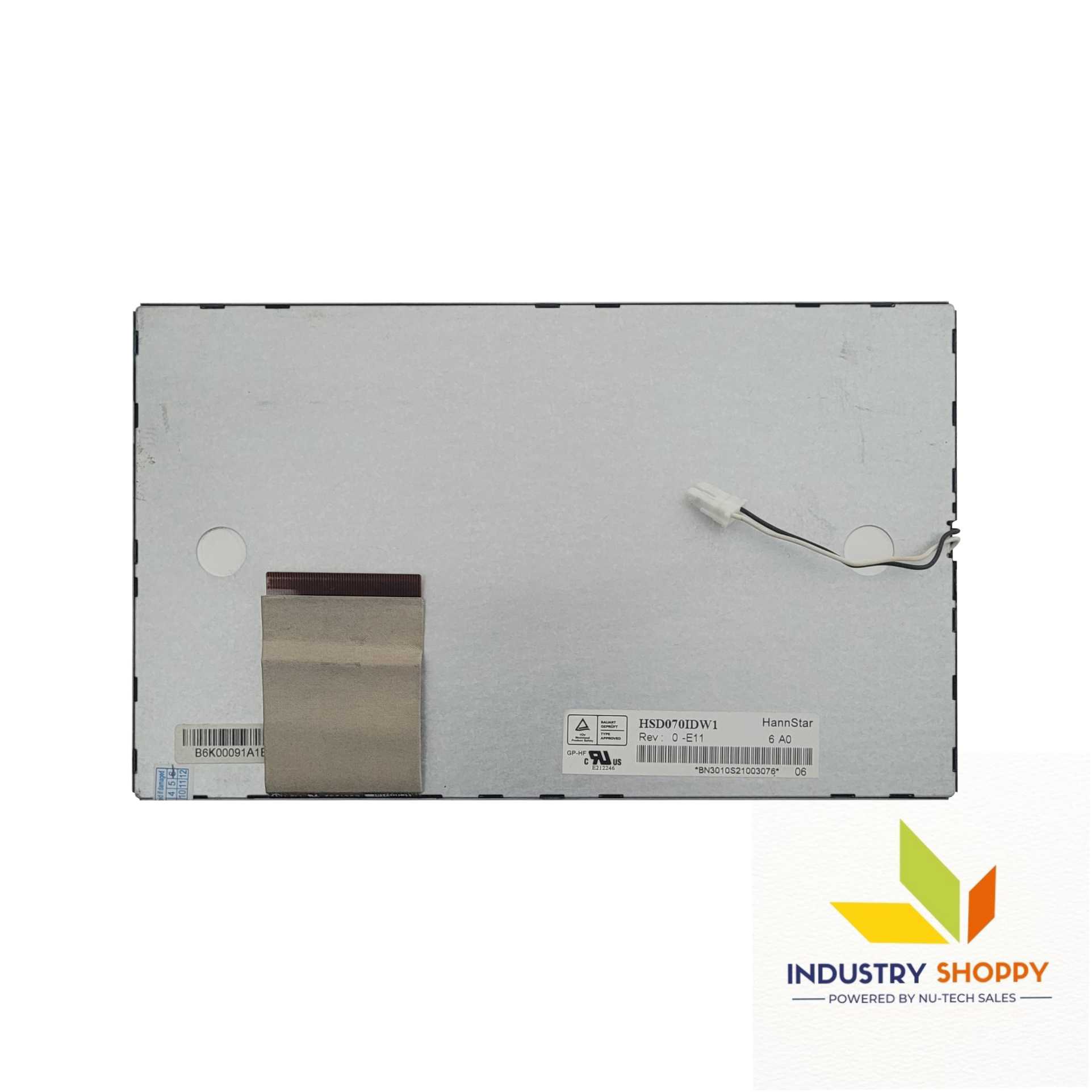

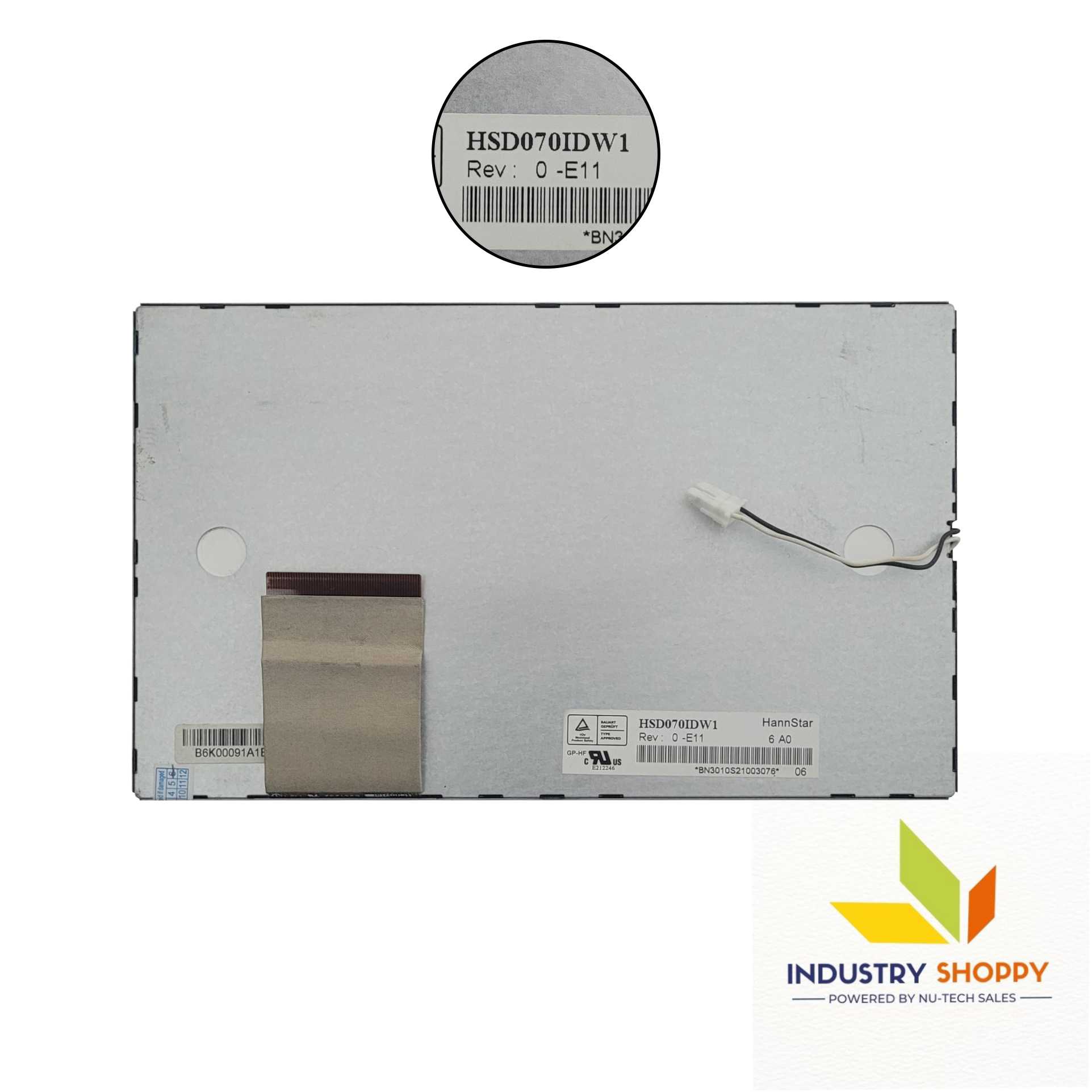

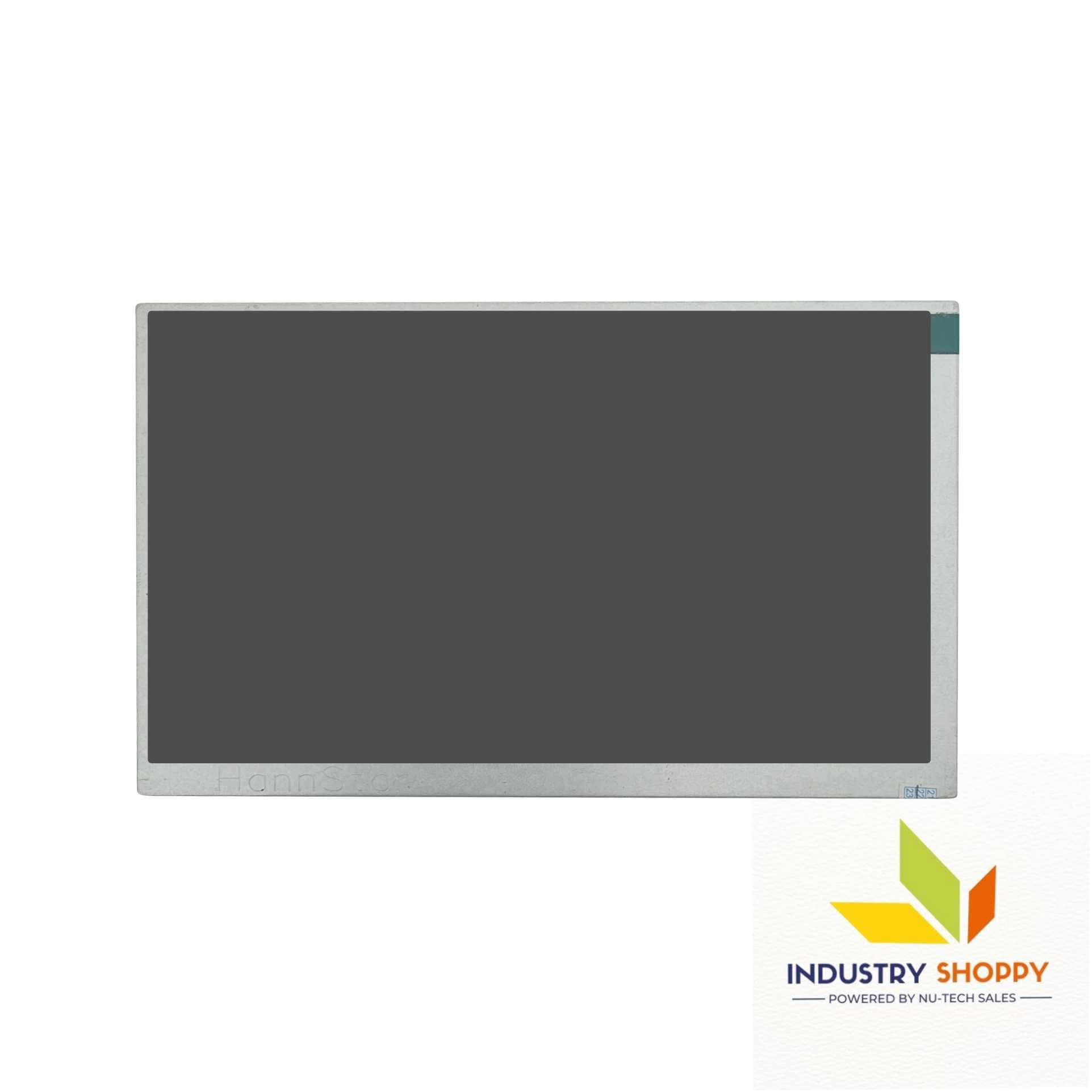

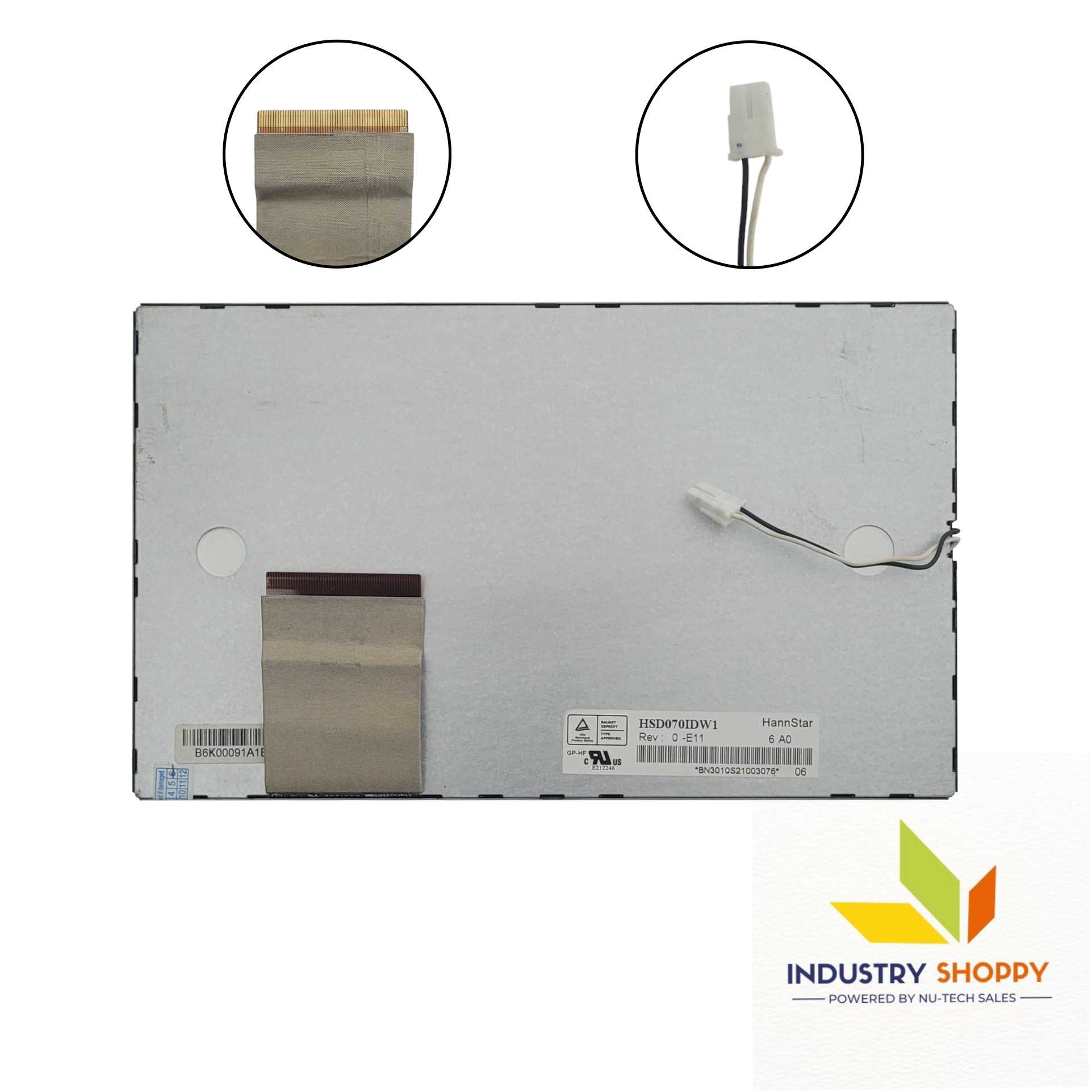

HannStar HSD070IDW1-Rev.0 LCD Module

The HannStar HSD070IDW1-Rev.0 LCD Module (HSD070IDW1Rev0, HSD070IDW1E11, HSD070IDW1-E11)   is one of the most popular LCD Module which is mainly used in industrial and medical applications. The HannStar HSD070IDW1-Rev.0 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called Hannstar), with an integral WLED backlight system, without backlight driver, without touch screen.
It’s resolution 800(RGB)×480, WVGA  134PPI and contrast ratio 500:1 (Typ.) (TM) . It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.9G (28.4 m/s²). Our engineers has entered all the specification details about this LCD screen according to the datasheet. Although errors may occur during the process.
Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandHennstar
Diagonal Size7.0"
Resolution800(RGB)×480, WVGA 134 PPI
Active Area153.6(W)×86.64(H) mm
Outline Dimension164.9(H)×100(V)×6(D) mm
Luminance450 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle75/75/60/70 (Typ.) (CR≥10)
Response Time5/20 (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M 50% NTSC
Signal Interface TypeTTL (1 ch, 6/8-bit), 60 pins FPC
Frame Rate60 Hz
Power Supply3.3/10/15/-7V (Typ.) (VCC/AVDD/VGH/VGL)
BacklightWLED [3S9P], 20K hours, W/O Driver
Operating Temp.-20 ~ 70 °C
Storage Temp.-30 ~ 80 °C
