BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BOE BA104S01-200 LCD Module
BOE

BOE BA104S01-200 LCD Module

Product SKU: NTSLCD0003
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : BOE
  • Size : 10.4″
  • Condition : New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 12,750.00
Rs. 18,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

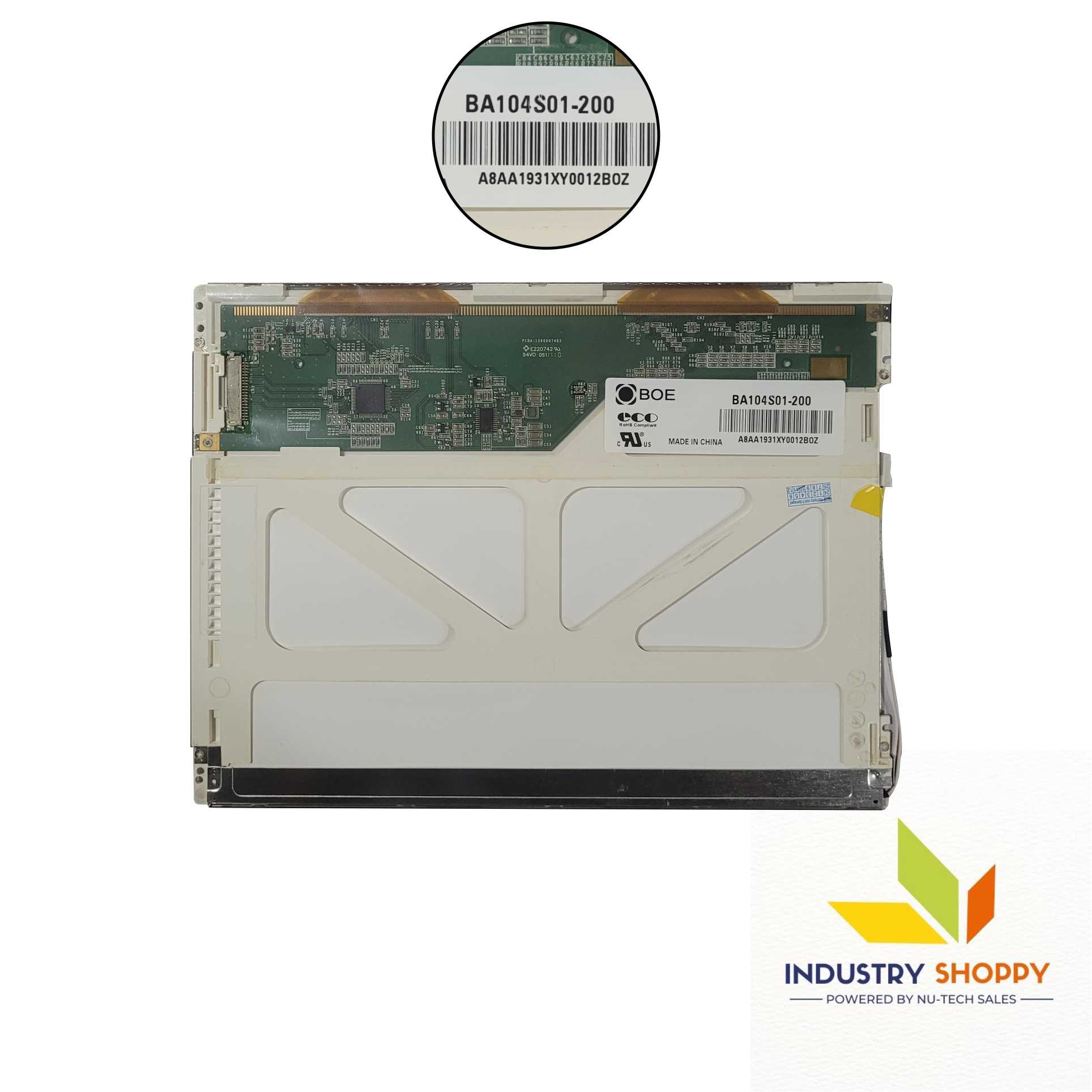

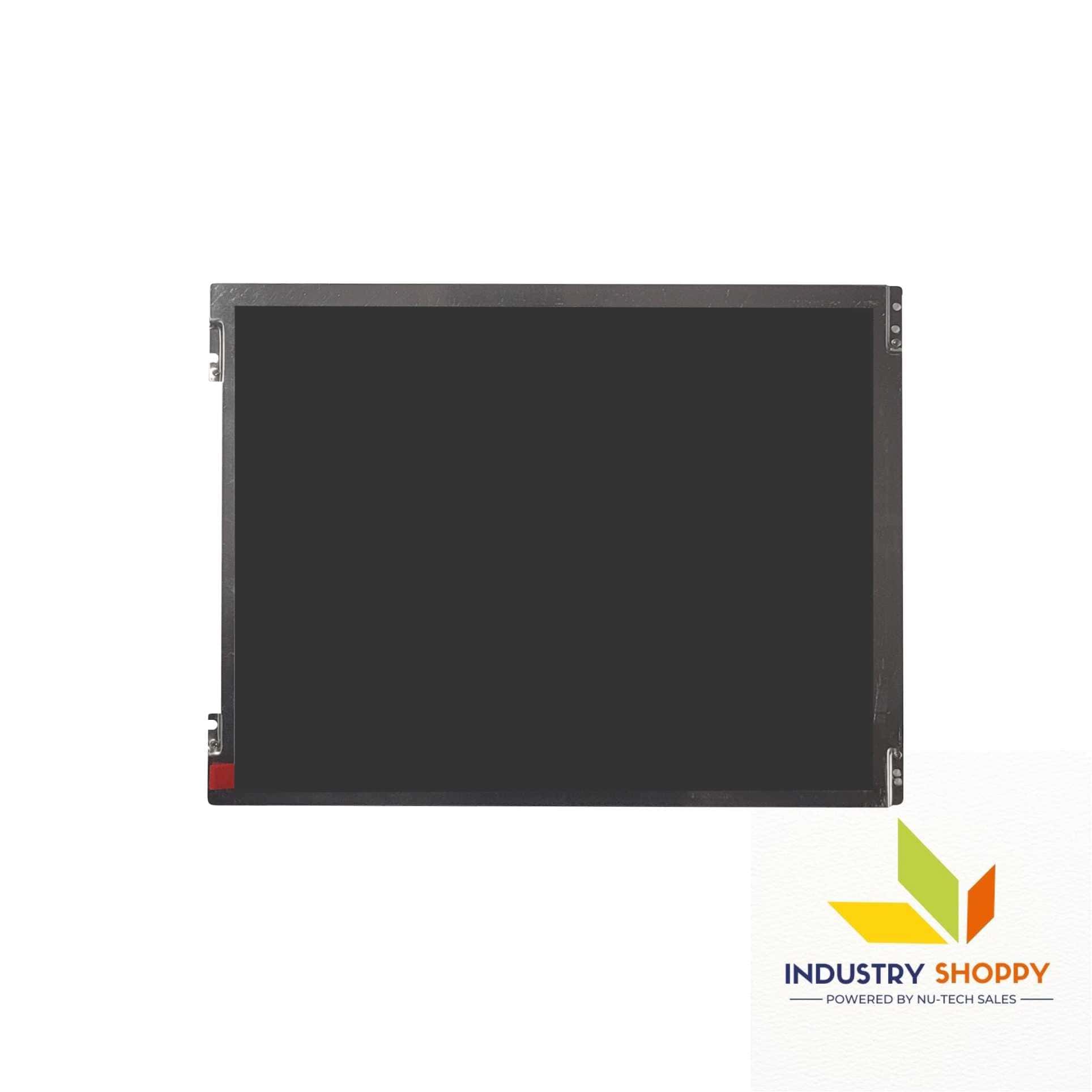

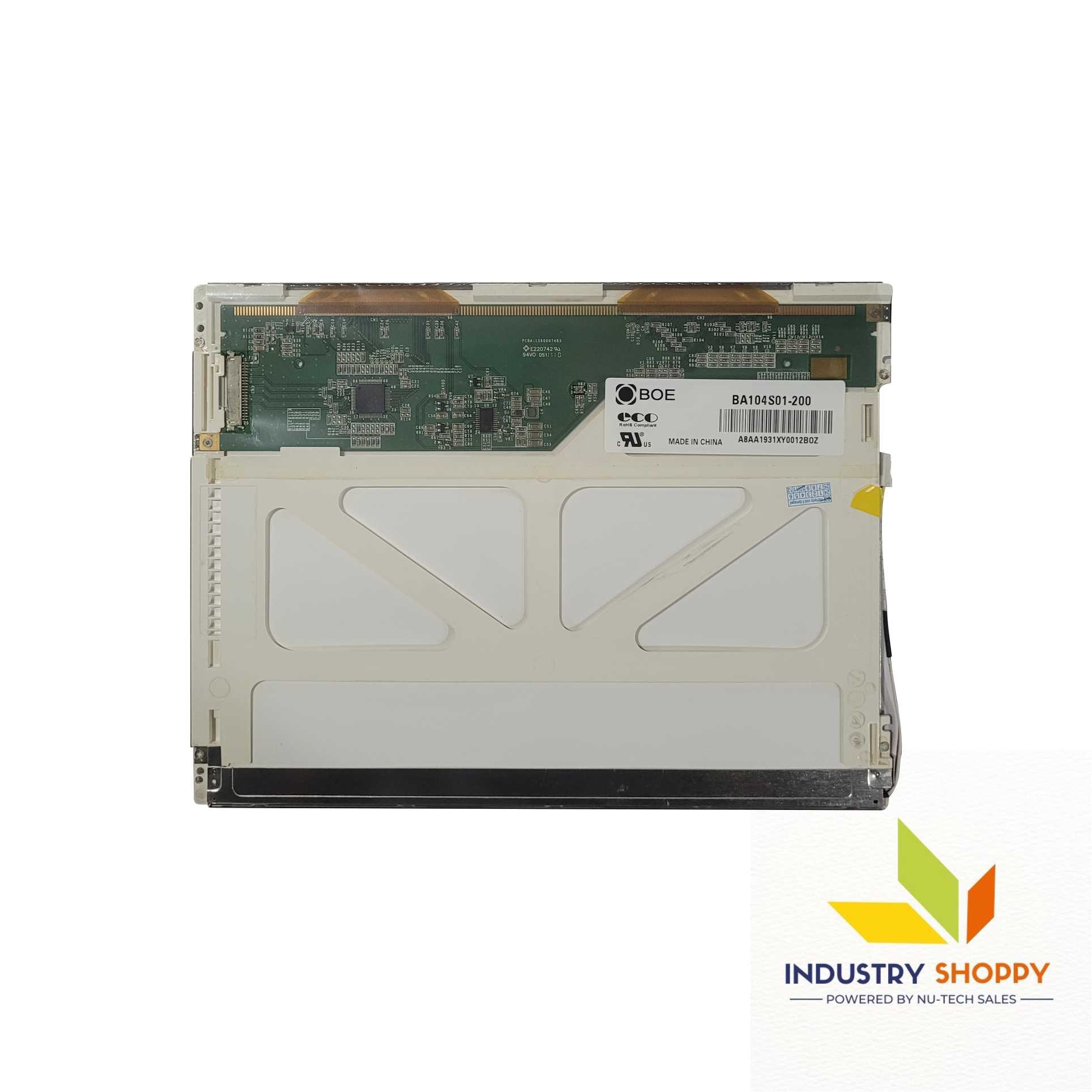

BOE BA104S01-200 LCD Module

The BOE BA104S01-200 LCD Module is a 10.4-inch a-Si TFT-LCD panel delivers clear and dependable display performance tailored for industrial and embedded systems. With a native SVGA resolution of 800(RGB)×600 and 96 PPI, it ensures crisp visuals for interface applications.

The active area spans 211.2 mm × 158.4 mm, providing ample display space, while the slim outline of 236 × 176.9 × 5.9 mm makes it easy to integrate into compact designs. Its 300 cd/m² brightness and 800:1 contrast ratio support excellent readability under standard lighting.

This display uses TN, Normally White, Transmissive technology, offering viewing angles of 55°/55°/30°/60° (CR≥10), and fast screen response with a typical 15/16 ms (Tr/Td). Supporting 262K/16.2M colors at 50% NTSC, it delivers vivid image rendering.

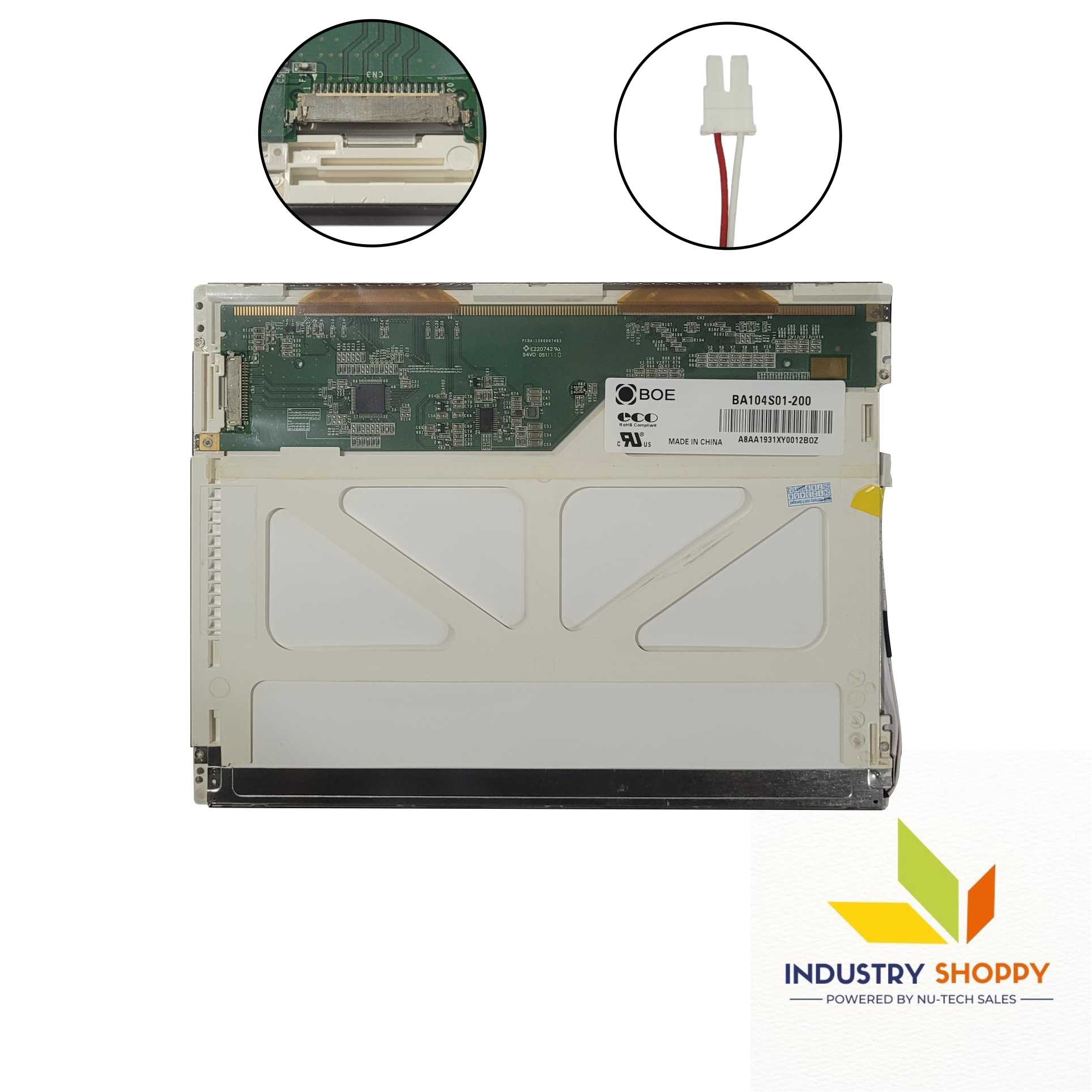

Connectivity is managed through a 20-pin LVDS interface (1 channel, 6/8-bit) at 60Hz frame rate, offering stable signal transmission. Powered by 3.3V (typ.), it’s efficient and easy to integrate.

The 6S4P WLED backlight provides 30,000 hours of lifespan, ensuring long-term operation without a driver module. Its operating temperature range of -20°C to 70°C and storage range of -30°C to 80°C make it ideal for harsh or fluctuating environments.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandBOE
Diagonal Size10.4"
Resolution800(RGB)×600, SVGA 96 PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension236(H)×176.9(V)×5.9(D) mm
Luminance300 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
Viewing Angle55/55/30/60 (Typ.) (CR≥10)
Response Time15/16 (Typ.) (Tr/Td) ms
Panel Type6S4P WLED, 30K hours, Without Driver
TreatmentClear
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M, 50% NTSC
Signal Interface TypeLVDS (1 ch, 6/8-bit), 20 pins Connector
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
BacklightWLED [6S4P], 30K hours, W/O Driver
Operating Temp.-20 ~ 70 °C
Storage Temp.-30 ~ 80 °C
