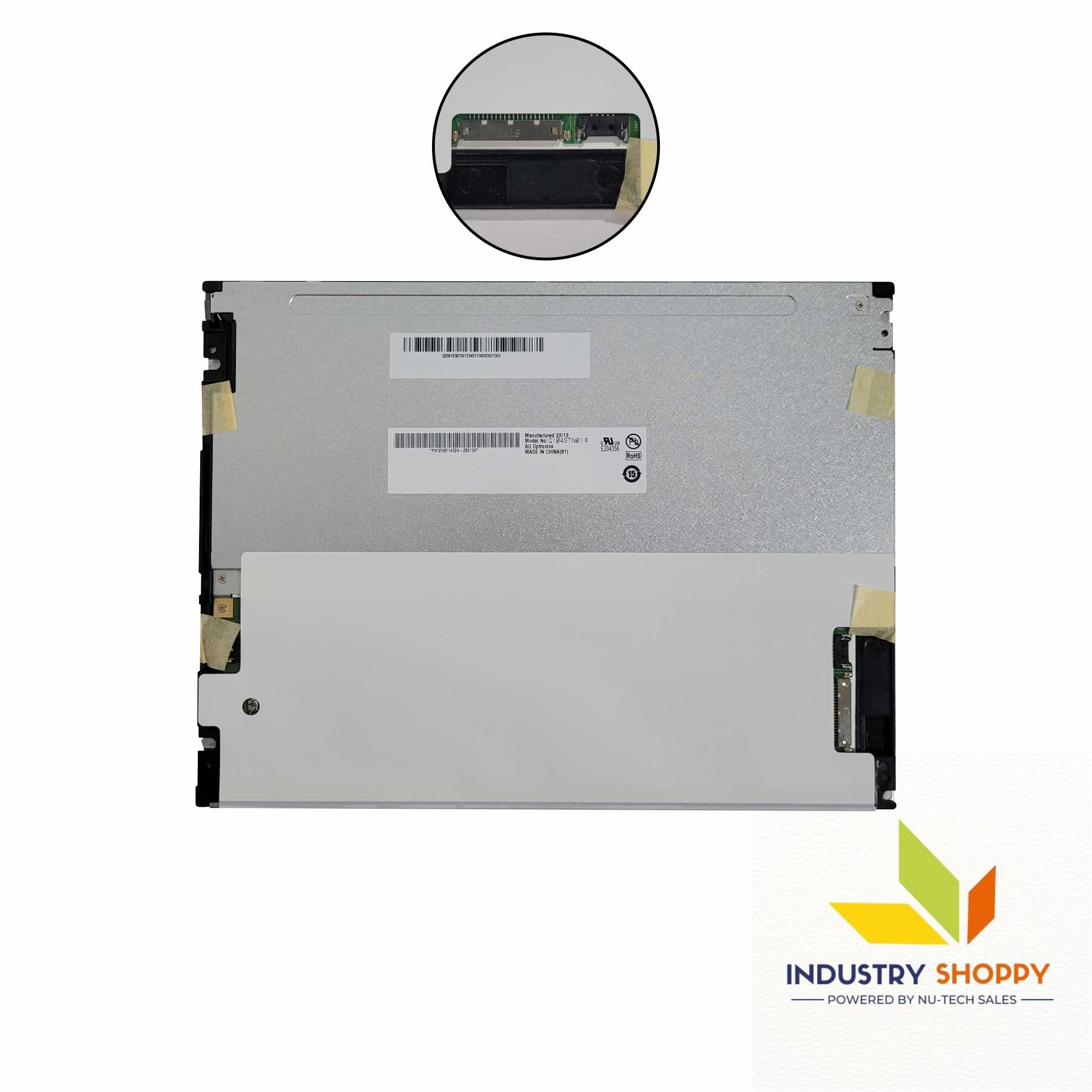

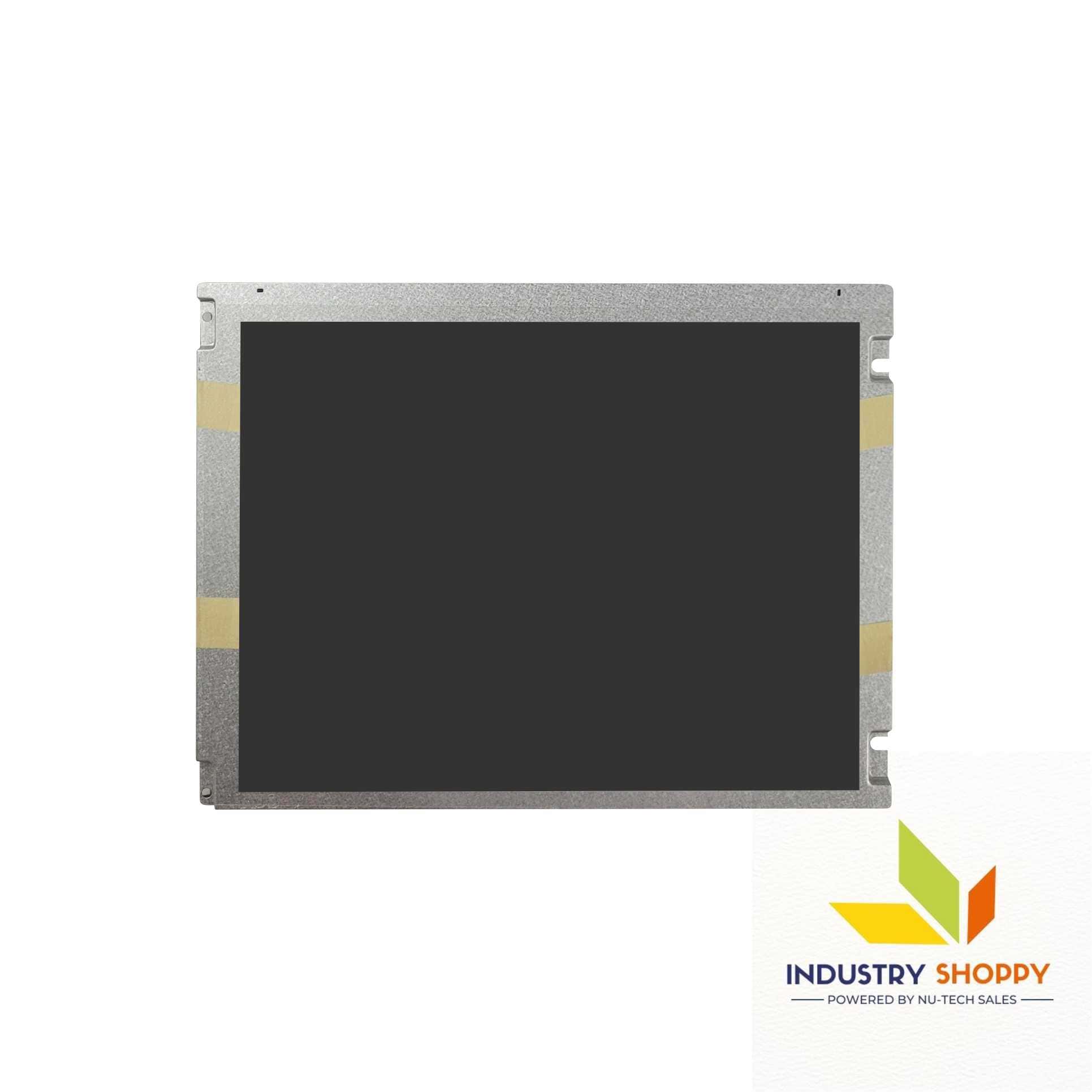

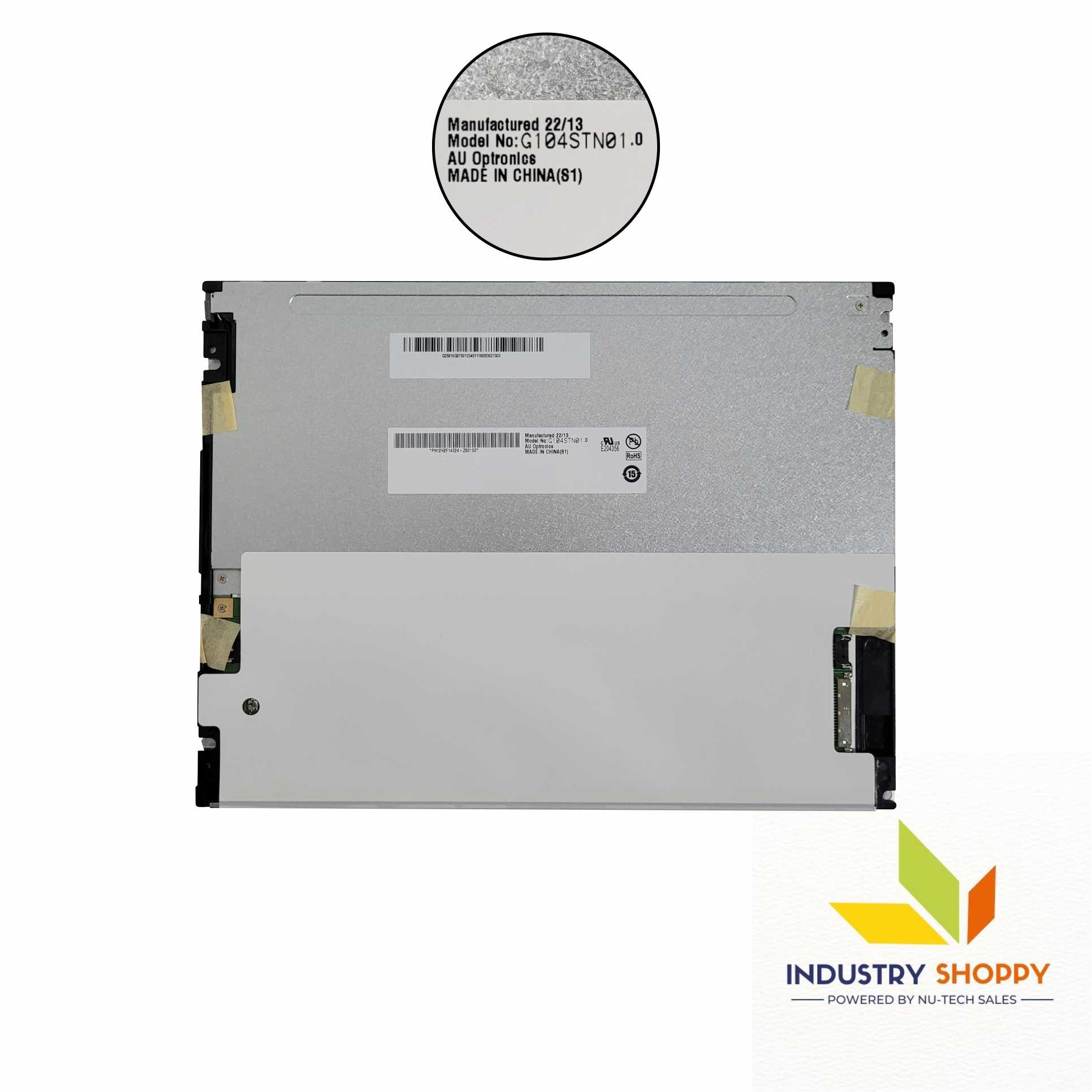

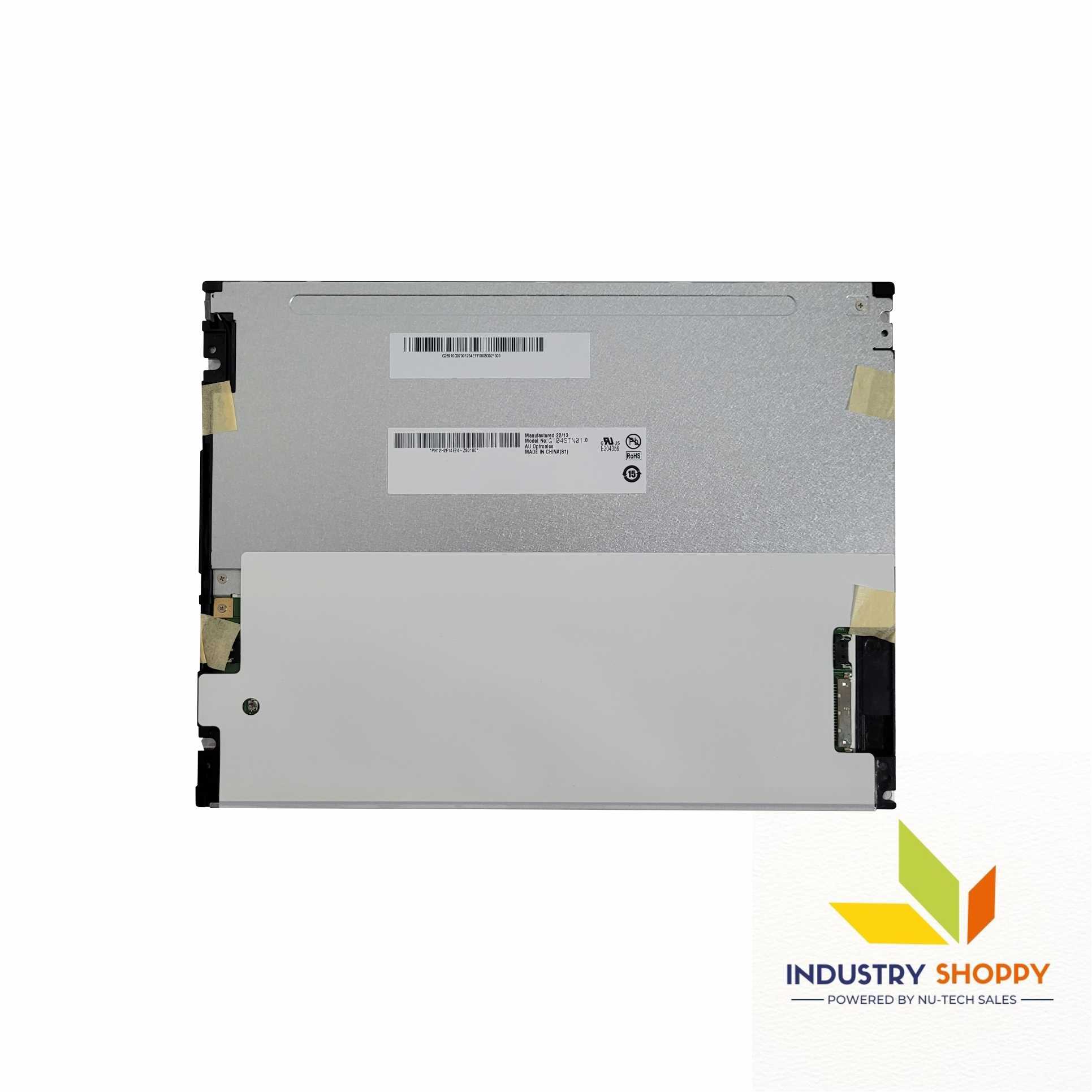

AUO G104STN01.0 LCD Module


The AUO G104STN01.0 LCD Module is 10.4-inch TFT-LCD panel delivers an SVGA resolution of 800(RGB)×600 pixels at 96 PPI, offering crisp and detailed visuals. Its active area measures 211.2 mm × 158.4 mm, housed in a compact 243 mm × 184 mm × 7 mm frame.

Built on a-Si TFT-LCD technology, the panel operates in TN mode with a normally white, transmissive design. It features an antiglare surface with a durable 3H hard coating, ensuring excellent visibility and scratch resistance in demanding environments.

The display achieves a typical brightness of 400 cd/m² and a contrast ratio of 700:1. It provides wide viewing angles of 80° left/right, 60° down, and 70° up (CR≥10), ensuring consistent image quality from various perspectives. With a fast response time of 10 ms (rise) and 5 ms (fall), it handles dynamic content smoothly.

It supports 262K and 16.2M colors, covering 50% of the NTSC color gamut. The panel connects via a 20-pin LVDS interface supporting both 6-bit and 8-bit modes at a 60Hz frame rate. It runs on a 3.3V typical power supply.

An integrated 8S2P WLED backlight provides up to 50,000 hours of illumination and includes a built-in LED driver. Designed for rugged conditions, it operates reliably between -30°C and 80°C and withstands the same range during storage.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandAUO
Diagonal Size10.4"
Resolution800(RGB)×600, SVGA 96 PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension243(W)×184(H)×7(D) mm
Luminance400 cd/m² (Typ.)
Contrast Ratio700:1 (Typ.) (TM)
Viewing Angle80/80/60/70 (Typ.) (CR≥10)
Response Time10/5 (Typ.) (Tr/Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M, 50% NTSC
Signal Interface TypeLVDS (1 ch, 6/8-bit), 20 pins Connector
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
Backlight8S2P WLED, 50K hours, With LED Driver
Operating Temp.-30 ~ 80 °C
Storage Temp.-30 ~ 80 °C
