Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze PRK5B.M1/4 Photoelectric Sensor
Leuze

Leuze PRK5B.M1/4 Photoelectric Sensor

Product SKU: NTSSEN00666
Available:
Only 25 items in stock
25 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Leuze
  • Part No. : 50149298
  • Switching frequency : 500 Hz
  • Voltage supply range  : 10 ... 30 V, DC, Incl. residual ripple
  • Connection types  : Cable
  • Open-circuit current  : 0 … 20 mA
  • Warranty 12 Months
Rs. 2,750.00
Rs. 6,000.00

+ GST @18% = Rs. 3,245.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

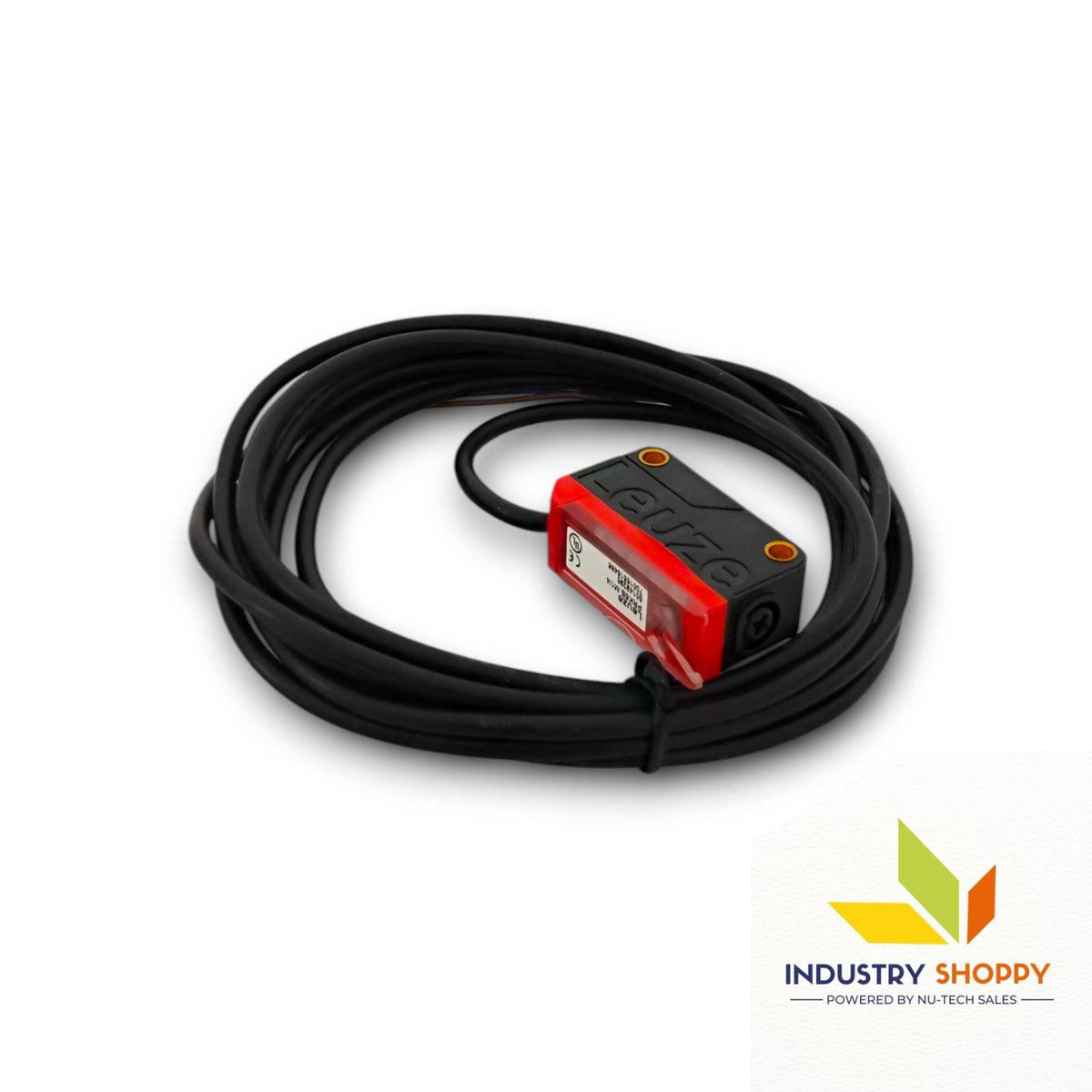

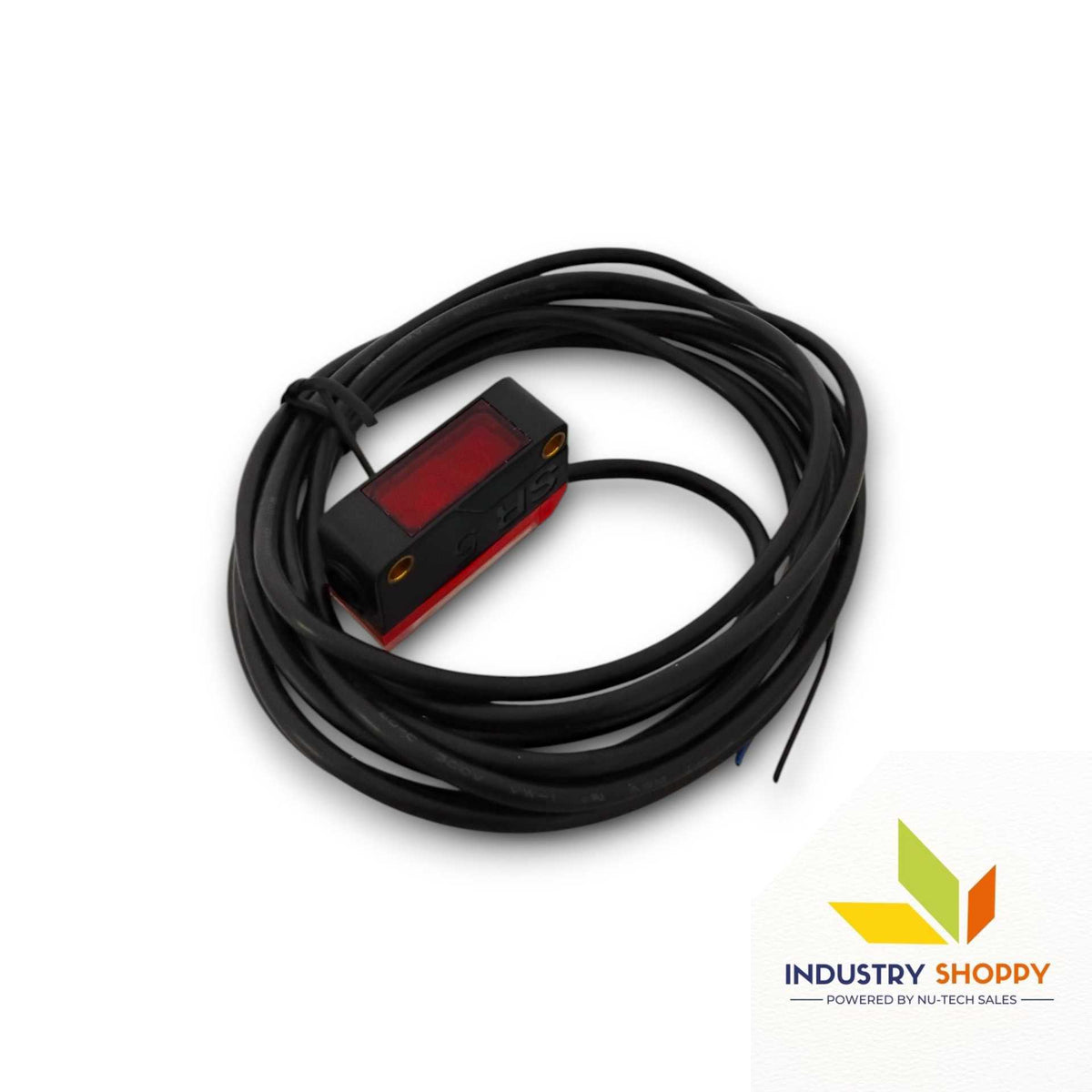

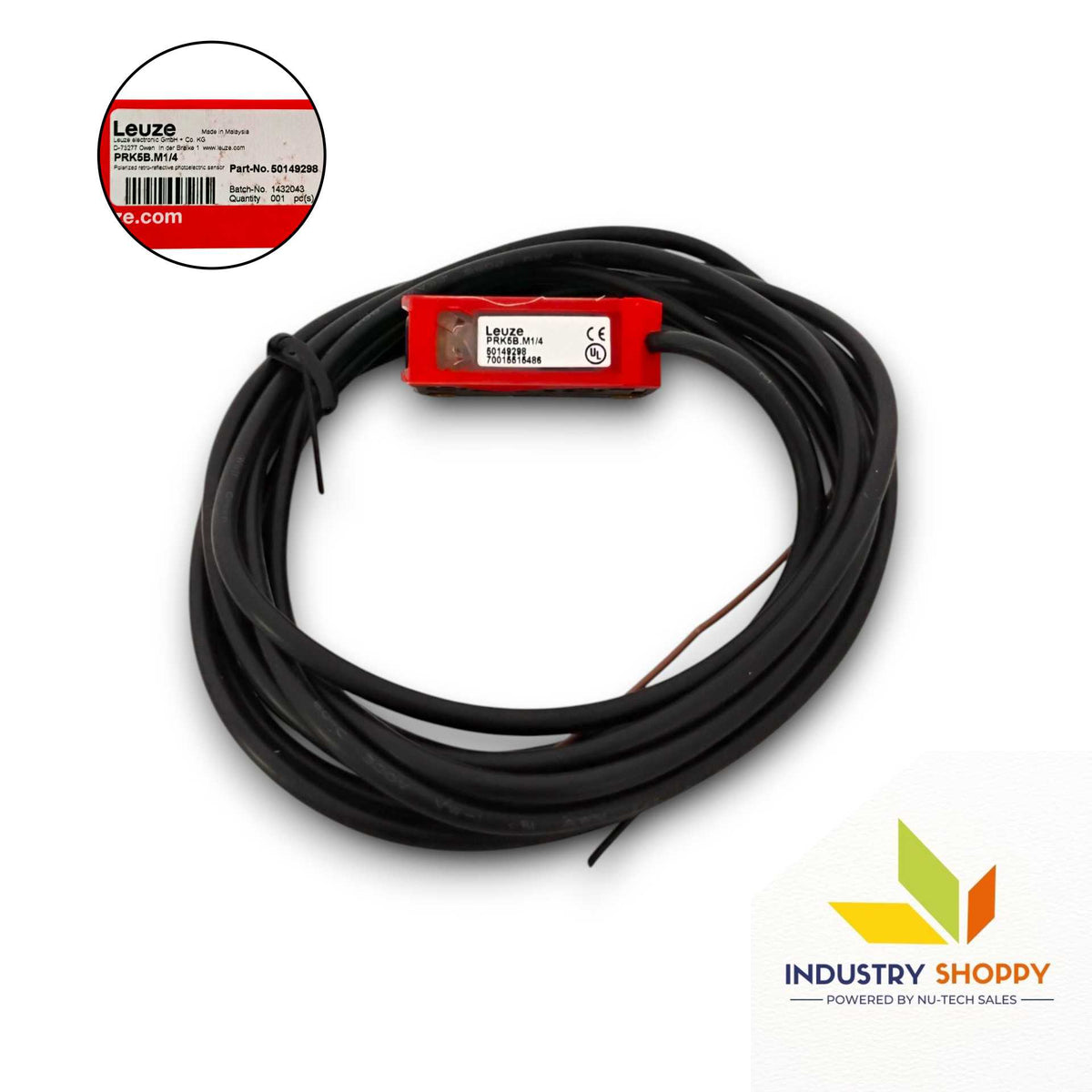

Leuze PRK5B.M1/4 Photoelectric Sensor

The Leuze PRK5B.M1/4 Photoelectric Sensor (50149298) is a compact and reliable photoelectric retro-reflective sensor designed for demanding detection tasks involving bottle containers, semi-transparent media, and transparent films.

Based on the reflection principle, it delivers a guaranteed sensing range of 0.03 to 4.5 m and a typical range up to 6 m when used with a suitable reflector. The sensor uses a red LED light source (645 nm) with pulsed signal transmission, ensuring stable detection even in challenging applications.

Equipped with a PNP transistor output and light switching principle, it supports a switching frequency of 500 Hz and a fast 1 ms response time. Sensitivity can be precisely adjusted via a 270° potentiometer.

Housed in a robust PC-ABS enclosure with IP67 protection, the PRK5B.M1/4 operates reliably in harsh environments from –40 °C to +60 °C. Its ECOLAB compatibility, compact design, and simple mounting make it ideal for packaging and automation systems.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,

ModelPRK5B.M1/4
BrandLEUZE
Part No.50149298
Series5B
Operating principleReflection principle
ApplicationsDetection of bottle containers; semi-transparent media; transparent films
Operating range (guaranteed)0.03 … 4.5 m (with reflector TK(S) 100 × 100)
Operating range limit (typical)0.03 … 6 m (with reflector TK(S) 100 × 100)
Light sourceLED, red
Wavelength645 nm
Transmitted-signal shapePulsed
LED groupExempt group (according to EN 62471)
Supply voltage UB10 … 30 V DC (including residual ripple)
Residual ripple0 … 15 % from UB
Open-circuit current0 … 20 mA
Output typeDigital switching output
Switching elementTransistor, PNP
Switching principleLight switching
Switching frequency500 Hz
Response time1 ms
Readiness delay300 ms
FunctionSignal OUT, voltage supply
Type of connectionCable
Cable length2,000 mm
Sheathing materialPVC
Cable colorBlack
Number of conductors3-wire
Wire cross section0.14 mm²
Dimensions (W × H × L)11 × 32.4 × 20 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic
Housing colorBlack / Red
Type of fasteningTwo M3 threaded sleeves; optional mounting device
Recommended tightening torque (M3)0.9 N·m
Material compatibilityECOLAB
Display typeLED
Number of LEDs2
Operational controls270° potentiometer
Control functionSensitivity adjustment
Ambient temperature (operation)–40 … +60 °C
Ambient temperature (storage)–40 … +70 °C
Degree of protectionIP67
Protection classIII
Approvalsc UL US
Standards appliedIEC 60947-5-2
Country of originMalaysia
