Leuze HT3C-4P-M8 Sensor
Leuze HT3C-4P-M8 Sensor
Leuze HT3C-4P-M8 Sensor
Leuze HT3C-4P-M8 Sensor
Leuze

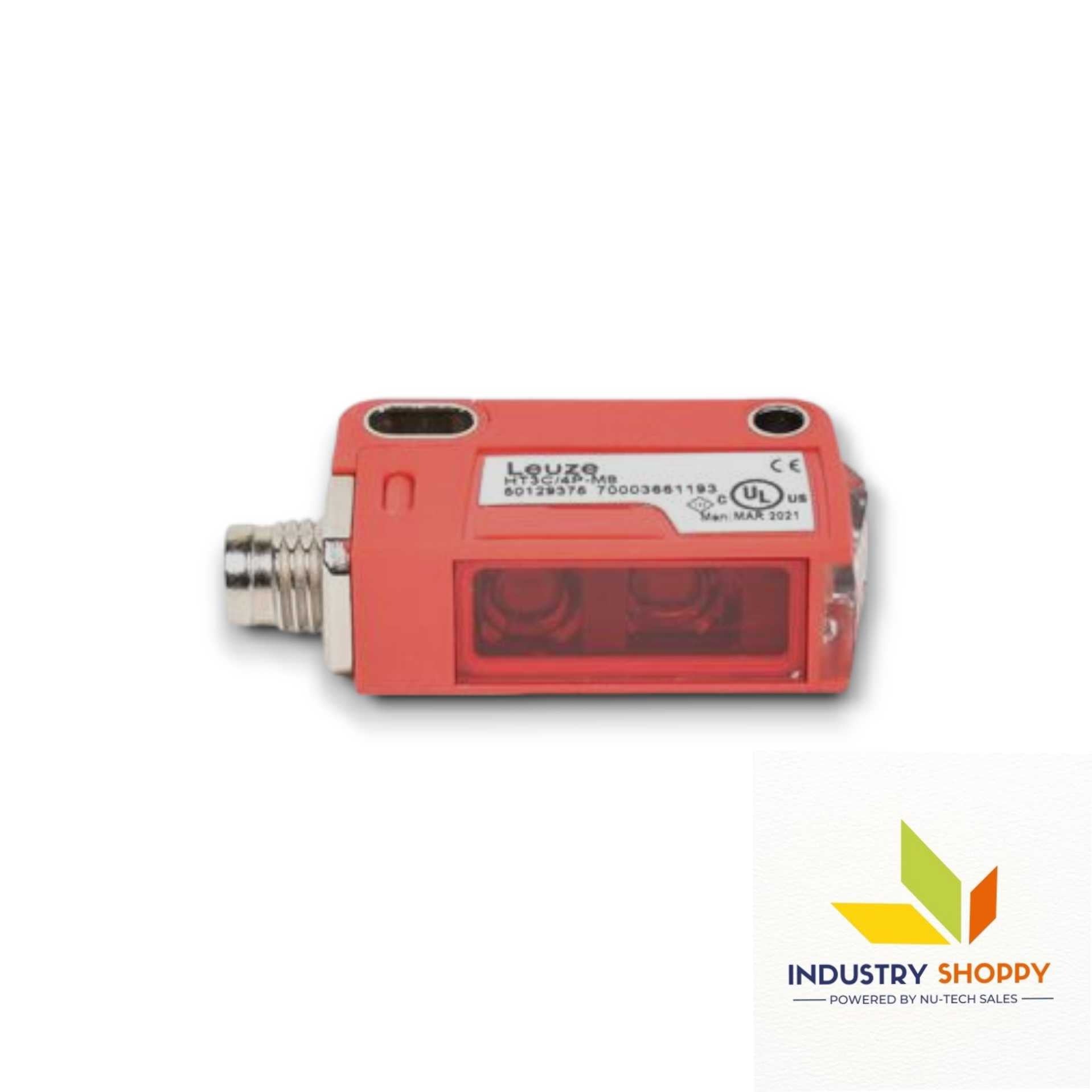

Leuze HT3C/4P-M8 Diffuse Sensor

Product SKU: NTSSEN00025
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply voltage : 10 … 30 V, DC, Incl. residual ripple
  • Response time : 0.5 ms
  • Thread size : M8
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 4,750.00
Rs. 5,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Accessories
  • Description
  • Specifications
  • Shipping & Returns
This product: Leuze HT3C/4P-M8 Diffuse Sensor
Leuze KDU-M8-4A-V1-020 Connection Cable
Rs. 5,275.00

Leuze HT3C/4P-M8 Diffuse Sensor

The Leuze HT3C/4P-M8 Diffuse sensor with background suppression from the 3C series is a diffuse reflection sensor with background suppression, ideal for high-precision object detection. With a wavelength of 633 nm, the sensor uses a red LED light source to ensure clear performance across various surfaces, including black, white, and gray objects.

The sensor’s operating range varies depending on the surface color: from 0.005 to 0.45 m for white (90%), 0.01 to 0.34 m for grey (18%), and 0.015 to 0.22 m for black (6%). The guaranteed operating range is up to 450 mm, with a typical range of 0.005 to 0.45 m. It features focused beam optics for precise detection at a focal distance of 200 mm.

Designed for versatile applications, the sensor operates within a voltage range of 10 to 30 V DC, with a switching frequency of 1,000 Hz and response time of just 0.5 ms, ensuring fast detection. Its PNP transistor switching element supports dark switching for optimal performance.

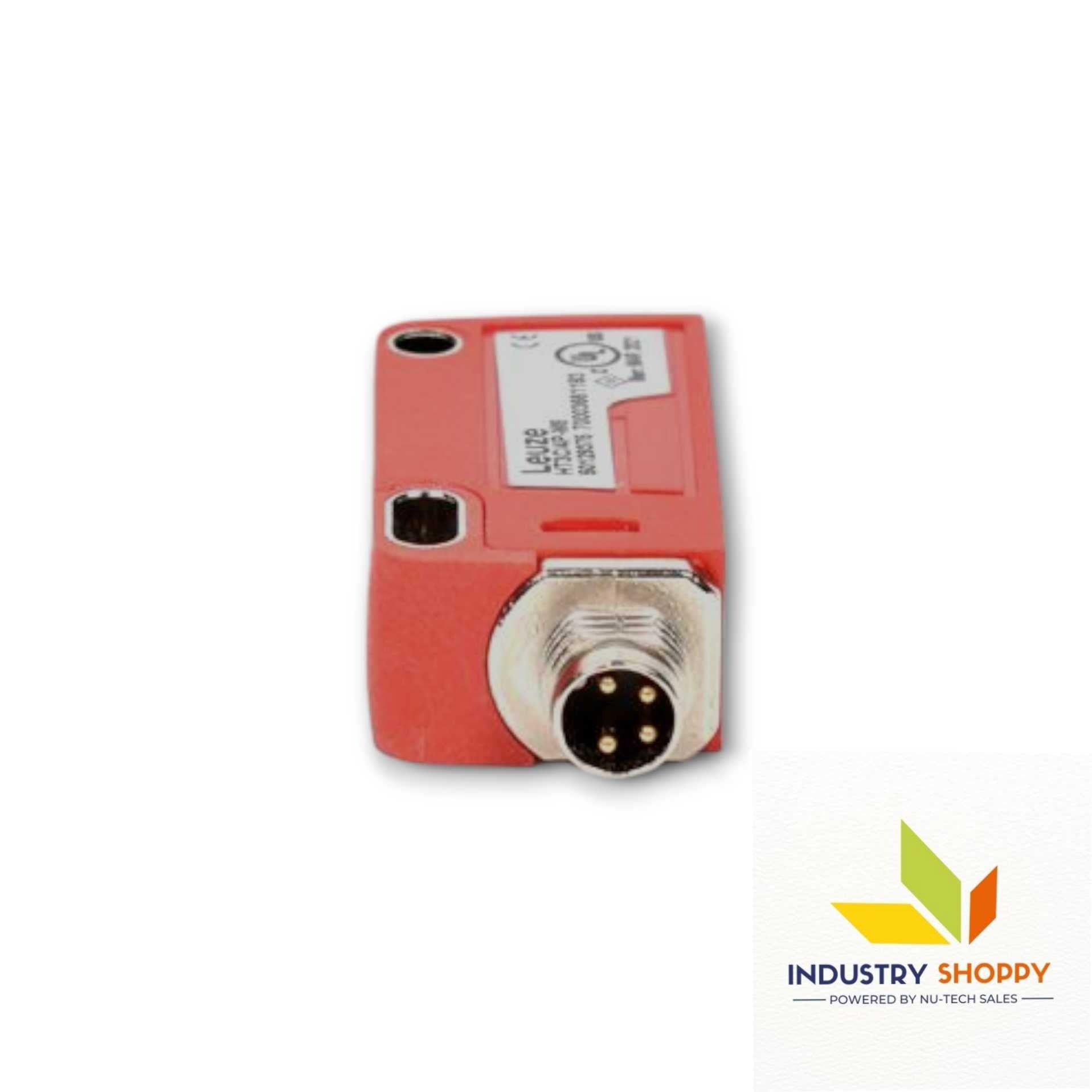

With a 4-pin M8 male connector and IP67/IP69K protection, it is waterproof and suitable for harsh industrial environments. The plastic housing (PC-ABS) is ECOLAB compatible, and the LED display helps easily monitor operation. The sensor supports range adjustment via a multiturn potentiometer.

The HT3C/4P-M8 is suitable for temperatures from -40 to 60 °C during operation and -40 to 70 °C during storage. It is also certified c UL US and complies with IEC 60947-5-2 standards, making it highly reliable for various industrial applications.



Our engineers actively inputted all the required details of this sensor in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. However, despite our sincere efforts, it’s important to remain cautious. Despite this, inaccuracies can still occur nonetheless.

IndustryShoppy.In is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience; furthermore, our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.In today!

Facebook, YouTube,



Product NumberHT3C/4P-M8
Part Number50129375
Series3C
Operating principleDiffuse reflection principle with background suppression
Black-white error< 10% up to 220 mm
Operating rangeGuaranteed operating range
Operating range, white 90%0.005 ... 0.45 m
Operating range, gray 18%0.01 ... 0.34 m
Operating range, black 6%0.015 ... 0.22 m
Operating range limitTypical operating range
Operating range limit0.005 ... 0.45 m
Adjustment range15 ... 450 mm
Beam pathFocused
Light sourceLED, Red
Wavelength633 nm
LED groupExempt group (in acc. with EN 62471)
Type of light spot geometrySquare
FocusFixed
Focal distance200 mm
Supply voltage UB10 ... 30 V, DC, incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA
Switching elementTransistor, PNP
Switching principleLight switching
Switching elementTransistor, PNP
Switching principleDark switching
Switching frequency1,000 Hz
Response time0.5 ms
Readiness delay300 ms
FunctionSignal OUT, Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4-pin
Dimension (W x H x L)11.4 mm × 34.2 mm × 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting / via optional mounting device
Compatibility of materialsECOLAB
Type of displayLED
Operational controlsMultiturn potentiometer
Function of the operational controlRange adjustment
Ambient temperature, operation-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP67 / IP69K
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
