Sharp LQ064V3DG07 LCD Module

Sharp LQ064V3DG07 LCD Module

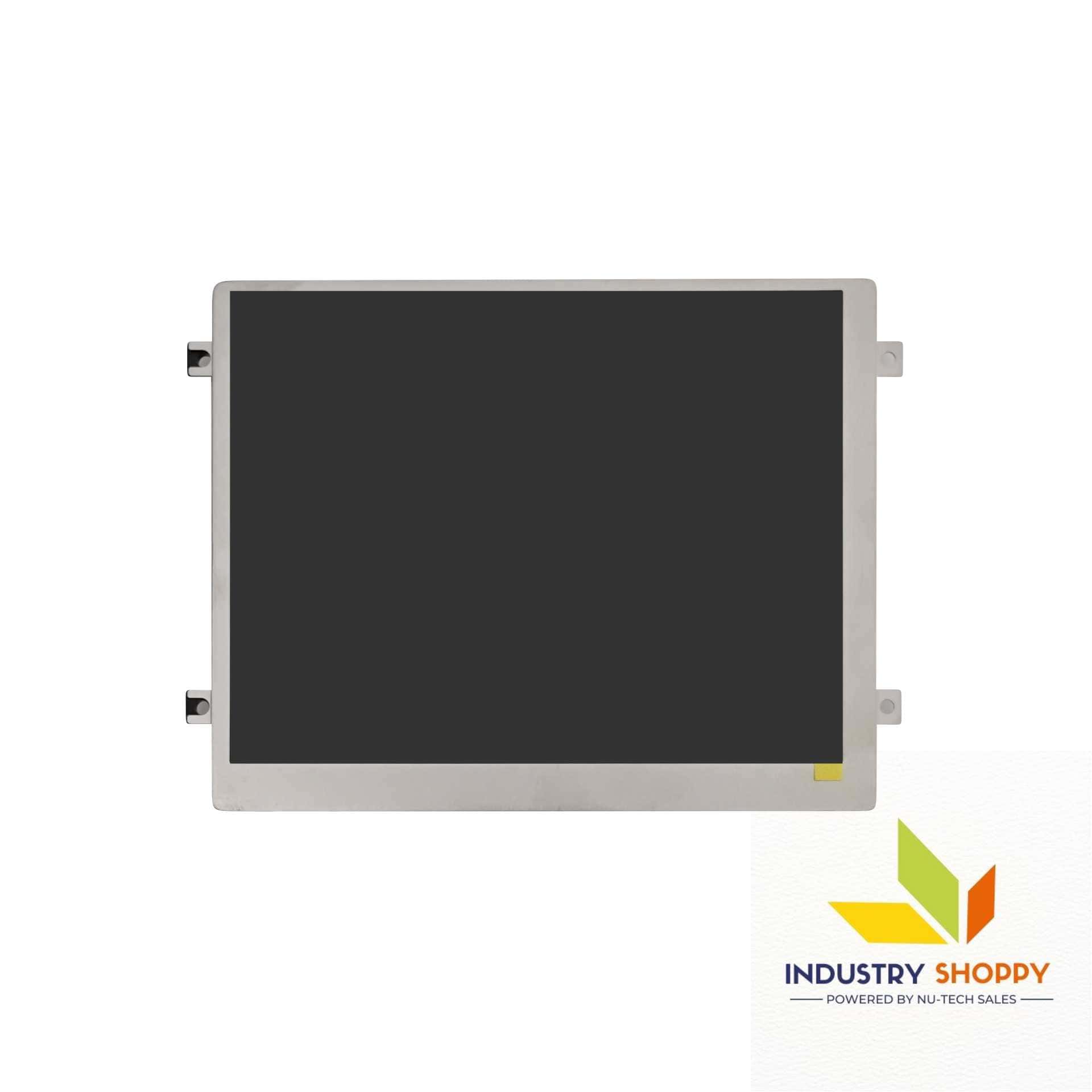

The Sharp LQ064V3DG07 LCD Module delivers solid performance in compact embedded applications requiring VGA resolution (640×480 pixels) with a pixel density of 124 PPI. Its active display area measures 130.56 mm × 97.92 mm, providing a clear and well-defined viewing field suitable for industrial HMIs, medical equipment, and portable instrumentation.

Built using a-Si TFT-LCD technology, the panel supports the TN, normally white, transmissive operating mode, which ensures low power consumption and fast switching—ideal for real-time control interfaces. The display renders 262K colors via a parallel RGB interface (1 channel, 6-bit), running at a standard frame rate of 60Hz, allowing compatibility with a broad range of embedded GPUs and controllers.

Equipped with a WLED backlight and integrated LED driver, the panel offers extended lifespan and consistent illumination. While detailed specs such as brightness, contrast, and temperature range are unspecified, its design suggests applicability in durable, mid-resolution systems.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.

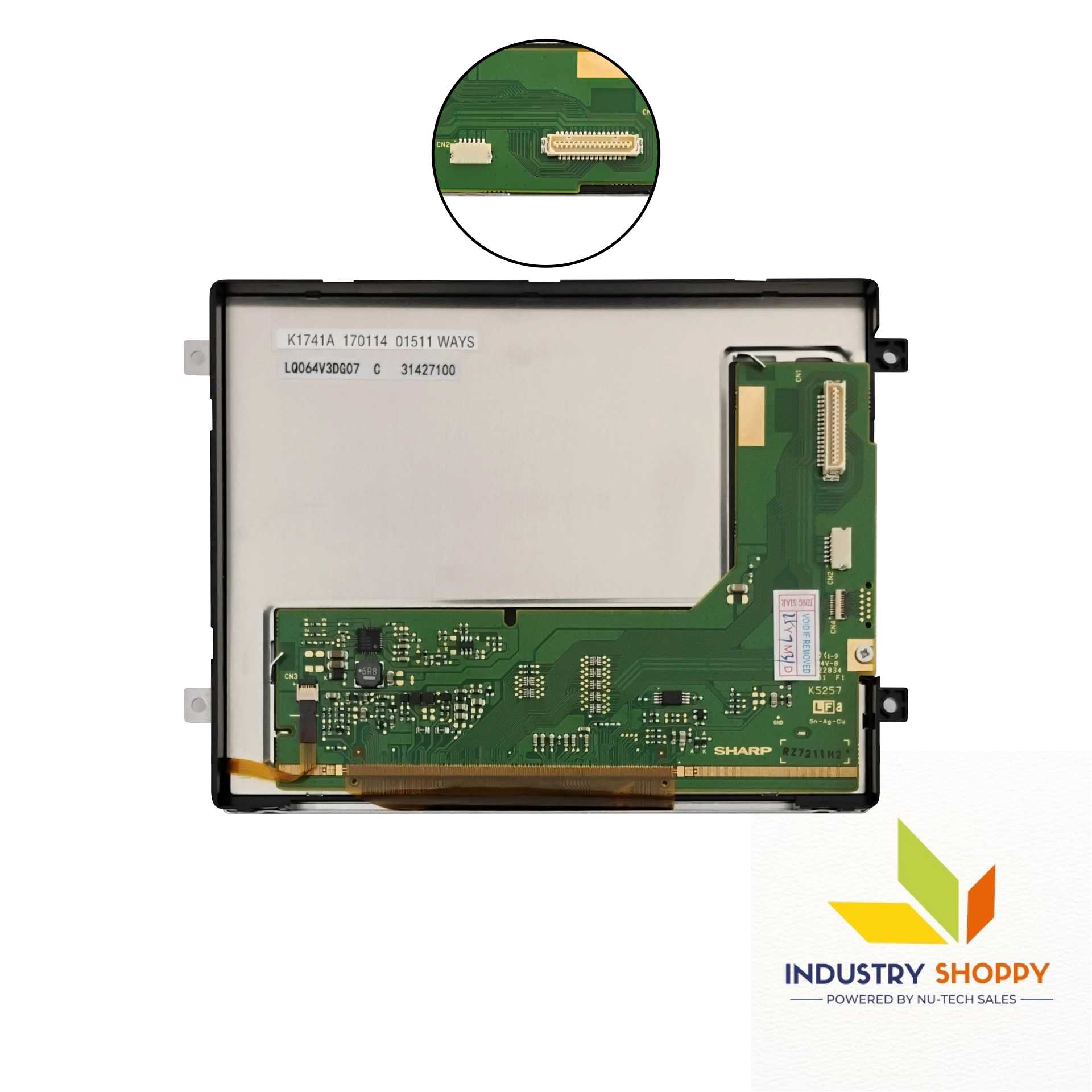

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
