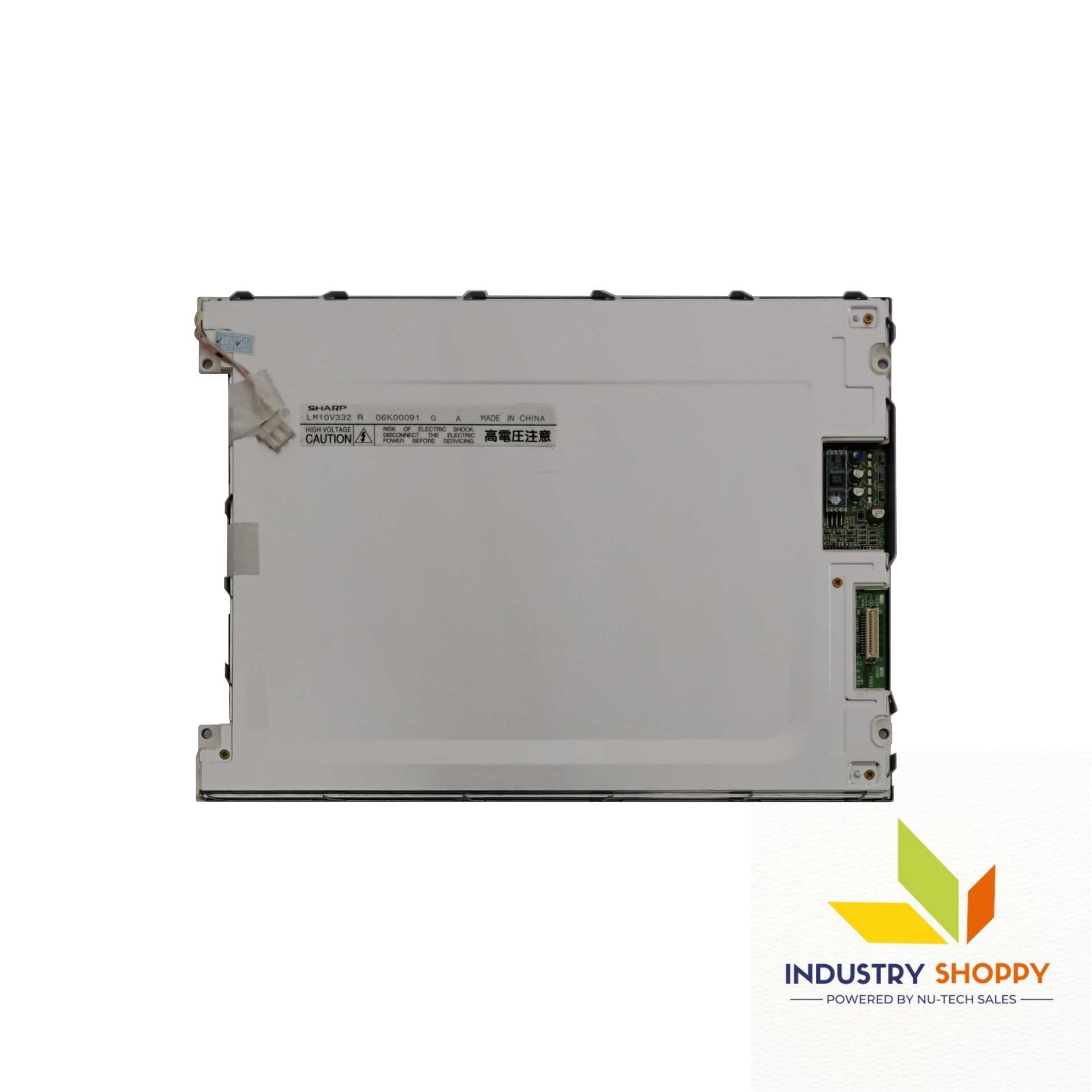

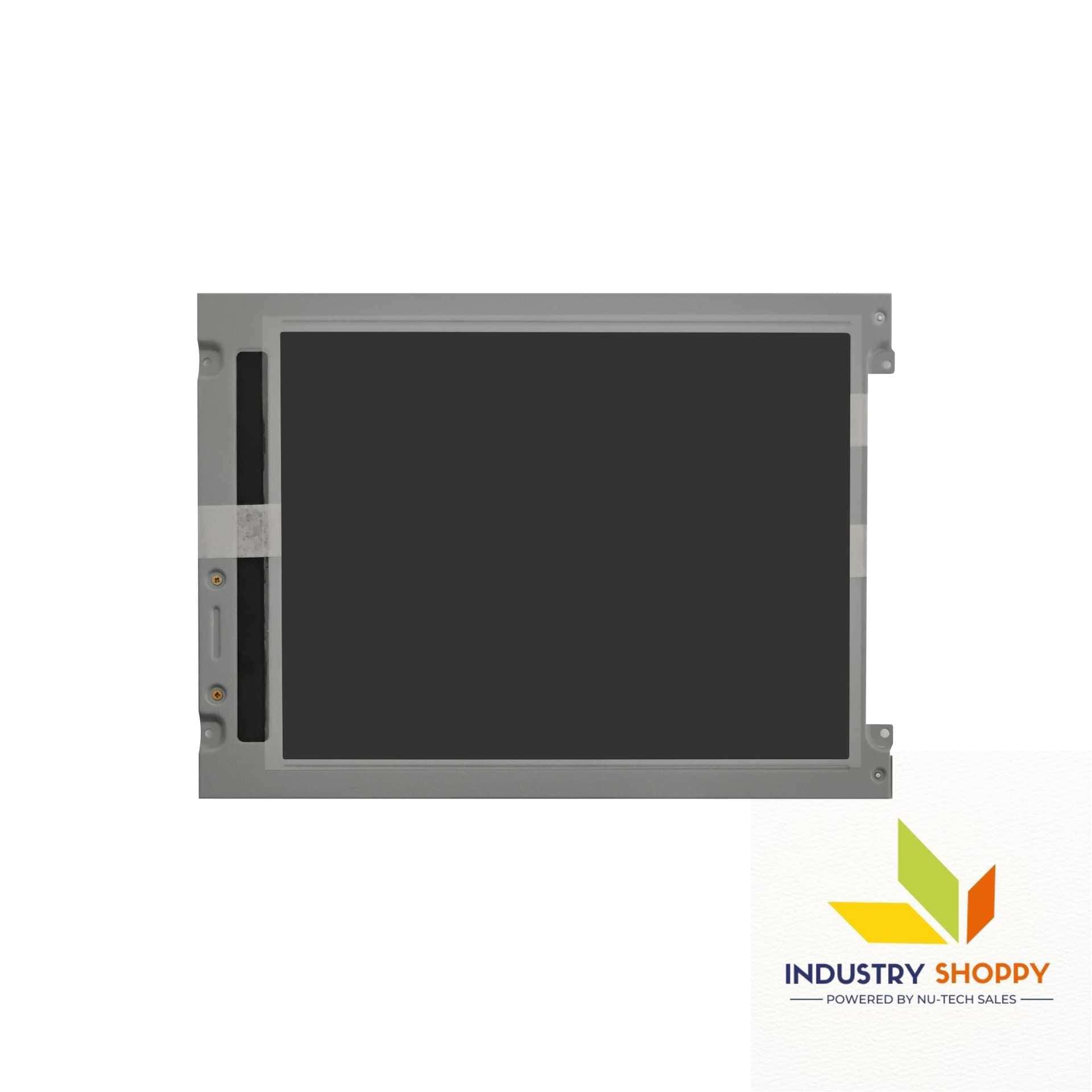

Sharp LM10V332R LCD Module

Sharp LM10V332R LCD Module

The Sharp LM10V332R LCD Module 10.4-inch CSTN-LCD panel is designed to deliver practical display solutions where basic color output is required. Although detailed specifications such as luminance, contrast ratio, viewing angle, and response time are not specified, the panel still offers reliable performance, especially for standard viewing applications.
Furthermore, with a resolution of 640(RGB)×480 (VGA) and a pixel density of 76PPI, it ensures clear and legible visuals.

Moreover, the active area of 211.2(W)×158.4(H) mm provides ample screen space for a variety of display needs.
In addition, its use of a Parallel Data (1ch, 8-bit) Connector enables straightforward integration with existing systems.
The panel operates in a normally black, transmissive mode, typical of STN technology, which enhances color contrast in appropriate lighting conditions.

Although details on frame rate and power supply are lacking, the presence of a single CCFL backlight ensures consistent illumination.
Equally important, the operating temperature range of 0 ~ 40°C and storage range of -25 ~ 60°C indicate suitability for controlled environments. Overall, despite limited specification details, the Sharp CSTN-LCD panel remains a dependable choice for applications where color display and basic functionality are essential.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
