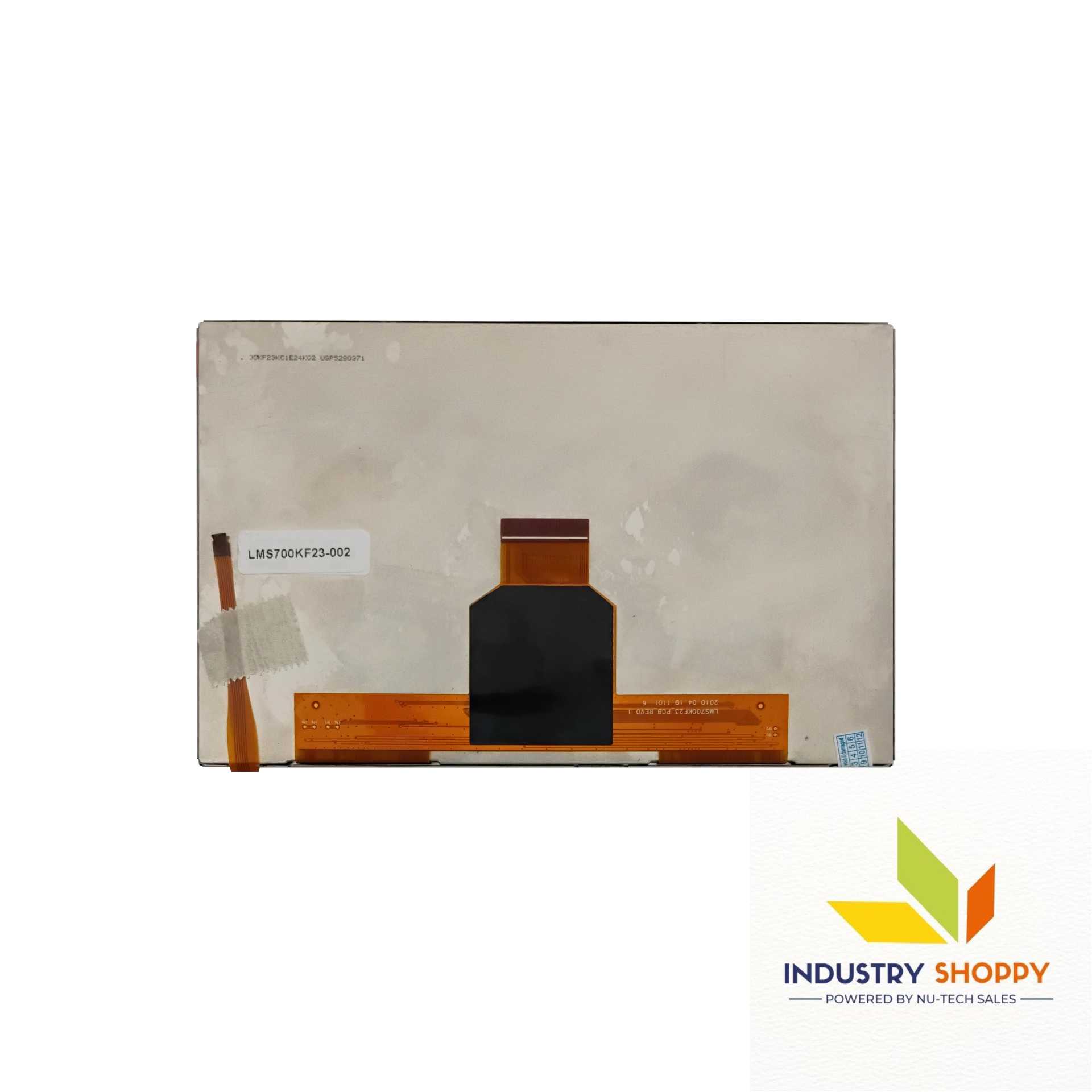

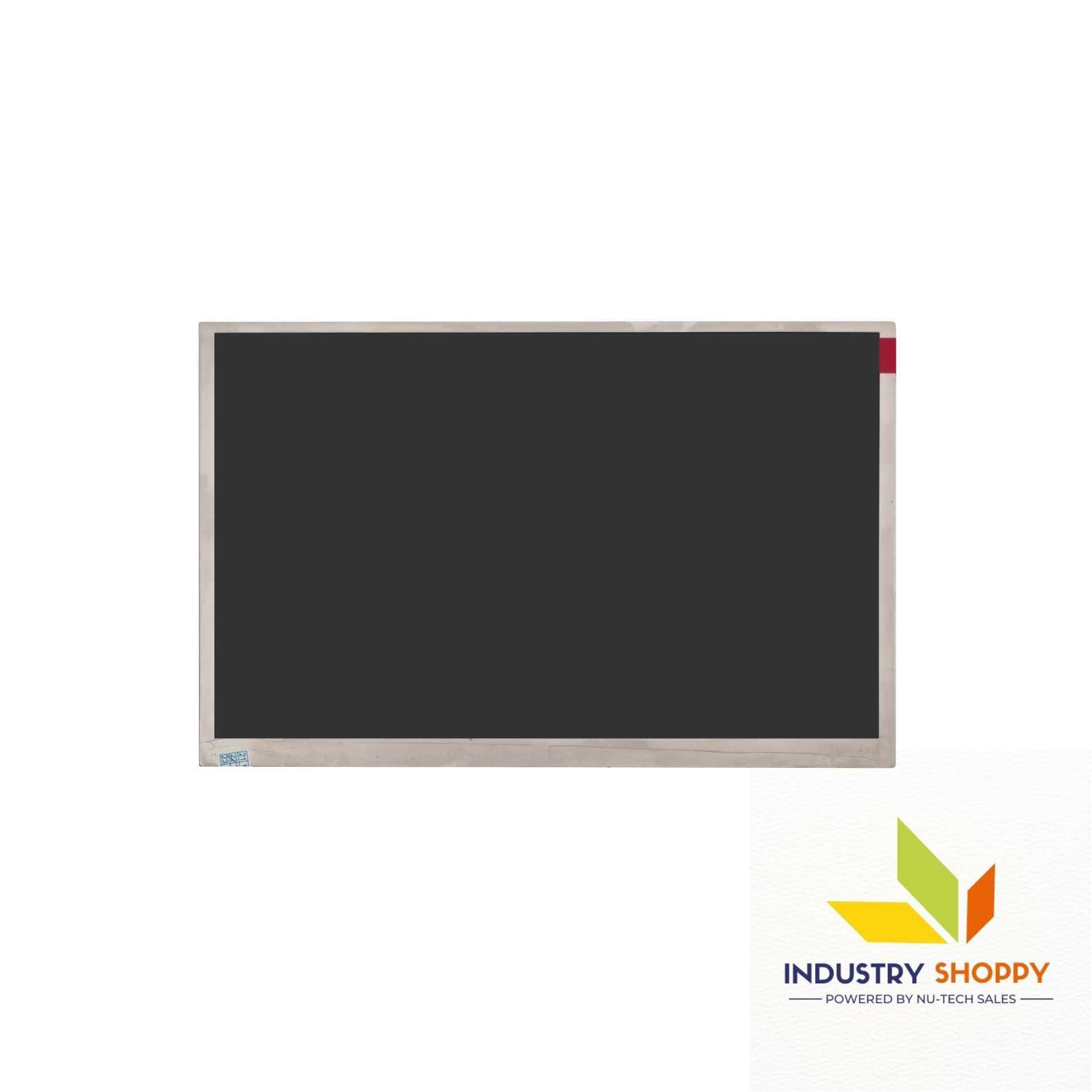

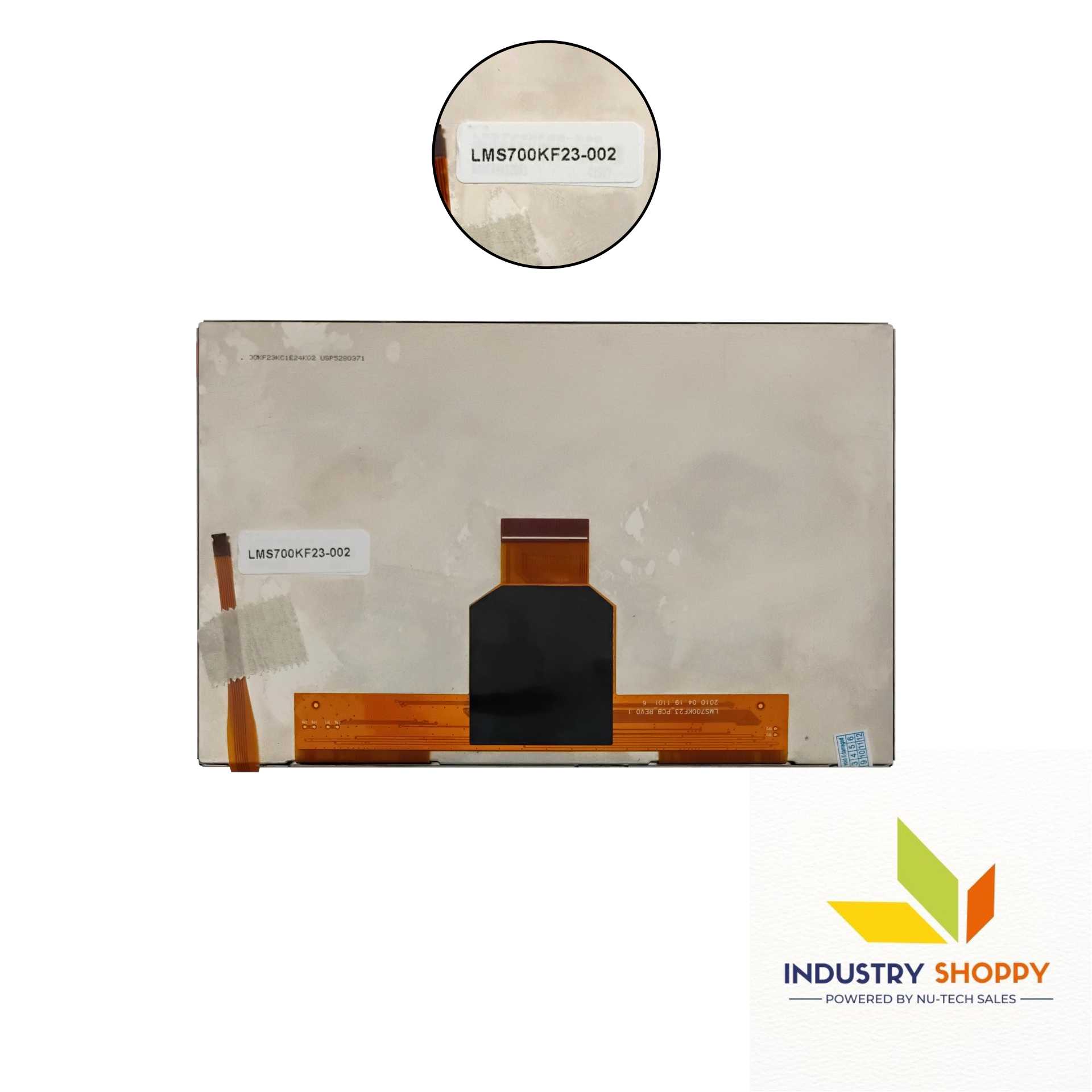

Samsung LMS700KF23-002 LCD Module

Samsung LMS700KF23-002 LCD Module

The Samsung LMS700KF23-002 LCD Module is designed for high-quality visuals and efficient performance, making it ideal for industrial, commercial, and embedded applications. With an 800×480 resolution and 133 PPI pixel density, this display ensures sharp and clear images.

The active area of 152.4(W)×91.44(H) mm provides ample viewing space, while the 700:1 contrast ratio enhances image clarity and readability. Additionally, the 350 cd/m² brightness ensures good visibility even in well-lit environments.

Featuring 70° wide viewing angles in all directions, the screen maintains consistent image quality from various perspectives. The fast 16ms response time effectively reduces motion blur, delivering smooth visuals for dynamic content.

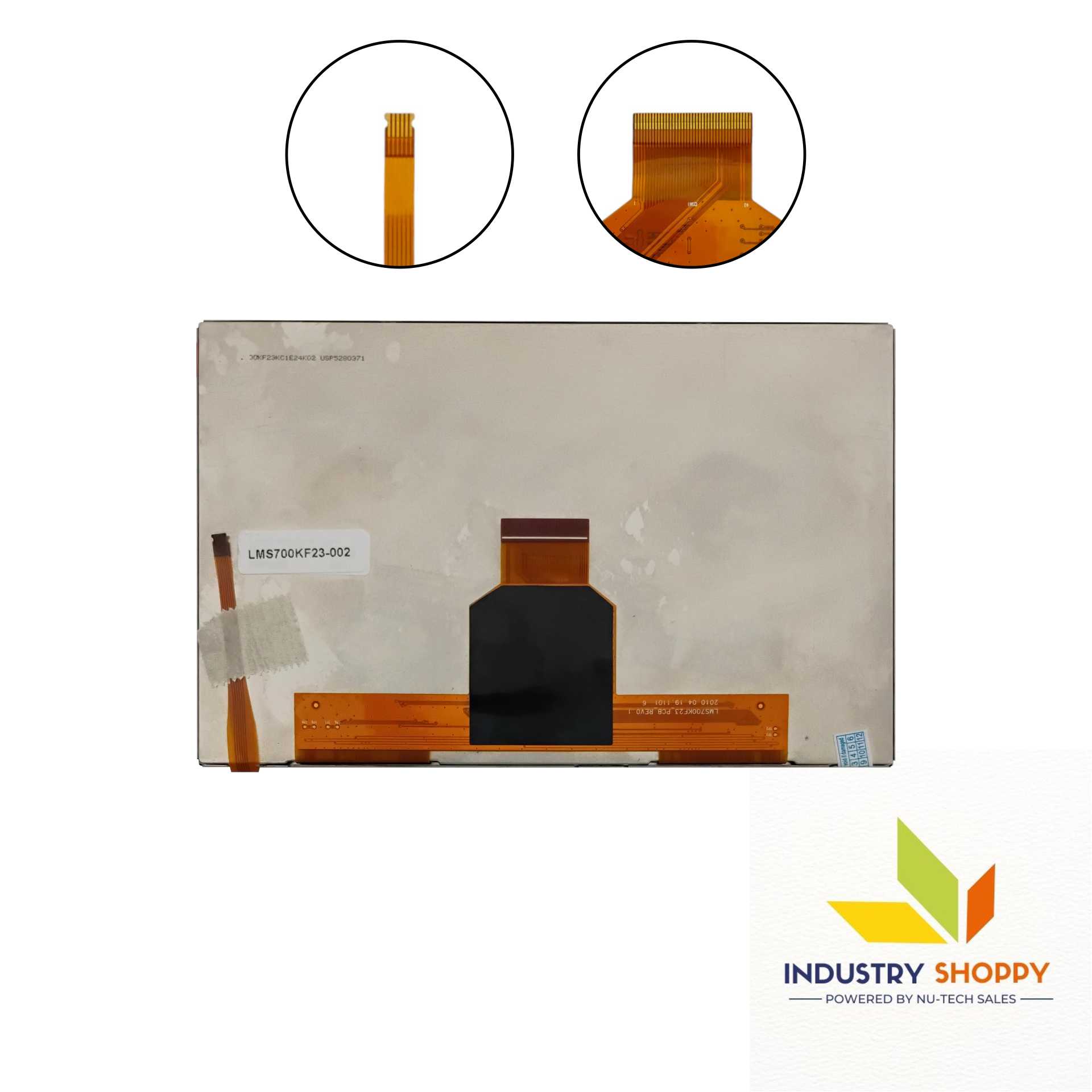

For seamless integration, the Parallel RGB (1 ch, 8-bit) interface with a 40-pin FPC connector allows for easy connectivity. Operating at 3.3V, it ensures power efficiency, while the WLED backlight (8S3P configuration) guarantees long-lasting brightness.

Built for reliable operation, it withstands temperatures from -20°C to 60°C, ensuring durability in demanding environments. With a compact 163.2×104×3.6 mm design, it’s an excellent choice for space-conscious applications.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
