Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic EX-14A Photoelectric Sensor
Panasonic

Panasonic EX-14A Photoelectric Sensor

Product SKU: NTSSEN00372
Available:
Only 119 items in stock
119 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output :  NPN open-collector transistor
  • Supply Voltage : 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
  • Response Time : 0.5 ms or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 2,260.00
Rs. 4,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

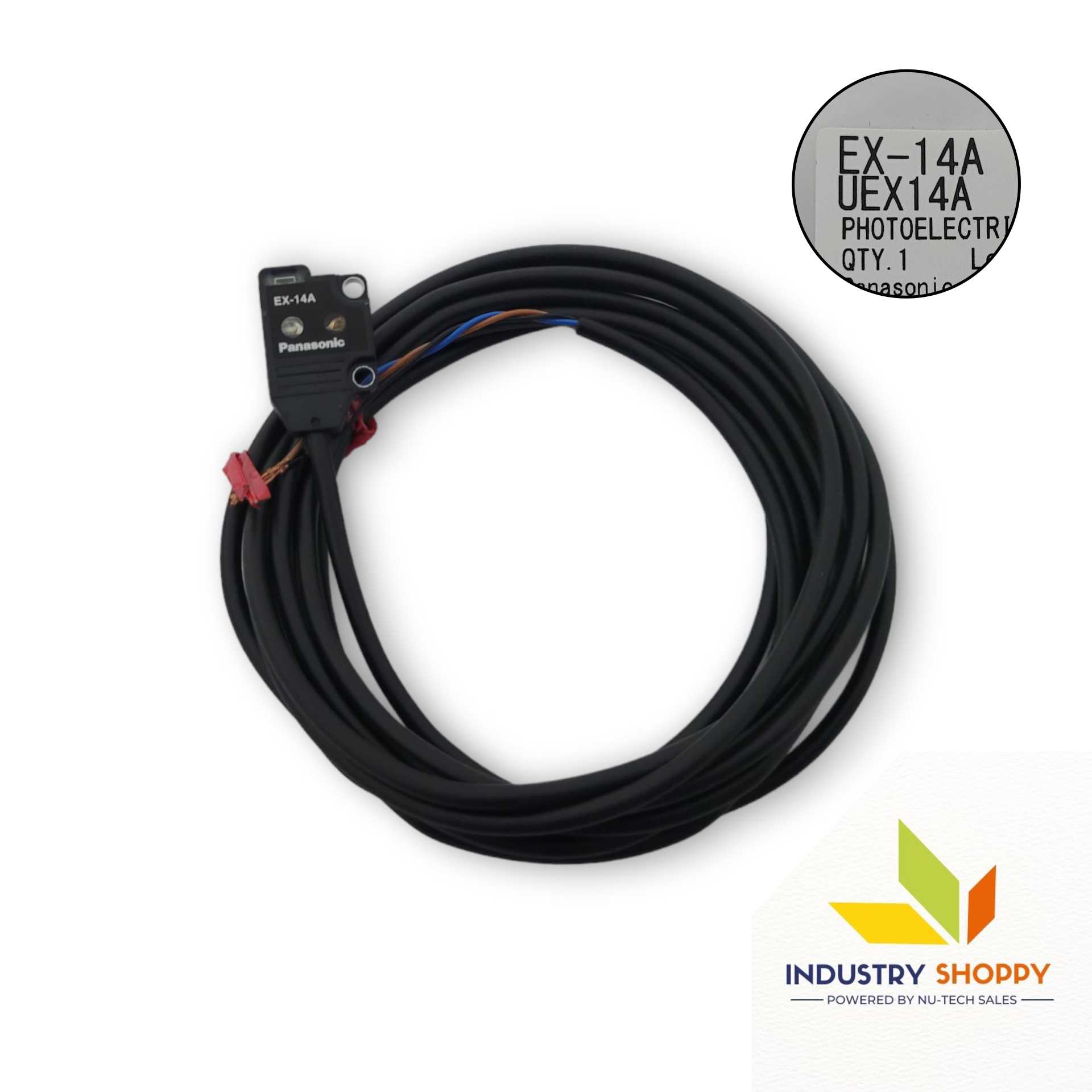

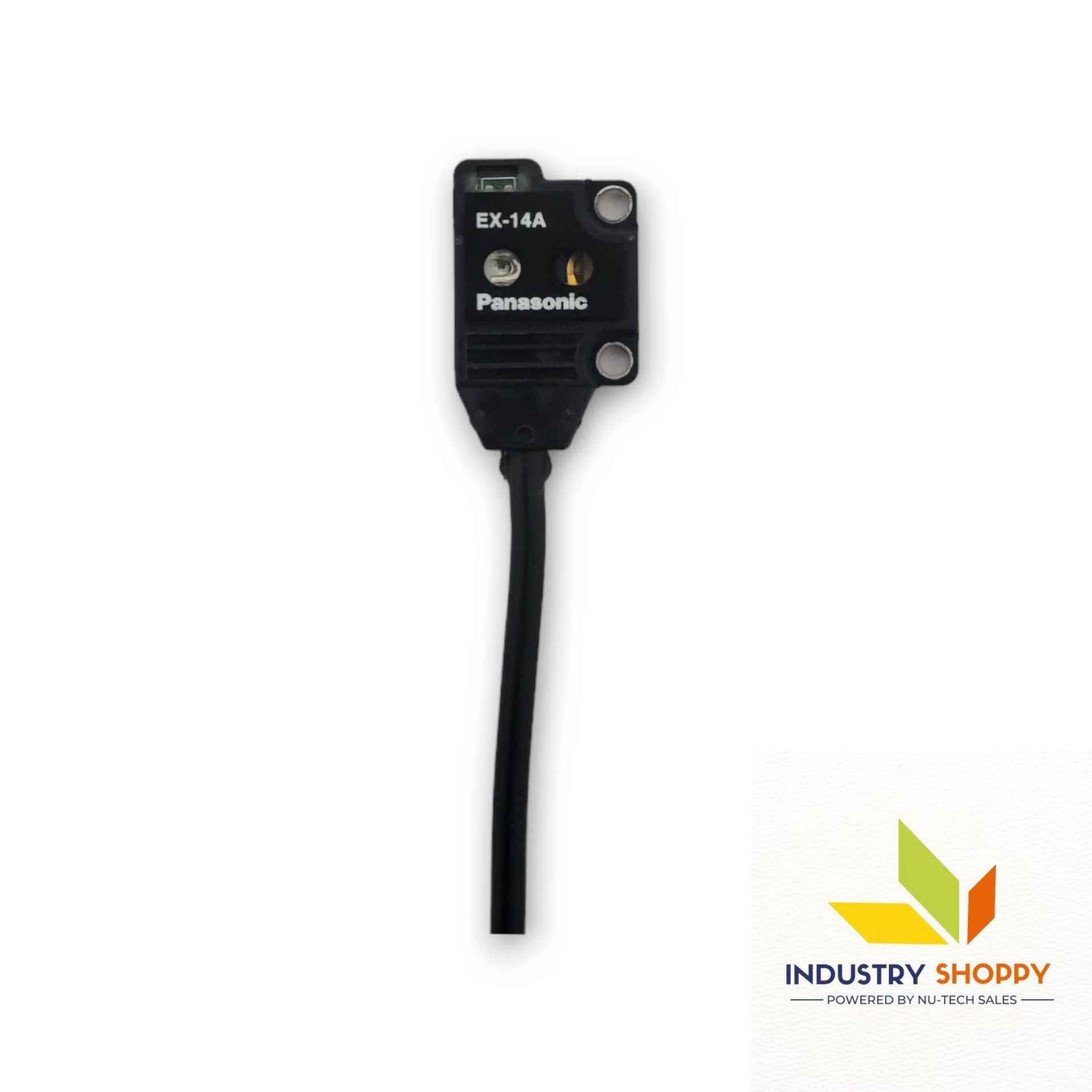

    Panasonic EX-14A Photoelectric Sensor

    The Panasonic EX-14A Photoelectric Sensor, compliant with CE Marking Directive standards like EMC, RoHS, and ISO 13849-1, ensures reliable performance with its wide sensing range from 2 to 25 mm (0.079 to 0.984 in). Specifically designed to detect small objects like ø0.1 mm (0.004 in) copper wire at a 10 mm (0.394 in) distance, it boasts hysteresis of 15% or less, guaranteeing accuracy.

    Operating on a 12 to 24 V DC supply voltage, the Panasonic EX-14A Photoelectric Sensor has minimal consumption. It draws 13 mA or less. It features an NPN open-collector transistor output and incorporates short-circuit protection. The sensor meets Utilization Category DC-12 or DC-13 standards. Its response time is rapid, at 0.5 ms or less. Additionally, it includes orange and green LEDs for operation and stable light/dark indication.

    Engineered for industrial environments, it withstands harsh conditions with pollution degree 3 and IP67 protection. Its durable construction, using materials like polyethylene terephthalate for the enclosure and polyalylate for the lens, ensures longevity. Certified by UL and Korea’s S-mark, it's crafted in China and adheres to strict quality standards, offering reliability in diverse applications.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NumberEX-14A
    Part NumberUEX14A
    CE Marking Directive ComplianceEMC Directive: EN 60947-5-2, RoHS Directive, ISO 13849-1 (Category 1, PLc) (Conformed from Dec 2021 production)
    Sensing Range2 to 25 mm (0.079 to 0.984 in), Conv. point: 10 mm (0.394 in) — specified for white non-glossy paper (50 × 50 mm)
    Minimum Sensing ObjectØ0.1 mm (0.004 in) copper wire (completely beam interrupted at 10 mm)
    Hysteresis≤15% of operation distance (specified for white non-glossy paper)
    Repeatability (Perpendicular to Sensing Axis)0.1 mm (0.004 in) or less
    Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
    Current Consumption≤13 mA
    OutputNPN open-collector transistor, Max sink current: 50 mA, Applied voltage: ≤30 V DC, Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA)
    Output Utilization CategoryDC-12 or DC-13
    Output Short-Circuit ProtectionIncorporated
    Response Time≤0.5 ms
    Operation IndicatorOrange LED (ON when output is ON)
    Incident Beam Indicator-
    Stability IndicatorGreen LED (lights under stable light/dark conditions)
    Pollution Degree3 (Industrial environment)
    ProtectionIP67 (IEC)
    Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
    Ambient IlluminanceIncandescent light: ≤3,000 lx at the receiver face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger between terminals and enclosure
    Vibration Resistance10–500 Hz, 3 mm double amplitude (20 G max), X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (≈50 G) X/Y/Z directions, 3 times each
    Emitting ElementRed LED, Peak wavelength: 680 nm (modulated)
    MaterialEnclosure: Polyethylene terephthalate, Lens: Polyalylate
    Cable0.1 mm² 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft)
    Cable ExtensionUp to 50 m (164.042 ft) with ≥0.3 mm² cable; for safety applications, ≤30 m (98.425 ft)

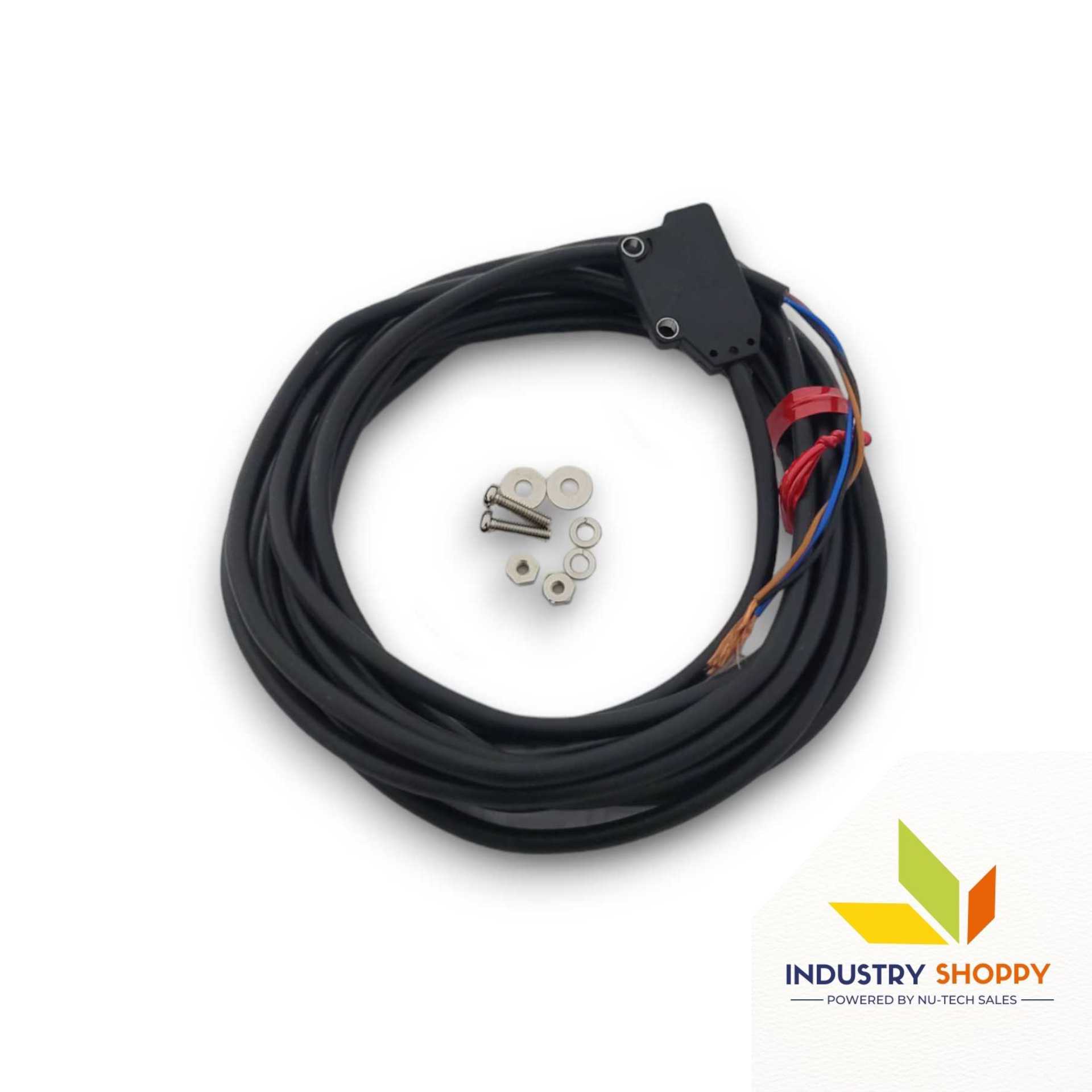

    AccessoryMounting screws: 1 set
    CertificationUL certification, Korea’s S-mark certification
    Country of OriginJapan
