42% Rs. 1,770.00

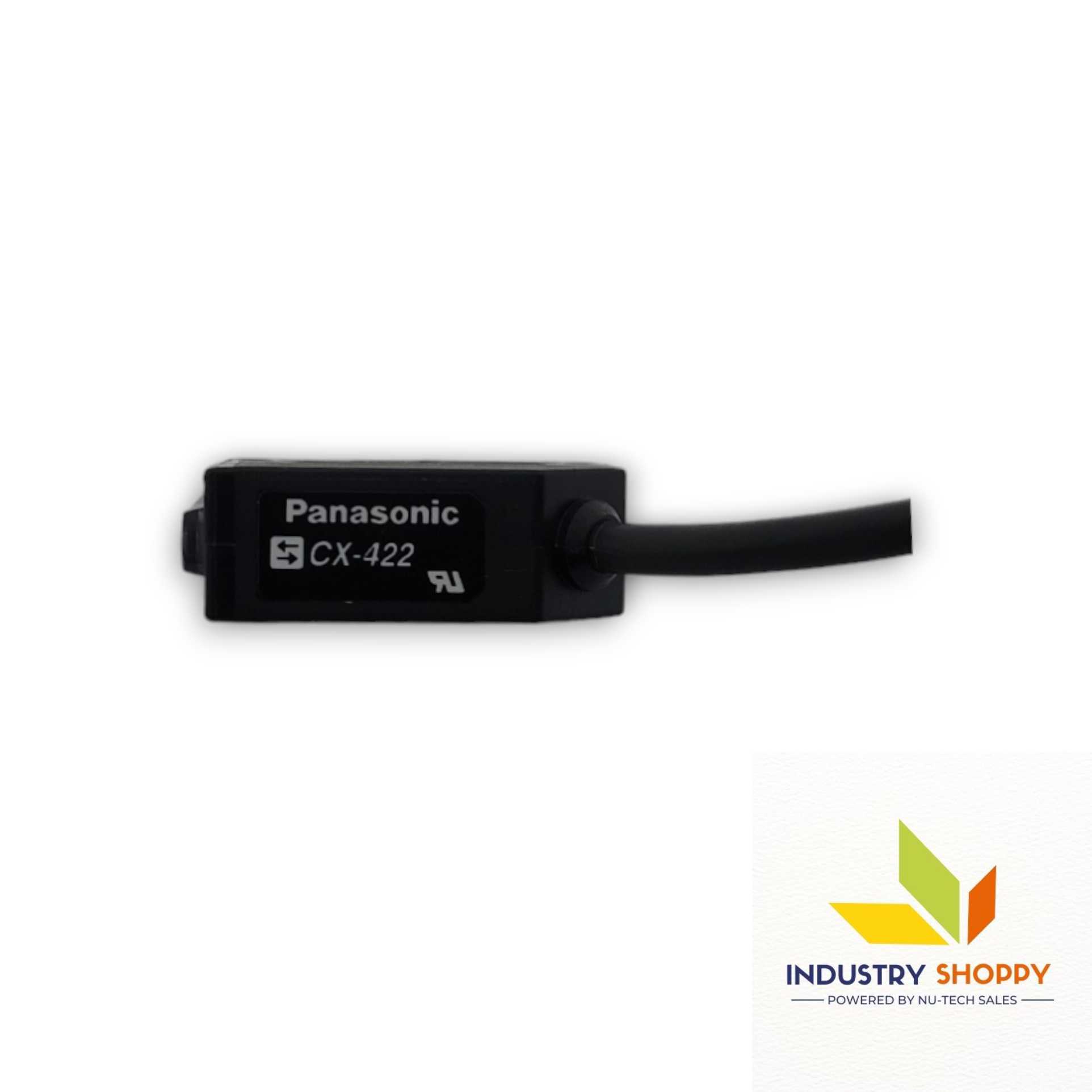

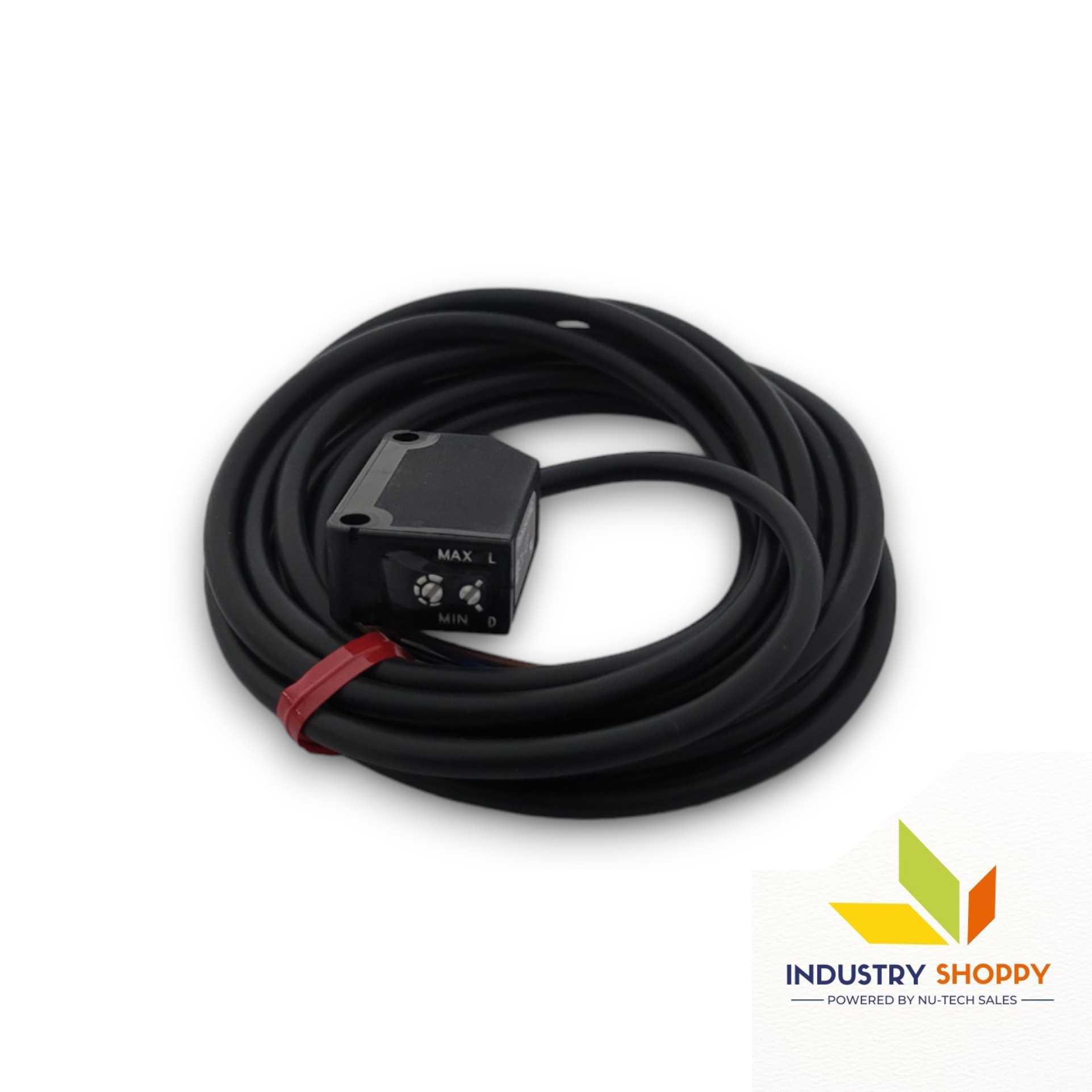

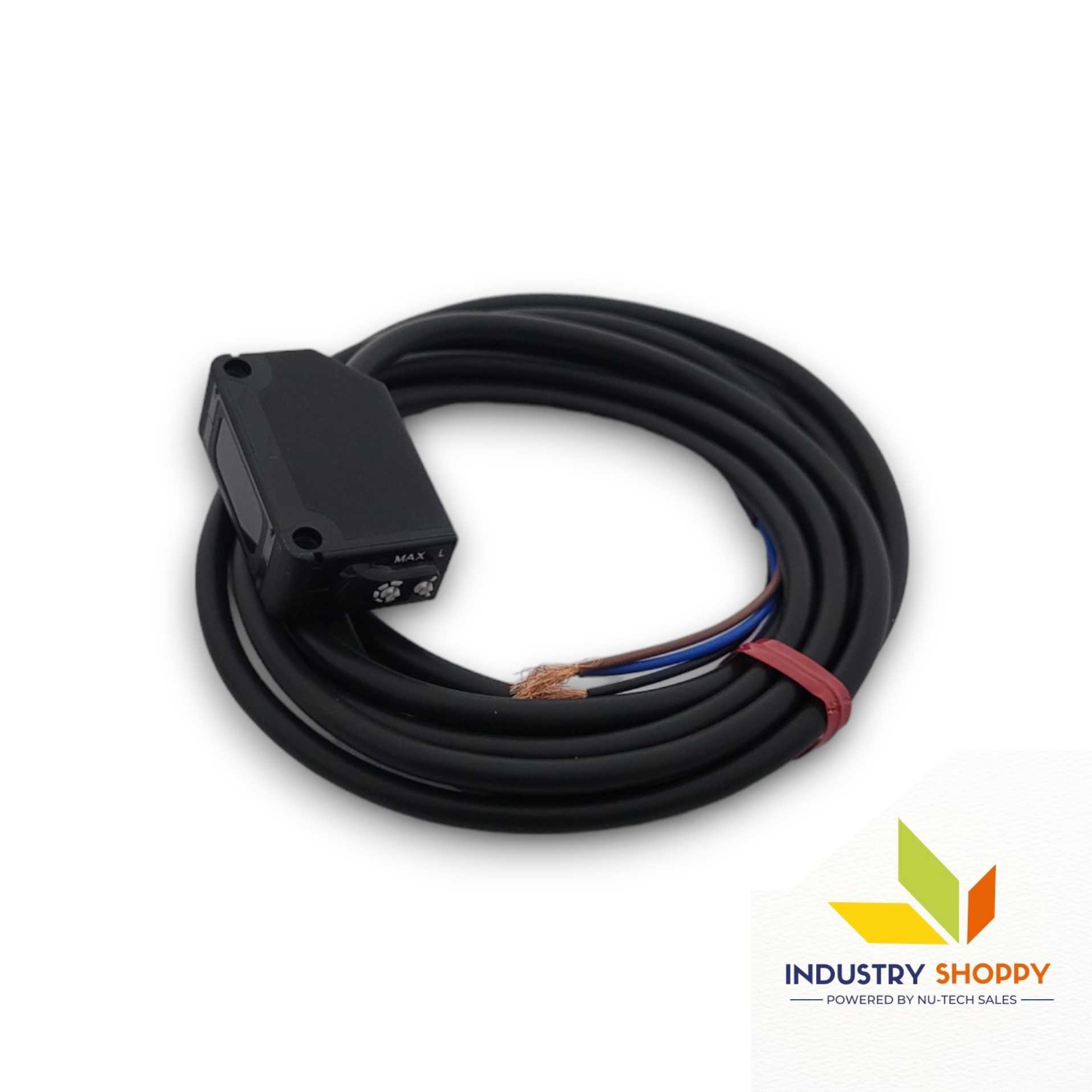

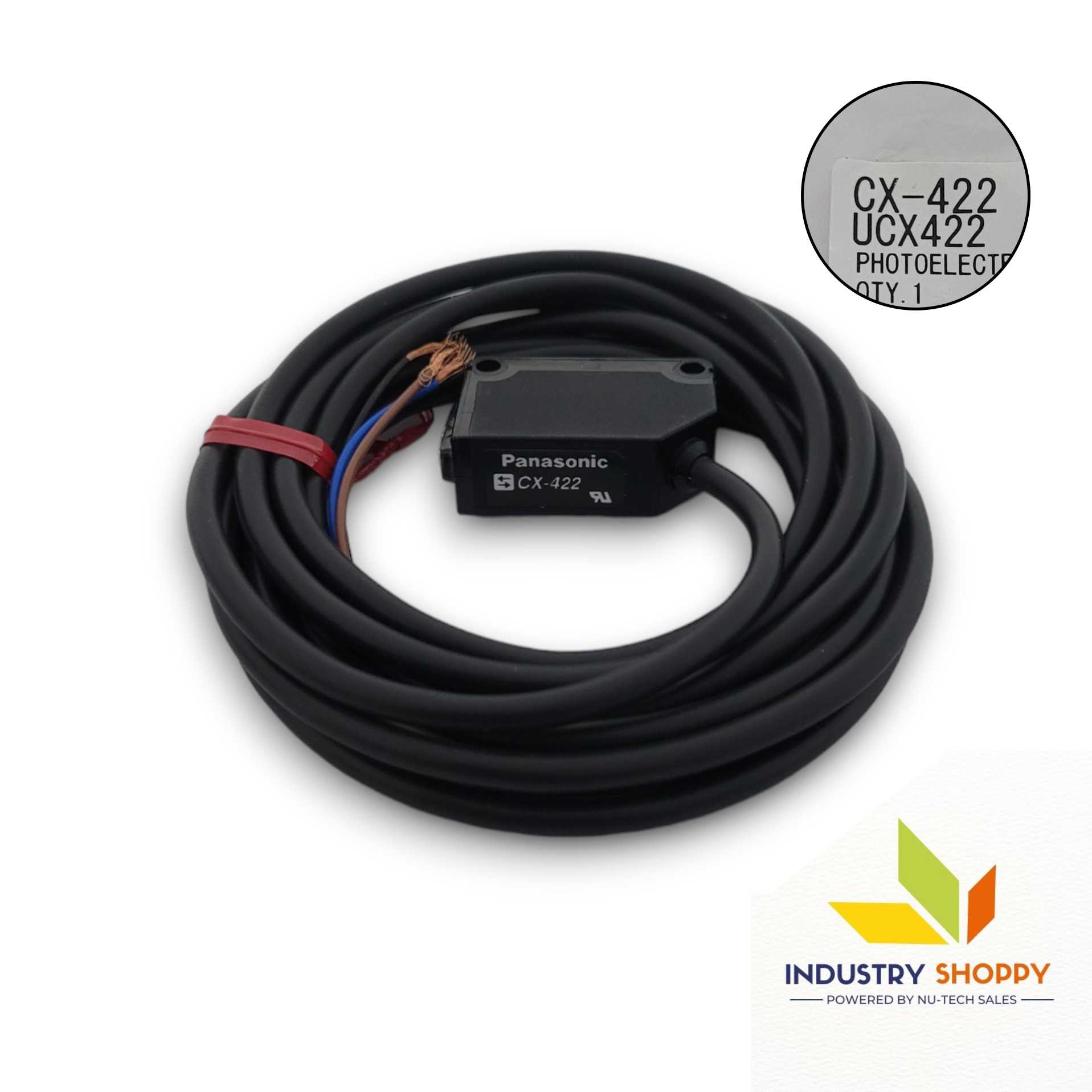

Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic CX-422 Photoelectric Sensor
Panasonic

Panasonic CX-422 Photoelectric Sensor

Product SKU: NTSSEN00090
Available:
Only 9 items in stock
9 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Supply voltage : 12..24 VDC
  • Dimension  :  10 mm x 25 mm x 64.3 mm
  • Switching output   :  NPN
  • Output  Operation :  Switchable either Light-ON or Dark-ON
  • Warranty : 12 Months
Rs. 2,480.00
Rs. 4,250.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic CX-422 Photoelectric Sensor

The Panasonic CX-422 Photoelectric Sensor (CX422, UCX422) is a versatile photoelectric sensor designed for various industrial applications. The Panasonic CX-422 sensor boasts a sensing range of 800 mm, ensuring precise detection capabilities. Additionally, with a repeatability of 1 mm or less, it guarantees accurate sensing of objects, whether they are opaque, translucent, or transparent.

The Panasonic CX-422 Photoelectric Sensor is compliant with CE Marking Directives, including the EMC Directive and RoHS Directive, ensuring adherence to regulatory standards. The NPN open-collector transistor output of the Panasonic CX-422 sensor offers operational flexibility, switching between Light-ON or Dark-ON modes. Additionally, its integrated short-circuit protection adds an extra layer of safety during operation.

Engineered for durability, the CX-422 features an IP67 protection rating, safeguarding it against dust and water ingress. Constructed with durable materials like polybutylene terephthalate (PBT) and acrylic, the Panasonic CX-422 sensor ensures resilience in demanding industrial settings.

Manufactured in China, the CX-422 embodies quality craftsmanship and innovation. Every aspect of the sensor is actively engineered for reliability and seamless integration. Every feature, from its modulated infrared LED to cable extension capabilities, enhances industrial performance.


Our engineers meticulously inputted all the necessary details of this sensor following the datasheet guidelines. However, it’s crucial to acknowledge the potential for errors during this process. Despite our diligent efforts, it’s imperative to remain vigilant as inaccuracies may persist despite our sincere endeavours.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience. Furthermore, our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandPanasonic
Product nameCX-422
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Sensing Range800 mm (31.496 in)
Note: For diffuse reflective type, specified with white non-glossy paper (200 × 200 mm / 7.874 × 7.874 in)
Sensing ObjectOpaque, translucent, or transparent object
Note: Confirm detection with actual sensor before use
Repeatability (Perpendicular to Sensing Axis)1 mm (0.039 in) or less
Hysteresis15% or less of operation distance
Note: Specified with white non-glossy paper (200 × 200 mm)
Supply Voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Current Consumption15 mA or less
OutputNPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less
- Residual voltage: 2 V or less (at 100 mA), 1 V or less (at 16 mA)
Output OperationSwitchable: Light-ON or Dark-ON
Output Short-Circuit ProtectionIncorporated
Response Time1 ms or less
Operation IndicatorOrange LED (lights up when output is ON, on receiver for thru-beam type)
Stability IndicatorGreen LED (lights up under stable light/dark condition, on receiver for thru-beam type)
Power Indicator-
Sensitivity AdjusterContinuously variable (on receiver for thru-beam type)
Automatic Interference Prevention FunctionIncorporated (Two sensors can be mounted close together)
ProtectionIP67 (IEC)
Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F) No dew/icing
Storage: -30 to +70 °C (-22 to +158 °F)
Ambient HumidityOperating: 35 to 85 % RH
Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at light-receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz, 1.5 mm (0.059 in) amplitude, 10 G max, X/Y/Z directions for 2 h each
Shock Resistance500 m/s² (approx. 50 G) in X/Y/Z directions, 3 times each
Emitting Element (Modulated)Infrared LED
Peak Emission Wavelength860 nm (0.034 mil)
MaterialEnclosure: PBT (polybutylene terephthalate)
Lens: Acrylic
Indicator cover: Acrylic
Cable0.2 mm² 3-core cabtyre cable, 2 m (6.562 ft) long
Cable ExtensionUp to 100 m (328.084 ft) possible with 0.3 mm² or more cable
Country of originJapan
