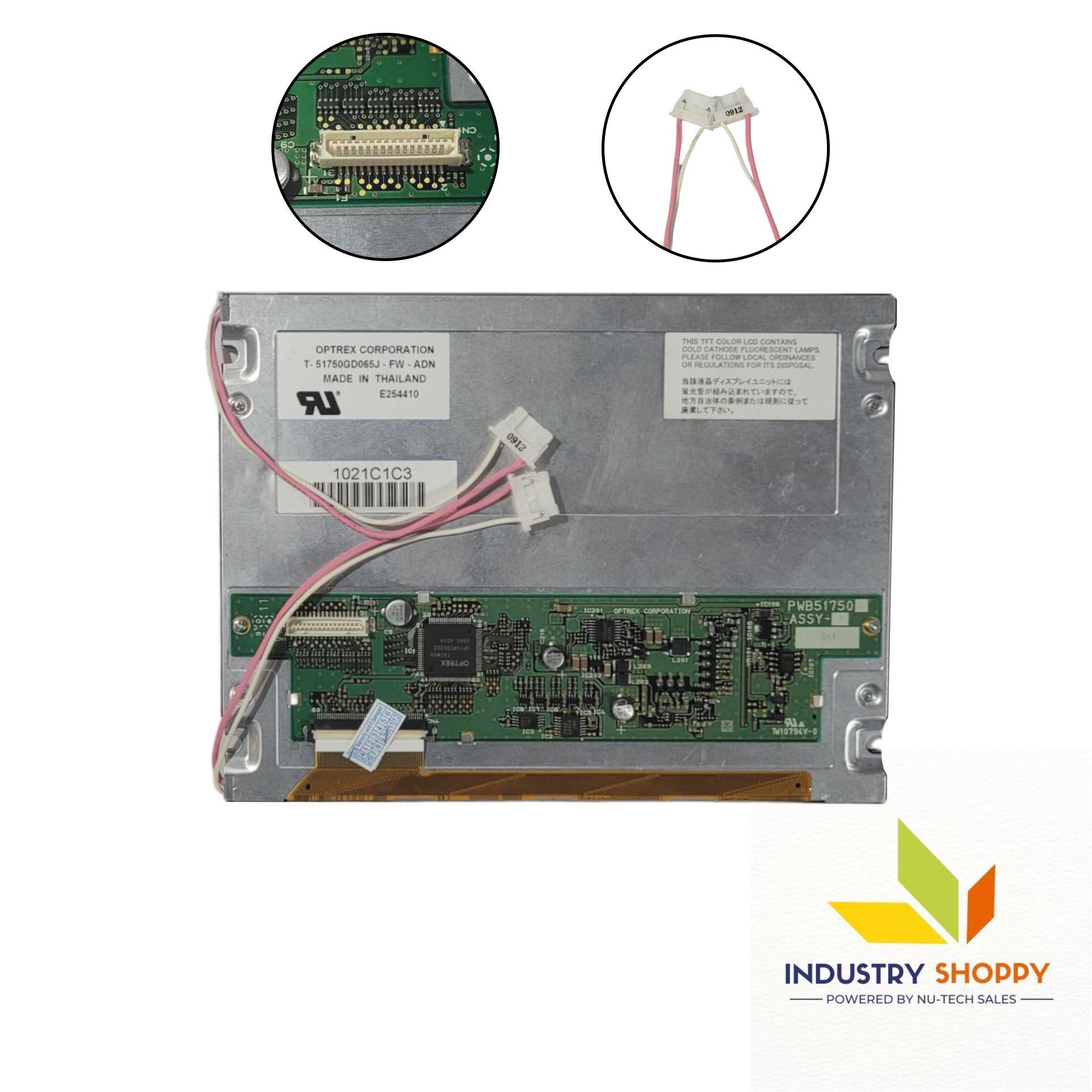

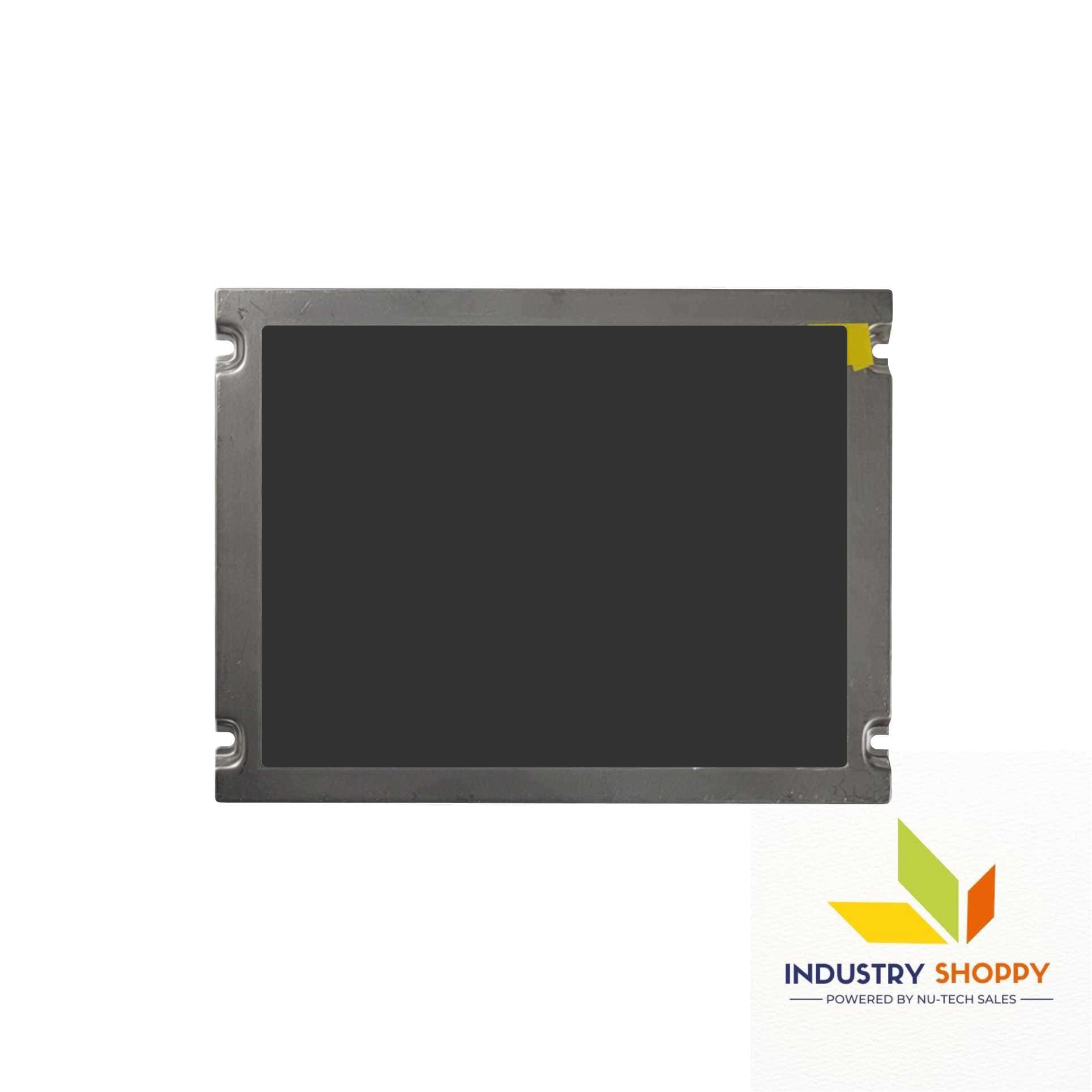

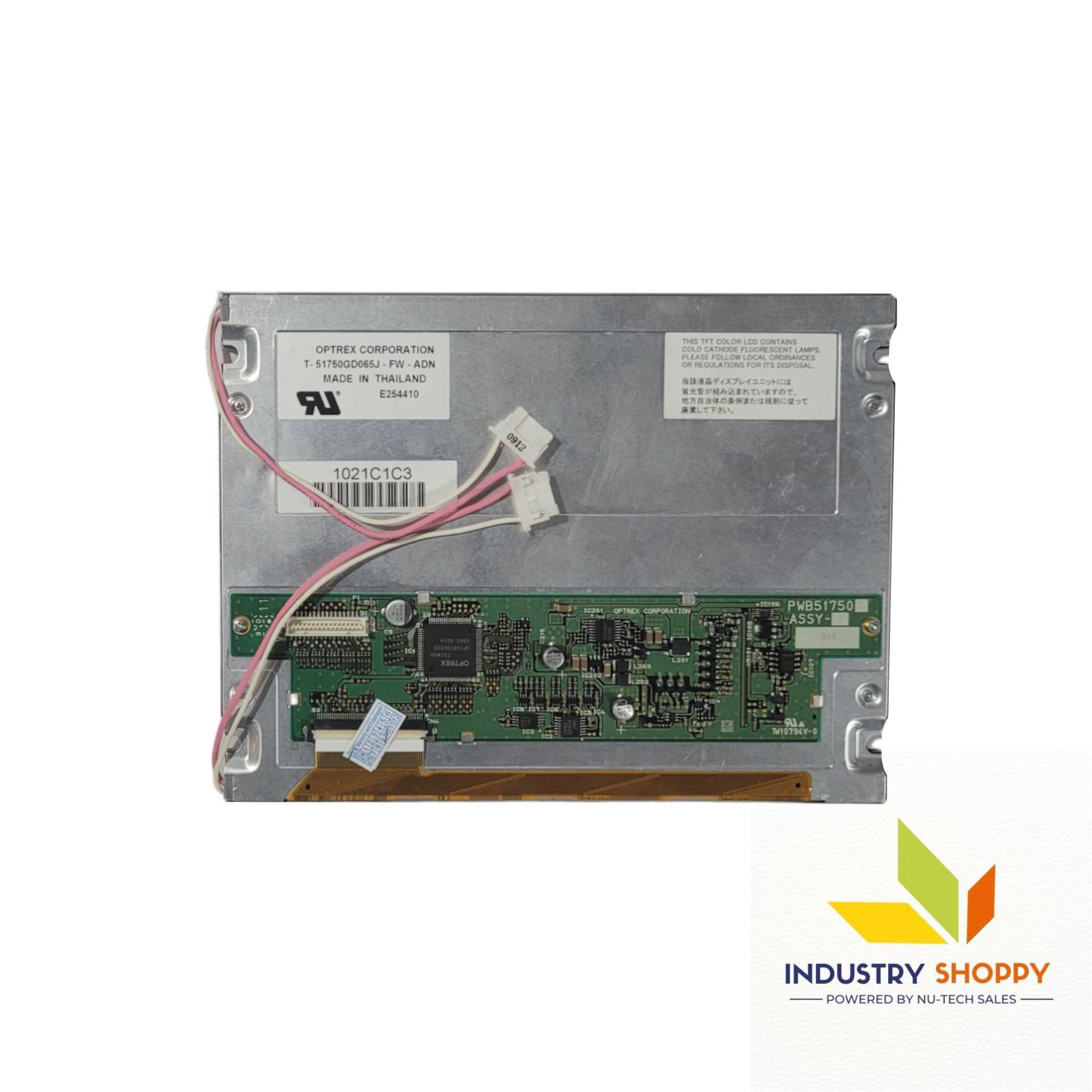

Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex T-51750GD065J-FW-ADN LCD Module
Optrex

Optrex T-51750GD065J-FW-ADN LCD Module

Product SKU: NTSLCD0002
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Optrex
  • Size : 6.5″
  • Condition : Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 13,850.00
Rs. 18,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Optrex T-51750GD065J-FW-ADN LCD Module


The Optrex T-51750GD065J-FW-ADN LCD Module 6.5" a-Si TFT-LCD module offers reliable visual clarity in a compact form factor. With a VGA resolution of 640(RGB)×480 and a high pixel density of 122 PPI, it delivers sharp image quality suitable for industrial, embedded, and control applications.

Its active area measures 132.48 × 99.36 mm, housed within a slim 158 × 120.36 × 11.05 mm frame. The display achieves a typical luminance of 400 cd/m² and a 300:1 contrast ratio, ensuring visibility under standard lighting conditions.

Utilizing TN, Normally White, Transmissive technology, it offers a viewing angle of 55/55/30/60 (CR≥10). With a response time of 15/16 ms (Tr/Td), the panel supports smooth transitions for most display needs.

The panel displays 262K colors, covering 39% of the NTSC gamut, and connects via a 31-pin, 6-bit Parallel RGB interface. Operating at a 60Hz frame rate, it supports both 3.3V and 5.0V (typical) power input options, enhancing design flexibility.

Backlighting is provided by two CCFL tubes, rated for 50,000 hours of life (inverter not included). The display can operate in temperatures from -25°C to 75°C, and withstand storage conditions down to -85°C, making it suitable for rugged and demanding environments.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandOptrex
Diagonal Size6.5"
Resolution640(RGB)×480, VGA 122 PPI
Active Area132.48(W)×99.36(H) mm
Outline Dimension158(W)×120.36(H)×11.05(D) mm
Luminance400 cd/m² (Typ.)
Contrast Ratio300:1 (Typ.) (TM)
Viewing Angle55/55/30/60 (Typ.) (CR≥10)
Response Time15/16 (Typ.) (Tr/Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare (Haze 9%)
Operating ModeTN, Normally White, Transmissive
Support Color262K, 39% NTSC
Signal Interface TypeParallel RGB (1 ch, 6-bit), 31 pins Connector
Frame Rate60 Hz
Power Supply3.3/5.0 V (Typ.) (VCC)
BacklightCCFL [2 pcs], 50K hours, W/O Driver
Operating Temp.-25 ~ 75 °C
Storage Temp.-25 ~ 85 °C
