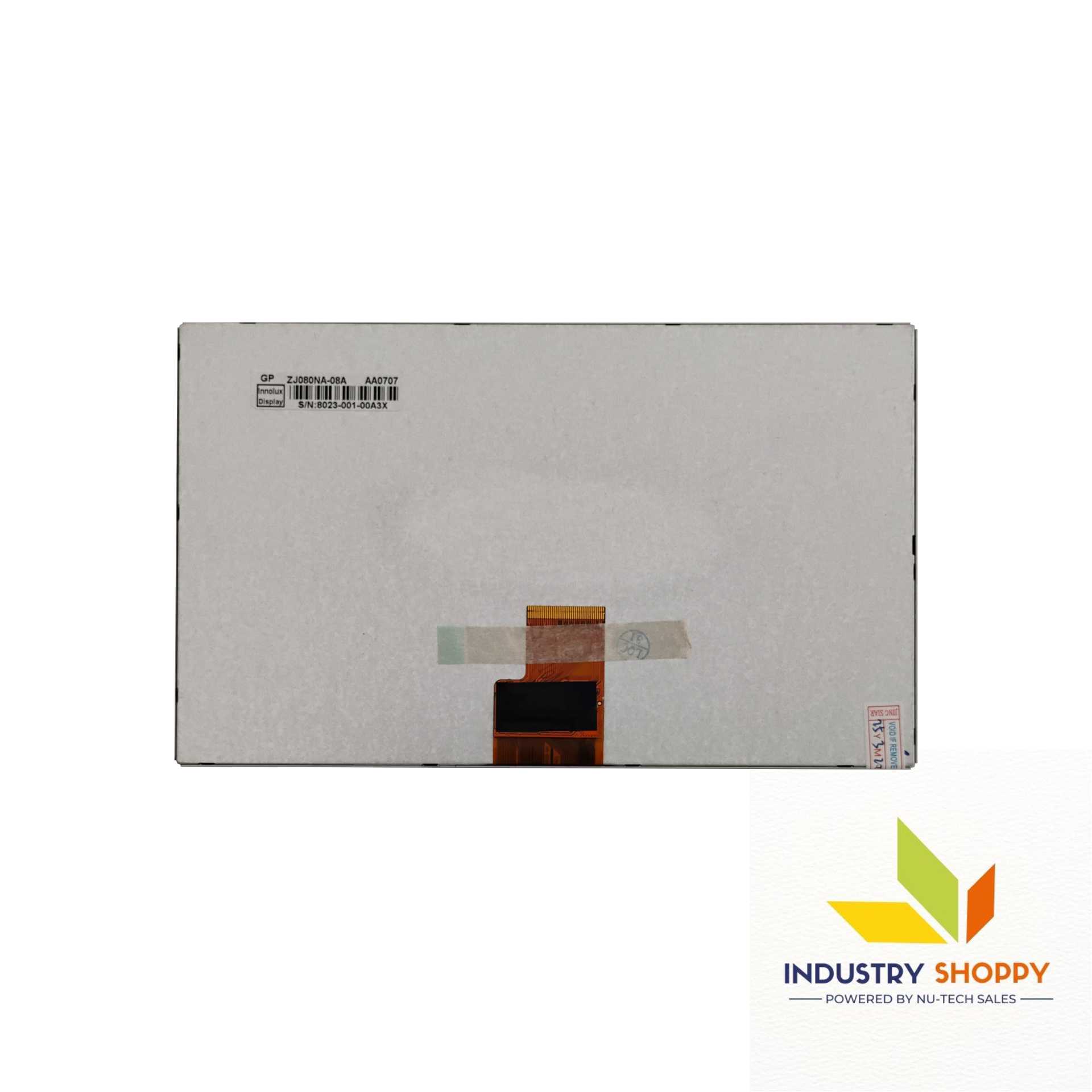

Innolux ZJ080NA-08A LCD Module

Innolux ZJ080NA-08A LCD Module

The Innolux ZJ080NA-08A LCD Module offers a 1024×600 WSVGA resolution with 148 PPI, ensuring sharp visuals and detailed clarity.

With an active area of 176.64(W)×99.36(H) mm, it provides an efficient display size for various applications. The 500 cd/m² brightness ensures clear visibility even in well-lit environments, while the 700:1 contrast ratio enhances image depth and sharpness.

The 75°/75°/70°/75° viewing angles ensure consistent image quality from different perspectives. Using TN, Normally White, Transmissive technology, this panel delivers vivid colors and smooth visuals.

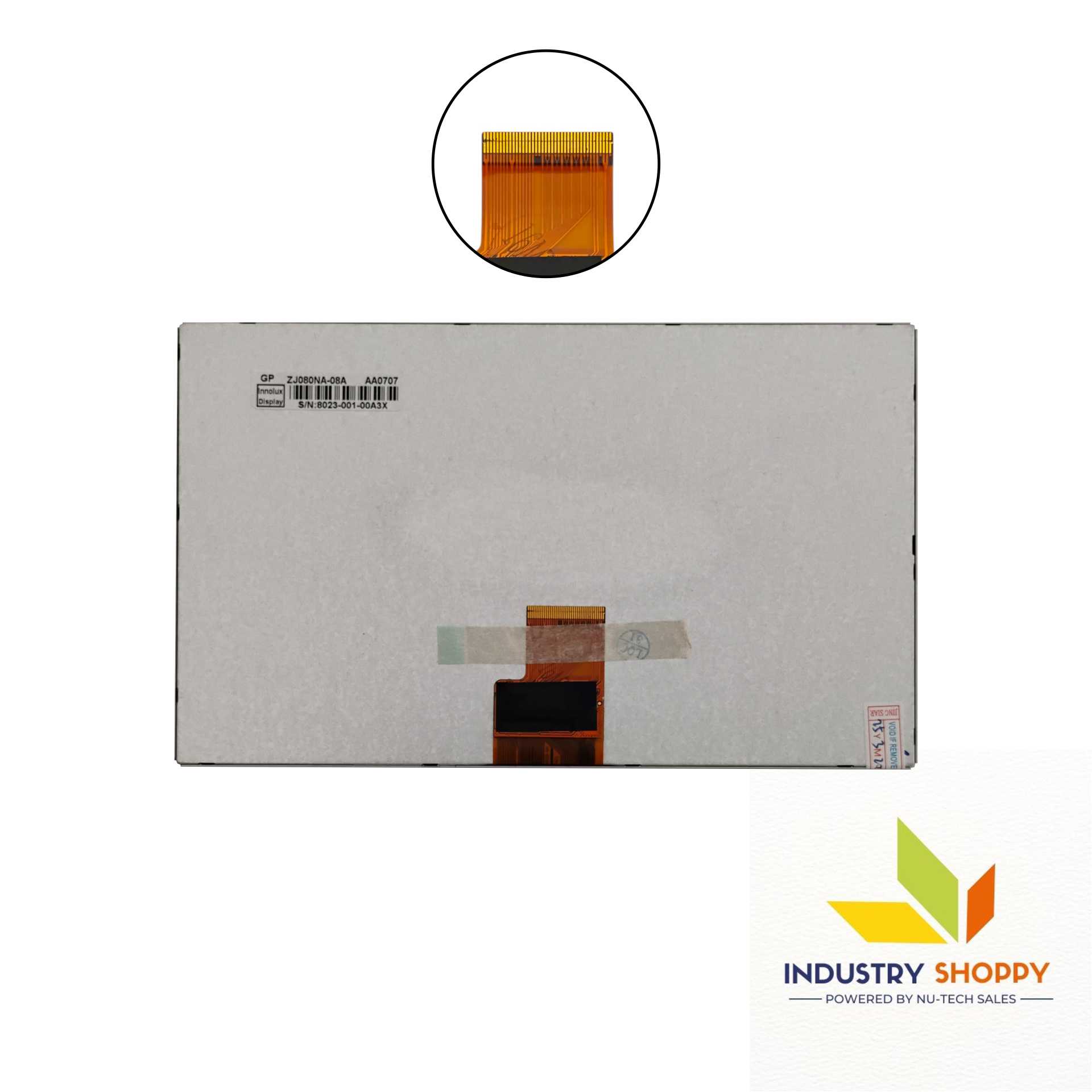

Supporting 16.7 million colors with 70% NTSC coverage, it is ideal for multimedia and industrial applications. The LVDS (1 ch, 8-bit) 40-pin FPC interface ensures stable signal transmission, while the 60Hz frame rate maintains fluid motion.

Powered by 3.3V, 11.0V, 20.0V, and -6.8V, the WLED backlight offers a 20,000-hour lifespan, ensuring long-term durability. It withstands operating temperatures from -20°C to 80°C, making it reliable in extreme environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
