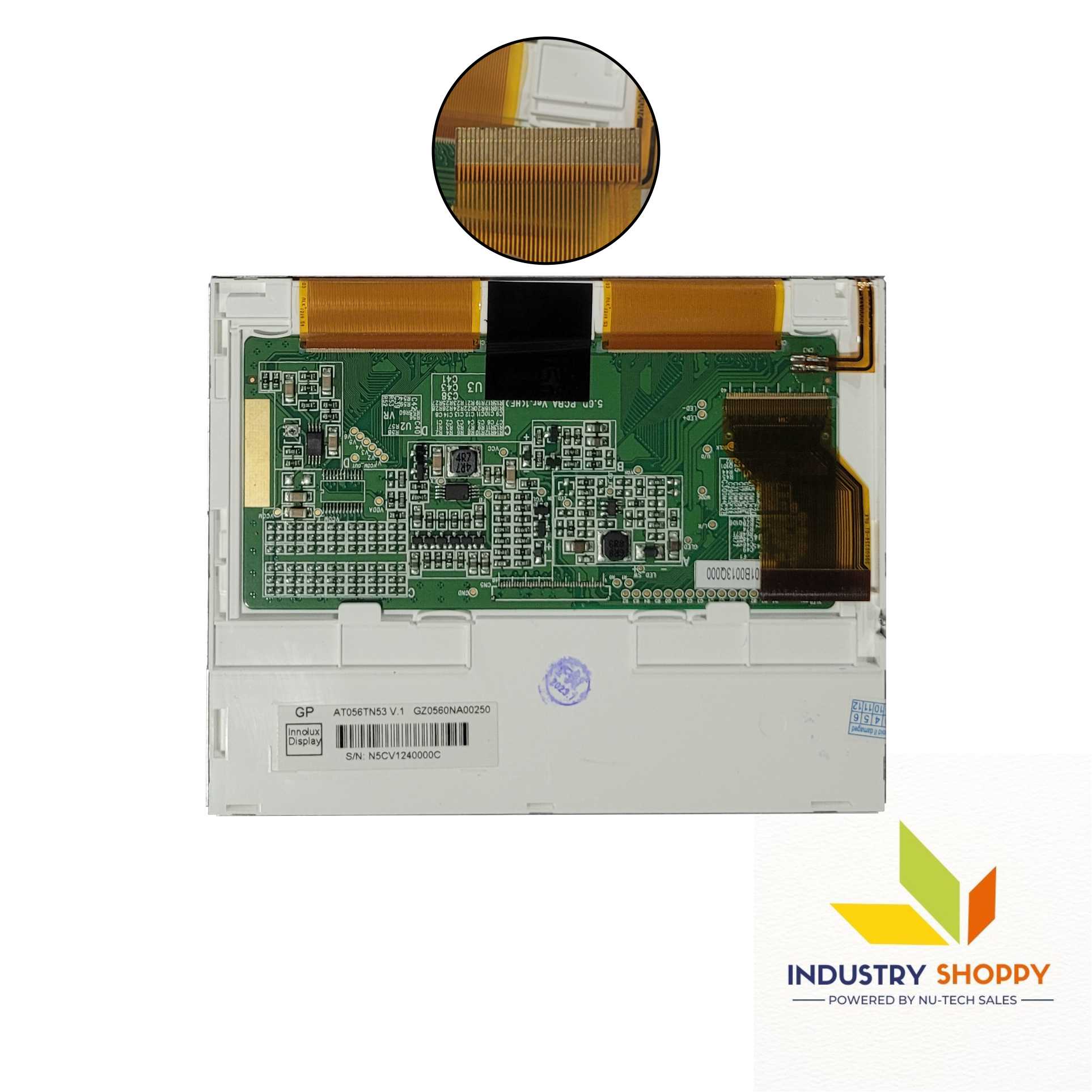

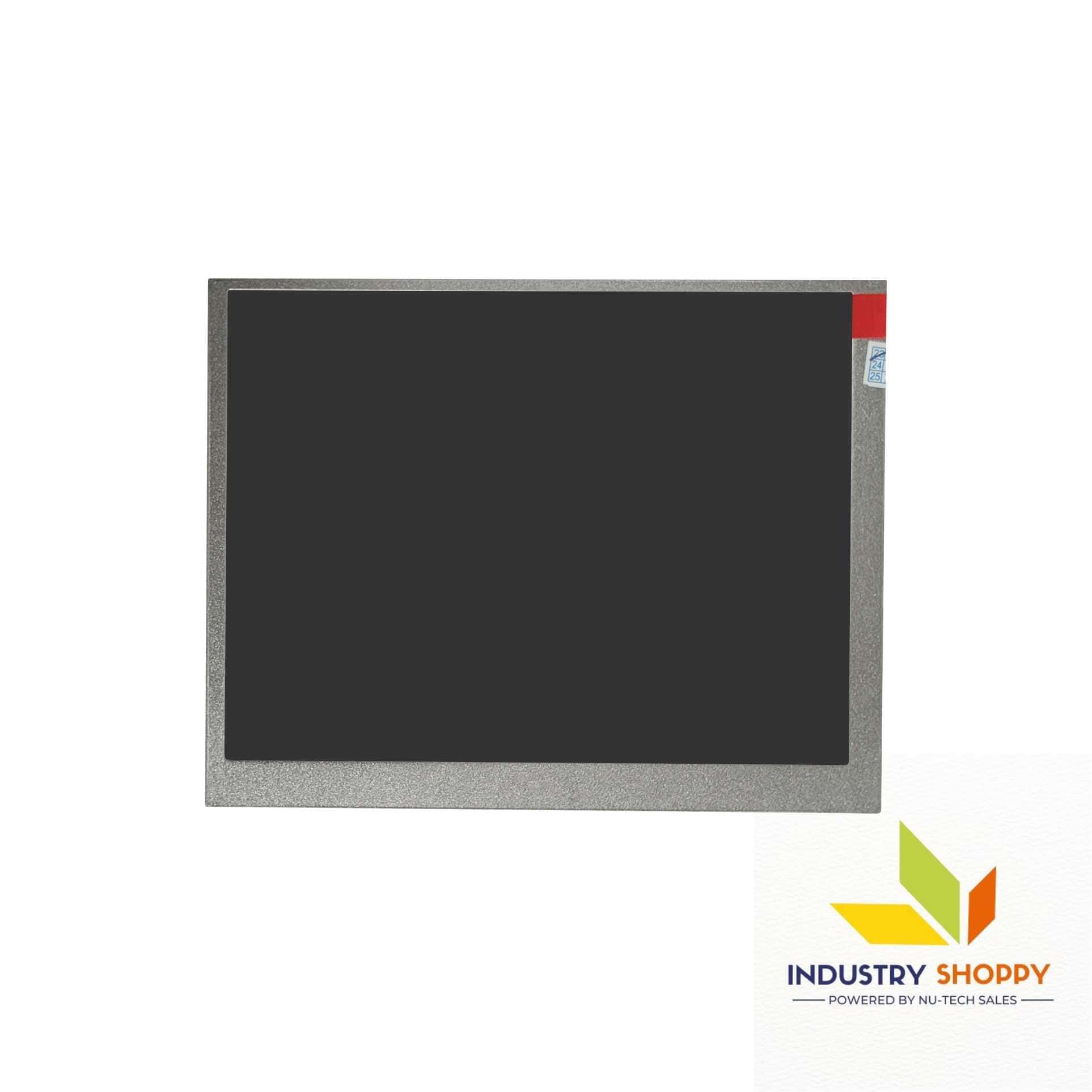

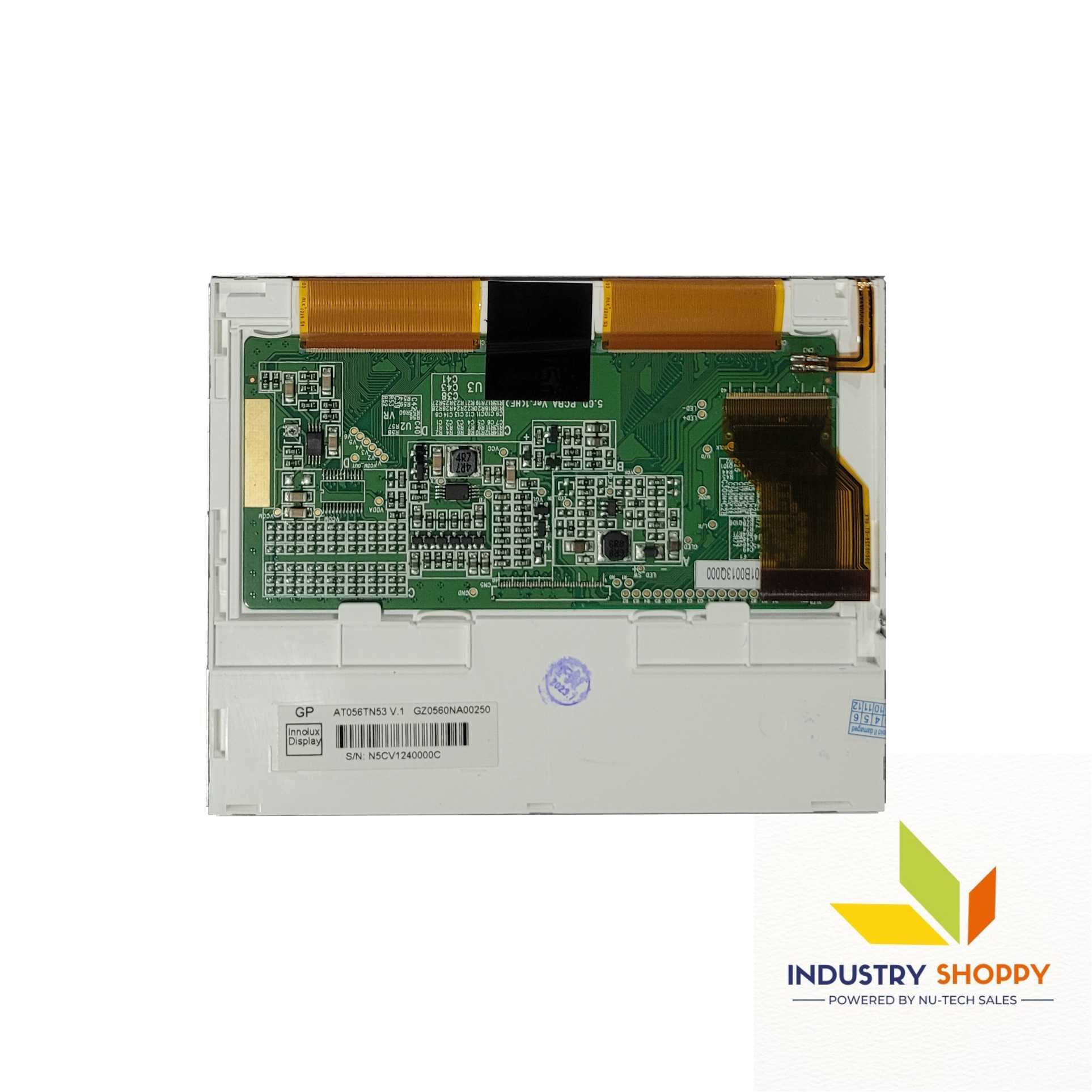

Innolux AT056TN53-V.1 LCD Module

Moreover, the display offers a typical brightness of 115.9 cd/m² and a contrast ratio of 500:1, ensuring adequate visibility in moderate lighting conditions. The TN panel operates in Normally White, Transmissive mode with antiglare treatment, balancing efficiency and readability.

In terms of responsiveness, the screen achieves a response time of 10/15 ms (Tr/Td), making it capable of handling dynamic UI transitions. Additionally, its viewing angles—70° horizontally and up to 70° vertically—provide acceptable off-axis visibility.

Supporting 262K colors at 50% NTSC, the display connects via a 40-pin Parallel RGB interface and runs on a typical 3.3V power supply. Importantly, the WLED backlight, rated for 20,000 hours, includes an integrated LED driver, simplifying integration.

Finally, with an operating temperature range of -20°C to 70°C and storage range down to -30°C, this panel ensures stable performance across a wide array of environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
