Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
Chunghwa CLAA090NA02CW LCD Module
CPT

Chunghwa CLAA090NA02CW LCD Module

Product SKU: NTSLCD0132
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : CPT'/Chunghwa
  • Size : 9.0″
  • Condition  :  New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 7,850.00
Rs. 10,640.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

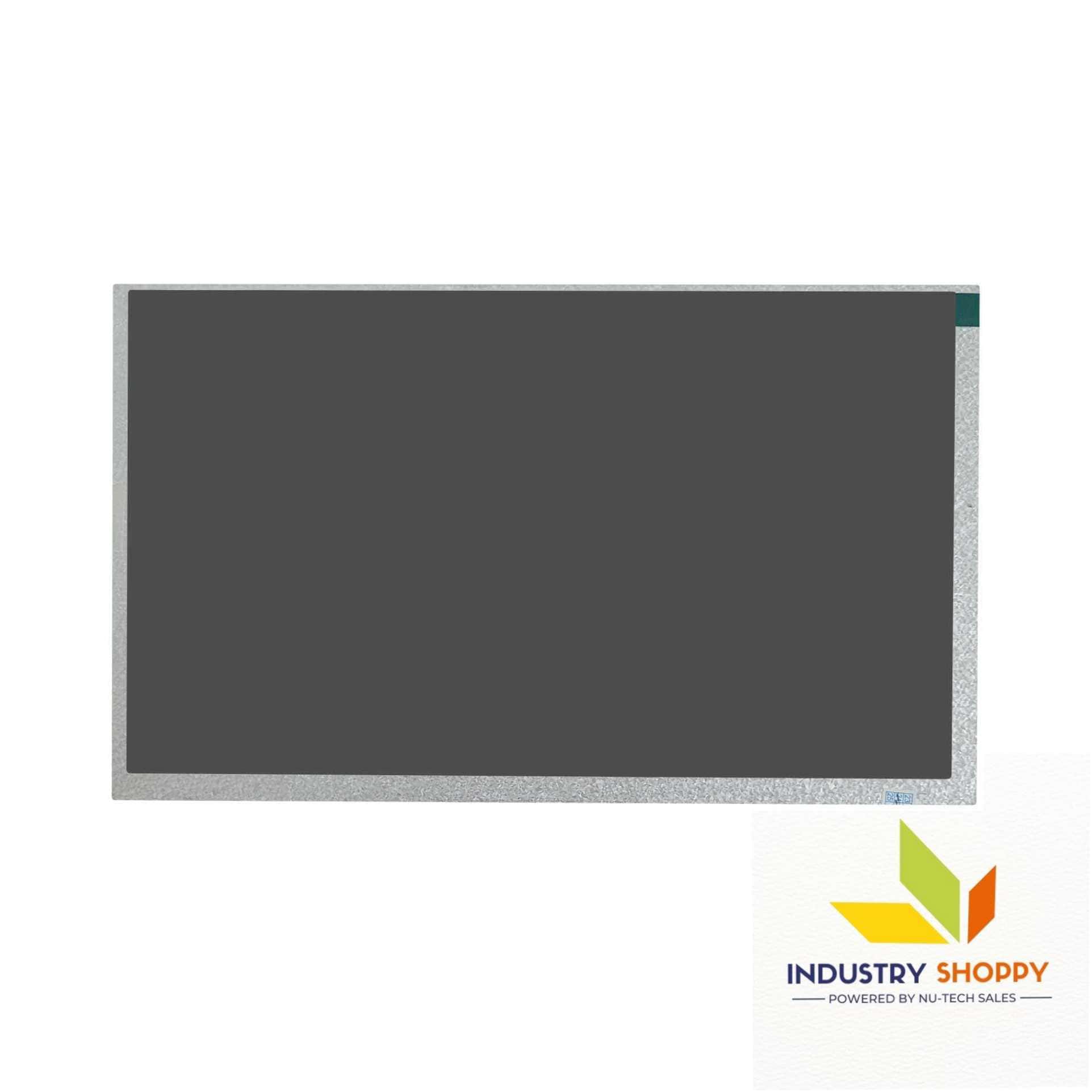

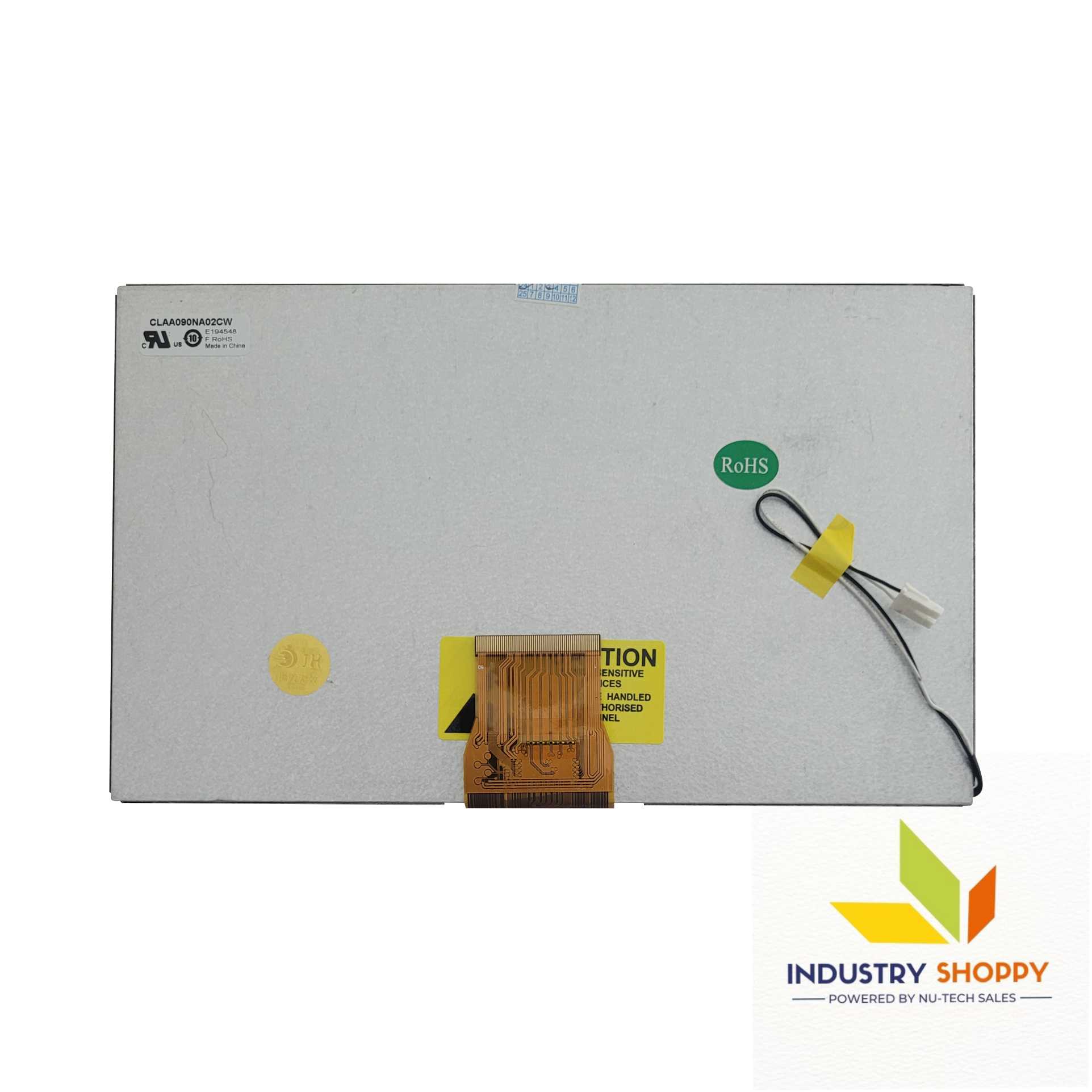

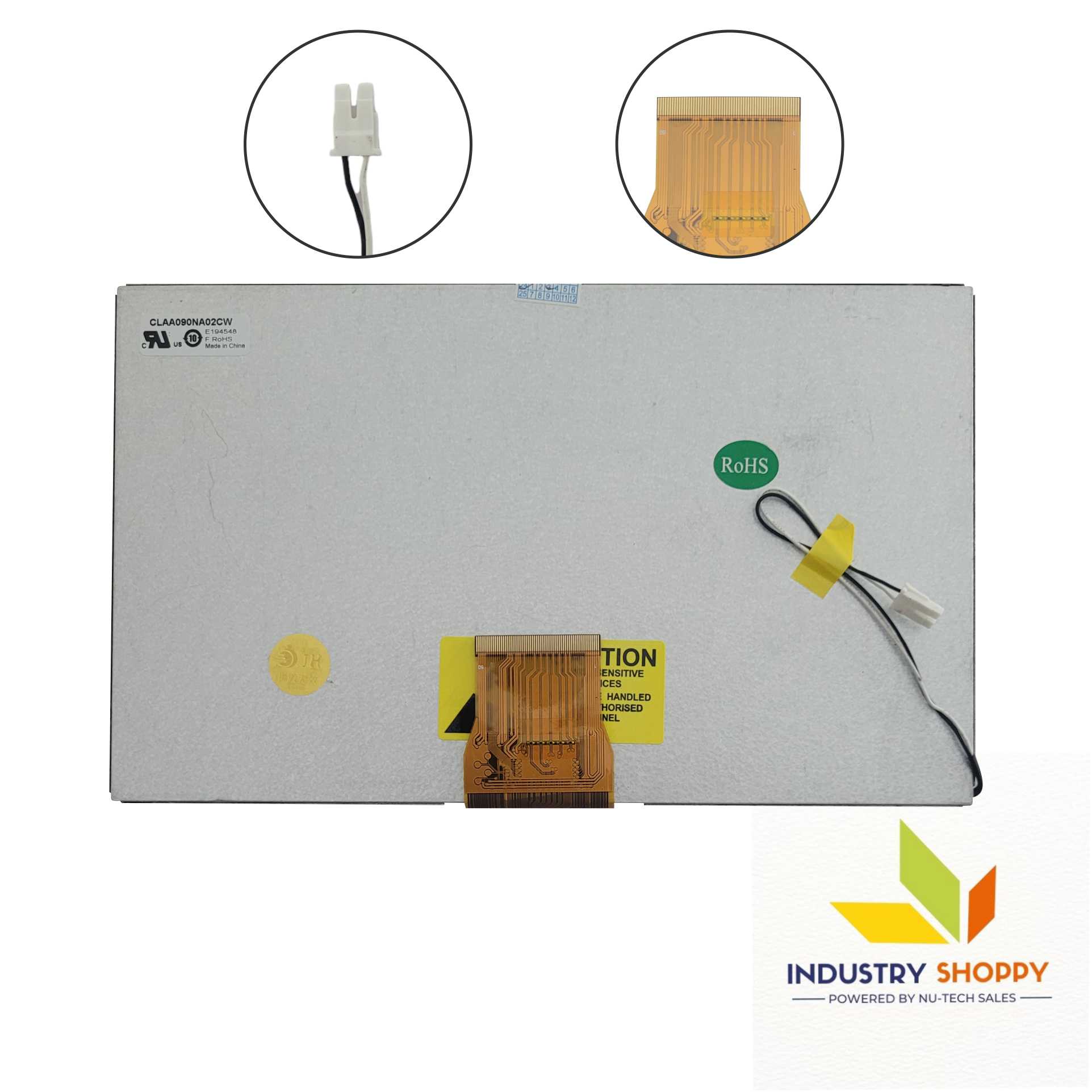

Chunghwa CLAA090NA02CW LCD Module

The Chunghwa CLAA090NA02CW LCD Module is 9.0-inch TFT-LCD display is a compact, high-performance solution designed for industrial panels, medical monitors, and portable diagnostic devices.

The Chunghwa 9.0-inch TFT-LCD module delivers a balanced mix of clarity, durability, and performance. It boasts a resolution of 1024(RGB)×600 at 132 PPI, providing fine image detail ideal for medical monitors, industrial HMIs, and portable control devices.

Its active viewing area spans 196.608(W)×114.15(H) mm, with a compact 3.5 mm thickness, fitting easily into tight enclosures. The antiglare surface and 3H hard coating significantly reduce reflections, thereby ensuring legibility under direct light. This makes it particularly ideal for outdoor kiosks or in-vehicle displays where visibility is crucial.

Moreover, with a luminance of 300 cd/m² and a contrast ratio of 500:1, visuals remain vibrant and well-balanced. Although it utilizes TN technology, it still offers viewing angles of 70/70/50/70, which are sufficient for most angled display applications.

In addition, the module supports 262K/16.2M colors and is compatible with a 60-pin LVDS interface, ensuring seamless integration into embedded systems. Furthermore, the WLED backlight is rated to last 20,000 hours, reducing the need for frequent maintenance.

Additionally, it operates within a wide temperature range of -20°C to 70°C and is built to withstand vibrations up to 2.9G. This makes the display well-suited for use in factory floors, automated machinery, and transport systems, where durability and reliability are paramount.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


Brand
Chunghwa
Diagonal Size9.0"
Resolution1024(RGB)×600, WSVGA 132PPI
Active Area196.608(W)×114.15(H) mm
Outline Dimension211.1(W)×126.5(H) ×3.5(D) mm
Luminance300 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle70/70/50/70 (Typ.) (CR≥10)
Response Time25 (Typ.) (Tr+Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M 50% NTSC
Signal Interface TypeLVDS (1 ch, 6/8-bit), 60 pins FPC
Frame Rate60Hz
Power Supply3.3/9.6/18/-6V (Typ.) (DVDD/AVDD/VGH/VGL)
Backlight4S7P WLED, 20K hours, Without Driver
Operating Temp.-20 ~ 70 °C
Storage Temp.-30 ~ 80 °C; Vibration Level: 2.9G (28.4 m/s²)
