Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei N121X5-L07 LCD Module
Chi-Mei

Chi-Mei N121X5-L07 LCD Module

Product SKU: NTSLCD0060
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : Chi-Mei
  • Size : 12.1"
  • Condition  :  Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 11,840.00
Rs. 15,200.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

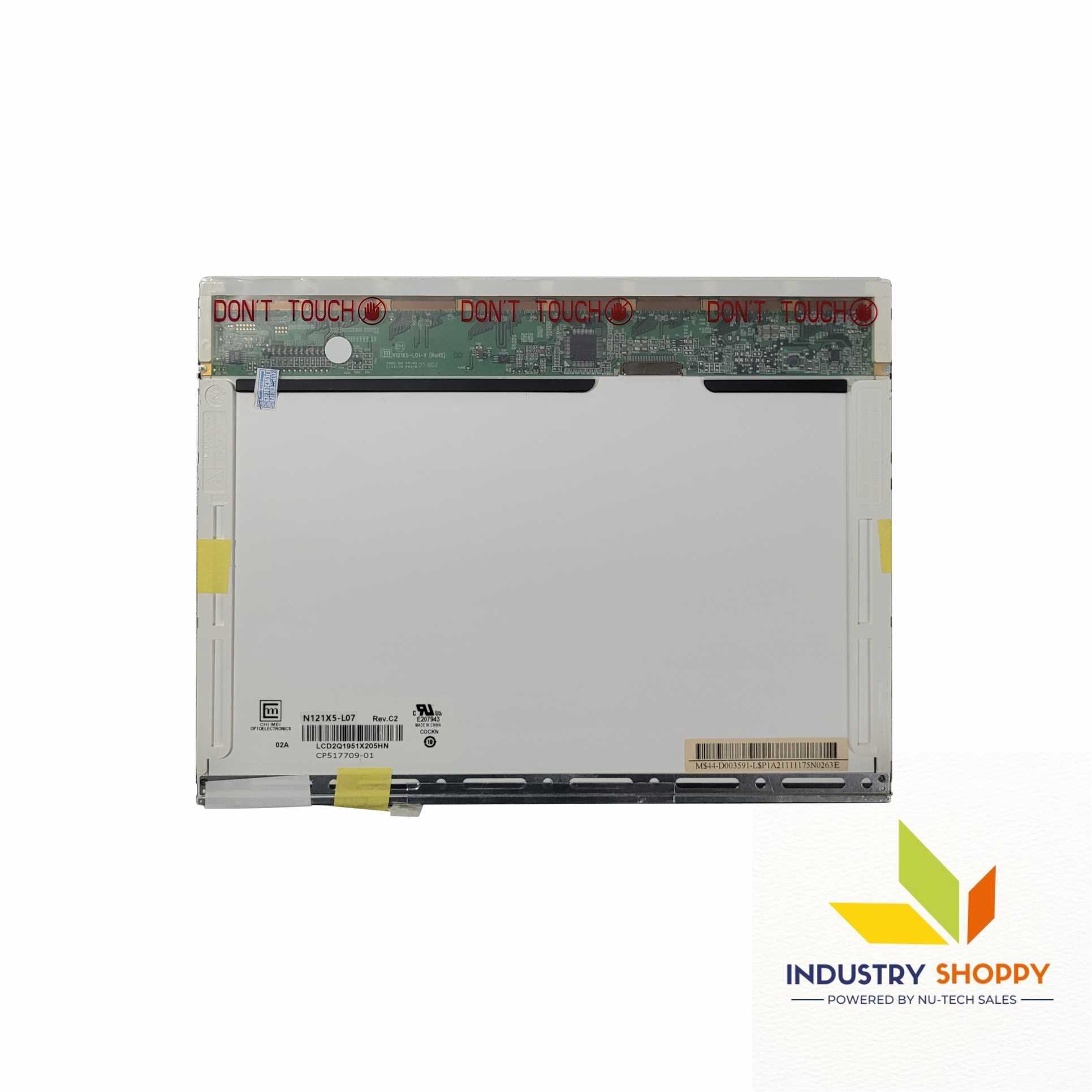

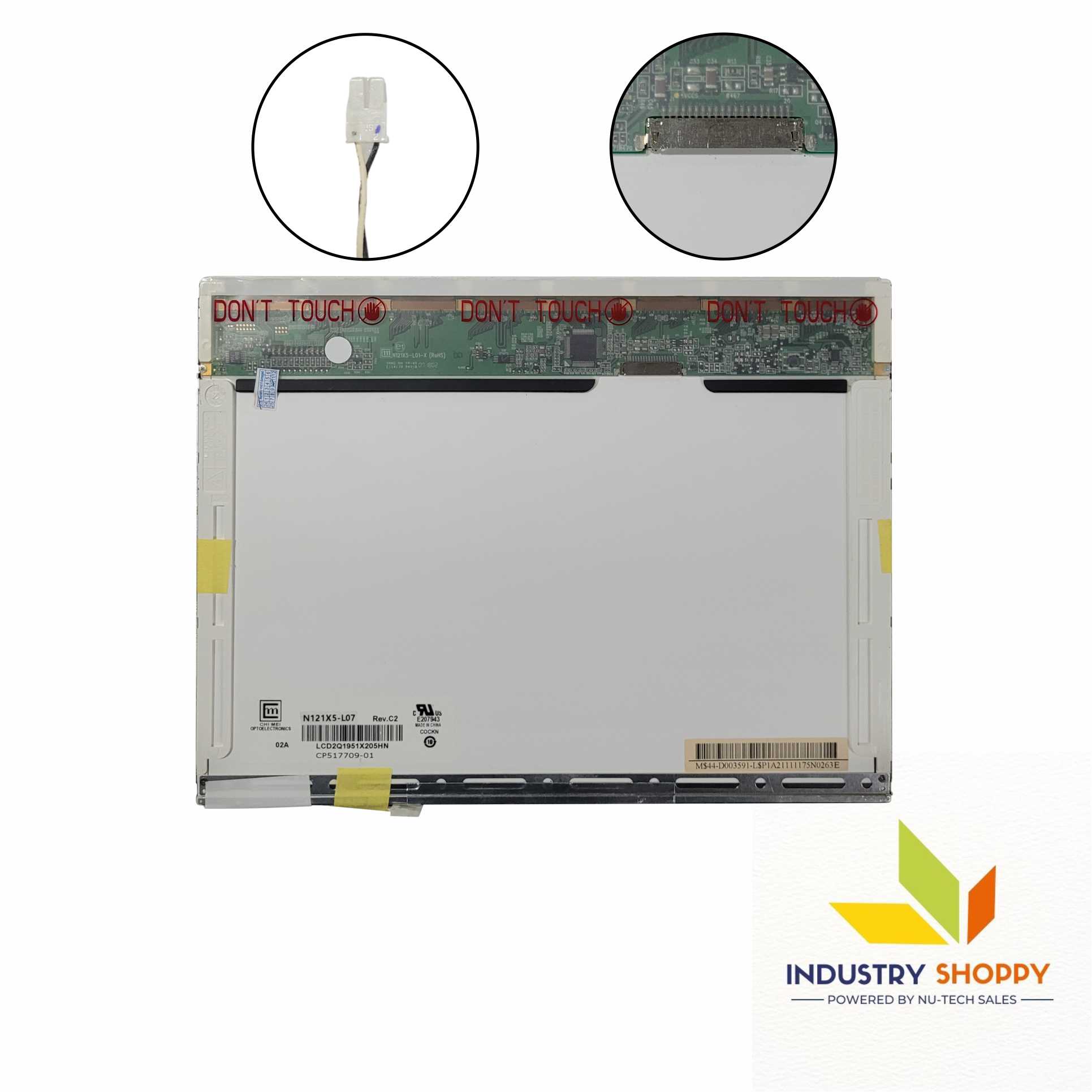

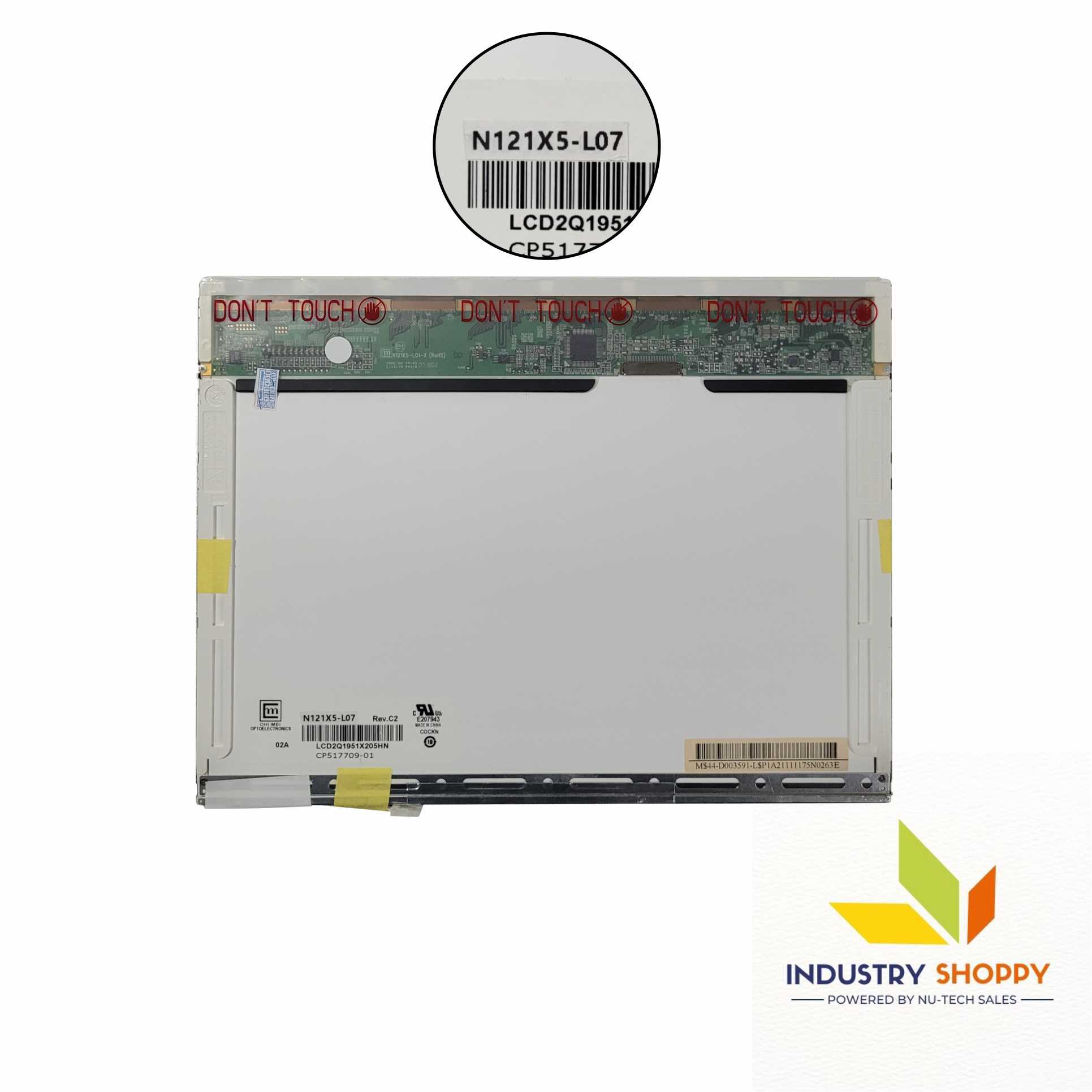

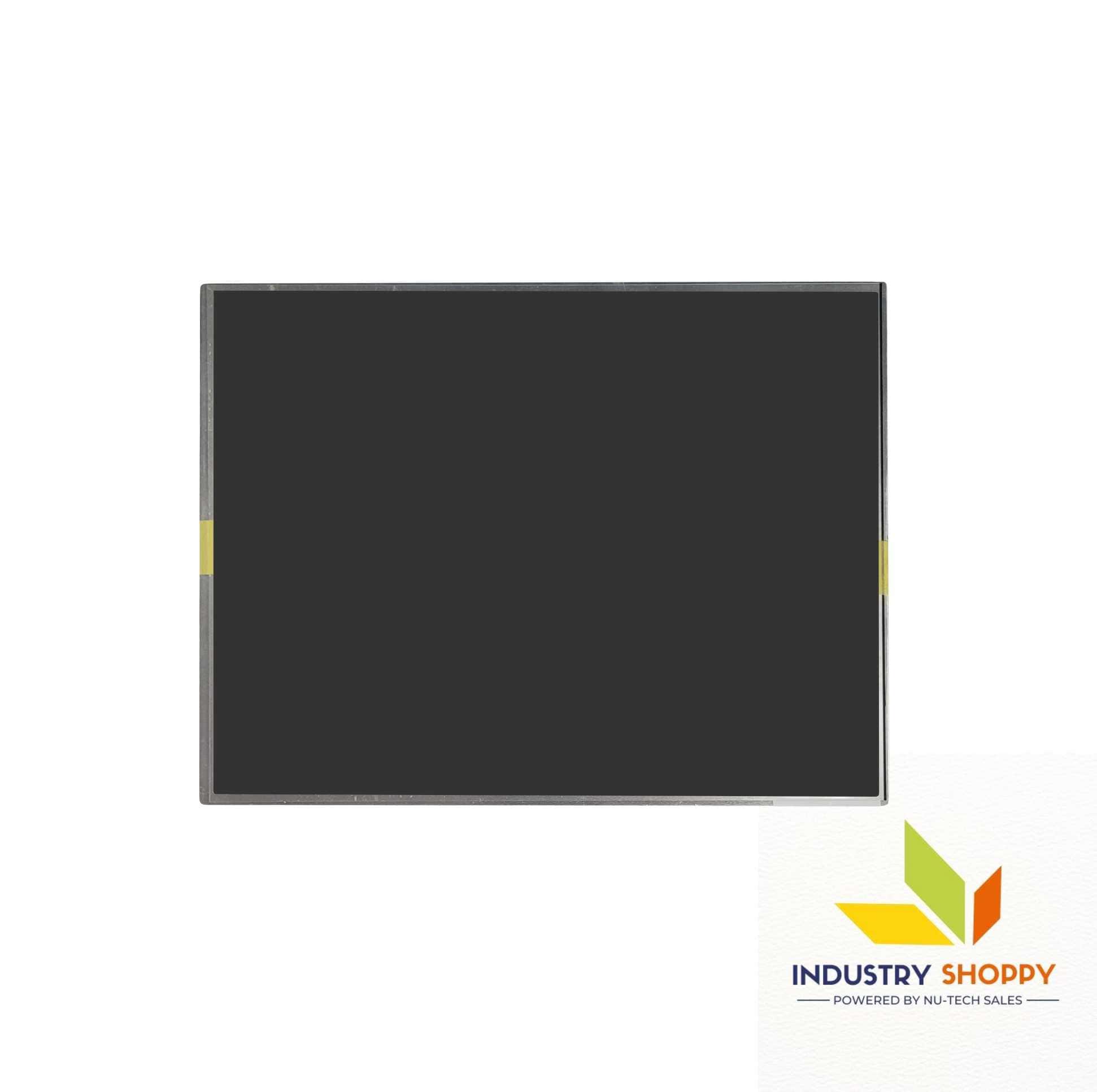

Chi-Mei N121X5-L07 LCD Module

The Chi-Mei N121X5-L07 LCD Module, this 12.1-inch a-Si TFT-LCD panel delivers a 1024×768 (XGA) resolution at 105 PPI, ensuring sharp and clear visuals across its 245.76 × 184.32 mm active area. Housed in a slim 261 × 198 × 5 mm chassis, it’s well-suited for compact and embedded applications.

Despite its modest 150 cd/m² luminance, the panel provides reliable performance under controlled lighting. It achieves a 300:1 contrast ratio, while its 45/45/20/45° viewing angles and 5/11 ms (Tr/Td) response times support basic multimedia and UI interactions.

The display runs in TN mode with a normally white, transmissive configuration, complemented by an antiglare surface (Haze 42%) and 2H hard coating to reduce reflections and enhance durability. It supports 262K colors with 45% NTSC coverage, offering adequate color fidelity for industrial use.

For connectivity, it employs a 20-pin LVDS (6-bit) interface, enabling integration with a wide range of systems. Running at 60Hz, the panel operates efficiently on a 3.3V power supply.

Furthermore, the integrated single CCFL backlight is rated for 12,000 hours, though it lacks an onboard driver—requiring external support. Designed for resilience, the panel withstands operating temperatures from -20°C to 60°C, with safe storage between 0°C and 50°C.


Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube


BrandAUO
Diagonal Size7.0"
Resolution800 × 480 (RGB), WVGA, 133 PPI
Active Area152.4 (W) × 91.44 (H) mm
Outline Dimension165 × 104 × 5.4 (H × V × D) mm
Luminance500 cd/m² (Typ.)
Contrast Ratio500 : 1 (Typ.) (TM)
Viewing Angle65/65/50/60 (Typ.) (CR ≥ 10)
Response Time12/18 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color16.7M, 50% NTSC
Signal Interface TypeTTL (1 ch, 8-bit) + SPI, FPC 60 pins
Frame Rate60 Hz
Power Supply3.3 / 5 / -5 / 14 / -14 V (Typ.) (VCC / VDPA / VDNA / VGH / VGL)
Backlight3S11P WLED, 10K hours, No Driver
Operating Temp.-30 ~ 80 °C
Storage Temp.-20 ~ 70 °C
