30% Rs. 5,485.00
G121SN01-V.3
AUO G121SN01-V.3 LCD Module
AUO G121SN01-V.3 LCD Module
AUO G121SN01-V.3 LCD Module
G121SN01-V.3
AUO G121SN01-V.3 LCD Module
AUO G121SN01-V.3 LCD Module
AUO G121SN01-V.3 LCD Module
AUO

AUO G121SN01-V.3 LCD Module

Product SKU: NTSLCD0071
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand :  AUO
  • Size : 12.1"
  • Condition  :  Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 12,740.00
Rs. 18,225.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

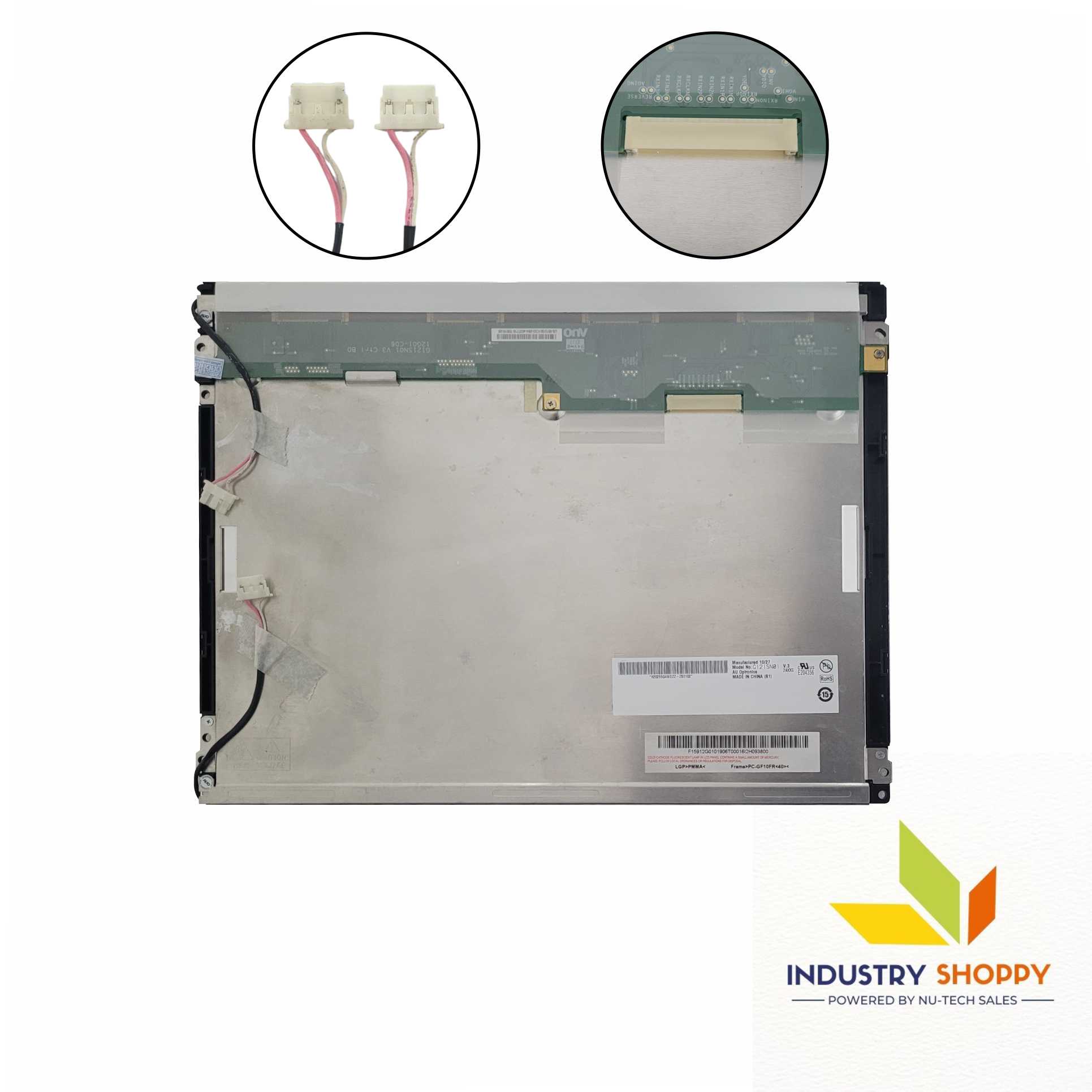

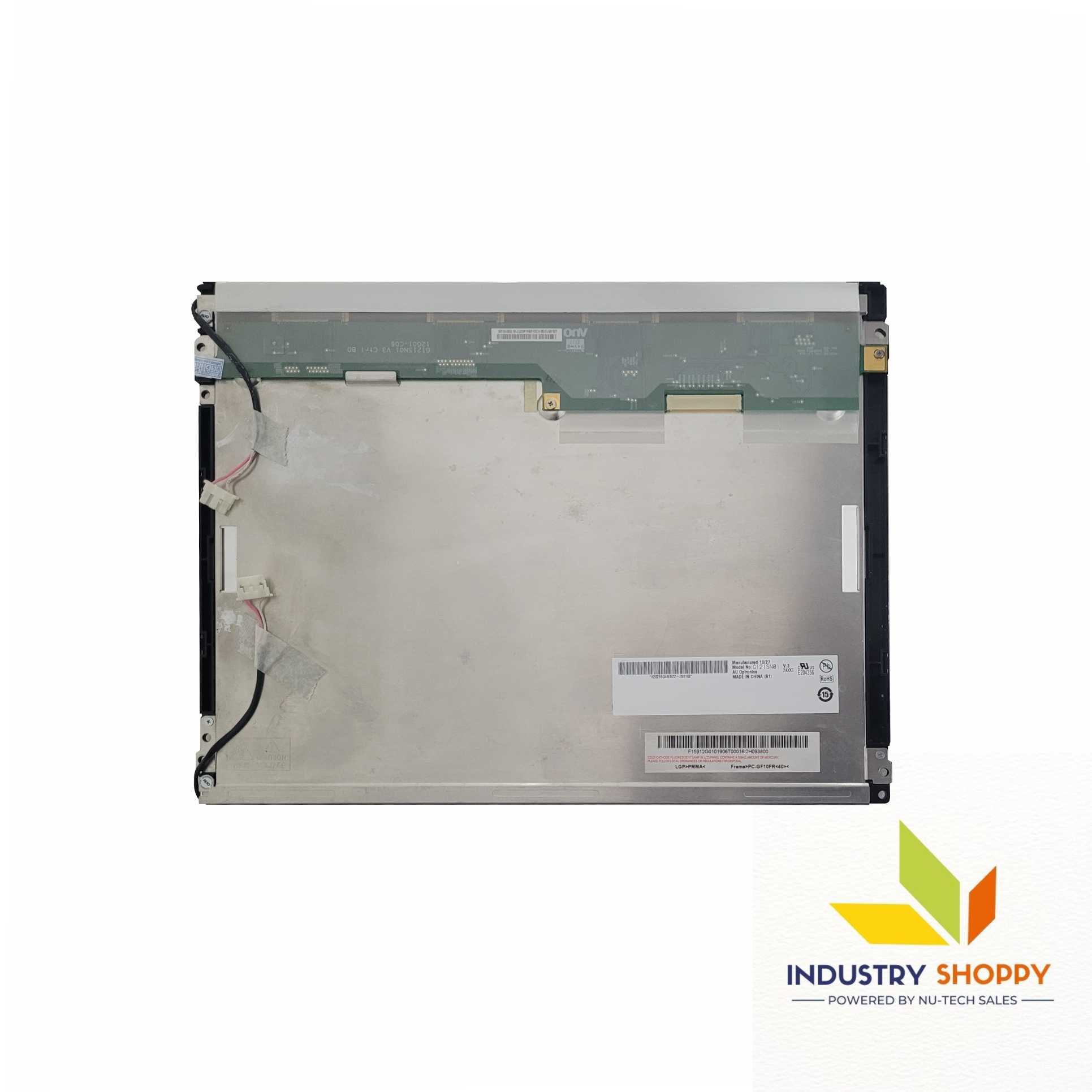

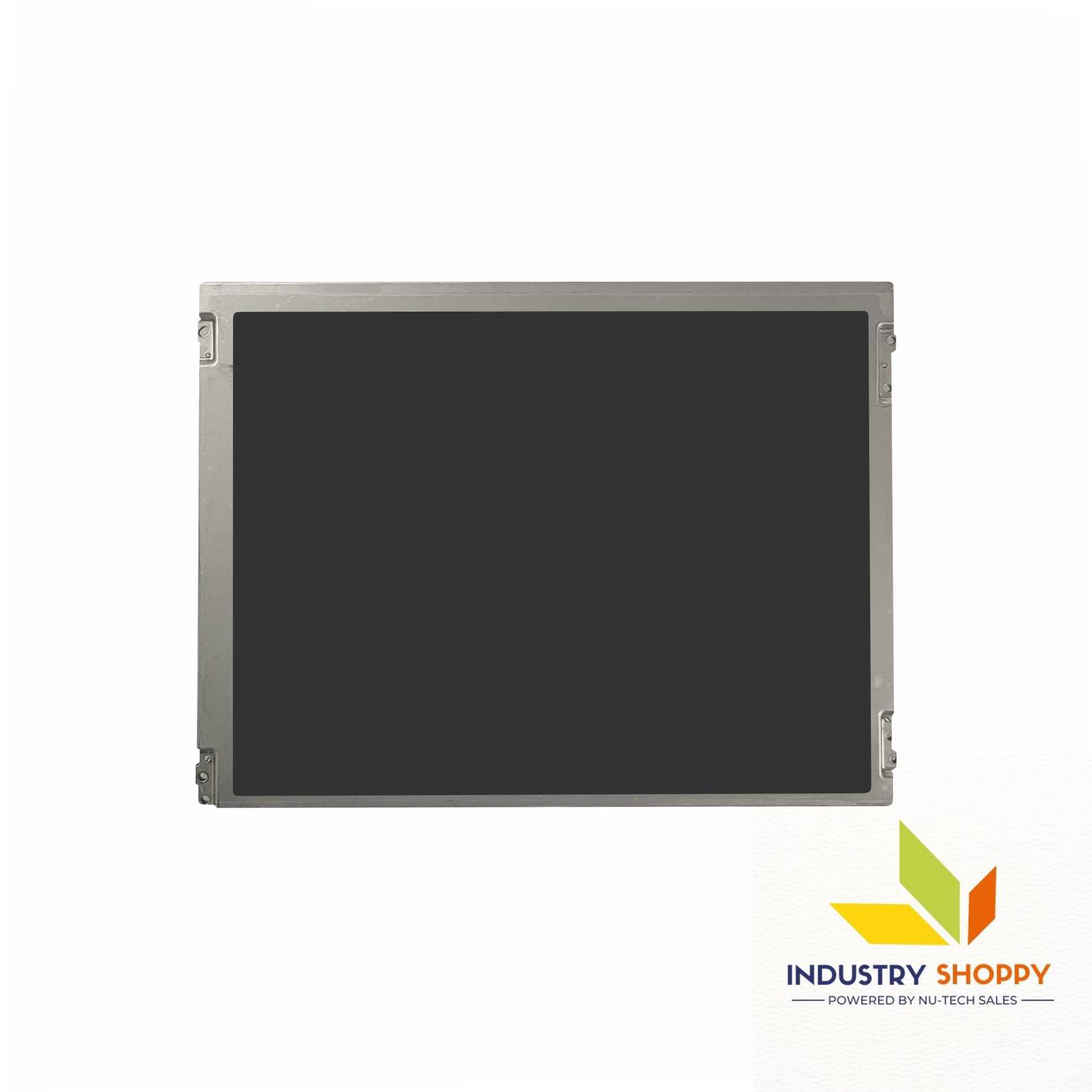

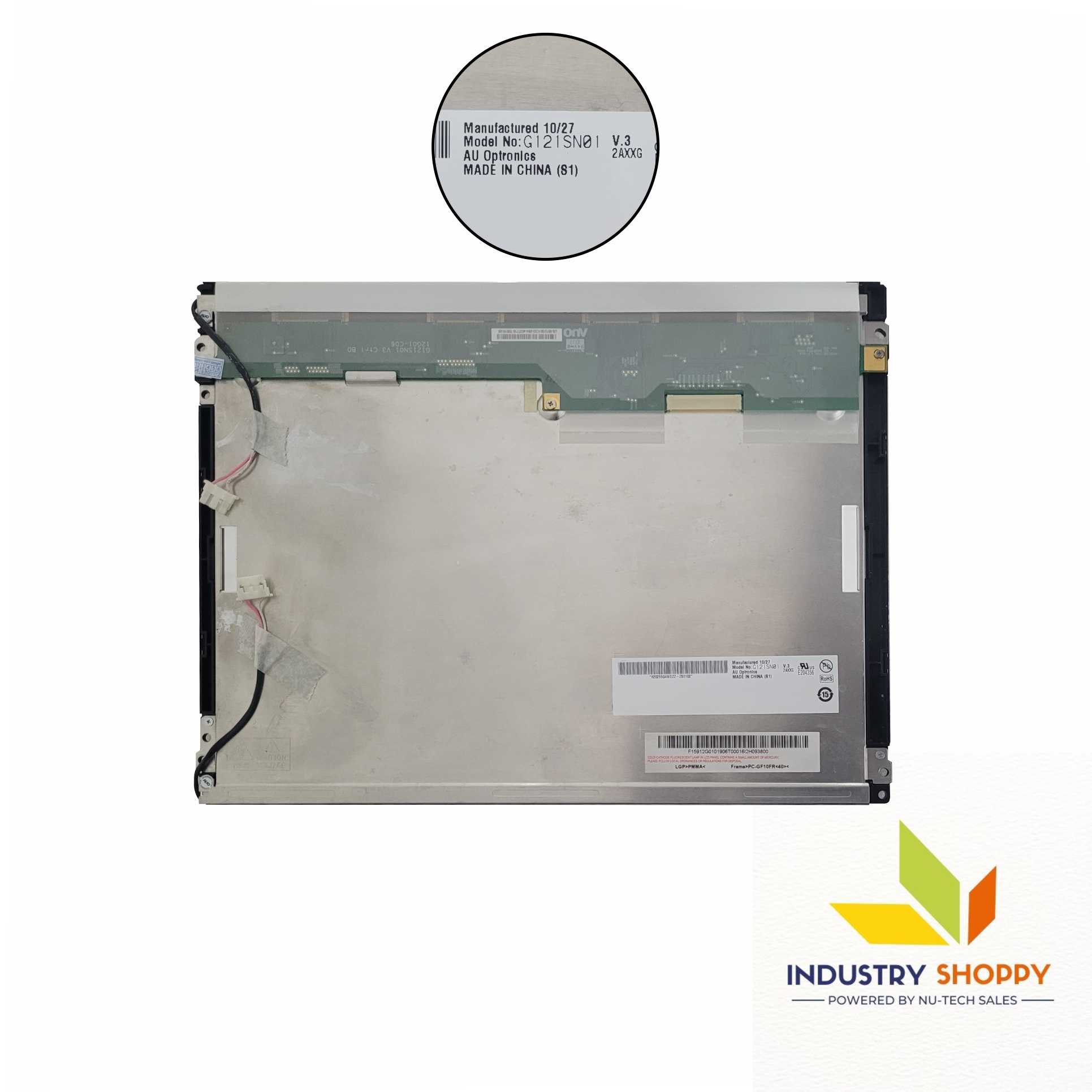

AUO G121SN01-V.3 LCD Module

The AUO G121SN01-V.3 LCD Module is 12.1-inch SVGA TFT-LCD module that balances performance, durability, and versatility—making it a reliable choice for a wide range of industrial and embedded applications. With a resolution of 800(RGB)×600 at 82 PPI, it delivers sharp visuals across a spacious 246 × 184.5 mm active area. Its compact 279 × 209 × 11 mm outline makes it suitable for rugged environments or space-constrained enclosures.

The display offers a typical luminance of 400 cd/m² and a contrast ratio of 600:1, ensuring crisp image quality even in brightly lit settings. Furthermore, the display offers wide viewing angles—80° horizontally and up to 60° vertically (CR≥10)—which help maintain consistent readability from multiple directions. As a result, it proves especially suitable for user-facing interfaces or shared display setups.

Built with a TN panel using a-Si TFT-LCD technology, the display operates in a normally white, transmissive mode. To enhance durability and visual clarity, it features an antiglare surface and a 3H hard coating that minimize reflections and resist scratches.

Moreover, the panel supports both 262K and 16.2 million colors, covering 55% of the NTSC gamut. This level of color depth ensures that graphics, indicators, and text remain distinct and reasonably vibrant, even in utilitarian display environments.

In terms of performance, the module delivers a response time of 10 ms (rise) and 25 ms (fall), making it suitable for general UI tasks, low-motion video, and real-time system feedback. For connectivity, it uses an LVDS (1 channel, 6/8-bit) interface via a 20-pin connector—offering reliable high-speed data transmission with good noise immunity, which is ideal for embedded system integration.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,




BrandAUO
Diagonal Size12.1"
Resolution800(RGB) × 600, SVGA 82 PPI
Active Area246(W) × 184.5(H) mm
Outline Dimension279 × 209 × 11 (H×V×D) mm
Luminance400 cd/m² (Typ.)
Contrast Ratio600:1 (Typ.) (TM)
Viewing Angle80/80/50/60 (Typ.) (CR≥10)
Response Time10/25 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare, Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color262K/16.2M, 55% NTSC
Signal Interface TypeLVDS (1 ch, 6/8-bit), 20 pins Connector
Frame Rate60Hz
Power Supply3.3V (Typ.)
Backlight2 pcs CCFL, 50K hours, No Driver
Operating Temp.-30 ~ 85 °C
Storage Temp.-30 ~ 85 °C
